Edge-Core EWS100 User manual
EWS100
Wireless LAN Controller
Quick Installation Guide
EWS100 ENGLISH
Copyright Notice
This document is protected by USA copyright laws and other laws and is the property of
Edgecore Networks Corporation. You may not copy, reproduce, distribute, publish,
display, perform, or modify any part of this publication in any form or by any means
without prior written permission from Edgecore Networks Corporation. You may not
alter or remove any copyright or other notice from copies of the content. All other
brand and product names are claimed or registered marks of their respective
companies or organizations.
All rights reserved.
FCC Caution
This equipment has been tested and proven to comply with the limits for a class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Quick Installation Guide
EWS100 ENGLISH
①
Package Contents
1. EWS100 x 1
2. Quick Installation Guide (QIG) x 1
3. Ethernet Cable x 1
4. Power Adapter (12V/1A) x 1
Preface
This Quick Installation Guide provides
instructions on how to install the EWS100
and to get the network up and running with
basic configurations.
Quick Installation Guide
EWS100 ENGLISH
②
System Overview
Front Panel
LED Indicators:
Power: Steady green light indicates a proper connection to a power source.
Status: Blinking green light indicates that the system is in the process of initializing. It turns
steady-on when the system is in operation state.
Back Panel
1. Restart / Reset Button: To restart the system, press and hold the button for more than 5 seconds and
release the button after the status LED on the front panel starts blinking. To reset the system to factory
default settings, press and hold the button for more than 10 seconds and release the button after the
status LED turns from blinking to off.
2. Port5 – Port2: RJ-45 ports (10/100/1000 Base-T) for the downlink Ethernet connection (LAN4 – LAN1).
Downlink devices such as APs and client PCs can be attached here. Note: In the Web Management
Interface, there is an option to switch the role of Port2 from the downlink port (LAN1) to the uplink port
(WAN2).
3. Port1: RJ-45 port (10/100/1000 Base-T) for the uplink Ethernet connection (WAN1). It is the default port
that can pass all traffic to an uplink device, such as the xDSL modem / router.
4. USB: USB port reserved for future use.
5. Power: Button to power on/off the system.
6. Power Socket: Socket to attach 12V/1A power adapter.
Do not power off the device after restarting or resetting the device. The process takes approximately
two minutes to complete.
Quick Installation Guide
EWS100 ENGLISH
③
Hardware Installation
Follow these steps to install EWS100:
1. Connect the power adapter to the power socket on the back panel of the EWS100. The Power LED will
turn steady green, indicating that the power source is properly connected.
2. Connect the WAN1 (Port1) of the EWS100 to a switch of an internal network, or directly to the ISP modem /
router, using an Ethernet cable. The LED of this port will be on, indicating a proper connection.
3. Connect an administrative PC directly to a LAN port of the EWS100 via an Ethernet cable. The LED of this
LAN port will be on, indicating a proper connection.
4. Lastly, access points can be connected to the switch, or directly to the LAN ports of the EWS100.
Quick Installation Guide
EWS100 ENGLISH
④
Getting Started
< System Overview >
Edgecore EWS100 is a Wireless LAN Controller that supports user management, AP management, and other
management functions. The following network diagram is a deployment example where the EWS100 is able to
centrally manage users and wireless access points at this site.
< Web Management Interface >
The EWS100 has a web-based interface for configuration and management. Follow the steps below to access
the Web Management Interface (WMI) for the first time.
1. Connect your administrative PC directly to a LAN port of the EWS100 via an Ethernet cable. The PC
should be assigned an IP Address in the same subnet as the EWS100’s (192.168.1.0/255.255.0.0).
Quick Installation Guide
EWS100 ENGLISH
⑤
2. Launch a web browser and enter the IP Address of Default Service Zone (192.168.1.254) in the address
field.
Log in using default Username (admin) and Password (admin) on the Administrator Login Page:
3. After a successful login, the system prompts for the administrator to change password for security
reasons. The new password needs to be at least 6 characters long and include at least one alphabet and
one number.
Quick Installation Guide
EWS100 ENGLISH
⑥
4. Welcome to System Main Menu page will appear after a successful login with the new password.
Quick Installation Guide
EWS100 ENGLISH
⑦
Basic Configurations
< Setup Wizard >
Use Setup Wizard (the button on the top right corner)
to set up the EWS100 with basic configurations for
the first time:
Step 1: General
Select a time zone to set up the system time.
Click Next to continue.
Step 2: WAN1 Interface
Select a proper type of uplink connection for
WAN1 interface: Static, Dynamic, or PPPoE.
Click Next to continue.
Step 3: Local User Account (Optional Step)
Create a new user account in the Local account
database. You can click Skip to go directly to Step 4.
Enter the Username (e.g. “testuser) and
Password (e.g. “testuser”) to create a new local
account.
Click Next to continue.
More local accounts can be added by clicking the
Back button in Step 4.
Step 4: Confirm and Restart
Click Finish to save current settings and restart
the system.
A confirmation dialog box will then appear. Click
OK to continue.
Quick Installation Guide
EWS100 ENGLISH
⑧

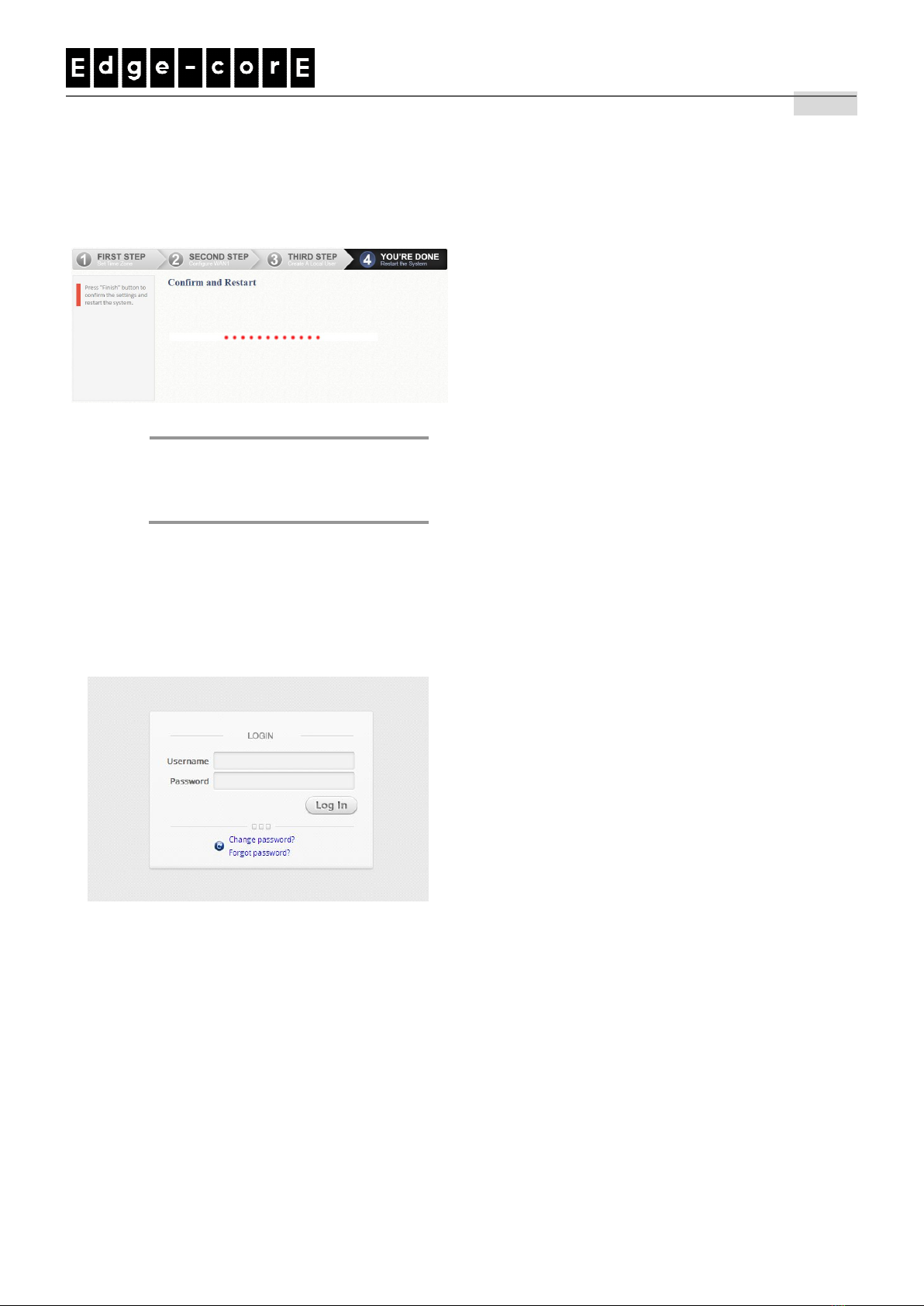

A Confirm and Restart message will appear
during the restarting process. Please do not
interrupt the system until the Administrator Login
Page appears.
Note:
The system will try to reach a DNS
server at this stage. Therefore, it may
take a longer time if the configured
DNS cannot be found.
The system restart process is completed when
the following Administrator Login Page
appears.
