Echo POWER PRUNER PPT-265 User manual

Power PrunerTM

Operator'sManual

MODEL: 99946400020 5' EXTENSION

FOR MODELS PP-1200/1250/1260

PPT-2100/2400

PPT-230/231

PPT-260/261

PPT-280

PPT-265

99946400030 5' EXTENSION

FOR MODELS PP-1400

PPFD-2400

PPFD-260

89865022060

04/07

X7502300600

ENGLISH

FRANCAIS

ESPAÑOL

WARNING DANGER

Readrulesforsafeoperationandinstructionscarefully. ECHOprovidesanOperator's

ManualandaSafetyManualwithyouroriginalPowerPrunerTM. Thosemanualsandthis

manual mustbereadandunderstoodforproperandsafeoperation.

5FOOT EXTENSION INSTALLATION

Tools Required: Screwdriver, 3mmHexWrench,MeasuringTape

Parts Required: 1524mm(5Foot)Extension

WARNING DANGER

The Saw Chain is sharp! Always wear gloves when handling the

cutting attachment, otherwise serious personal injury may result.

1. Loosen the four (4) screws (A), and locator screw (B) on cutting

attachment, and remove the cutting attachment.

(PPTOnly)

2. Loosen clamp knob (C) turning counter clockwise.

3. Pullaluminumhousing(D)outoffiberglasshousing610mm(24in.),

thenslide (D)backintofiberglasshousing approximately305mm

(12in.)exposinginnerdriveshaft(E).

(All Models)

4. Measure178mm(7in.)fromendofaluminumhousing(D),andmark

the housing.

5. Loosen the extension clamp knob (G) turning counter clockwise.

6. Align inner drive shaft adapter (E) with extension shaft (F).

NOTE

Assure locator hole in extension shaft is oriented on same side as

locatorholein aluminum housing(D).

7. Align ridges on aluminum housing (D) with seams in extension

housing. Slide the extension onto housing (D) to the 178mm (7 in.)

mark.Tightenextensionclampknob(G)securely.

12 in.

7 in.

5' EXTENSION ATTACHMENT

OPERATOR'SMANUAL 3

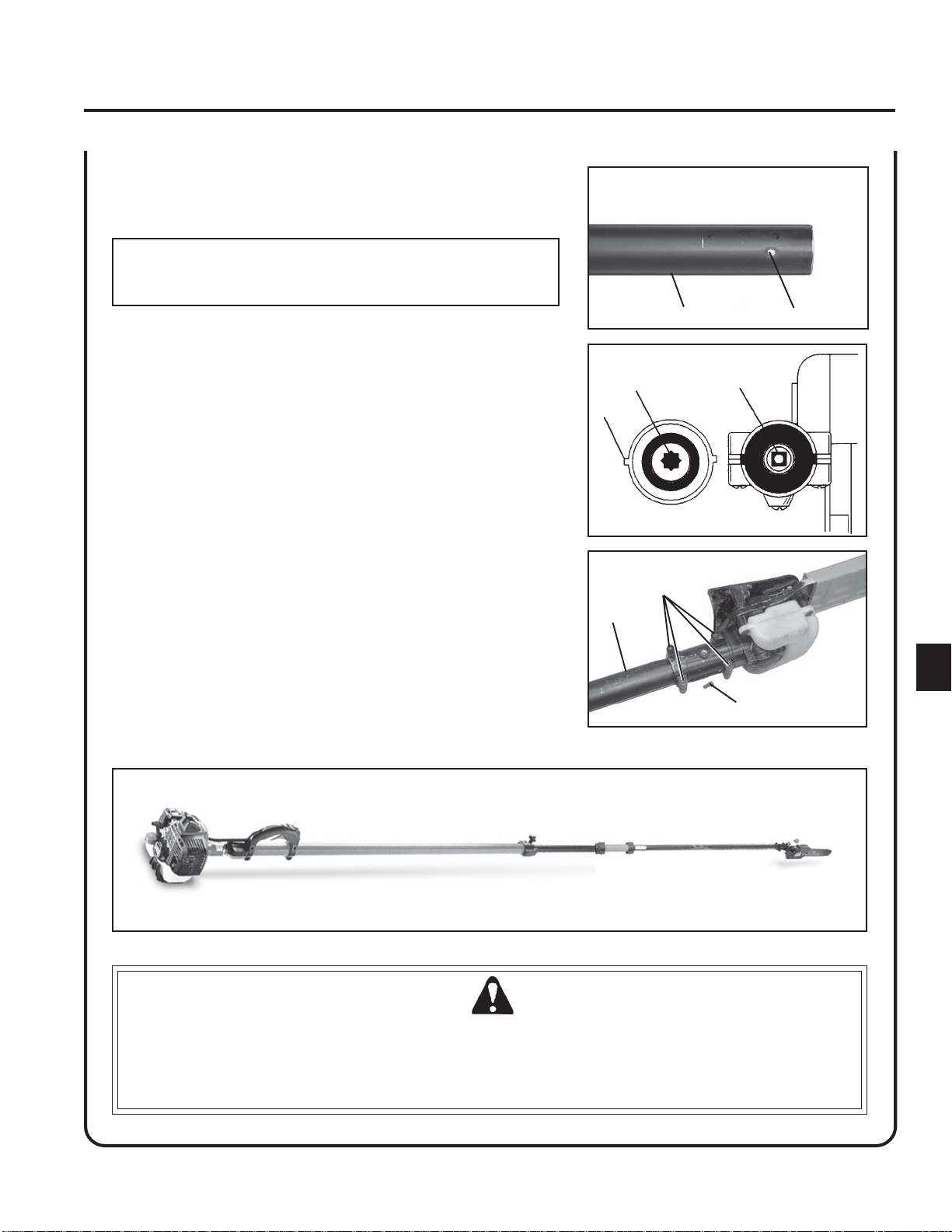

8. Align extension drive shaft adapter (H) with cutting attachment

shaft(I).

NOTE

Locator screw in cutting attachment must align with locator hole in

extension housing.

9. Align ridges on aluminum extension housing (J) with seams in

cutting attachment and slide cutting attachment onto extension

housing. Remove locator screw (B) to align locating hole in cutting

attachment with locating hole (L) in aluminum extension housing.

10. Install and tighten locator screw (B). Tighten four (4) cutting

attachment screws (A).

WARNING DANGER

• The Power PrunerTM is designed to accept only one extension. Use of more than one extension or longer shafts

can result in balance and control problems leading to possible personal injury to operator and bystanders and/or

unit damage.

• UsethisextensionwithECHOPowerPrunerTM modelsONLY.

ECHO CONSUMER PRODUCT SUPPORT

If you require assistance or have questions concerning the application, operation or maintenance of this product you may

calltheECHOConsumerProductSupportDepartmentat1-800-673-1558from8:30amto4:30pm(CentralStandardTime)

Monday through Friday. Before calling, please know the model and serial number of your unit to help your Consumer

Product Support Representative.

ECHO, Incorporated 400 Oakwood Road Lake Zurich, IL 60047

www.echo-usa.com
