Ebyte E18 Series User manual
E18 series ZigBee wireless module
Firmware Update Operation Instructions
Chengdu Ebyte Electronic Technology Co,;Ltd
AN2022001
Copyright @2012–2023，Chengdu Ebyte Electronic Technology Co,;Ltd
2
目录
Step 1 Hardware preparation .................................................................................. 3
Step 2 Install tools and drivers .................................................................................. 3
Step 3 Connect debugger/programmer to target module/test kit ........................................................3
Step 4 Connect USB cable .................................................................................... 4
Step 5 Associate a USB device with a USB driver .................................................................. 4
Step 6 Check LED status ...................................................................................... 4
Step 7 Flash firmware .........................................................................................5
Revision history ............................................................................................. 6
Chengdu Ebyte Electronic Technology Co,;Ltd
AN2022001
Copyright @2012–2023，Chengdu Ebyte Electronic Technology Co,;Ltd
3
Step 1 Hardware preparation
Prepare the following items：

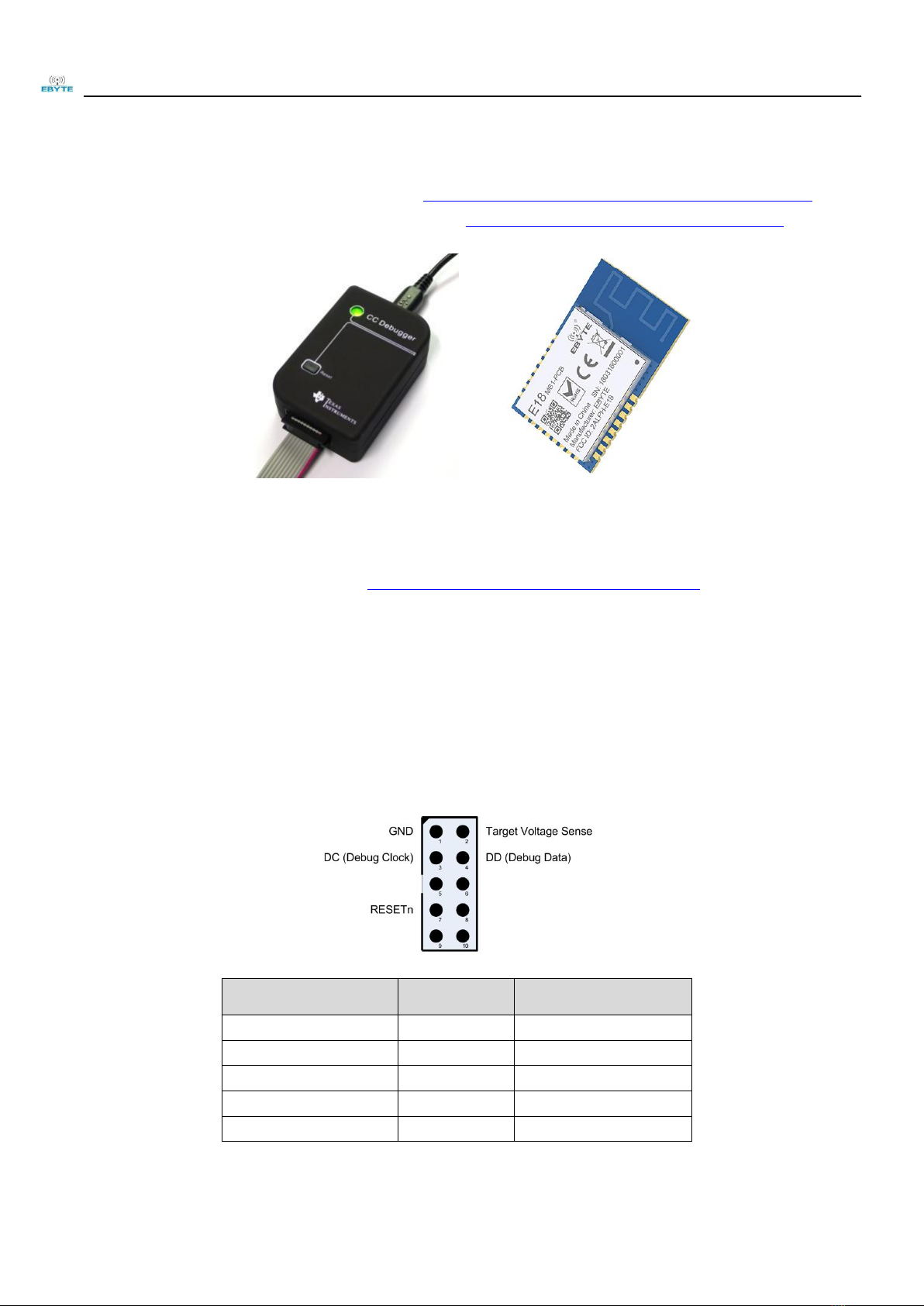

Debugger/Programmer CC Debugger https://www.ebyte.com/en/product-view-news.html?id=947
Ebyte E18 seires module or E18 series test kits https://www.cdebyte.com/product_serch/E18-/1/
Step 2 Install tools and drivers
To obtain the USB drivers required by the tools, it is recommended to download and install the tools listed below:
SmartRF™ Flash Programmer https://www.ti.com/tool/FLASH-PROGRAMMER
After the tool is installed, the driver will be stored in the following default path:
C:\Program Files\Texas Instruments\SmartRF Tools\Drivers\cebal
Step 3 Connect debugger/programmer to target module/test kit
Connect debugger/programmer to target module/test kit，The minimum connections required for SOC debugging and
programming are shown in the below:
CC Debugger
connecting
E18 modules/test kit
GND
-
GND
Target Voltage Sense
-
VCC
DC(Debug Clock)
-
P2.2
DD(Debug Data)
-
P2.1
RESETn
-
RESET
For the pin definitions of E18 series modules/test kits, please refer to the relevant product manuals.
Chengdu Ebyte Electronic Technology Co,;Ltd
AN2022001
Copyright @2012–2023，Chengdu Ebyte Electronic Technology Co,;Ltd
4
Step 4 Connect USB cable
Connect the USB cable to the debugger and then to the PC.
Step 5 Associate a USB device with a USB driver

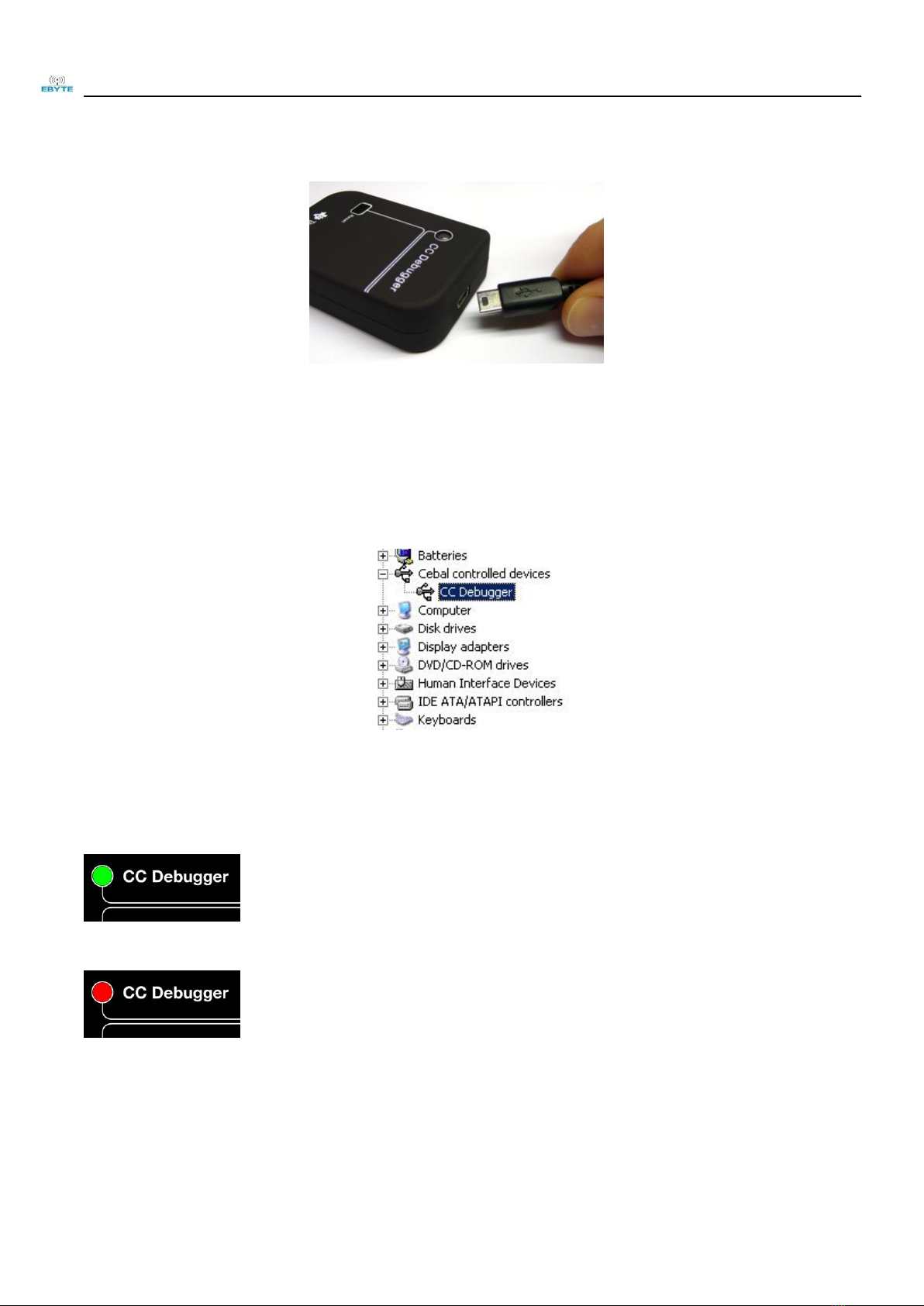

When the debugger/programmer is connected to the PC, the PC will detect the new USB device. Windows will automatically handle the
installation and association of the relevant drivers.
If Windows does not automatically recognize the device driver, please disconnect the target module/test kit and reconnect the USB cable to try.
Or install the driver manually, the driver path：
C:\Program Files\Texas Instruments\SmartRF Tools\Drivers\cebal
Step 6 Check LED status
The debugger/programmer is respectively connected to the target module/test kit and PC, and it supplies power to the target module/test kit.
Then check the status of the LEDs on the Debugger/programmer.
If the light is Green, the debugger/programmer has successfully detected the chip on the target.
If the light is Red, the debugger/programmer failed to detect the chip on the target.
Please ensure that all required wires are properly connected and the target board is powered. Or please press the reset button of the
debugger/programmer to retry the chip detection.
Chengdu Ebyte Electronic Technology Co,;Ltd
AN2022001
Copyright @2012–2023，Chengdu Ebyte Electronic Technology Co,;Ltd
5
Step 7 Flash firmware

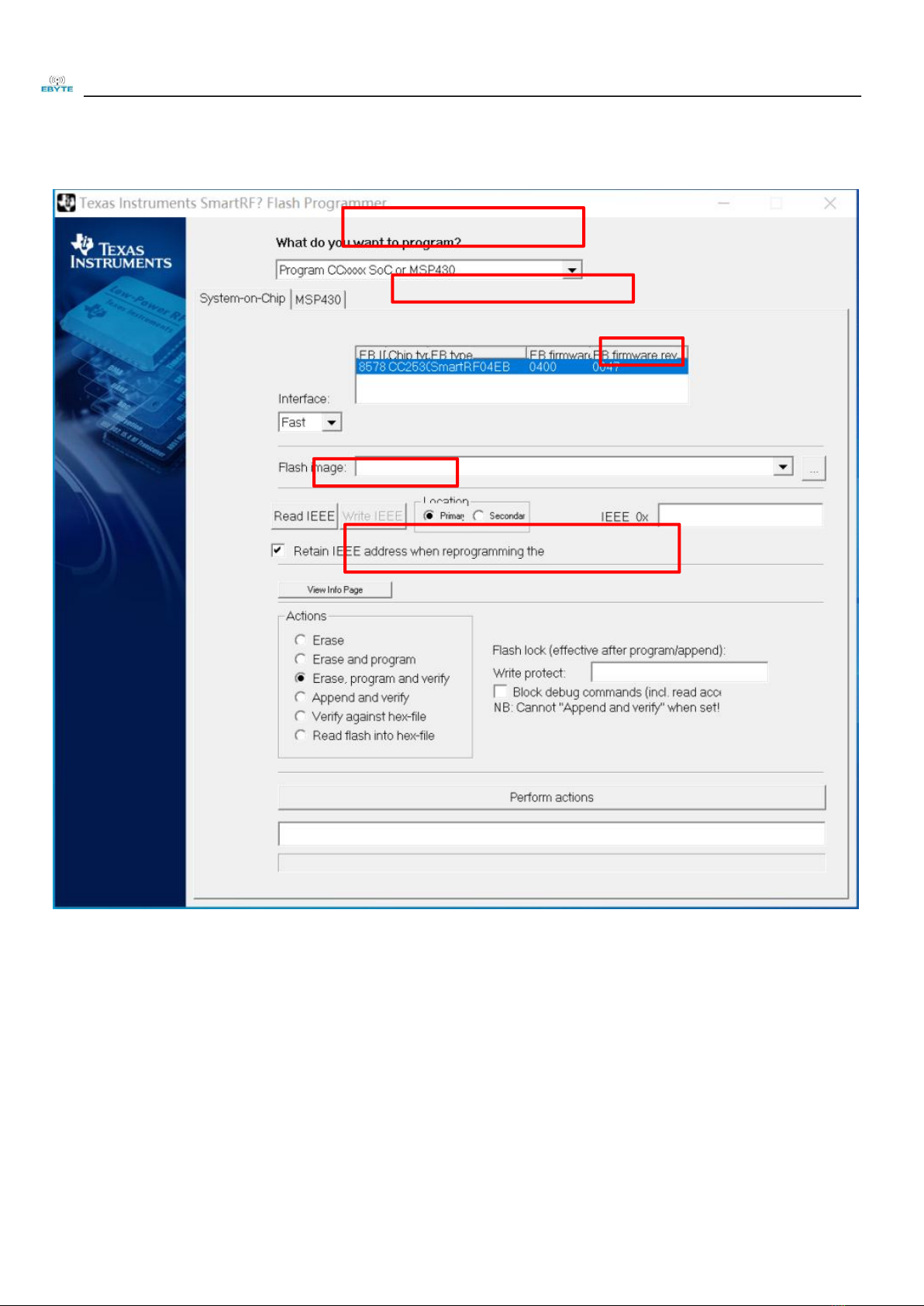

Opent SmartRF™ Flash Programmer：
○
1Select “Program CCxxxx SoC or MSP430”；
○
2 Displays the successfully recognized SoC chip, it can be considered that the connection is successful;
○
3Select the firmware file "*.Hex" file;
○
4It is recommended to select “Erase,program and verify”；
○
5 Click“Perform action”, start to flash the firmware and waiting for the progress bar is to complete.
○
1
○
2
○
3
○
4
○
5
Chengdu Ebyte Electronic Technology Co,;Ltd
AN2022001
Copyright @2012–2023，Chengdu Ebyte Electronic Technology Co,;Ltd
6
Revision history
Version
Date
Description
Issued by
1.0
2022-9-1
Initial version
Ning
About us
Technical support: support@cdebyte.com
Documents and RF Setting download link: https://www.ru-ebyte.com
Thank you for using Ebyte products! Please contact us with any questions or suggestions: in[email protected]
------------------------------------------------------------------------------------------------------------
Fax: 028-61543675 ext. 821
Web: https://www.ru-ebyte.com
Address: Innovation Center D347, 4# XI-XIN Road,Chengdu, Sichuan, China
