Ebyte E108-GN02D User manual

E108-GN02D User Manual

GK9501 Positioning module

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

CONTENTS

CHAPTER 1 OVERVIEW..................................................................................................................2

1.1 INTRODUCTION...........................................................................................................................2

1.2 FEATURES................................................................................................................................ 2

1.3 APPLICATION SCENARIO.............................................................................................................3

CHAPTER 2 QUICK START..........................................................................................................3

CHAPTER 3 SPECIFICATIONS....................................................................................................... 5

3.1 GPS PERFORMANCE PARAMETERS.............................................................................................5

3.2 BASIC PARAMETERS................................................................................................................... 6

CHAPTER 4 SIZE AND PIN DEFINITION.................................................................................. 7

CHAPTER 5 HARDWARE DESIGN................................................................................................ 8

CHAPTER 6 WORKING MODE.................................................................................................... 8

CHAPTER 7 RELATED MODELS................................................................................................... 8

CHAPTER 8 BULK PACKAGING................................................................................................... 9

REVISION HISTORY.......................................................................................................................10

ABOUT US....................................................................................................................................... 10

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

Chapter 1 Overview

1.1 Introduction

E108-GN02D is a high-performance, high-integration, low-power, low-cost multi-mode satellite

positioning and navigation module. It is small in size and low in power consumption. It can be used for

GNSS positioning such as car navigation, smart wear, and drone flight control. Application. Provides

hardware interface, supports UART communication and low power consumption mode. Support

BDS/GPS/GLONASS/GALILEO/QZSS/SBAS and other satellite positioning.

The module adopts the integrated design of radio frequency baseband antenna,

integrates DC/DC, LDO, radio frequency front end, low-power application

processor, RAM, Flash storage, RTC and power management, etc. It is powered

by button battery RTC and backup RAM. Reduce first positioning time. The

module supports serial port to connect with other peripherals, and the operation

is simple, and it will automatically start running after power on. Allow users to

get started very quickly.

1.2 Features

Support BDS/GPS/GLONASS/GALILEO/QZSS/SBAS multi-system joint positioning and

single-system independent positioning;

D-GNSS differential positioning, A-GNSS assisted positioning, ephemeris prediction, DR

integrated navigation application, the fastest data update rate is 10Hz;

32-bit application processor, the highest frequency is 133MHz, supports dynamic frequency

adjustment;

Support PPS output, the default period is 1s;

Built-in reset controller;

Support UART communication;

RTC: Support 32.768 KHz ± 20 ppm crystal oscillator, 1.1V RTC clock output, support

external signal wake-up;

Output format: Support NMEA0183 V4.1 and previous versions, the maximum fixed update

frequency can reach 10Hz;

High sensitivity: capture cold start -149dBm, hot start -162dBm, tracking -166dBm;

Ultra-low power consumption: 35mA capture, low power consumption mode can be entered

through the interface.

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

1.3 Application scenario

Vehicle positioning and navigation equipment;

Wearable devices, such as GPS trackers, etc.;

UAV positioning, industrial computers, etc.;

Industry equipment that requires GNSS positioning or navigation；

Chapter 2 Quick start

This chapter is tested based on E108-GN02D:

1. Connect to a computer through a serial converter.

2. You can open the serial port assistant to view the data reported by the serial port, or use our

naviTrack to view.

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

When the baud rate is set to 9600 bps, data will be reported all the time after opening the

serial port. The common output format is as follows:

GGA: time, location, number of satellites;

GSA: GPS receiver operating mode, satellites used for positioning, DOP value, positioning

status;

GSV: visible GPS satellite information, elevation angle, azimuth angle, signal to noise ratio;

RMC: time, date, location, speed;

VTG: ground speed information;

For detailed meaning, please refer to the third section NMEA0183 protocol;

For ease of use, we recommend using the exclusive tool TaviTrack for debugging. For

detailed usage, please refer to the "naviTrack User Manual".

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

1. Run naviTrack. with administrator privileges, run the above page;

2. Select the corresponding com port and click connect. After the connection is successful,

you can see the reported data in the NMEA window.

3. For detailed meaning, please refer to the description in the third section NMEA0183

protocol;

4. After the positioning is successful, you can get the latitude and longitude information in

the $GPRMC field reported by the serial port. For more detailed tool usage information,

please refer to the user manual in the toolkit。

Chapter 3 Specifications

3.1 GPS performance parameters

Category

Description

letter of agreement

Support NMEA0183 V4.1 and previous versions, the maximum

fixed update frequency can reach 10Hz

Supported positioning system

BDS/GPS/GLONASS/GALILEO/QZSS/SBAS

Support peripheral interface

UART (TXD/RXD)

Low power consumption

Support

Periodic low power consumption

Support

Direct low power consumption

Support

Parameter setting software

Support

Certification

Pending

Module size

22*20*5.8mm(L*W*H)

interface

6P wiring seat, spacing 1.0mm

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

power supply

VCC (3-5.5V)

Serial port

Communication

level

2.8V—3.3V（2.8V）

Baud rate (bps)

9600~921600，default 9600

Data bit

8bit

Stop bit

Chapter 4 Size and pin definition

22*20*5.8mm

22mm long

20mm wide

5.8mm in height

Pin number

Name

Description

Power enable terminal, can be pulled down to enter low power

consumption mode (default is high)

1PPS

1PPS output, users can set frequency, duration, etc. through commands

GND

Module power ground wire

TXD

UART output (2.8V level)

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

RXD

UART input (2.8V level)

VCC

Module power supply (3V—5.5V)

Chapter 5 Hardware Design

It is recommended to use a DC stabilized power supply to power the module, the power supply

ripple should not exceed 30mV, and the module must be reliably grounded;

Please pay attention to the correct connection of the positive and negative poles of the power

supply. Reverse connection may cause permanent damage to the module;

Please check the power supply to ensure that it is within the recommended power supply voltage.

If it exceeds the maximum value, it will cause permanent damage to the module;

The serial ports TXD and RXD are LVTTL levels. If connected to a PC, RS232 level conversion

is required. User can use this serial port

Receive positioning information data and software upgrades.

This module is a temperature-sensitive device, and drastic changes in temperature will reduce its

performance. Try to stay away from high-temperature airflow and high-power during use.

Heating device

When designing the power supply circuit for the module, it is often recommended to reserve more

than 30% of the margin, and the whole machine is conducive to long-term stable operation;

The module should be as far away as possible from power supply, transformer, high frequency

wiring and other parts with large electromagnetic interference;

Assuming that there are devices with large electromagnetic interference around the module, it will

greatly affect the performance of the module. According to the intensity of the interference, it is

recommended to stay away from the module. If the situation permits, proper isolation and

shielding can be done；

Chapter 6 Working Mode

1. Please refer to "GK9501 Input and Output Format" in the data package for the command

format of related software functions of the module.

2. This module supports AGPS settings. For detailed setting methods, please refer to the "Goke

AGPS User Manual" in the information package.

Chapter 7 Related Models

Chengdu Ebyte Electronic Technology Co., Ltd. E108-GN02D User Manual

Product number

Support satellite

Package form

Size mm

Interface

E108-GN01

GK9501

BDS/GPS/GLONASS/GALILEO/QZSS/SBAS

SMD

16*12*2.4

UART/GPIO

E108-CN02

GK9501

BDS/GPS/GLONASS/GALILEO/QZSS/SBAS

SMD

10.1*9.7*2.4

UART/GPIO

E108-CN02D

GK9501

BDS/GPS/GLONASS/GALILEO/QZSS/SBAS

DPI

22*20*5.8

UART

Chapter 8 Bulk Packaging

Table of contents

Other Ebyte Control Unit manuals

Ebyte

Ebyte E28-2G4M27S User manual

Ebyte

Ebyte E31-400M17S User manual

Ebyte

Ebyte E31-433T30D User manual

Ebyte

Ebyte E30-TTL-100 User manual

Ebyte

Ebyte E52-400/900NW22S User manual

Ebyte

Ebyte E103-W03 Specification sheet

Ebyte

Ebyte E70-915NW30S User manual

Ebyte

Ebyte E43-900T13S3 User manual

Ebyte

Ebyte E108-GN Series User manual

Ebyte

Ebyte E79-900DM2005S User manual

Ebyte

Ebyte E73-2G4M04S1D User manual

Ebyte

Ebyte E104-BT5032A User manual

Ebyte

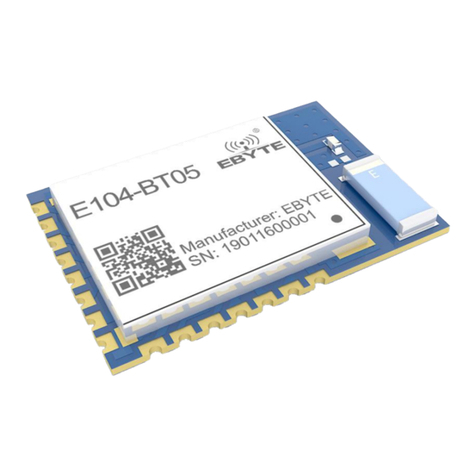

Ebyte E104-BT05 User manual
