Operation and Maintenance Instructions

Operation and Maintenance Instructions for EC Aura 115V

Document no 210-OMI0014-40

Issue 5

Part No:

COOL500EC-115

Manufacturer: ebm-papst UK Ltd

Stationary class 1 motor operated appliance with a fixed supply cord

Contents

1. Safety Notice ................................................................................................................................. 3

1.2 Overcurrent protection .............................................................................................................. 3

2. Specification ..................................................................................................................................... 4

2.1 General ........................................................................................................................................ 4

2.2 eco-design regulation for fans 327/2011................................................................................ 4

3 Operating instruction .................................................................................................................... 5

4 Maintenance .................................................................................................................................. 5

5 WEEE (waste electrical and electronic equipment) ................................................................ 5

6 End of life ....................................................................................................................................... 6

7 Take back policy ........................................................................................................................... 6

8 Data sheet ..................................................................................................................................... 8

9 Certificate of Conformity .............................................................................................................. 9

Figure 1 - EC Aura .................................................................................................................................... 4

Figure 2 - control panel sub-assembly .................................................................................................... 6

Figure 3 - ousing sub-assembly ............................................................................................................. 6

Figure 4 - trolley ...................................................................................................................................... 7

Table 1 - data according to regulation 327/2011 .................................................................................. 5

1.Safety Notice

WARNING

Danger of Electric Shock

•Additional overcurrent protection is required.

•Do not leave under 14 years old children near the

appliance unsupervised when appliance is in

operation

•Do not push fingers or objects through guards

•Keep guards clear from obstructions

•Do not operate appliance in an explosive

atmosphere

•If the supply cord is damaged it must be replaced

by the manufacturer or its service agent, or similarly

qualified person

•Isolate the appliance by disconnecting the plug and

supply cord from the mains socket. The switch on

the appliance does not isolate the appliance

•Do not move the appliance during operation.

Disconnect from mains supply before moving

•Do not jet or power wash

OTHER CONSIDERATIONS

The mains plug is a disconnection device. The earth

bond resistance is nominally 0.11 ohms

1.2 Overcurrent protection

NOTE: The user is responsible for the overcurrent protection of the supply conductors.

The motor has an internal non-replaceable fuse to protect against high current, but will

not protect the supply conductors.

The supply conductors and connectors are rated at 16 Amp. An overcurrent device

rated for a lesser current is required to be used before use.

2. Specification

2.1 General

This is a stationary Class I motor -appliance with a fixed supply lead

Manufacturer: ebm-papst UK ltd

Part number: COOL500EC-115

Voltage: 115 V 50/60 Hz

Current: rated for maximum 3.9 Amp

Ambient temperature: Maximum 55

Protection: IP54

Figure 1 - EC Aura

2.2 eco-design regulation for fans 327/2011

The fan integrated in this appliance meets the requirements of eco-design regulation

327/2011 for fans driven by motors. The following is data as required by the regulation.

Actual

Target

(1)

Overall efficiency η

(%)

31.5

30.9

(2)

Measurement categ ry

(3)

Efficiency categ ry

Static

(4)

Efficiency grade N

40.6

(5)

Variable Speed Drive (VSD)

yes

(6)

Year f manufacture

The m nth and year f manufacture is sh wn n the data plate as

m nth/year xx/xx

(7)

Manufacturer

ebm

papst UK ltd

Chelmsf rd Business Park

Chelmsf rd

Essex

CM2 5EZ

United Kingd m Great Britain

(8)

Pr duct m del number

A3G500

AD01

51 with stat r inc rp rated within the appliance

h using

(9)

P wer c nsumpti n P

(kW)

at ptimal energy efficiency

0.3685

(9)

Fl w rate q

/h) at the

ptimal energy efficiency

3,899

(9)

Pressure p

(Pa) at the

ptimal energy efficiency

(10)

R tati nal speed rpm (n/min

-1

)

at the ptimal energy

efficiency

1,080

(11)

Specific rati

1.00

(12)

Disassembly, recycling and

disp sal at end

life

Inf rmati n is pr vided within the Operati n and Maintenance

Instructi ns

(13)

Maintenance

Inf rmati n is pr vided within the Operati n and Maintenance

Instructi ns

(14)

Additi nal c mp nents

N additi nal c mp nents where used when

determining the

efficiency f the fan.

Table 1 - data according to regulation 327/2011

Operating instruction

The EC Aura is an appliance to assist cooling by blowing a jet of air. The appliance

shall be connected to a mating mains socket and power turned on.

There is an actuator to turn the appliance on and off on the top of the appliance.

Warning: this does not isolate the mains supply. To isolate the appliance disconnect

the plug and supply cord from the mains supply socket.

When the actuator switch is turn on the speed of the fan and the volume of air moved

is adjusted by rotating the knob on top of the appliance.

The appliance can be titled to angle the jet of air up or down. Warning: ensure the

supply cord does not become jammed.

The appliance can be moved using the fixed wheels. Warning: do not move the

appliance during operation.

Maintenance

•Electrical Strength Test: the regular high-voltage test must be undertaken with

a DC voltage to avoid damaging internal electronic components.

•This appliance contains no user serviceable parts.

•Clean only with a damp cloth. Warning: do not jet or power wash.

•If the supply cord is damaged return to the supplier for repair or repair using a

suitably qualified person in order to avoid a hazard.

WEEE (waste electrical and electronic equipment)

ebm-papst UK Ltd complies with the Waste Electrical and Electronic Equipment

(WEEE) Regulations through membership of a producer compliance scheme (PCS)

as a B2B producer. EEE Producer registration number: WEE/CA0209WR.

End of life

This product has been designed to consider re-use and end-of-life disposal. The parts

likely to wear during use, the tilt mechanism, electric motor/fan and speed control unit

are designed for easy repair or replacement. The manufacturer should undertake the

repair of the components, but a suitably qualified and competent person can undertake

replacement of the components, enabling the life of the product to be extended.

If the product has come to the end of its life and it is not practical to repair then the

unit can be easily disassembled for the components to be recycled. The product has

been designed to meet the requirements of the RoHS directive and most of the

materials can be recycled.

Refer to figure 2, 3 and 4 when repairing or dismantling the appliance.

Take back policy

As part of our commitment to minimise the disposal of Waste Electrical and Electronic

Equipment (WEEE) customers can return the ec aura at the end of its life. Please

Figure 2 - control panel sub-assembly

Figure 3 - housing sub-assembly

Figure - trolley

8 Data sheet

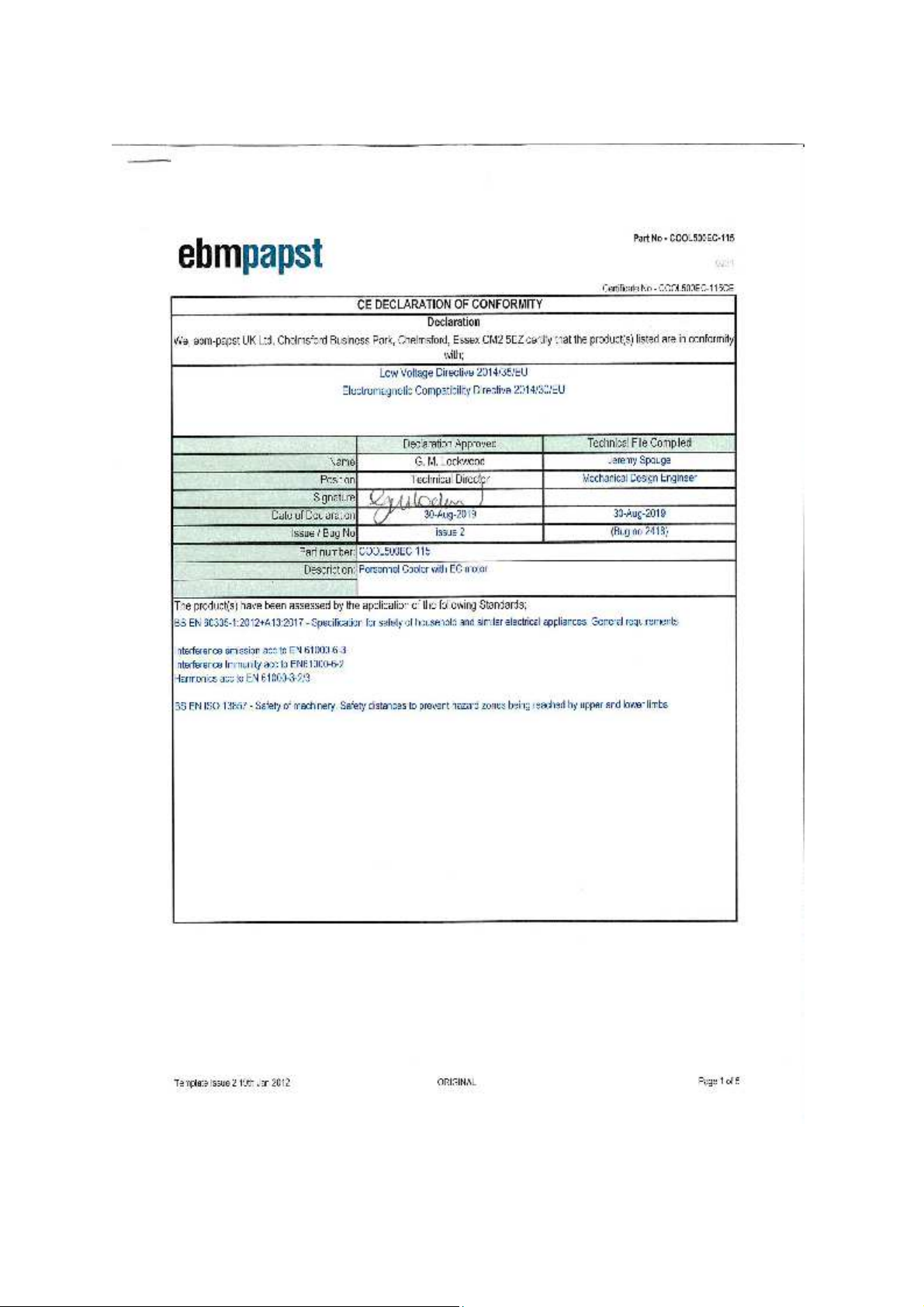

9 Certificate of Conformity
