Eaton AT0 I Series Manual

Electric current! Danger to life!

Only skilled or instructed persons may

carry out the following operations.

Lebensgefahr durch elektrischen Strom!

Nur Elektrofachkräfte und elektrotechnisch

unterwiesene Personen dürfen die im Folgenden

beschriebenen Arbeiten ausführen.

Tension électrique dangereuse !

Seules les personnes qualifiées et averties doivent

exécuter les travaux ci-après.

¡Corriente eléctrica! ¡Peligro de muerte!

El trabajo a continuación descrito debe ser realizado

por personas cualificadas y advertidas.

Tensione elettrica: Pericolo di morte!

Solo persone abilitate e qualificate possono eseguire

le operazioni di seguito riportate.

触电危险！

只允许专业人员和受过专业训练的人员进行

下列工作。

Электрический ток! Опасно для жизни!

Только специалисты или проинструктированные

лица могут выполнять следующие операции.

تﻮــﻣ ﺮــﻄﺧ ! ﻲﺋﺎــﺑﺮﻬﻛ رﺎــﻴﺗ ! ﺮﻳﺬــﺤﺗ !

ﺐـــــﻴﻛﺮﺘﻟا و ﺔﻧﺎﻴـــــﺼﻟا لﺎـــــﻤﻋا ﻢـــــﺘﺗ ﻻ

ﻦﻴﺑرﺪــــﻤﻟا ﻦﻴﻠﻣﺎــــﻌﻟا ﻞــــﺒﻗ ﻦــــﻣ ﻻا !

1/3

Instruction Leaflet

Montageanweisung

Notice d’installation

Instrucciones de montaje

Istruzioni per il montaggio

安装说明

Инструкция по монтажу

تﺎـــــﻤﻴﻠﻌﺘﻟا رﻮـــــﺸﻨﻣ

08/21 IL05208013Z

AT0-…-I/…

AT0-…-IA

/RS /ZRS /ZS /AR /WR /R /V /H /F

DIN EN 50 047 B C – – E – A – – –

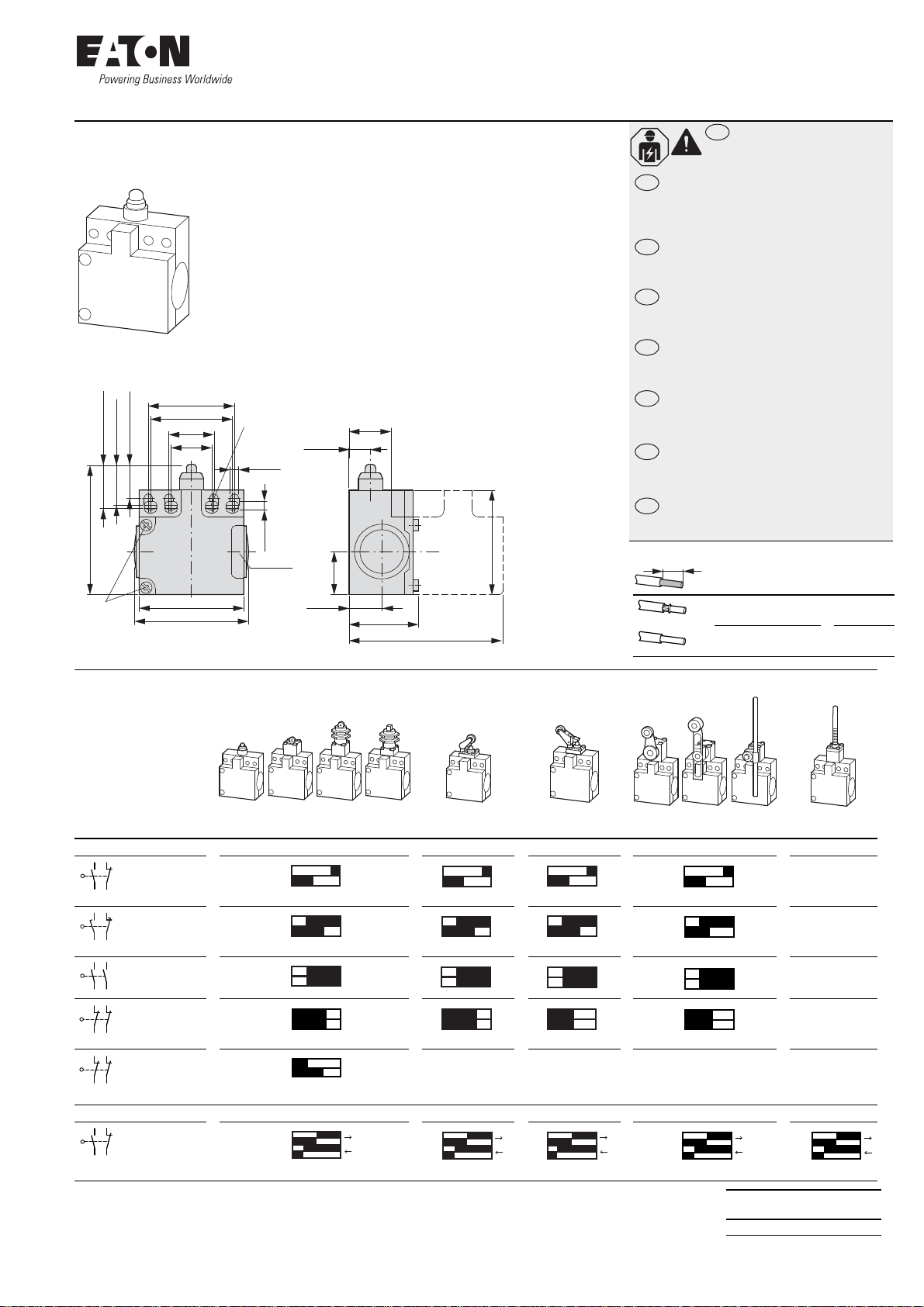

Contact diagrams

AT0-11-1-IA –

AT0-11-2-IA –

AT0-20-1-IA –

AT0-02-1-IA –

SOND916 – – – –

Snap-action contact

AT0-11-S-IA

42 mm (1.65”)

40 mm (1.57”)

22 mm (0.86”)

20 mm

(0.78”)

4.2 mm

(0.16”)

4.2 mm

(0.16”)

17.5 mm (0.69”)

51 mm (2.01”)

58 mm (2.28”)

22.5 mm (0.92”)

21 mm (0.83”)

f65 mm

(f2.56”)

M = 1.0 Nm

(M = 8.85 lb-in)

2 x M4 x f25

M = 1.2 Nm

(M = 10.62 lb-in)

M20 x 1.5

F20.5 mm (F0.81”)

10.5 mm

(0.41”)

21 mm

(0.83”)

16 mm

(0.63”) f34 mm

(f1.34”) f75 mm (f2.95”)

51 mm (2.01”)

6 mm (0.24")

1 x 0.5 - 1.5 mm2

2 x 0.5 - 1.5 mm20.9 Nm

(7.97 lb-in)

1 x 0.75 - 2.5 mm2

2 x 0.75 - 1.5 mm20.9 Nm

(7.97 lb-in)

14 22

13-14

21-22

Zw = 4.2 mm

2.9 4.8 6 mm

13-14

21-22

Zw = 6.8 mm

4.7 8.0 10.1 mm

13-14

21-22

Zw = 7.0 mm

4.7 8.3 10.5 mm

13-14

21-220°

Zw = 37°

22° 41° 54°

18 26

17-18

25-26

Zw = 4.7 mm

2.1 3.4 6 mm

17-18

25-26

Zw = 7.8 mm

3.3 5.6 10.1 mm

17-18

25-26

Zw = 8.0 mm

3.3 5.7 10.5 mm

17-18

25-260°

Zw = 44°

14° 27° 54°

14 24

13-14

23-24

0 1.3 6 mm

13-14

23-24

0 2.2 10.1 mm

13-14

23-24

0 2.1 10.5 mm

13-14

23-240° 8° 54°

12 22

11-12

21-22

Zw = 4.7 mm

3.4 6 mm

11-12

21-22

Zw = 7.7 mm

5.5 10.1 mm

11-12

21-22

Zw = 7.9 mm

5.6 10.5 mm

11-12

21-220°

Zw = 44° 27° 54°

12 22

11-12

21-22

Zw (11-12) = 3.3 mm

Zw (21-22) = 5.3 mm

2 4 6 mm

14 22

13-14

21-22

13-14

Zw = 4.5 mm

1.6 3.0 6 mm

13-14

21-22

13-14

Zw = 7.4 mm

2.6 4.8 10.1 mm

13-14

21-22

13-14

Zw = 7.6 mm

2.6 4.9 10.5 mm

13-14

21-22

13-14

0°

Zw = 39°

10° 23° 54°

13-14

21-22

13-14

9°0° 23° 25°

Zw = Positive opening distance

■□

Contact closed open

1) Not approved as

safety limit switch.

08/21 IL05208013Z

2/3

IEC/EN 60947-5-1 AT… M12A(B)

6 A gL/gG 6 A gL/gG

WARNING

Do not use as a mechanical stop. Safety position

switches must be secured against position changes

by using locating pins or mechanical stops.

WARNUNG

Nicht als mechanischen Anschlag verwenden.

Positionsschalter mit Sicherheitsfunktion durch Passstifte oder

mechanische Anschläge gegen Lageänderung sichern.

AVERTISSEMENT

Ne pas utiliser comme butée mécanique. Les interrupteurs

de position portant sur la sécurité doivent être fixé dans leur

position à l’aide de goujons ou de butées mécaniques.

ADVERTENCIA

No utilizar como tope mecánico. Para evitar que cambien de

posición, es preciso asegurar los interruptores de posición de

seguridad mediante pivotes palpadores o topes mecánicos.

AVVERTENZA

Non utilizzare come arresto meccanico.

Gli interruttori di posizione di sicurezza devono venire

bloccati mediante spine di riferimento o blocchi meccanici

per evitare possibili variazioni di posizione.

警告

OCTOPOЖHO

Никогда не применять вкачестве механического упора.

Путеные вывлючтели сзащитой функцей

предохраняются от изменения положения посредством

устанавочных штивтов или механических упоров.

ﺮﻳﺬـــﺤﺗ

ﻲﻜﻴﻧﺎـــــﻜﻴﻣ دﺪـــــﺤﻤﻛ ﺞـــــﺘﻨﻤﻟا مﺪﺨﺘـــــﺴﺗ ﻻ

ﺪــــﺿ ﺔﻣﻼــــﺴﻟا ﻊــــﺿﻮﻣ ﺢﻴﺗﺎــــﻔﻣ ﻦﻴﻣﺄــــﺗ ﺐــــﺠﻳ

م ا ﺪ ﺨ ﺘ ـ ــ ﺳ ا ل ﻼ ـ ــ ﺧ ﻦ ـ ــ ﻣ ﻊ ـ ــ ﺿ ﻮ ﻤ ﻟ ا ﻲ ـ ــ ﻓ ت ا ﺮ ﻴ ـ ــ ﻐ ﺘ ﻟ ا

تادﺪـــﺤﻤﻟا وأ ﻊـــﻗﻮﻤﻟا ﺪـــﻳﺪﺤﺗ ﺮﻴﻣﺎـــﺴﻣ

ﺔـــــــــــﻴﻜﻴﻧﺎﻜﻴﻤﻟا

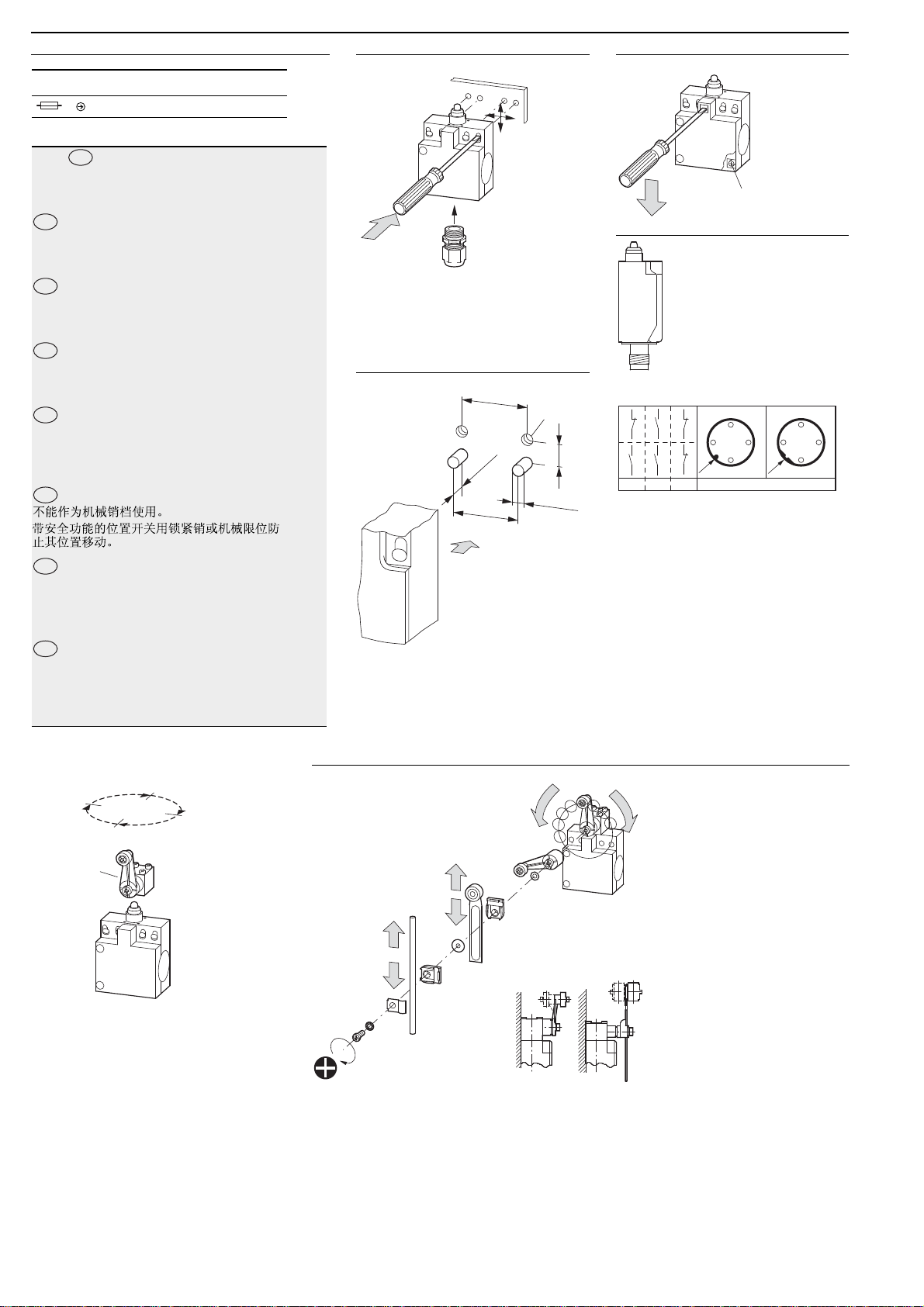

IP 65:

V-M20

4 x M = 0.9 Nm

(4 x M = 7.96 lb-in)

(0.79"– 0.87")

20 – 22 mm

22 mm

(0.87")

4 mm

( 0.16")

7.3 mm

(0.29")

o4 mm

(0.16")

..-11-.. ..-20-..

..-02-..

M12A, M12B

M = 0.6 Nm

(M = 5.31 lb-in)

90º 90º

1 Nm

(9 lb-in)

08/21 IL05208013Z

USA:

Eaton.com/eatoncare

+1 877-386-2273

Eaton.com/contacts

Eaton.com/aftersales

Eaton.com/documentation

EU: Eaton Industries GmbH, Hein-Moeller-Straße 7-11, 53115 Bonn, Germany 08/21 IL05208013Z

UK: Eaton Electric Ltd., P.O. Box 554, Abbey Park, Southampton Road, Titchfield, PO14 4QA, United Kingdom

Eaton.com/recycling

…-IA …/RS …/AR

…/R …/ZS

…/ZRS

…/WR …/V

…/F …/H

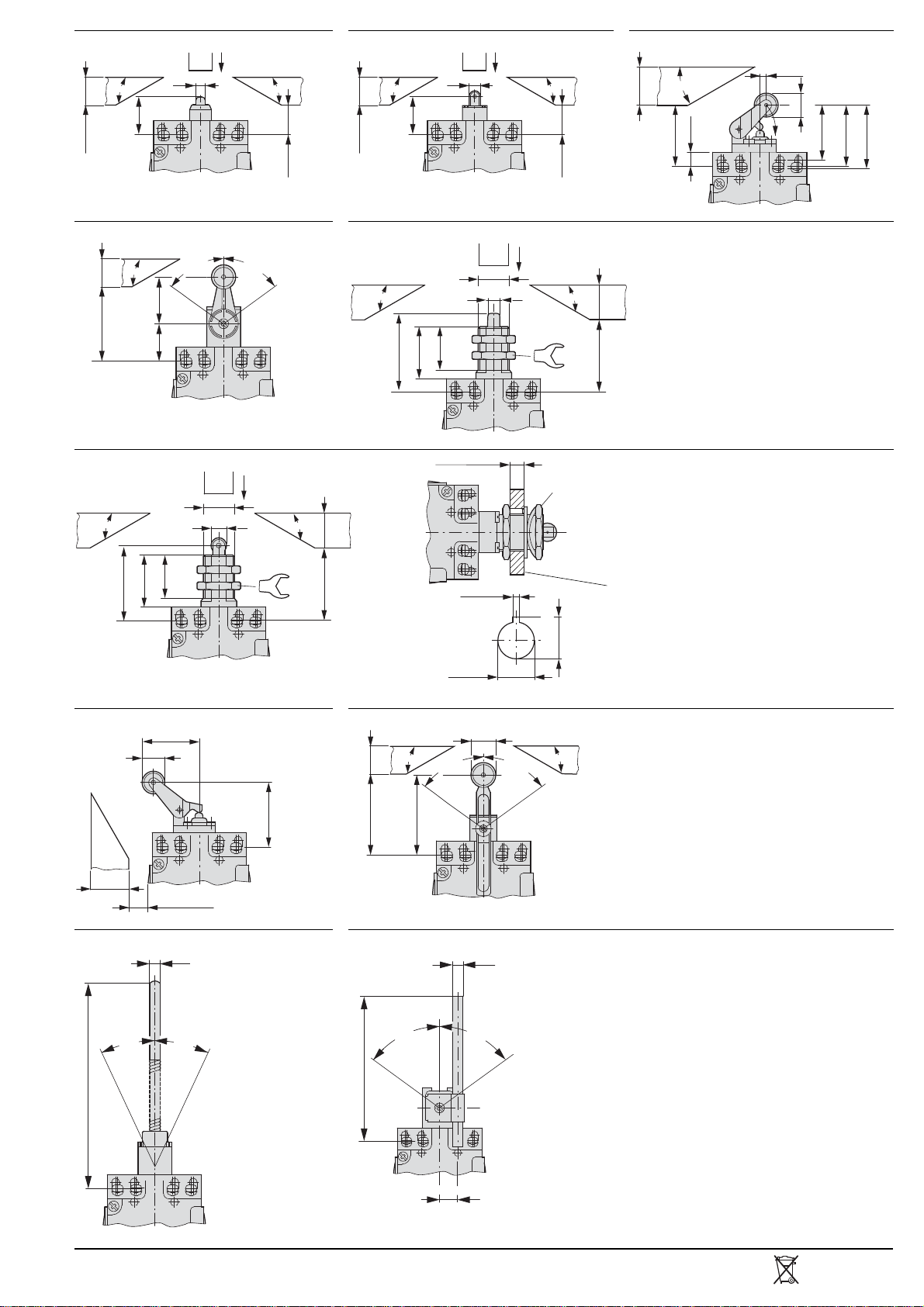

f20 mm

(f0.79”)

f15 mm

(f0.59”)

21 mm

(0.83”)

30°

o 5 mm (o 0.29”)

f20 mm

(f0.79”)

26.5 mm

( 1.04”)

30°

o 9 mm (o 0.35”)

25 mm

(f0.98” )

+1 mm

+0.03”

13 mm

(0.51”)

30°

7.5 mm

(0.29”)

29.45 mm

(1.16”)

32.95 mm (1.30”)

34.5 mm (1.37”)

3.3 mm

(0.13”)

f20 mm

(f0.79”)

31 mm

(f1.22” )

+1 mm

+0.03”

f20 mm

(f0.79”)

27 mm

(1.06”)

21 mm

(0.83”)

54°

f40 mm

(f1.57” )

+1 mm

+0.03”

30°

23 mm

(0.91”)

33 mm (1.29”)

48.5 mm (1.90”)

f20 mm

(f0.79”)

f42.5 mm

(f1.67” )

+1 mm

+0.03”

M18 x 1

q 6 mm (q 0.30”)

30° 30°

23 mm

(0.91”)

33 mm (1.29”)

43 mm (1.69”)

f20 mm

(f0.79”)

f41.5 mm

(f1.63” )

+1 mm

+0.03”

M18 x 1

9 mm (0.35”)

30° 30°

3.2 mm

(0.13” )

+0.2 mm

+0.070”

18.2 mm

(0.72” )

+0.2 mm

+0. 07”

20.6 mm

(0.72” )

+0.3 mm

+0.01”

1.5 mm - 11.5 mm

(0.06” - 0.45”)

M = 2 - 4 Nm

(M = 17.7 - 35.4 lb-in)

Rotation prevention only type ZRS

13 mm

(0.51”)

36.5 mm (1.44”)

33 mm (1.31”)

f20 mm

(f0.79”) f9 mm (f0.35”)

f20 mm

(f0.79”)

f44.5 mm

(f1.75” )

30°

54.5 mm - 97 mm

(2.15” - 3.81”)

54º

o 18 mm (o 0.71”)

30°

o 6 mm (o 0.24”)

125 mm (4.92”)

25º

o 6 mm (o 0.24”)

f150 mm (f5.9”)

54°

10.5 mm (4.13”)
