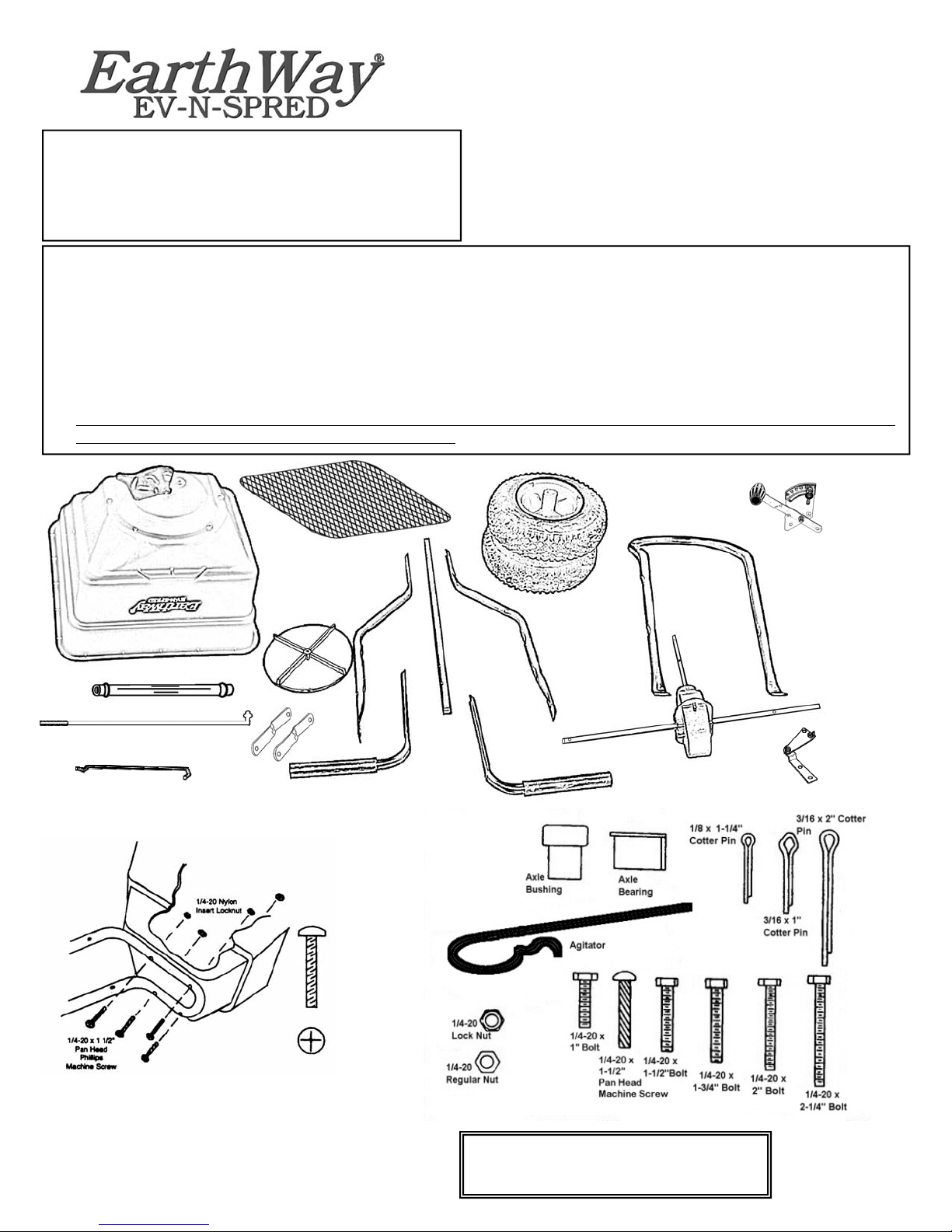

Earth Way 2170 User manual

PLEASE CALL US IF YOU HAVE ANY DIFFICULTY WITH THIS

SPREADER BEFORE RETURNING TO THE STORE. WECAN BE

REACHED VIA PHONE AT 800-294-0671 OR 574-848-7491

MONDAY—FRIDAY 9:OOAM ~ 3:00PM OR ONLINE AT

WWW.EARTHWAY.COM

ASSEMBLY and OPERATING INSTRUCTIONS

for

EarthWay

EV-N-SPRED®

MODEL 2170

Broadcast Spreader

REV. 9-06

HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY

 If your spreader does not spread evenly, be sure the FRONT on the gear box points to the front of the spreader. The impeller must

turn clockwise. Reversing the gearbox will cause the impeller to turn counter clockwise. Clean the impeller plate after each use.

Fertilizer stuck on the impeller blades will cause uneven spreading.

 Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds will change

the spread patterns. Wet fertilizer will also change the spread pattern and flow rate. Clean your spreader thoroughly after each use.

Wash between the shut off plate and bottom of the hopper.

 Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.

 When using Rock Salt remove the agitator to prevent damage to the gearbox and remove salt from the hopper daily. Rock Salt will

reconstitute back into a solid block over night with humidity.

1. Remove and identify loose parts from carton.

2. Position hopper on side. Install frame using (4) 1/4-20

x 1-½” Pan Head Philips machine screws and (4) 1/4-20

nylon insert locknuts. First, put bolts through holes in

frame, then through holes in bottom of hopper. Secure with

locknuts. Tighten these locknuts now. PAGE 1

Pt. #52164

ROCK SALT IS NOT RECOMMENDED FOR USE IN

THIS SPREADER. REMOVE AGITATOR WHEN

USING ICE MELT.

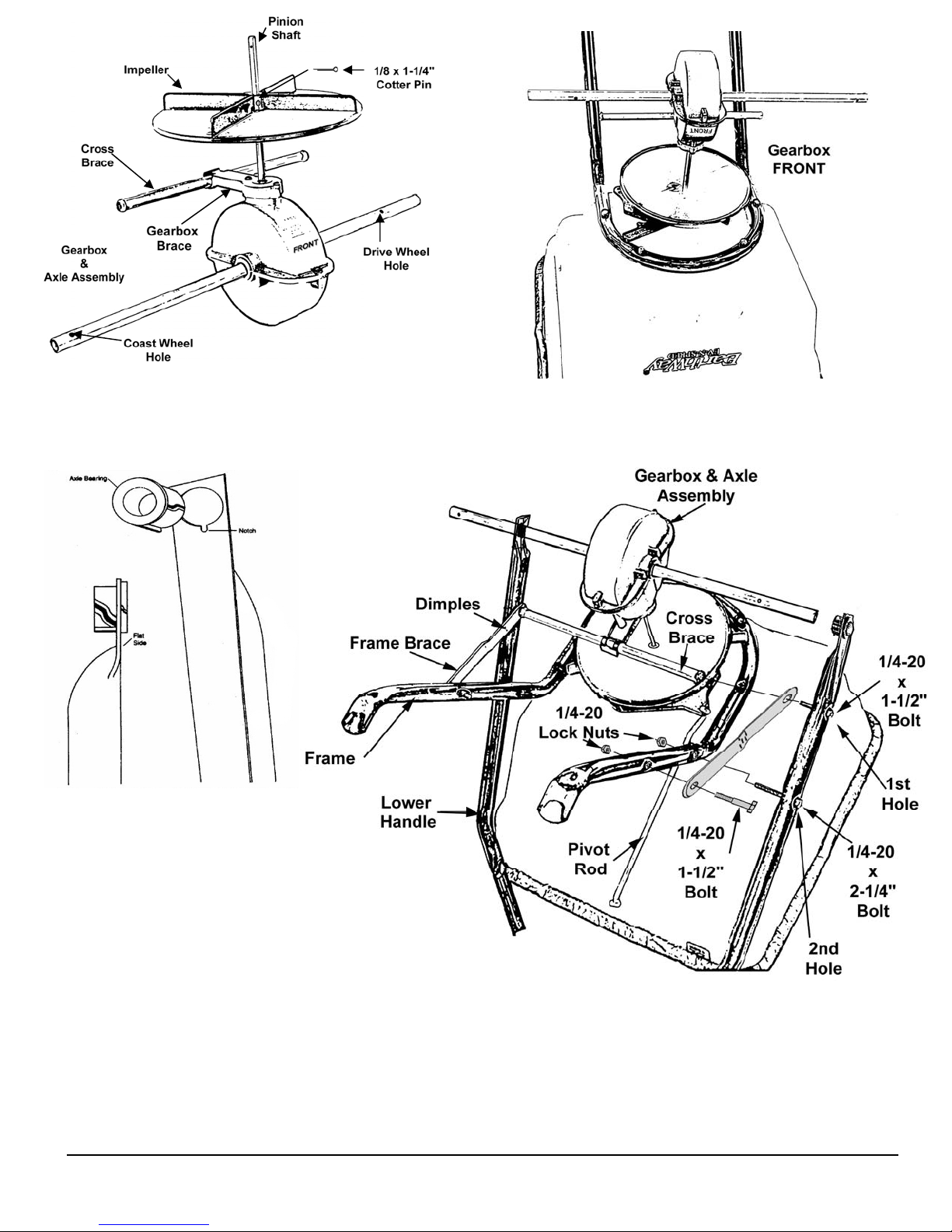

4. Install Gearbox by inserting the pinion shaft into hole in

center of hoppers bottom. The word “FRONT” on the gearbox

must point to FRONT of the hopper.

5. Install axle bearings to both lower

handles. NOTE: Notch on bearings and

lower handles. Bearings must go

through flat side of lower handle.

3. Install impeller onto pinion shaft. Insert 1/8” x 1-1/4” cotter pin

through impeller then through pinion shaft. Use hole nearest gear box.

Spread cotter pin to prevent from falling out. Next, install the Cross

Brace through the Gearbox Brace Support as shown above.

6. Install Lower Handles onto Axle to both sides as shown above. Now insert 1-1/2” bolt through first hole in lower handle, then through

frame brace, and finally into the threaded connector in the Cross Brace. [NOTE: Dimples on frame braces must be facing toward gearbox as

shown.] DO NOT TIGHTEN YET.

Next insert 1-1/2” bolt through other end of frame brace and through second hole in frame install locknut.

DO NOT TIGHTEN YET.

Now insert 2-1/4” bolt through second hole in lower handle and through first hole in frame..

NOW GO BACK AND TIGHTEN ALL NUTS AND BOLTS STARTING WITH FIRST STEP. DO NOT OVER TIGHTEN.

PAGE 2

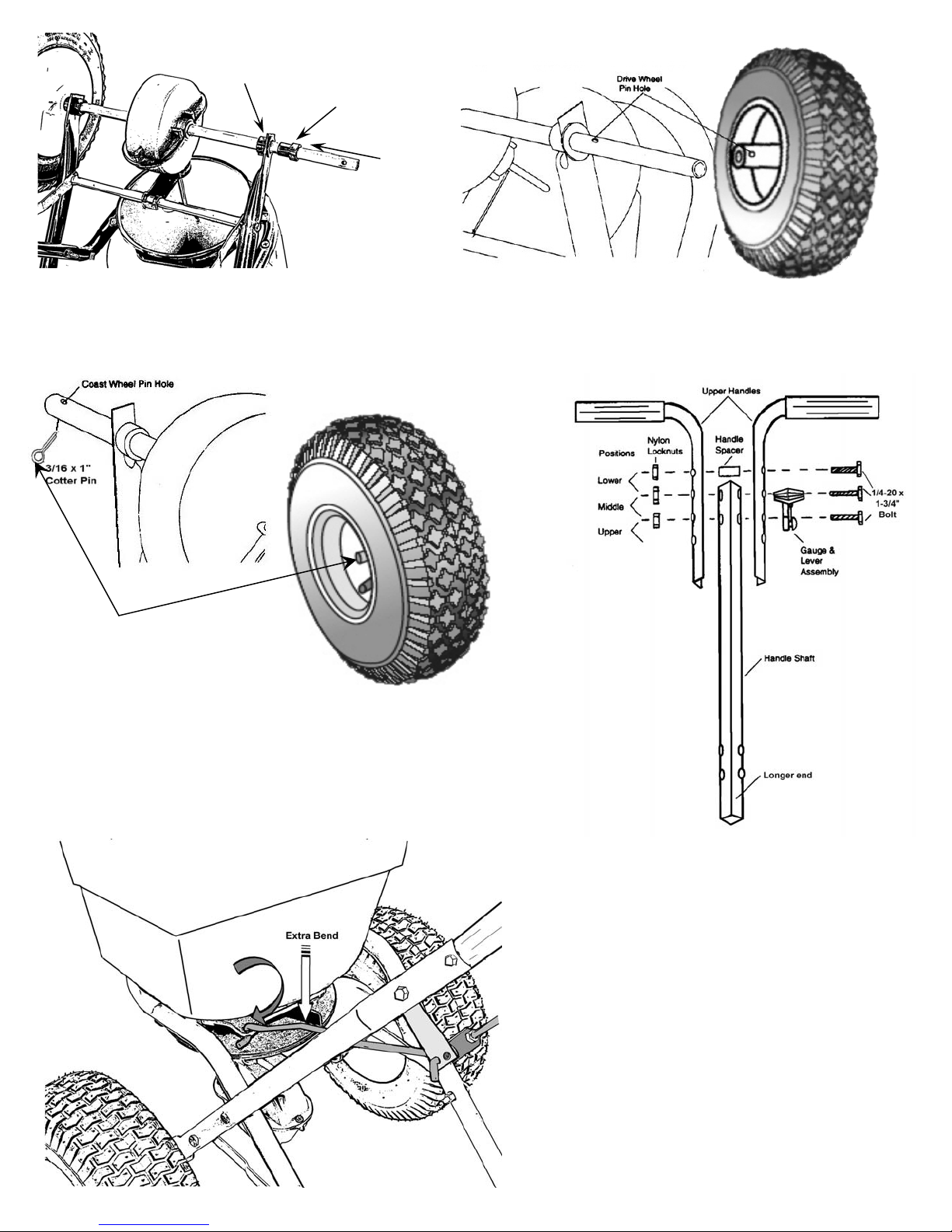

7. Slide axle bushing over axle and into axle

bearing to both sides as shown. 8. Install drive wheel to axle using pin hole nearest to lower handles as shown. Insert 2”

cotter pin through wheel and through axle. Bend with pliers to prevent pin from falling

out.

10. NOTE: BEFORE INSTALLING GAUGE AND UPPER

HANDLES TO HANDLE SHAFT, UPPER HANDLES FEATURE

THREE POSITIONS FOR OPERATOR’S COMFORT. If opera-

tor chooses middle or upper positions, use handle spacer in hole

nearest to handle grips. Insert 1¾” bolt through upper handle,

then through handle spacer through other upper handle. DO NOT

TIGHTEN LOCKNUT YET. TIGHTEN THIS NUT LAST. Install

gauge & lever using (2) 1¾” bolts. Be sure gauge is on left hand

side. Tighten locknuts to gauge first. TIGHTEN NOW.

11. Insert pivot rod into shut off plate as shown. Turn to lock in

place. [ NOTE: EXTRA BEND IN ROD END ATTACHES TO THE

SHUT-OFF PLATE.]

12. Insert other end of pivot rod into pivot and bracket assembly

as shown. Turn to lock in place.

PAGE 3

9. Install coast wheel to axle using outside pin hole. As shown, insert 1” cotter pin

through axle (NOT THRU THE WHEEL). Bend with pliers to prevent pin from fal-

ling out. TURN SPREADER UPRIGHT ON TO WHEELS.

Axle bushing

Axle bearing

Slide Axle

bushing

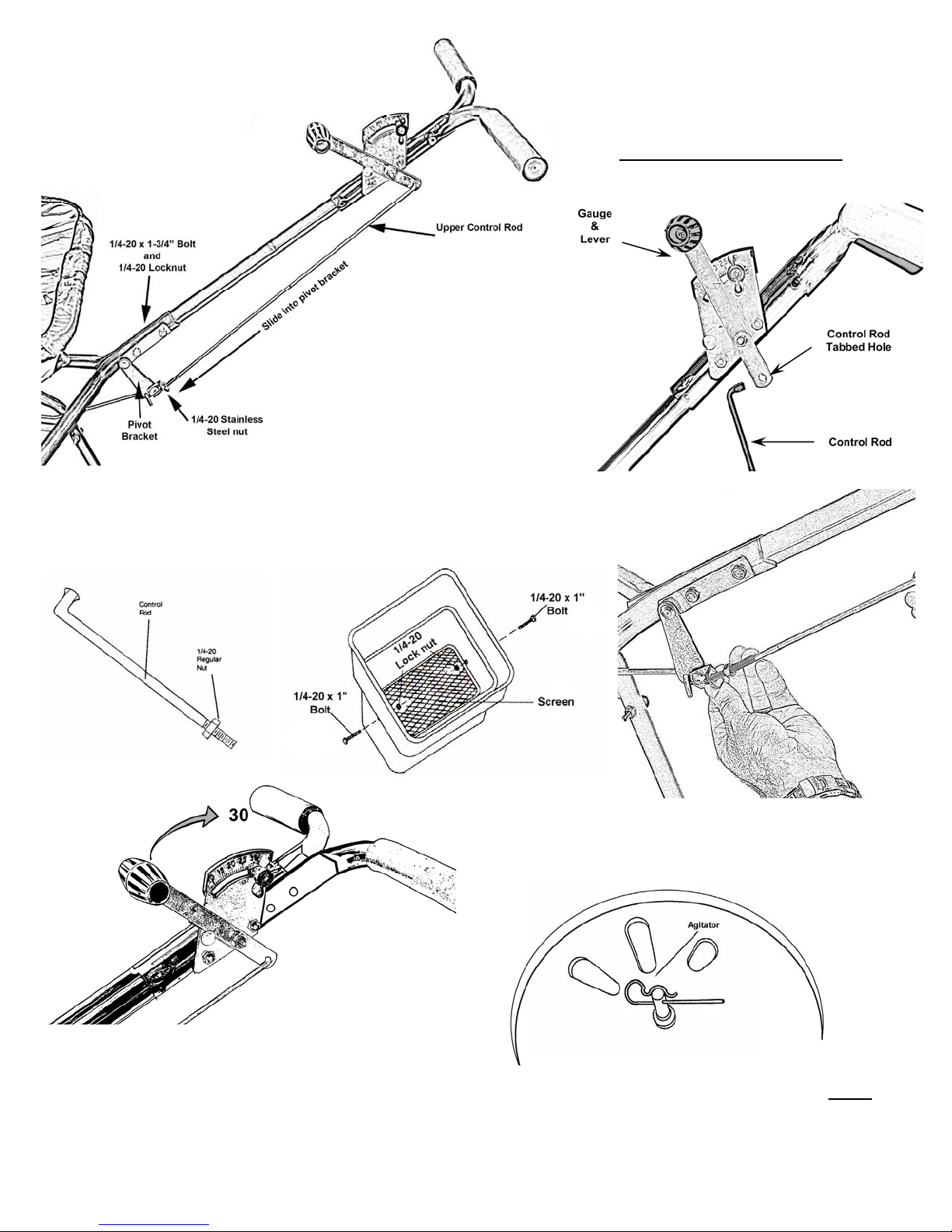

13. Install handle shaft to lower handles

and pivot & bracket assembly as shown.

Using 1/4-20 x 1-3/4” bolts and lock-

nuts.

TIGHTEN BOLTS AND NUTS NOW.

14. Install (1) 1/4-20 regular nut (NOT ALOCKNUT)on to control rod as shown.

Next install the two 1/4-20 x1” Stainless Steel bolts into holes locates on each

side of the hopper and secure with 1/4-20 lock nuts. Next slide Debris Screen

under the two bolts inside the hopper.

15. Install flattened end of control rod in to lever on

gauge as shown. Turn to lock in place. Next push lever

forward to setting “0”. Align control rod with hole in

pivot bracket, pull lever backward to insert control rod

through hole in pivot bracket. Now install 1/4-20

regular nut on to control rod.

DO NOT TIGHTEN NUTS YET.

16. Pull lever back to setting “30” as shown. Next push pivot &

bracket forward so that the shut off plate in the hopper is in the full

open position. REMEMBER SETTING “30” ON THE FLOW

CONTROL LEVER MUST PLACE THE SHUT-OFF PLATE

IN THE FULL OPEN POSITION TO BE PROPERLY CALI-

BRATED. Now tighten the nuts against the pivot bracket to pre-

vent change in calibration.

17. Insert agitator to pinion shaft on inside of hopper. Note:

Position of flat side of agitator. This pin should be installed as

shown.

PAGE 4

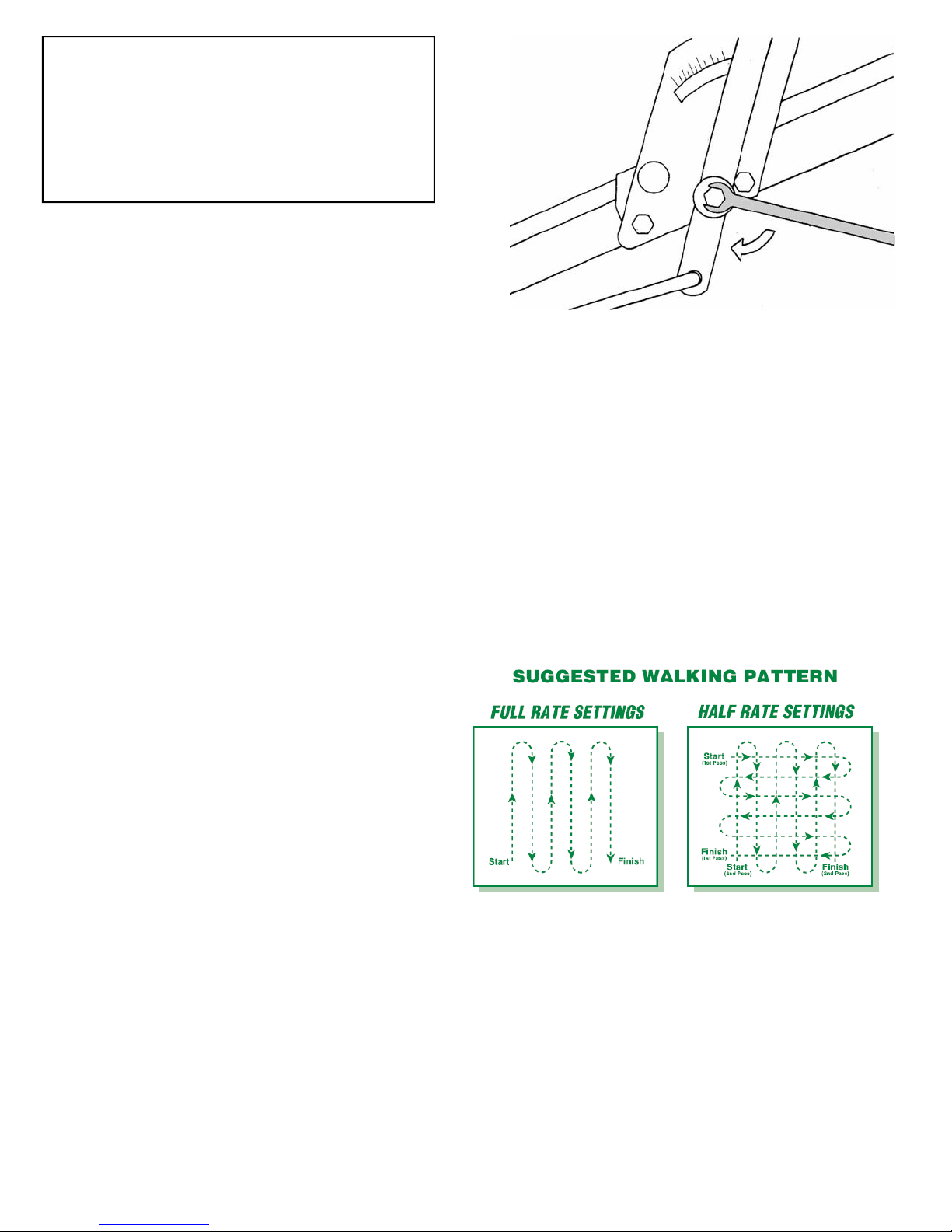

18. Tension on the flow control lever may be adjusted by

tightening or loosening the tension nut as shown.

WARRANTY

EARTHWAY guarantees this product to be free of defects

in original workmanship and materials for a period of 90-

days from sale to the original user. If any defect develops

during this period EARTHWAY will repair or replace this

product at no charge provided the defect is not the result of

mishandling or tampering and that this product is received

at the factory with shipping charges prepaid. For quicker

service you may call EARTHWAY at 800-294-0671 or 574

-848-7491, or write and describe the nature of the defect

and we will send repair parts to you. Due to the corrosive

nature of most fertilizers and ice melters, EARTHWAY

PRODUCTS, INC. makes no warranty or guarantee against

corrosion failure on models with plated steel or painted

steel frames. Clean and dry your spreader well after each

use. Warranty covers parts only, not any labor charges to

repair your spreader.

OPERATING INSTRUCTIONS

Before filling hopper, become familiar with the operation of this

spreader.

1. Obtain proper setting for material to be used from the RATE

SETTING CHART included with this spreader.

2. Move stop bolt on rate gauge assembly to the proper setting.

3. While pushing spreader forward, pull control lever back to

stop bolt.

4. To stop, push lever forward to close flow holes before you

stop moving.

5. When finished, empty any remaining material from hopper.

6. Thoroughly wash spreader and allow to dry before storing.

No oiling is necessary.

HOW TO ORDER SPARE PARTS

All spare parts listed herein may be ordered direct from the

manufacturer, EARTHWAY PRODUCTS, INC.

Be sure to give the following information when ordering.

1. Model Number

2. Part Number

3. Part Description

Call (574) 848-7491, 800-294-0671 or write for current

prices.

PLEASE DO NOT RETURN

THIS TO THE PLACE OF PURCHASE

EarthWay Products, Inc

1009 Maple Street

P.O. Box 547

Bristol, IN 46507

FOR YOUR RECORDS

_________________________________________

Date Purchased

_________________________________________

Store Name

PAGE 5

The settings furnished on the Rate Setting Chart are intended

as a guide only. Variations in physical characteristics of

material applied, walking speed, and roughness of ground

surface may require slightly different spreader settings. Due

to the above conditions,

EARTHWAY PRODUCTS, INC. makes no warranty as to

the uniformity of coverage actually obtained from the

settings listed.

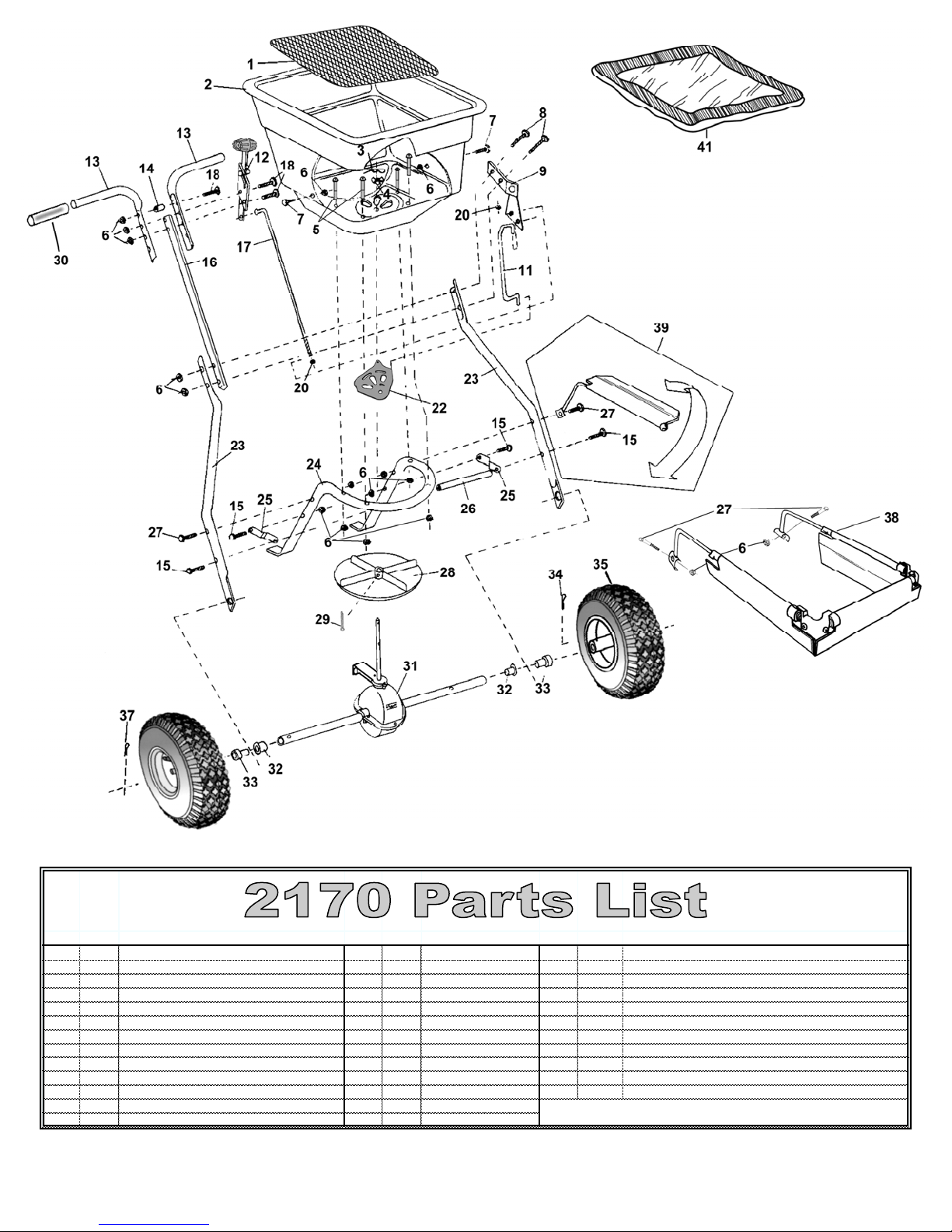

Key # Part # Description Key # Part # Description Key # Part # Description

1 40003 Screen 14 12344 Handle Spacer 29 36105 1/8" X 1 1/4" Cotter Pin

2 60335 Hopper Assembly, Includes Key #4 & 22 15 31100 1/4-20 X 1 1/2" Bolt 30 12274 Handle Grip

3 33117 Agitator 16 25223 Handle Shaft 31 60334 Gear Box & Axle Assembly

4 12209 Hopper Bushing 17 42256 Control Rod 32 12148 Axle Bearing

5 36214 1/4-20 X 1 1/2" PHPMS SS 18 31114 1/4-20 X 1-3/4" Bolt 33 12152 Axle Bushing

6 36300 1/4-20 Nylon SS Insert Locknut 20 32100 1/4-20 Hex Nut 34 33109 3/16" X 2" Cotter Pin

7 36210 1/4-20 X 1" Stainless Hex Head Bolt 22 12317 Shut Off Plate 35 70138 Drive Wheel/Coast Wheel

8 31120 1/4-20 X 2" Bolt 23 25222 Lower Handle 37 33108 3/16" X 1" Cotter Pin

9 60300 Pivot & Bracket Assembly 24 25106 Frame 38 60166R Optional Salt Deflector Kit

10 32103 1/4-20 Nylon Insert Locknut 25 44249 Frame Brace 39 60060R Optional Heavy Duty Rain Cover & Side Deflector Kit

11 44251 Pivot Rod 26 24704 Cross Brace 41 77002 Optional Heavy Duty Rain Cover

12 60298 Gauge & Lever Assembly 27 31106 1/4-20 X 2 1/4" Bolt

13 60175 Upper Handle Assembly, Includes Grip #30 28 12109 Impeller All hardware can be found at most local hardware stores.

EarthWay

Products, Inc.

P.O. Box 547

Bristol, Indiana 46507

(574) 848-7491 or 800-294-0671

www.earthway.com
