Earlex CHV512 User manual

Operating Instructions

Thank you for purchasing this Create by Earlex™Craft Paint Spraying kit.

This is a highly versatile spray kit and can be used on a variety of applications.

BEFORE USE - PLEASE READ THESE SAFETY & OPERATING INSTRUCTIONS.

Please retain for future reference

Go to www.earlexcreate.com to register your product

Craft Paint Spraying Kit

CHV512

IMPORTANT INFORMATION

(not supplied)

Certain coatings may require dilution.

lCAUTION: TO REDUCE THE

RISK OF ELECTRIC SHOCK

OR INJURY, DO NOT E POSE

TO RAIN. STORE INDOORS.

lThe substances used with this

spray gun may contain

hazardous, harmful, explosive

or corrosive materials. ALWAYS

COMPLY WITH THE SAFETY

INSTRUCTIONS ISSUED WITH

THIS PRODUCT AND THE

MATERIAL BEING USED.

lThe spray gun must only be

used with paints that have a

suitable flash point for

spraying. If in doubt, consult

the paint manufacturer's data.

lAlways ensure there is

adequate ventilation when

spraying.

lNEVER spray near an open

flame, including an appliance

pilot flame.

lNEVER smoke whilst spraying.

lAlways disconnect the unit

from the power supply when

re-filling the paint container.

lAlways disconnect the unit

from the power supply when

cleaning the spray gun.

lAlways ensure the spray area is

safe and free from all debris

that may present a fire or trip

hazard.

lNEVER under any

circumstances point the spray

gun at another person or

animal. In the event of injury

occurring, seek expert medical

advice immediately.

lNEVER allow children or

unauthorized users to operate

or play with the spray

equipment.

lAlways read the paint

manufacturer's thinning

instructions before use.

lAlways wear the correct

protective face mask when

spraying. We also recommend

wearing gloves, goggles and

overalls.

lAfter every use ensure that

you clean the spray gun

thoroughly and grease the

gland seal.

lUse only genuine Earlex

replacement parts.

lIf the supply cord is damaged,

it must be replaced by Earlex

or its appointed agents to

avoid a hazard.

lOnly use the spray equipment

as detailed in these

instructions.

lDo not use the air hose or

power cord to pull the HVLP

turbine unit.

lCheck the hoses, hose

connectors and power cord

daily. Any worn or damaged

parts should be replaced

immediately.

lThis appliance is recommended

for household use only.

lThis appliance can be used by

children aged from 8 years

and above and persons with

reduced physical, sensory or

mental capabilities or lack of

experience and knowledge if

they have been given

supervision or instruction

concerning use of the appliance

in a safe way and understand

the hazards involved. Children

shall not play with the

appliance. Cleaning

and user maintenance

shall not be made

by children without

supervision.

WARNING! FIRE AND E PLOSION HAZARD.

SAFETY INSTRCTIONS

E TENSION CORDS

Your Create by Earlex™ Craft Paint Spraying Kit is supplied with a power cord that is 6 feet long.

Make sure your extension cord is in good condition. When using an extension cord, be sure to

use one heavy enough to carry the current your product will draw. For lengths up to 50 feet,

0.75mm extension cords should be used. For lengths over 50 feet 1mm or heavier should be

used.

DOUBLE-INSULATED APPLIANCE

This is a double-insulated appliance and as such, does not require three-way earthing.

SERVICING OF A DOUBLE-INSULATED PRODUCT

In a double-insulated product, two systems of insulation are provided instead of earthing. No

earthing means is provided on a double-insulated product, nor should a means for earthing be

added to the product. Servicing of a double-insulated product requires extreme care and

knowledge of the system, and should be done only by qualified service personnel. Replacement

parts for a double-insulated product must be identical to those parts in the product.

A double-insulated product is marked with the words “DOUBLE INSULATION” or “DOUBLE

INSULATED.”

The symbol may also be marked on the product to denote such.

1. 400W Turbine Unit

2. Craft Spray Gun with 1.0mm needle

(see accessory list for extra needles)

3. Air Hose

(L0543)

4. 5 Stencils

(L1950)

5. Masking Tape

(L1955)

6. 250ml Pot

(CHVAC01)

7. Paint Stirrer

(L1565)

8. DVD

(L1953)

What’s in the box?

Important Electrical Information

DVD

No. Description

1.Air Cap Ring

2.Air Cap

3.Spray Direction Plate

4.Fluid Tip (1mm)

5.Fluid Tip Seal

6.Fluid Needle (1mm)

7.Spring

8.Fluid Adjusting Screw

9.Gland Nut

10.Gland Seal

No. Description Part No.

11.Paint Feed TubeL0947

12.Paint Container SealL0335

13.250ml Paint Container (Clear)L0909

14.TriggerL0202

15.Trigger PinL0209

16.Paint StirrerL1565

17. Masking Tape (not shown)L1955

18.Stencils x 5 (not shown)L1950

19. Air Hose (not shown)L0543

123

Exploded Parts View

Parts List

No. Description Part No

1.1.0mm Needle + Tip CHVAC10R

2.1.5mm Needle + Tip CHVAC15R

3.2.0mm Needle + Tip CHVAC20R

No. Description Part No

4.250ml Pot + Lid CHVAC01R

5.Craft Gun Assembly with L1956

250ml pot

Part No.

L0215

L2038

L0206

L0231

L0211

L0230

L0216

L0210

L0208

L0272

Accessories

Create by Earlex™is a simple to use paint sprayer specifically designed for arts and crafts. The

compact, portable unit and easy to use spray gun provides a soft, even spray, perfect for your

decorating tasks.

lThe 250ml spray gun offers you great control when painting.

lThe Fluid Adjusting Screw (8) at the back of the gun allows you to regulate the amount of

paint spraying from the gun.

lThe Trigger (14) is easy to use and control.

lYou can use the Spray Direction Plate (3) at the front of the gun to change between the spray

patterns.

lYour spray gun comes with a 1.0mm needle already installed, which can be removed at the

back of the gun. This needle is perfect for detailed decorating, stencilling and fine detail

projects.

Introduction

Selecting Paint

This is a highly versatile Craft Spraying Kit that can be used with several different water-based

spray mediums including acrylics, fabric and poster paints. However, some materials cannot be

sprayed so please check the recommendation of the manufacturer before buying the paint. If a

material refers to brush application only then it usually cannot be sprayed.

THIS UNIT CANNOT BE USED FOR TE TURED OR SOLVENT-BASED PAINTS. USE OF

THESE MATERIALS WILL CAUSE PREMATURE WEAR, WHICH WILL VOID THE

GUARANTEE.

TO OBTAIN THE BEST RESULTS FROM YOUR SPRAY KIT PLEASE READ THE

INSTRUCTIONS CAREFULLY BEFORE USE.

Preparation

lPreparation of the surface and thinning of the paint are the two most important areas to be

concerned with to obtain the best results from your Craft Spraying Kit.

lEnsure all surfaces are free from dust, dirt, rust and grease. If necessary rub down with

sandpaper or use a wire brush to clean.

lWipe over with a cloth, ensure surface to be sprayed is absolutely dry.

lMasking of areas is important to ensure you do not spray those areas you wish to remain

untouched.

Your Spray Gun Explained

Thinning

Paint Yes/no 10% 25% 30%

Emulsion Paints

Gloss Paints

Fabric Paints

Metallic Paints

Acrylic Paints

Wood Stains

Gesso Primer

Poster Paints

Glazes and Varnishes

Rough Textured Paints

Solvent-Based Paints

lIn order to spray some materials they need to be “thinned” (diluted). Thinning is very

important when spraying.

lMost paints are supplied ready for brush application and may need to be thinned (diluted) for

spraying purposes.

lFollow the manufacturer’s guide for thinning in conjunction with a spray gun.

lIf in doubt please contact the manufacturer of the paint. Paint is “thinned” by adding the

substance which the paint is based upon.

lIf a water-based paint then water is added.

lFollow the guidance chart above to reach the recommended consistency for your paint.

lThe consistency of single cream should spray easily and leave a good finish.

lWe recommend a face mask, gloves and goggles are worn at all times when

spraying. 7

XXX

XXXX

Twist and click the Air Cap (2) horizontally to obtain a vertical side to side spray pattern.

Twist and click the Air Cap (2) vertically to obtain a horizontal up and down spray pattern.

Twist and click the Air Cap (2) to a diagonal setting for a round spray pattern for more

detailed projects.

Fill the Paint Container (13) with the material to be sprayed. DO NOT FILL above MAX level

indicator.

Stir the paint well using Paint Stirrer (16) supplied.

Push the Paint Feed Tube (11) firmly into the base of the spray gun body.

Screw the container onto the gun body tightly. An airtight seal is essential for the correct

operation of this gun. Before operating the unit please ensure that the Paint Container (13)

is securely fixed to the gun body and the Gland Nut (9) is not loose.

Over time the Gland Seal (10) will wear and the gland nut will need adjusting to

compensate. To check the gland nut is correctly fitted you will need a small adjustable

spanner. Pull the Trigger (14) back and gradually tighten the gland nut by turning clockwise

until the needle is not free to move when the trigger is released.

To obtain the optimum setting gradually unscrew the gland nut by turning anticlockwise

until the Fluid Needle (6) moves forward into the Fluid Tip (4). To check your settings are

correct spray a container of water. Re-adjust if necessary.

Place the motor unit onto a clean and level surface, free from any loose debris or liquids.

Connect the hose to the back of the spray gun. Uncoil the power cord and plug into a mains

power socket-outlet.

ALWAYS KEEP THE MOTOR UNIT AS FAR AWAY FROM THE SPRAYING AREA AS

POSSIBLE TO PREVENT PAINT FROM CONTAMINATING THE MOTOR.

MASK ANY AREA YOU DO NOT WISH TO SPRAY.

Now you are set up ready to spray, switch on the unit. No paint will be sprayed until the

Trigger (14) on the spray gun is gently pulled. Before starting any work on spraying actual

objects we suggest you spend some time practicing on cardboard or newspaper until you

have got used to how the spray gun works.

Operation

Spray Patterns

Fig.2

Vertical et Horizontal et Round et

10.

To obtain the best results always keep your spray gun level and at an equal distance from

the object you are spraying, idealy 10”-12” (side to side or up or down) from the surface.

Avoid spraying at an angle as this will lead to runs on the surface (Fig.4a-4c).

Let your arm control the left to right movement rather than your wrist as this will help give

you an even paint distribution over the whole area.

Do not tip the spray gun to more than a 45˚ angle when the motor is switched OFF. You can

tip the spray gun at more of an angle when spraying provided the motor is switched ON.

lThe volume of paint sprayed is easily adjustable (Fig.3).

lCompletely close the Fluid Adjusting Screw (8) by turning fully

clockwise. While pulling the Trigger (14), begin turning the fluid

adjusting screw anticlockwise until the volume of paint you require is

obtained.

lIf the paint spray is too wide or contains too much paint turn the Fluid

Adjusting Screw (8) clockwise again. Once the correct spray pattern is

obtained you are able to commence spraying. The paint volume needs

to be adjusted everytime you change the spray pattern, especially when

you use the round pattern, as this can often contain too much paint.

Paint Volume

Spraying Technique

Fig.3

Fig.4a

Fig.4b Fig.4c

Min.

Evenly control the speed of movement of the spray gun. A fast speed will give a thin coat

and a slow speed will give a thick coat.

Only apply one coat at a time. If an additional coat is required, follow the paint

manufacturer’s instructions for drying times.

If spraying small areas or objects keep the output setting low as this will avoid excessive

use of paints and will minimize overspray.

Helpful Hints

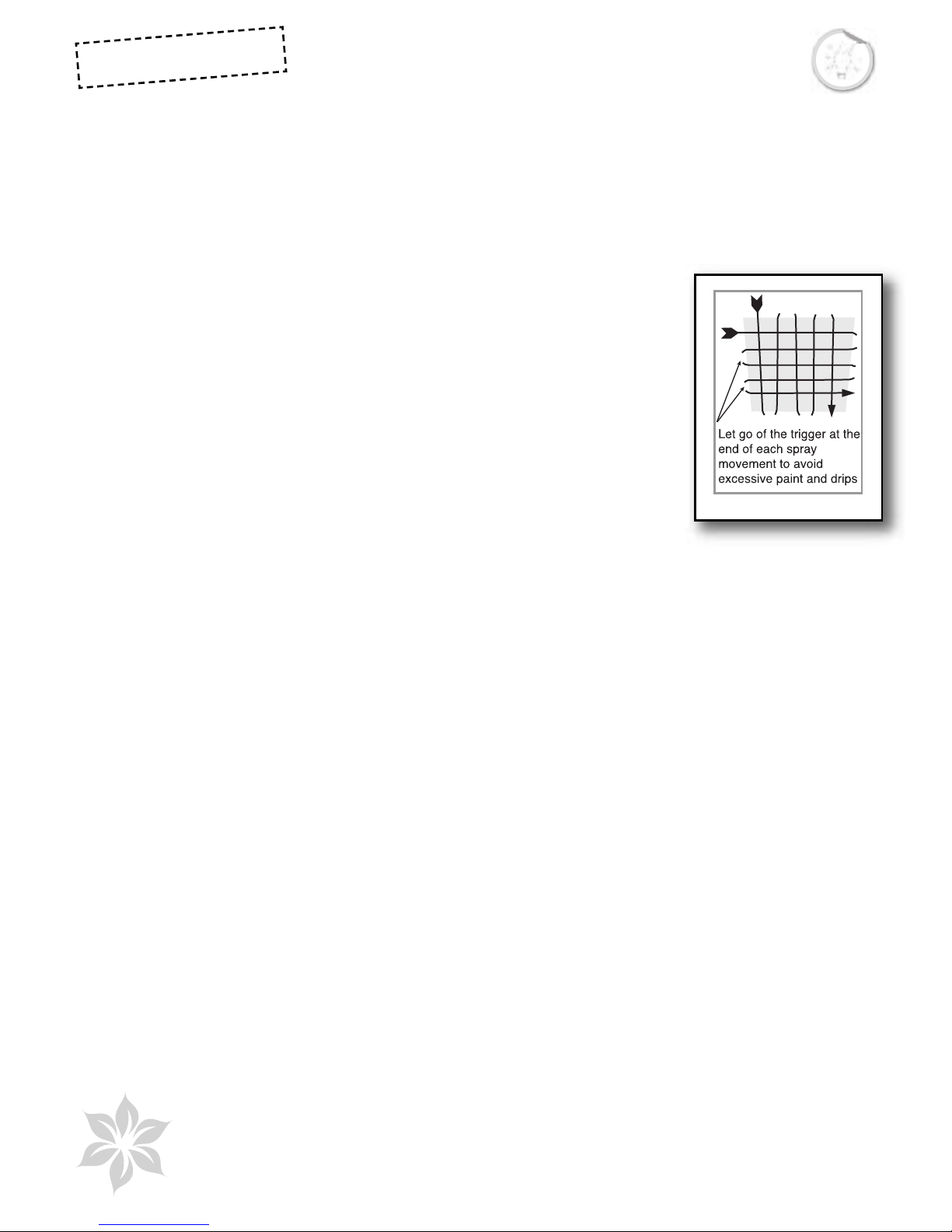

Fig.5

When spraying large areas or objects, it is best to use a ‘criss-cross’

pattern, either from left to right then up or down or vice-versa. This

will ensure maximum coverage (Fig. 5).

Avoid stopping and starting when spraying as this can lead to too

much or not enough material on a surface.

To ensure edges are covered, commence spraying just to the side of

area being sprayed.

CLEAN SPRAYER AFTER EVERY USE (SEE CLEANING

INSTRUCTIONS).

Table of contents

Other Earlex Paint Sprayer manuals

Earlex

Earlex SPRAY PACK Instruction Manual

Earlex

Earlex HV3000 User manual

Earlex

Earlex SPRAYSTATION 5900 User manual

Earlex

Earlex Spray Station 3000 User manual

Earlex

Earlex Spray Station HV5500 Operator's manual

Earlex

Earlex spraystation hv1900kr Instruction Manual

Earlex

Earlex SPRAY STATION PRO HV 5000 User manual

Earlex

Earlex SPRAY SYSTEM HV 1900 User manual

Earlex

Earlex SPRAY STATION HV3500 Instruction Manual

Earlex

Earlex AGS120 User manual

Earlex

Earlex SPRAY STATION 2900 User manual

Earlex

Earlex SPRAY STATION HV 6900 Instruction Manual

Earlex

Earlex SPRAY STATION 3500 Instruction Manual

Earlex

Earlex SprayStation HV2901P Instruction Manual

Earlex

Earlex SPRAY STATION PRO User manual

Earlex

Earlex SPRAY STATION HV 2900 Instruction Manual

Earlex

Earlex SprayPort Professional 6000 Series Instruction Manual

Earlex

Earlex SPRAY STATION HV 2900 Instruction Manual

Earlex

Earlex Pro-8 Instruction Manual

Earlex

Earlex SPRAY PACK Instruction Manual

Earlex

Earlex SPRAY STATION 2900 Instruction Manual

Earlex

Earlex ASG55 User manual

Earlex

Earlex ASG55 User manual

Earlex

Earlex Pro-8 Instruction Manual

Popular Paint Sprayer manuals by other brands

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Operator's manual

Graco

Graco 246737 Repair and parts

Binks

Binks SV100 Service manual

Fimco

Fimco LG-4-3-1 owner's manual

AG SPRAY

AG SPRAY FS-ATV-25BL owner's manual

Nordson

Nordson MicroMax 2 manual

Bonide

Bonide 051 Operation and service instructions

zogics

zogics Z-DAS instruction manual

KISANKRAFT

KISANKRAFT KK-KBS-165 Operation manual

Matrix

Matrix SG 650 Translation of the original instructions

Anest Iwata

Anest Iwata SGA-3 Installation, use & maintenance instruction manual

paasche

paasche VV Instructions and parts list

Carlisle

Carlisle DeVilbiss JGA-510 Service manual

Gardena

Gardena 11120 Operator's manual

Conrad

Conrad Hobby Airbrush K3 operating instructions

wiwa

wiwa 14025 R/F operating manual

Graco

Graco EM 390 Instructions-parts list

DeVilbiss

DeVilbiss LUNA2i Operation manual
