EV800 EV-DO Router
User Manual
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
Contents
Introduction ......................................................................................................................................3
ImportantRemarks ...................................................................................................................3
References.................................................................................................................................3
Abbreviations ............................................................................................................................3
Produclist...................................................................................................................................3
Appearance .......................................................................................................................................4
FrontPanel ................................................................................................................................4
RearInterface............................................................................................................................4
Specification......................................................................................................................................4
Connection ........................................................................................................................................5
Logintherouter ................................................................................................................................7
ConfigurationDescribe......................................................................................................................8
3GRouter ..................................................................................................................................8
OperationMode........................................................................................................................9
Internetsettings ........................................................................................................................9
WideAreaNetwork(WAN)Settings .................................................................................9
LocalAreaNetwork(LAN)Settings .................................................................................11
DHCPClientList...............................................................................................................12
StaticRoutingSettings.....................................................................................................12
Wirelesssettings .....................................................................................................................13
BasicWirelessSettings....................................................................................................13
WirelessSecurity/EncryptionSettings ............................................................................14
WirelessDistributionSystem ..........................................................................................15
Wi‐FiProtectedSetup .....................................................................................................15
StationList.......................................................................................................................15
Firewall....................................................................................................................................15
MAC/IP/PortFilteringSettings ........................................................................................15
VirtualServerSettings—PortForwarding .......................................................................16
DMZSettings ...................................................................................................................17
SystemSecuritySettings .................................................................................................17
FilterSettings ..................................................................................................................17
WebsURLFilterSettings .................................................................................................17
Administration.........................................................................................................................18
SystemManagement ......................................................................................................18
DDNSSetting ...................................................................................................................18
UpgradeFirmware ..........................................................................................................19
SettingsManagement .....................................................................................................19
AccessPointStatus..........................................................................................................20
Statistic............................................................................................................................20
SystemLog.......................................................................................................................21
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
Introduction
ImportantRemarks
Itisstronglyrecommendedbeforereadingthisdocument,toreadtheEV800RouterUser
ManualandspecificallytheIntroductionforhavingabetteroverviewofwhatEV800routeris
about.
References
EV800ROUTERDATASHEET
Abbreviations
APNAccessPointName
DACDigitalAnalogConverter
GGSNGatewayGPRSSupportNode
GPRSGeneralPacketRadioService
IPInternetProtocol
KBKilobyte
MCCMobileCountryCode
MNCMobileNetworkCodes
MSMobileStation
PDUProtocolDataUnit
PLMNPublicLandMobileNetwork
RSSIReceivedSignalStrengthIndication
SMASmallAdapter
SMSShortMessageServices
Produclist
ProductTypeDescription
EV800‐EEV‐DORev.A
EV800‐HHSDPA
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
EV800‐TTD‐SCDMA
Appearance
FrontPanel
LEDDescription
Lightswhiletherouterinitial.Power
Blinkswhiletherouterrunning.
Lightswhile3Gdialupsuccessful.3G
Blinkswhiledatatrasmitthrough3G.
LightswhileWi‐Fifunctionenable.Wi‐Fi
BlinkswhiledatatrasmitthroughWi‐Fi.
LightswhileWANconnecting.WAN
BlinkswhiledatatrasmitthroughWAN.
LightswhileLANconnecting.LANX4
BlinkswhiledatatrasmitthroughLAN.
RearInterface
InterfaceDescription
3GAntennaSMAinterface
SIM3.3V
ConsolMonitoranddatatransmitforserialport.
WANRJ45
LANX4RJ45
PowerΦ2.0
Wi‐FiAntennaSMAinterface
Specification
zWANX1,10/100M,supportxDSLmodem/cablemodem/Ethernet.
zLANX4,10/100M.
z802.11b/g/ninside.
zSupport802.11ndrafts,upto300mbps.
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
zSupportWEP/WPA/WPA2/WPA‐PSK/WPA2‐PSK.
zSSIDbroadcastcontrol.
zNAT&DMZ
zDDNS
zDHCP
zFirewallfunction,supportURLfilter&MACfilter.
zIP‐MACbindsfunction.
zStaticrouteconfigurable.
zUpdatefirmwareviaweb.
zRemoteconfigureviaweb.
zMulti‐languagewebinterface.
Connection
Therouterdefaultparametersasfollow,themanualfunctiondescribewillbasethedefault
parameters.
IP:10.10.10.254,submask:255.255.255.0.
TherearetwowaytosettingthePCIPaddress,whichconnecttotherouter.
1. Manualsetting
SettingthePCIPas10.10.10.xxx(xxx=1‐253),subnetmask:255.255.255.0,defaultgateway:
10.10.10.254,primaryDNS:getyourDNSfromnetworkprovider
2. DHCP(Preferred)
SettingthePCIPproperties,support“ObtainanIPaddressautomatically”and“ObtainDNS
serveraddressautomatically”.
NeedtoactiveDNSProxyfeaturesfortherouterasfollows.
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
AfterIPsetting,checkitbyping.ClickWindowsstartmenu,run,execute“cmd”command.
Input“ping10.10.10.254”intheDOSwindow.
Thisinformationmeanstheconnectionisworking.
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com

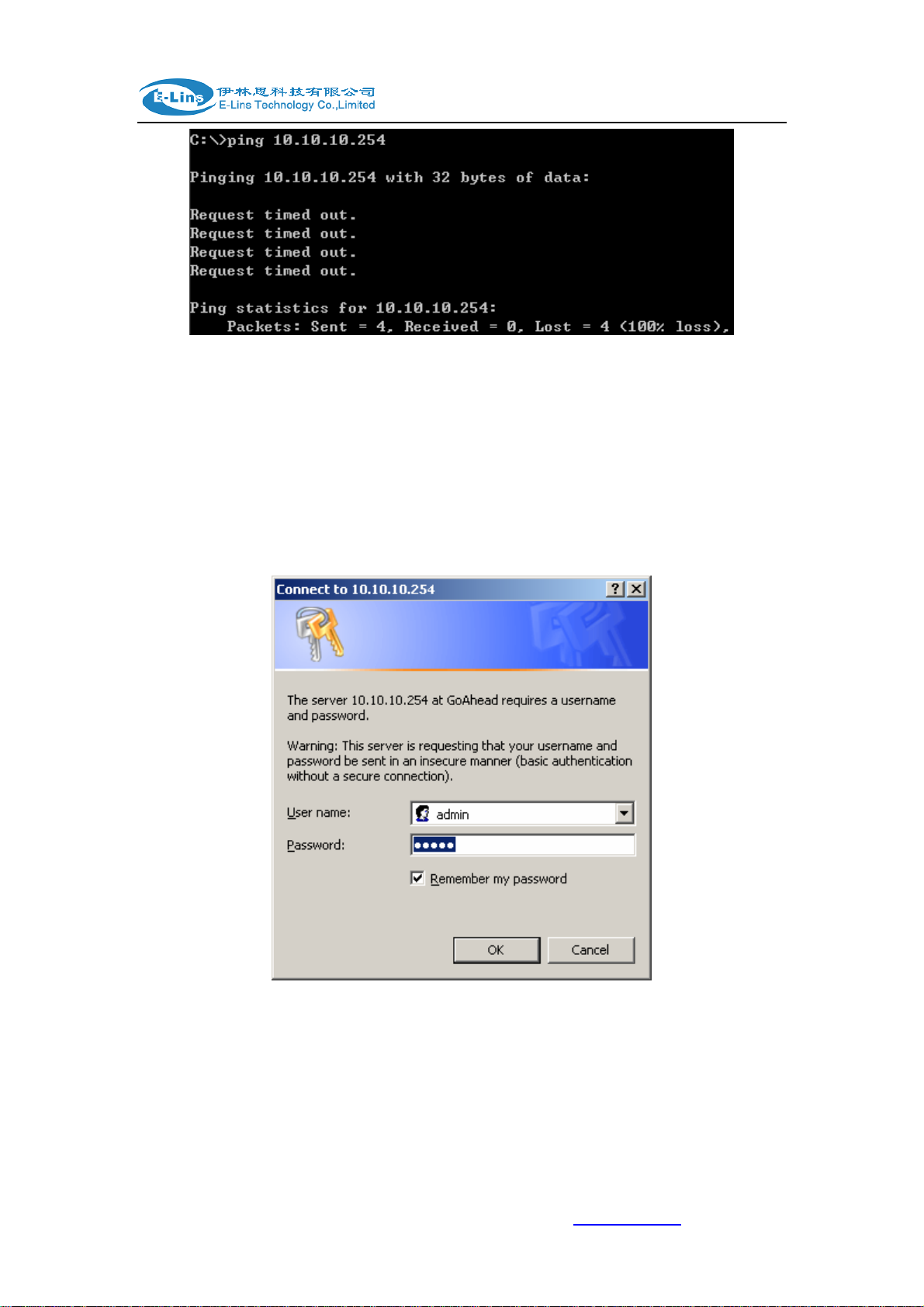

Thisinformationmeanstheconnectionisfailure.Ifso,pleasecheckthenetworkcable
connectionandIPaddresssetting.
Logintherouter
RuntheIE,opentheURL:“http://10.10.10.254”,thedefaultusernameandpasswordboth
are“admin”
Followistheconfigurationweb.
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
ConfigurationDescribe
3GRouter
Selectlanguage,theroutersupportEnglishandsimpleChinese.

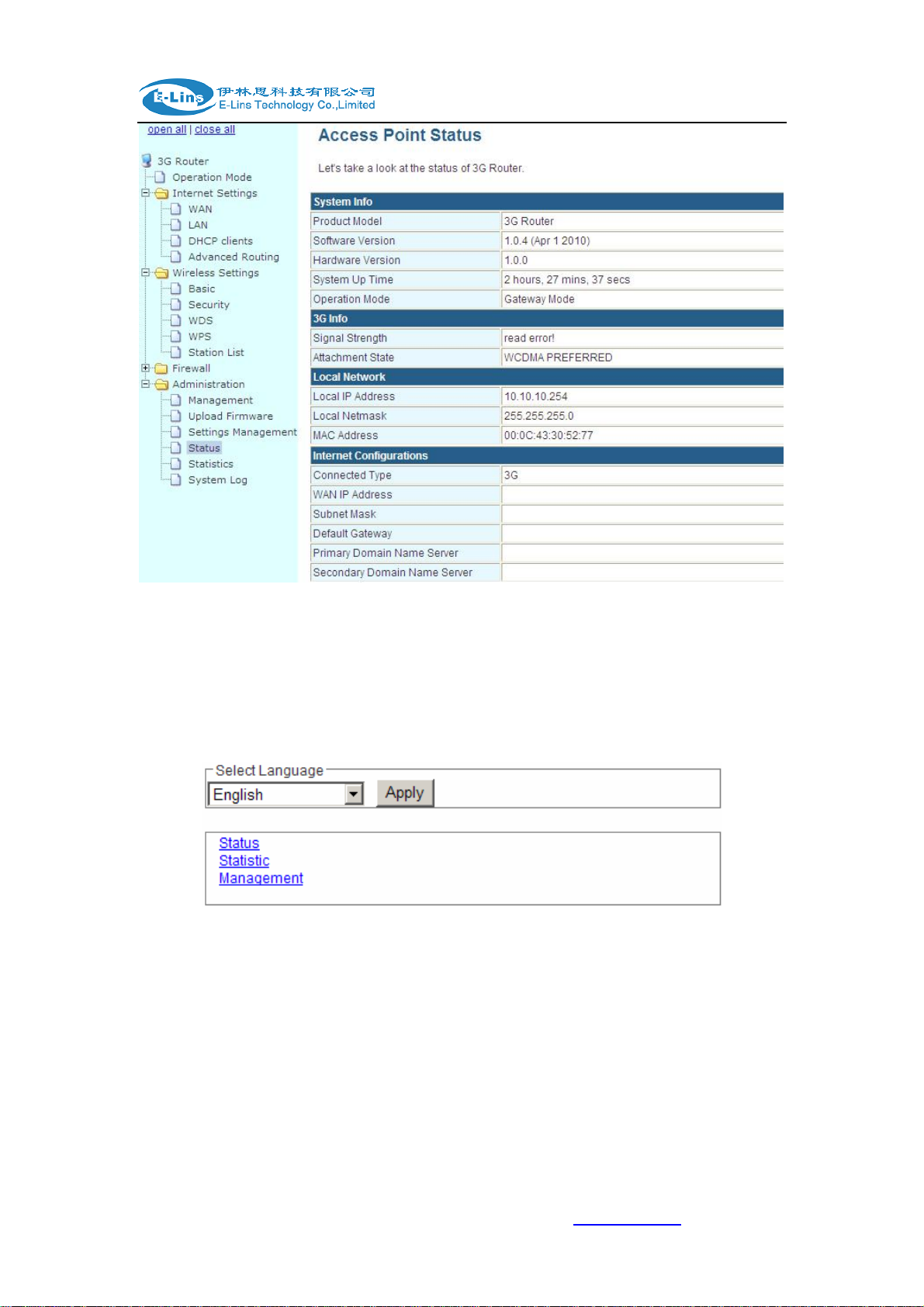

Thestatus,statisticandmanagementweblink.
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
OperationMode
TherouteroperationmodeandNATselect.Therearethreeoperationmodessupported:
bridgemode,gatewaymode,APclientmode.
Internetsettings
WideAreaNetwork(WAN)Settings

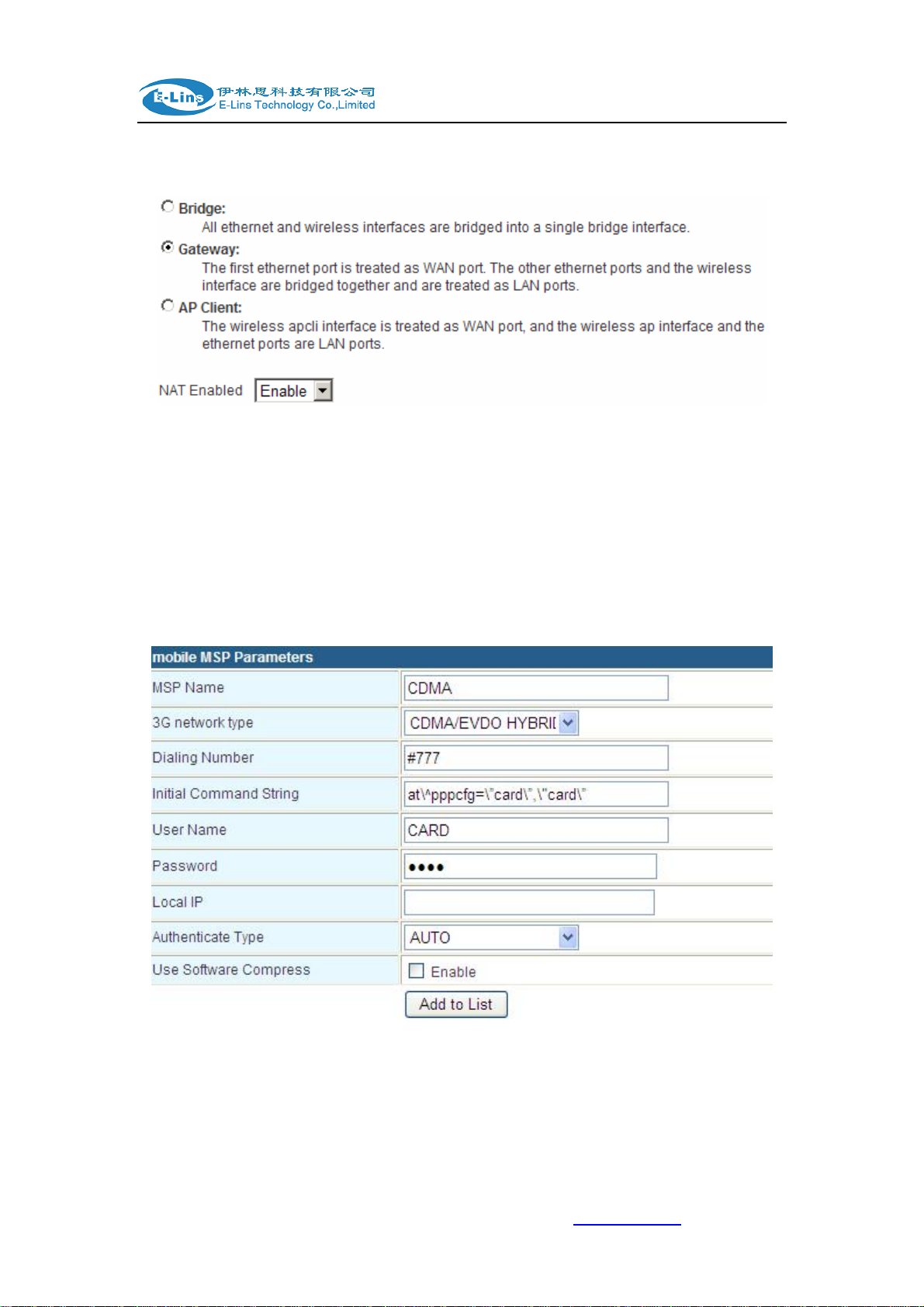

Step 1: fill in MSPAPN Parameters, then click “Add to List”
Please be notes that input the Initial Command String as the picture shows
For example: at\^pppcfg=\”card\”,\"card\”
The comma and character “\” must be contained, otherwise EV800 will not dialup to
network.
Different network provider has different parameters. Please confirm with your
EV800 User Manual
E‐linsTechnologyCo.,Limited
Add:Bld.22,LongxiGarden,NonglinRoad,FutianDistrict,Shenzhen,518000,China
Tel:+86‐755‐83700465E‐mail:sales@e‐lins.comwww.szelins.com
network provider.
For China Telecom, the parameter is as follows,
Dialing Number: #777
Initial Command String: at\^pppcfg=\”card\”,\"card\”
UserName: card
Password: card

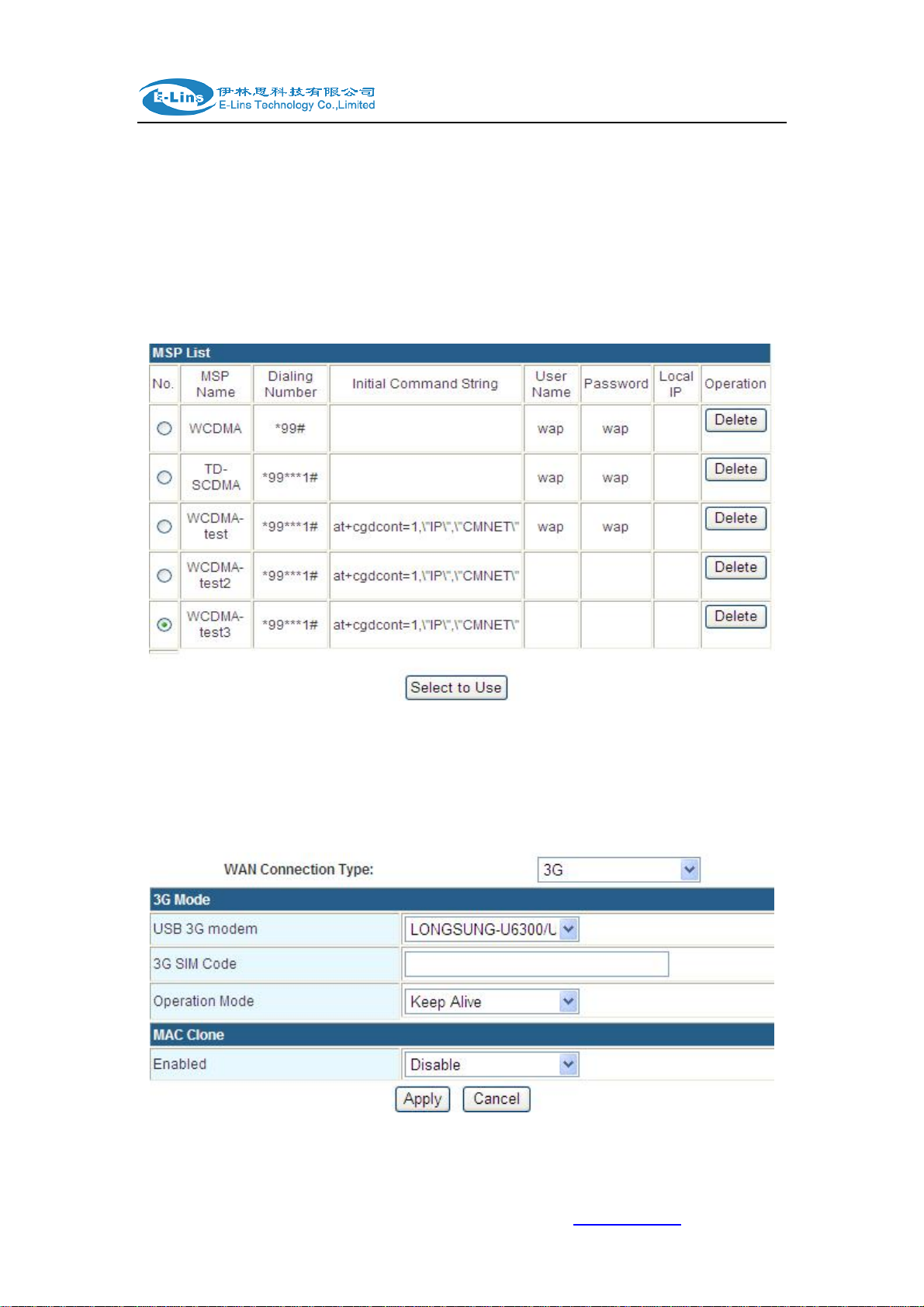

Step 2: Select the MSPAPN from “MSP List”, click “”
Step 3: at “WAN Connection Type”, select 3G.
Choose the correct USB 3G modem type. And click “Apply”, EV800 will reboot
automatically.
Please confirm the EXACT USB 3G modem before you select.
Normally keep the other parameters default as EV800 shows.
