Dyson DC26 User manual

Service manual

Issued September 09

Service manual

General notes

Cable rewind - removal

Cable rewind - fitting

Switch - removal

Switch - fitting

Brake wheel assy - removal

Brake wheel assy - fitting

Cyclone inlet, chassis and motor assembly

replacement - dismantle

Cyclone inlet, chassis and motor assembly

replacement - fitting

Sub assemblies - bin assembly

Sub assemblies - wand handle, hose and extension

tube assemblies

Cable rewind assembly inspection

Electrical safety testing

Wiring schematic

Resistance values

Electrical fault diagnosis

Main chassis and motor assembly

Main body parts

Cyclone and bin assemblies

Handle, hose and floor tool

Contents

This manual is written specifically for Dyson trained engineers and covers the full DC26

range. The service instructions assume the engineer has the approved tools and test

equipment with them.

Features and benefits 01

Page

Product overview Technical info. Parts recognition

Fitting notes

Concentration is not shrinking.

The patented Dyson technology

is smaller, but each dimension

and angle has been recalculated

and engineered to make a smaller

cyclone as efficient as a big cyclone.

Hygienic bin emptying

push the button.

Root Cyclone™ technology

Patented Dyson Technology that doesn’t lose suction power as you vacuum.

Shroud

Root cyclone

dyson root cyclone technology

Detachable handle

Click fit tools directly to it for

cleaning awkward places.

Cleaner exhaust air

Releases air containing 150 times

less mould and bacteria than the

air you breathe.

Miniaturised cable rewind

Smaller and lighter without

compromising cable length of 5m.

Centralised motor

Positioned to reduced

drag weight. Makes

the machine easier

to pull along.

Small and compact

Fits on an A4 sheet of paper.

Easy to carry and store.

Lightweight - only 3.5kg

Dual cavity floor tool

Two separate airflow channels

direct suction power evenly for

improved pick-up across every

floor type.

Bin

No need to touch the dirt just

Product overview

Features and benefits

Technical info.

Service manual

Electrical safety testing

Ensure that at all times during the repair and testing of products

that customers, children, pets and you are not exposed to any

Live electrical supply.

Insulation test

The following tests must be performed prior to

and upon completion of all repairs to Dyson

floorcare products and before any functional

checks.

You must ensure that a full visual inspection of

the product is completed prior to repair.

Test results

An insulation test reading of >2 MW

is acceptable.

A reading of below 2 MWis not considered

safe and will require replacement of the

chassis and motor assembly.

The Seaward Primetest 200 (or equivalent)

should be used to test the electrical

insulation of a Class 11 appliance; it

indicates any electrical leakage.

Insulation test point:

These tests are vital to avoid any possibility

of personal injury to the end user.

If you cannot repair a product with an

insulation test reading of below 2MW

you must inform the customer that the

product is unsafe to use.

Please inform the customer of the

required actions to repair the product

(including the charge structure).

If the product is left un-repaired please

indicate on your paperwork/hand held

device that the product is electrically

unsafe and attach a ‘WARNING:

product electrically unsafe’ sticker in

a visable location on the product.

Technical info.

Service manual

Resistance values

Wiring schematic

Cable rewind/

cable wiring assembly

Motor bucket

On/Off

switch

Cyclone

inlet

Contacts

9 10

COMPONENT

POWERCORD ASSY 1

POWERCORD ASSY

POWERCORD TO MAIN ON/OFF SWITCH

MAIN CHASSIS AND MOTOR ASSY

(WITH CABLE REWIND ATTACHED)

(WITH CABLE REWIND REMOVED)

MAIN ON/OFF SWITCH

TEST BETWEEN POINTS OHMS

1 ΩMAX

6 ΩAPPROX

1 ΩMAX

910

Technical info.

Service manual

No power to motor

1. Carry out a resistance test around the entire product (points 1-2) to determine there is a genuine

fault.

2. If there is a fault check the plug, pins and entire length of the powercord for any signs of wear or

damage.

3. Remove the cable rewind assembly from the product (following all safety precautions shown on

pages 08-09), and check for any damage on the outer contacts of the cable wiring retainer

assembly that would result in an open circuit between the wiring retainer and cable rewind

assembly.

4. Carry out a resistance test along the length of the powercord (points 1-3 and 2-4).

5. Remove the actuator housing and check that the wires are attached to the On/Off switch

(points 7 and 8).

6. Check the mechanical actuation of the On/Off switch.

7. Carry out a resistance test across the switch (points 9-10) ensuring the switch is in the On position.

8. Remove the cable wiring retainer assembly from the product (see pages 38 and 39 for instructions)

and check that the Live (point 5) wire from the On/Off switch and Neutral (point 6) wire from the

main body loom are attached to the assembly.

9. Check the cable wiring retainer assembly for any signs of damage that would result in an open

circuit.

10. Carry out a resistance test along the length of the live wire that connects the cable wiring assembly

to the On/Off switch (points 5-7).

11. If all of the above checks do not rectify the fault, replace the Main chassis and motor assembly.

Electrical fault diagnosis

Fitting notes

Service manual

General notes

Disconnect the machine from the electrical outlet at

all times during repair and test. Failure to do so could

result in electric shock or personal injury.

Some female terminal clips used in DC26 contain a locking

mechanism. The release pip will need to be activated before

separation from the male terminal can occur.

Ensure that safety goggles are worn where this symbol

is shown.

Cable rewind - removal

Recommended tools to repair DC26:

Torx T-8, T-10, T-15 screwdrivers

Large flat bladed screwdriver

Thin flat bladed screwdriver

Long/needle nosed pliers

01 Remove the cyclone and bin

assembly from the product.

Wire colours may vary between territories.

Ensure that protective gloves are worn where this symbol

is shown.

Fitting notes

Service manual

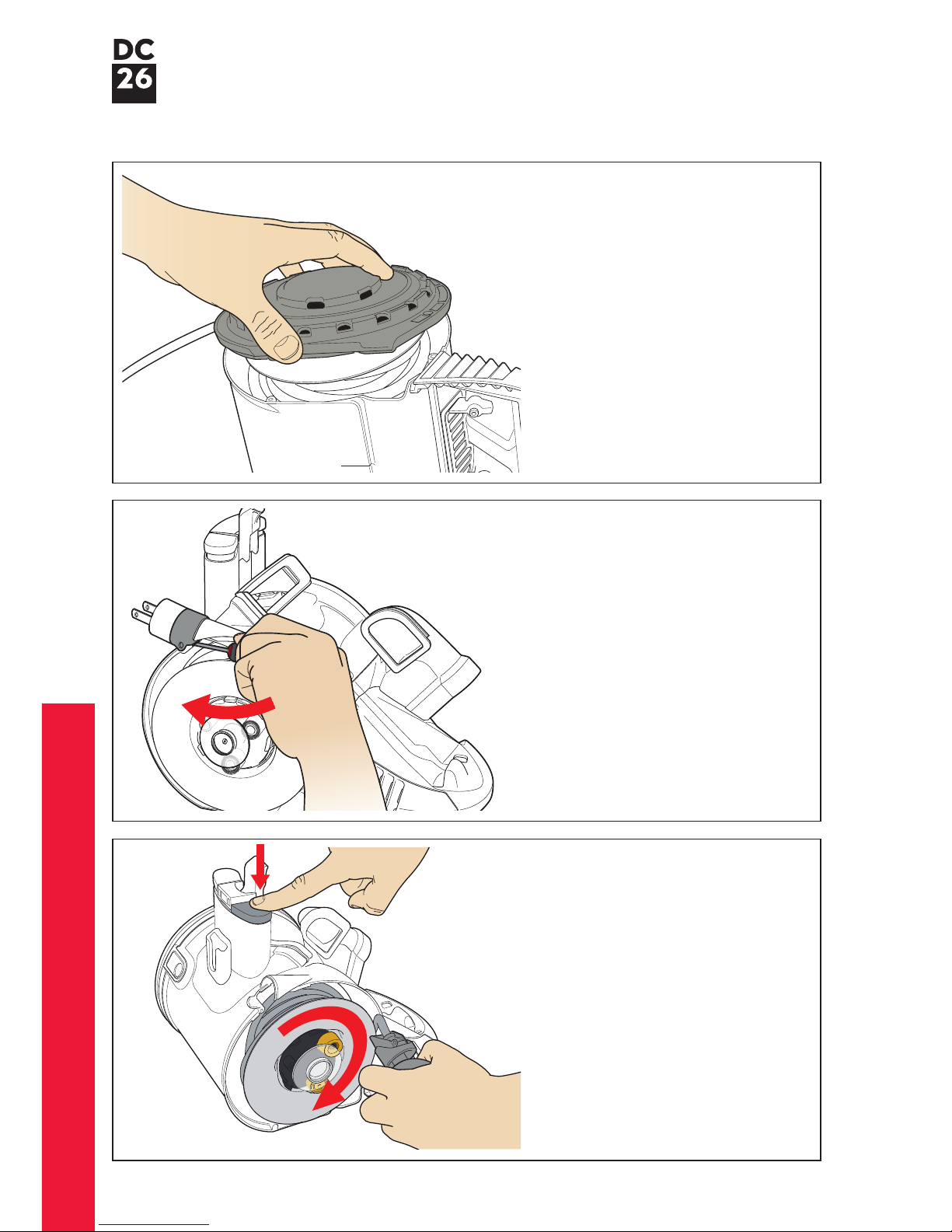

02 Undo the two fasteners in the post

filter cover assembly.

03 Remove the cover.

04 Pull the hose retainer catch to

release the hose from the base

of the product.

Fitting notes

Service manual

05 Firmly release the hose from the

cyclone inlet.

06 Firmly pull the wheel and retainer

off the cable rewind side of the

product.

07 Undo the three screws in the cable

rewind cover.

Fitting notes

Service manual

08 Remove the cover.

09 Important: ensure the entire

length of the cable is wound onto

the cable rewind assembly.

Prise the cable protector off the

side of the chassis.

10 Important: press the cable

rewind actuator and allow the

cable rewind assembly to turn

through two revolutions clockwise

to remove any remaining tension

in the cable spring assembly.

Failure to do this could result in

injury when removing the spring

assembly.
