Dyness Tower T Series User manual

Dyness Battery System

Tower T Series-T7/T10/T14/T17/T21

QUICK INSTALLATION GUIDE

V1.0

File version-20221018-V1-EN information might be subject to change without notice during product improving.

Target Group

Installation Environment Requirements

Tools

Max.

+50oC

Min.

-10oC

RH.

+5%~+95%

Skilled personnel recognized

This manual and the tasks and procedures described herein are intended for use by skilled workers only.

A skilled worker is defined as a trained and qualified electrician or installer who has all of the following

skills and expenence:

• Knowledge of the functional principles and operation of on-grid systems.

• Knowledge of the dangers and risks associated with installing and using electrical devices and

acceptable mitigation methods.

• Knowledge of the installation of electrical devices.

• Knowledge of and adherence to this manual and all safety precautions and best oractices.

• Please note that this is the quick reference guide only. It is a shortened assistance for the installation

of the Battery HV and does not replace the original installation manual. The original installation

manual must be read and understood completely before installation. Please download and view the

installation manual on this website: www.eft-systems.de (Downloads)

• In order to ensure the normal operation of Battery-Box, please be sure to update the firmware to the

latest version and finish the configuration on Battery-Box webpage in accordance with this document.

• The system switch must be off before installing.

• Please make sure the system switch is off in case of the system not working, and it would be better to

repair it again within one week, avoiding overdischarge or other problems happen.

• Please do not stack up batteries without protective package when storing or handling batteries, unless

in the case of installation.

Wire Clamp

Phillips Screwdriver

Inclinometer

Wrench

Churn Drill

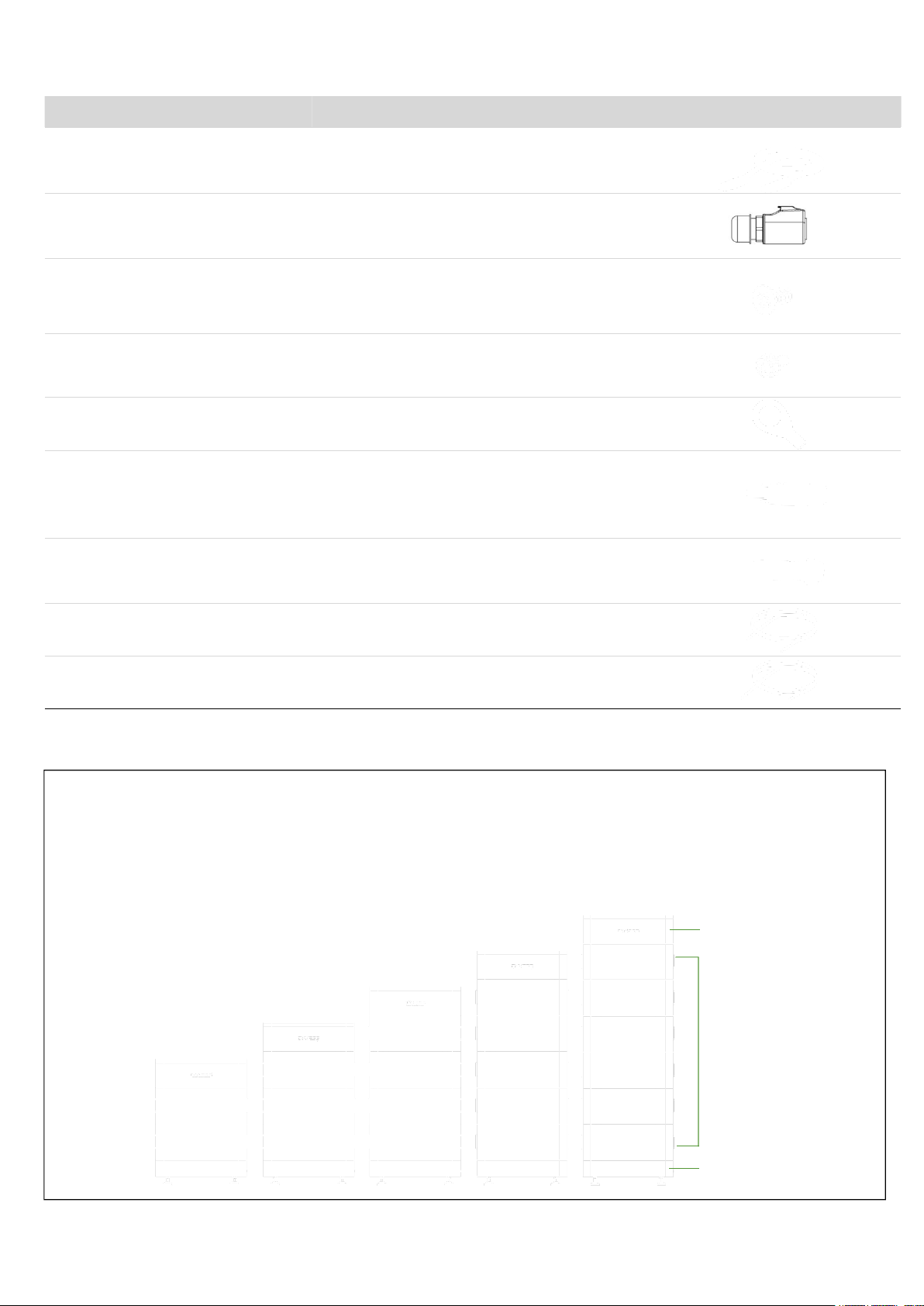

Packing list

Overall Structure

Item

Specification

Quantity

Figure

Communication Cable to Inverter

Standard, Black

/L2000mm /RJ45 plug at both sides

1 PCS

Communication Connector to BDU

RJ45 Waterproof connector

1 PCS

M4 12pcs

M4*12

12PCS

M6 3 Sets of Combined Screws

M6×2pcs

2 PCS

OT terminal for Ground

OT4-6

2 PCS

Power Cable Connector

To positive pole of battery

1 PCS

Power Cable Connector

To negative pole of battery

1PCS

Power Cable

Positive cable

6mm²,red,2m

1 PCS

Power Cable

Negative cable

6mm²,black,2m

1PCS

• Limited to the voltage interval of the inverter, the number of HV9637 modules used by the Tower

series products is 2.

• Limited to the conversion conditions of the BDU internal DC, the maximum number of HV9637

modules in the Tower series of products is 6.

T7=7.1kWh

BDU

T10=10.6kWh

T14=14.2kWh

T17=17.7kWh

T21=21.3kWh

HV9637*N

Base

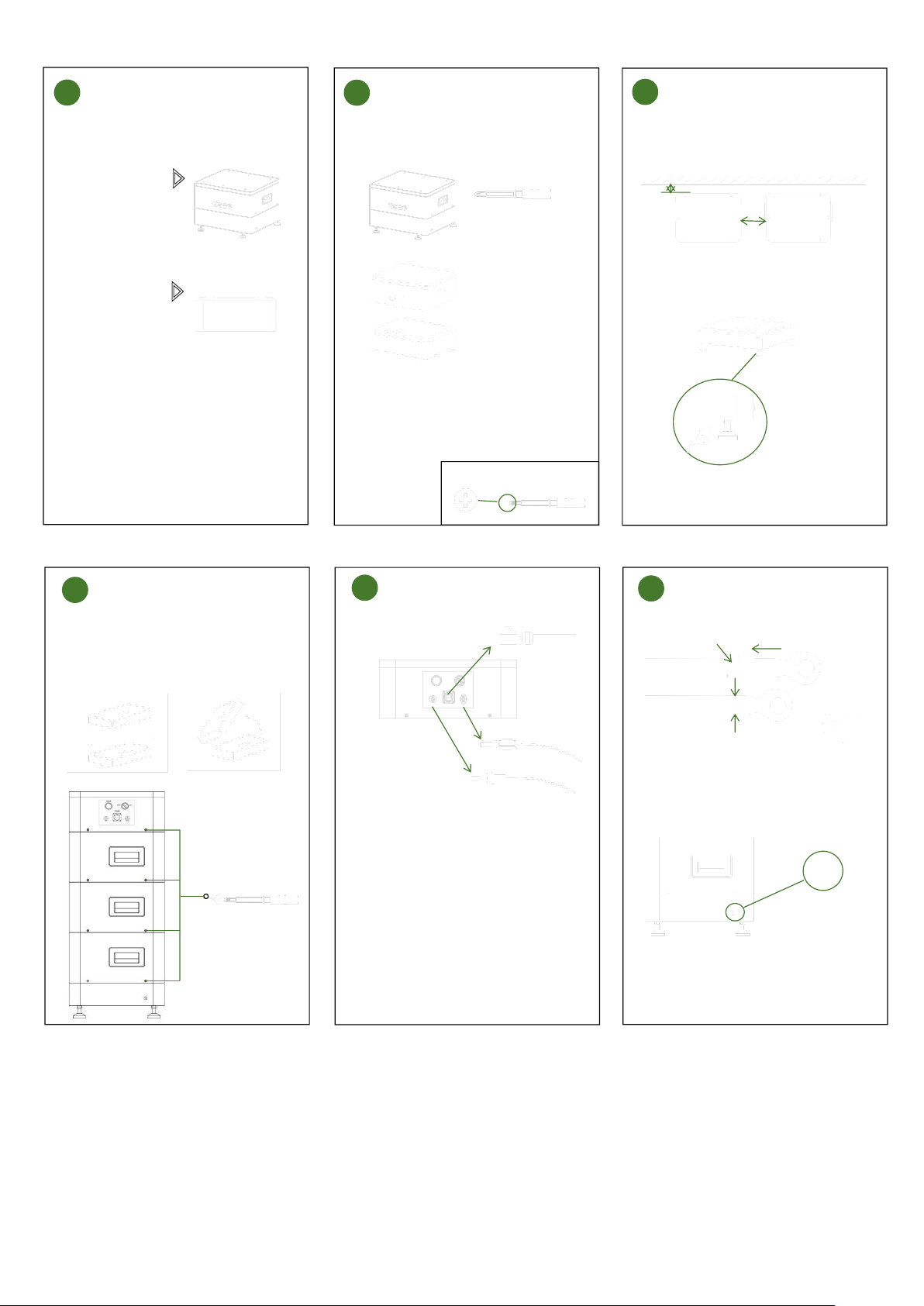

Unpack

BDU+Base

HV9637

Separate the BDU and Base

Balance

Negative cable

Positive cable

Note: We recommend that a circuit

breaker is installed between the

battery and the inverter to prevent

the battery or the inverter damaged

when the short circuit occurs.

Note: When assembling the BDU,

ensure that the circuit breaker

switch of the BDU is in the "OFF"

state.

Tighten the

fixed bolt in

turn.

Stacking and locking

Connect the cable

Earth connection

D1=50cm

D2=30cm

Communication cable

√

10±0.5mm

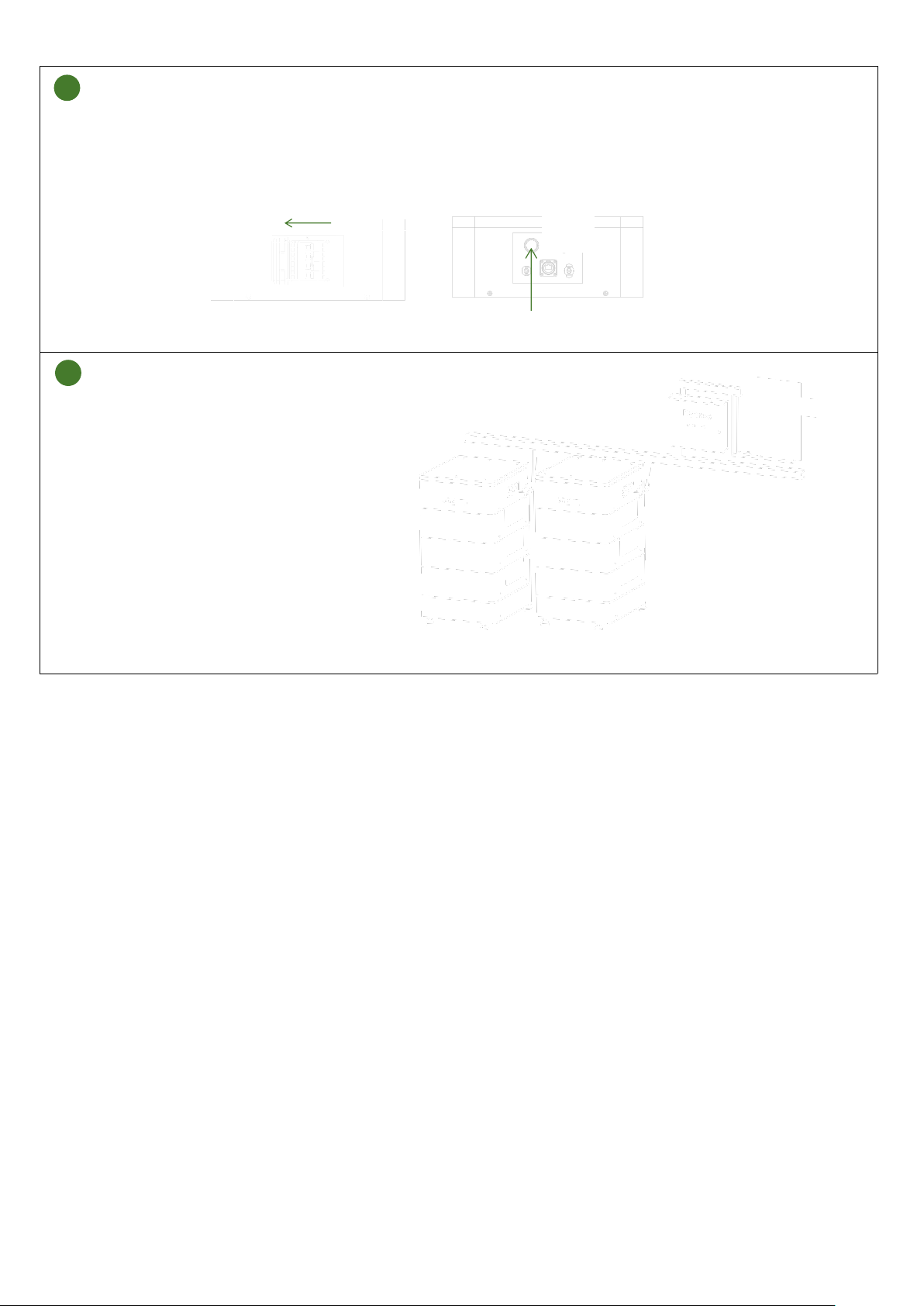

1. First, push the circuit breaker of BDU to the "ON" state.

2. Turn the self-locking switch to "ON", press and hold the "WAKE" button 3 ~ 7secs , release your fingers, the

green light will always be on, and the battery will be turned on successfully.

Press and hold the "WAKE" button 3 ~ 7secs.

Parallel system

Dyness supports the maximum 12

cluster and machine use, it needs

to configure a dedicated flow box.

Single cluster installation is the

same as it is used alone. For others,

please consult Dyness.

Battery system on

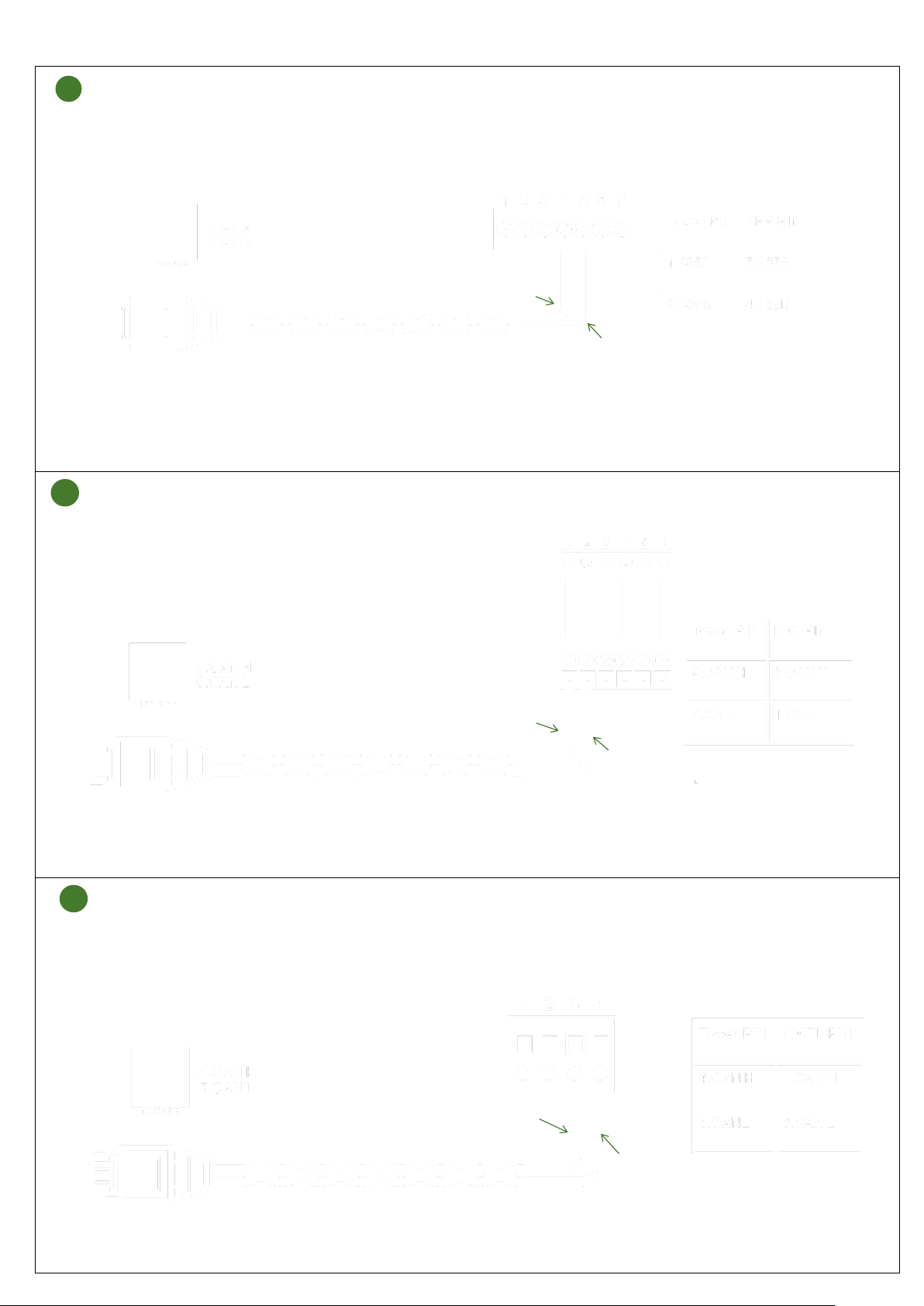

WH/BU

Tower T series

KOSTAL

PLENTICORE

PLUS

KOSTAL PLENTICORE PLUS

Communication Cable Connection

Ingeteam (INGECON

SUN STORAGE1 PLAY TL M)

Ingeteam (INGECON

SUN STORAGE 100TL)

Ingeteam (INGECON SUN STORAGE 100TL)

Tower T series

Communication Cable Connection

Ingeteam (INGECON SUN STORAGE1 PLAY TL M)

Communication Cable Connection

Tower T series

WH/OG

Standard network cable, cut off one side.

WH/BU

Standard network cable, cut off one side.

10a

10b

WH/BU

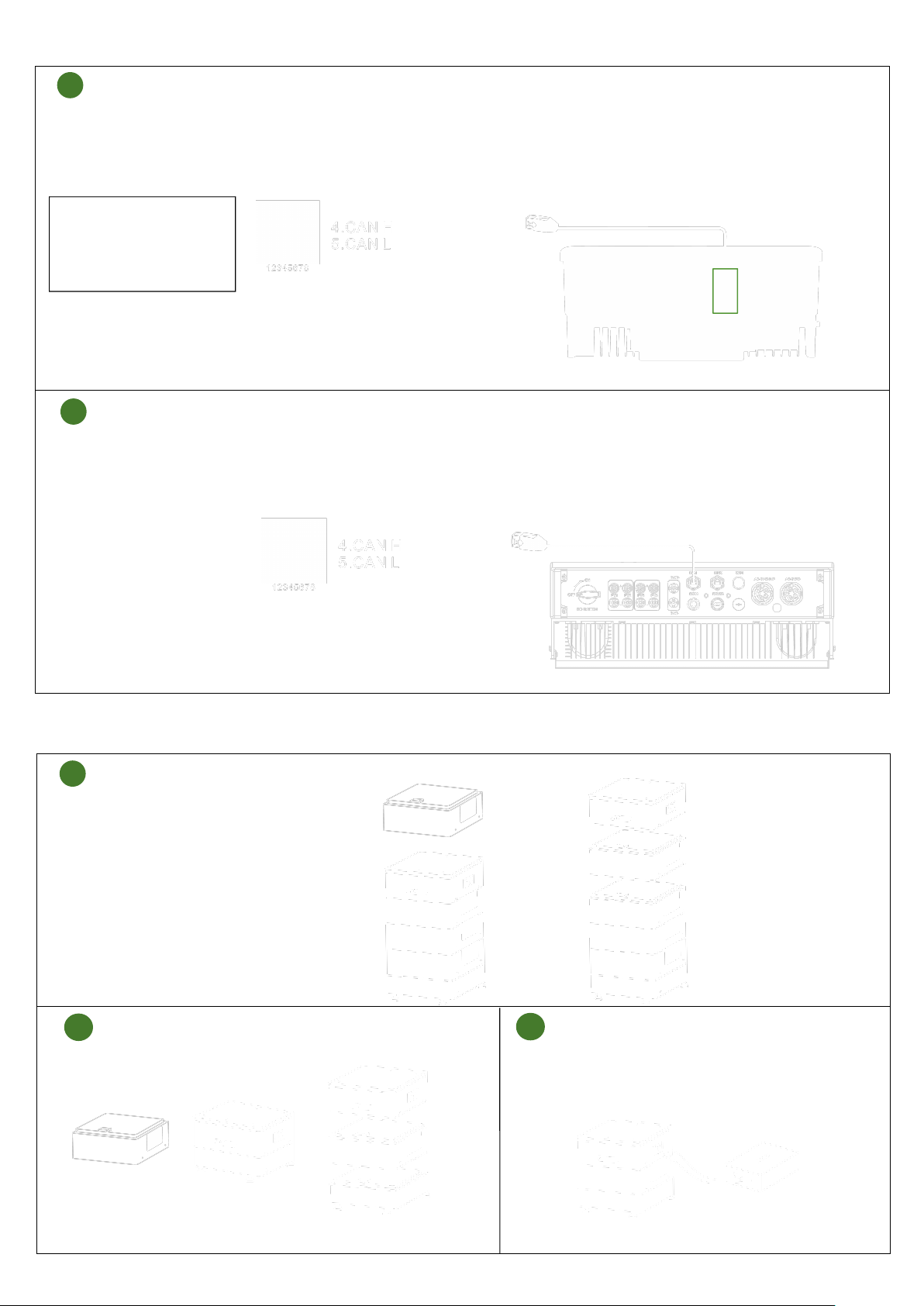

TOWER System Expansion

Note: If you don't have equipment, please ask the dealer to fill up the capacity of the module you need to increase.

Use the configuration standard network cable.

BMS

Dyness has a standard communication network cable. It is recommended to use the GW configuration

network cable and directly connect to the CAN port of the battery BDU.

Note: PV Master selects

the TOWER PRO version,

to ensure that the inverter

version is: ×××× 22.

Goodwe ET Inverter

Tower T series

The 2 terminals are the Ethernet cable of the RJ45 terminal.

Tower T series

Solis RHI Series Hybrid Inverter

The 2 terminals are the Ethernet cable of the RJ45 terminal.

Module expansion

It is necessary to ensure that the power of

the added module is 100%, and the power

of the expanded system is also 100%.

(The dealer is required to provide SOC

100% module. If you operate by yourself,

please follow the following steps.)

SOC=100%

Add the module to be charged between BDU and Base.

Charge it with DC power supply until BDU is cut

off, indicating that SOC is 100%.

SOC=100%

13a

13b

www.dyness-tech.com

DYNESS RENEWABLE ENERGY GROUP CO., LTD.

Power You Day and Night

Official Website Digital version access
