Dynabook Satellite Pro C40-G User manual

March 11th, 2022

Dynabook Laptop Components Classified as Requiring Selective Treatment

Dynabook would like to communicate the method of identifying and removing components contained in

Dynabook notebook products, including but not limited to the Satellite Pro C40-G model, that requires

selective treatment based on the European WEEE Directive, Directive 2012/19/EU of the European

Parliament and of the Council on waste electrical and electronic equipment (WEEE).

All of the instructions provided within this letter can be reviewed in greater detail within the

Satellite Pro C40-G Series Maintenance Manual.

Tools Required

In order to remove internal components of the Satellite Pro C40-G some tools from the list below may be

required located in Chapter 4 Replacement Procedures of the Dynabook Maintenance Manual

For your safety and the safety of the people around you, it is important that you use Electrostatic Discharge

(ESD) equipment. Correctly utilizing of the equipment increases the percentage of successful repairs and

saves on the cost of damaged or destroyed parts. The following equipment is required for disassembly and

assembly.

■

One Philips screwdriver with type 0 bit (for S-THIN HEAD screws)

■

One Philips screwdriver with type 1 bit (for screws other than above)

■

One flat-blade screwdriver (for removing the CPU)

■

Tweezers (for lifting screws)

■

ESD mats (lay on work table or floor)

■

An ESD wrist strap and heel grounder

■

Anti-static carpet or flooring

■

Air-ionizers in highly static sensitive areas

■

Antenna coaxial cable disconnector

■

Special syringe (for applying grease)

Table of Contents

•

(Page 2-3) Removing the Lithium Ion Battery (Main Battery, No coin cell battery)

•

(Page 4) Removing the SSD

•

(Page 5-27) LCD, Printed Circuit / Wiring Boards (PCB/ PWB system board)

•

(Page 28-29) AC Adapter and external provide cable

1. Removing the Lithium Ion Battery (Main Battery, No coin cell battery)

Please refer to the information below for instructions regarding the identification and removal of the

lithium ion battery. Further maintenance instructions can be found in section 4.11 of the

Satellite Pro C40-G Maintenance Manual. Some tools are required in order to remove this

component. Once removed, these components should be recycled as per local requirements.

To remove the battery, the base assembly must be removed first:

Removing Base Enclosure

Remove Base Enclosure according to the following procedures and Figure 4-7.

1. Remove seven M2.0x7.0x4.5black Phillips head screws securing Base

Enclosure and four M2.0x.3.5x4.5black Phillips head screws securing Base

Enclosure .

2. Remove Base Enclosure..

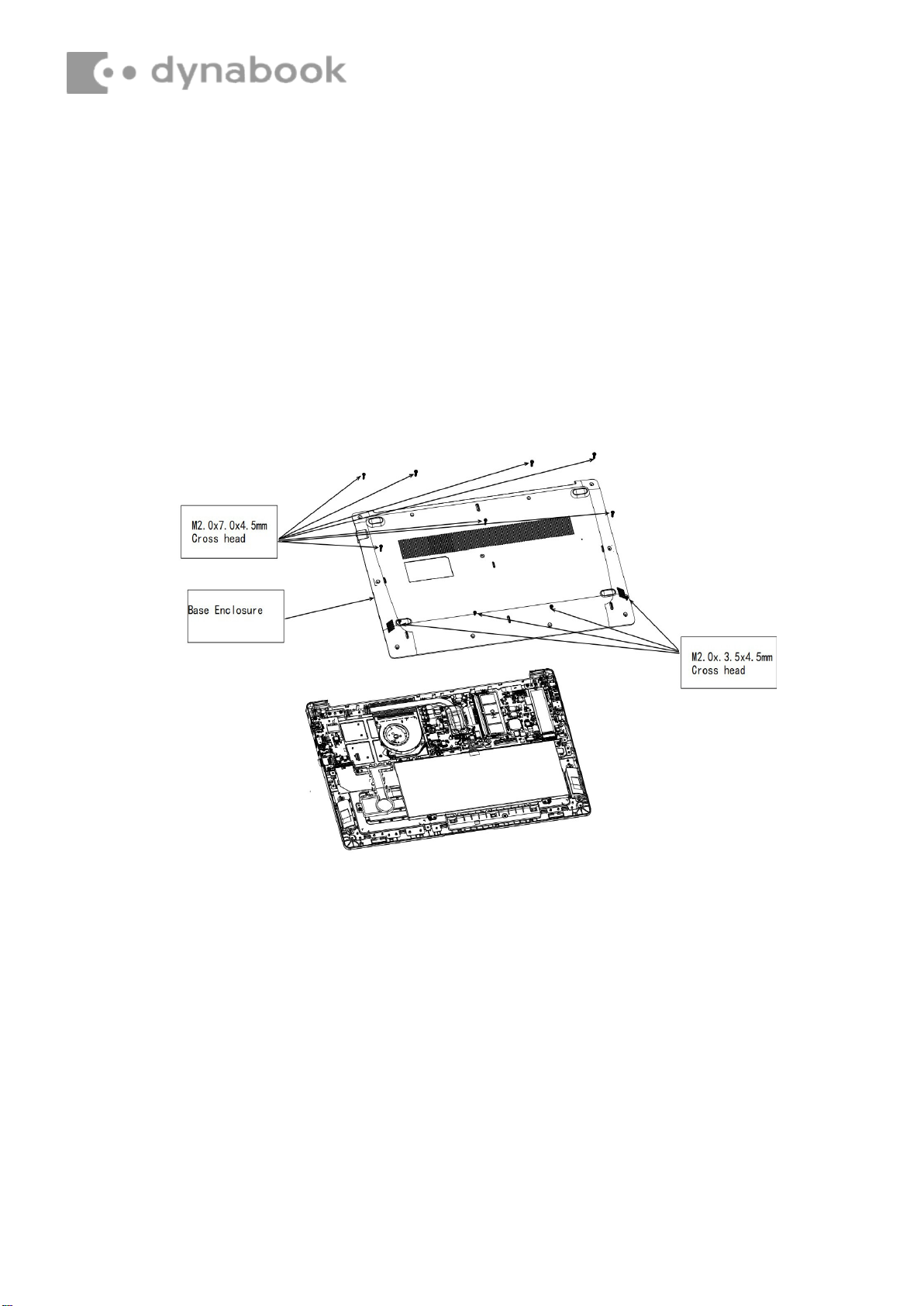

Figure 4-7 Removing Base Enclosure

CAUTION : When handling the battery packs, use care not to short circuit the

terminals. Do not drop, hit, twist, or bend the battery packs. Do not scratch or break

up their casing.

Removing Battery Pack

Remove battery pack according to the following procedures and Figure 4-9.

1. Remove Battery Maly.

2. Disconnect Battery cable from CN3 on system board.

3. Remove four M2.0x3.0x4.5 black Phillips head screws securing Battery.

4. Remove Battery.

Figure 4-9 Removing battery pack

CAUTION: Do not touch the connectors on SSD and in the computer with your

bare hands. SSD can fail if they are contaminated with sweat, natural oils, etc. from

your hands.

2. Removing the SSD

To remove the SSD the mainboard must be removed first.

Please refer to the information listed in section 4.8 of the Satellite Pro C40-G Series Maintenance

Manual to check how the mainboard is removed.

Removing SSD

Remove SSD according to the following procedures and Figures 4-13.

1. Remove thermally conductive pad

2. Remove one M2.0x2.5x5.0 black Phillips head screw securing the SSD.

3. Pull SSD from CN8 on system board.

Figure 4-13 Removing SSD

3. Removing the LCD and Printed Circuit / Wiring Boards

Beside the LCD and the main PCB, there are further small PCBs and components which are in the

scope of the WEEE Directive. The removal of these components is described in detail in the chapter

4 of the associated maintenance manual.

Replacement Procedures

Figures

Figure 4.2 Removing Base Enclosure.............................................4-7

Figure 4.3 Removing BatteryPack ..............................................4-9

Figure 4.4 Removing SSD .....................................................4-13

Figure 4.5 Removing SODIMM ..................................................4-14

Figure 4.6 Removing LCD Module A ssembly ................................4-17

Figure 4.7 Removing the CPU Cooling Module and Fan .......................4-19

Figure 4.7 Applying silicon grease(CPU).......................................4-20

Figure 4.8 Removing System Board .............................................4-21

Figure 4.9 Removing IO Board .................................................4-23

Figure 4.10 Removing Speaker ............................................... 4-25

Figure 4.11 Removing the LCD Module Mask ...............................4-27

Figure 4.12 Removing LCD Panel follow direction ......................... 4-29

Figure 4.12 Removing the LCD cable ...........................................4-32

Figure 4.12 LCD cable below the LCD module cover latch ...................4-32

Figure 4.13 Removing the CCD Module ..........................................4-33

Figure 4.14 Removing the Touch pad Module ..............................4-35

4.2

Base Enclosure

Removing Base Enclosure

Remove Base Enclosure according to the following procedures and Figure 4-7.

1. Remove seven M2.0x7.0x4.5black Phillips head screws securing Base

Enclosure and four M2.0x.3.5x4.5black Phillips head screws securing Base

Enclosure .

2. Remove Base Enclosure..

Figure 4-7 Removing Base Enclosure

Installing Base Enclosure

Install Base Enclosure according to the following procedures and Figure 4-7.

1. Place Base Enclosure in correct position.

2. Secure Base Enclosure with seven M2.0x7.0x4.5black Phillips head screws

and M2.0x3.5x4.5black Phillips head screws .

CAUTION : When handling the battery packs,use care not to short circuit the terminals.

Do not

drop, hit, twist, or bend the battery packs. Do not scratch or break up their casing.

NOTE: Dispose of the used battery packs as required by local ordinances

or regulations.

4.3

Battery Pack

Removing Battery Pack

Remove battery pack according to the following procedures and Figure 4-9.

1. Remove Battery Maly.

2. Disconnect Battery cable from CN3 on system board.

3. Remove four M2.0x3.0x4.5 black Phillips head screws securing Battery.

4. Remove Battery.

Figure 4-9 Removing battery pack

CAUTION : The battery packs contain a lithium ion battery, which can explode

due

to improper replacement, use, handling, or disposal. Always dispose of the battery

packs as required by local ordinances or regulations. Use only replacement

batteries recommended by Toshiba.

N O TE: Visually check the battery's terminals. If they are dirty, clean them with a

dry cloth.

Installing Battery Pack

Install battery pack according to the following procedures and Figure 4-9.

1. Take a new or recharged Battery Pack.

2. Place Battery Pack in correct position.

3. Secure Battery with four M2.0x3.0x4.5 black Phillips head screws.

4. Check the battery screw hole ,if there is cracking, please replace the parts.

5. Connect Battery cable to CN3 on system board.

6. Installing Battery Maly.

CAUTION: Do not touch the connectors on SSD and in the computer with your

bare hands. SSD can fail if they are contaminated with sweat, natural oils, etc. from

your hands.

4.4

SSD

Removing SSD

Remove SSD according to the following procedures and Figures 4-13.

1. Remove thermally conductive pad

2. Remove one M2.0x2.5x5.0 black Phillips head screw securing the SSD.

3. Pull SSD from CN8 on system board.

Figure 4-13Removing SSD

Installing SSD

Install SSD according to the following procedures and Figures 4-13.

1.Insert SSD into CN8 on system board.

2.Secure it with one M2.0x2.5x5.0 black Phillips head screw.

3.Install thermal sillicagel

CAUTION: Do not touch the connectors on SO D IM M and in the computer with your

bare hands. SODIMM can fail if they are contaminated with sweat, natural oils, etc. from

your hands.

4.5 SODIMM Removing

SODIMM

Remove SODIMM according to the following procedures and Figures 4-14.

1.Press both sides of the J1 connector shrapnel 15° with both index fingers

2. Take out the SODIMM at 45° horizontal

Figure 4-14 Removing SODIMM

CAUTION: Do not touch the connectors on SSD and in the computer with your bare

hands. SSD can fail if they are contaminated with sweat, natural oils, etc. from your hand
