Dyna-Glo KFA80H Manual

IMKFAH-HDW

INDOOR/OUTDOOR PRODUCTS

KEROSENE PORTABLE

FORCED AIR HEATERS

“USER’S MANUAL AND

OPERATING INSTRUCTIONS”

MODEL: KFA50H, KFA80H, KFA135H, KFA220H

Before the rst use of this heater, please read this USER’S MANUAL very

carefully. This USER’S MANUAL has been designed to instruct you as to

the proper manner in which to assemble, maintain, store, and most

importantly, how to operate the heater in a safe and efcient manner.

Please keep this manual for future reference.

COMPLIES WITH UL733 AND

ANSI A10.10-1998 CAN/CSA/

B140.0-03 AND CSA

B140.8-1967

CONSUMER : Retain this manual for future reference.

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 877-447-4768 8:30 a.m. - 4:30 pm CST, Monday - Friday.

or email us at [email protected]

DANGER: IMPROPER USE OF THIS HEATER CAN RESULT IN SERIOUS INJURY OR DEATH

FROM BURNS, FIRE, EXPLOSION, ELECTRICAL SHOCK AND/OR CARBON

MONOXIDE POISONING.

WARNINGS:

1. RISK OF INDOOR AIR POLLUTION!

• Use this heater only in well ventilated areas. Provide at least a three-square foot (2,800 sq. cm.)

opening of fresh outside air for each 100,000 BTU/hr. of heater rating.

• People with breathing problems should consult a physician before using the heater.

• Carbon monoxide poisoning: Early signs of carbon monoxide poisoning resemble the u, with headaches, dizziness

and/or nausea. If you have these signs, the heater may not be working properly.

Get fresh air at once! Have the heater serviced. Some people are more affected by carbon monoxide than others.

These include pregnant women, persons with heart or lung disease or anemia, those under the inuence of alcohol, or

those at high altitudes.

• Never use this heater in living or sleeping areas.

2. RISK OF BURNS / FIRE / EXPLOSION!

• NEVER use any fuel other than 1-K kerosene, #1/#2 disel/fuel oil, JET A or JP-8 fuels in this heater.

• NEVER use use fuel such as gasoline, benzene, paint thinners or other oil compounds in this heater.

(RISK OF FIRE OR EXPLOSION)

• NEVER use this heater where ammable vapors may be present.

• NEVER rell the heaters fuel tank while heater is operating or is still hot.

CAUTION: Hot while in operation. Do not touch. Keep children,

clothing and combustibles away from heater.

Minimum Clearances: Outlet: 8 feet (250cm) / Sides, top and rear: 4 feet (125cm)

• NEVER block air inlet (rear) or air outlet (front) of heater.

• NEVER use duct work in front or behind of heater.

• NEVER move, handle, service a hot, operating or plugged in heater.

• NEVER transport heater with fuel in it’s tank.

• When used with an optional thermostat or if equipped with a thermostat heater may start at any time.

• ALWAYS locate heater on a stable and level surface.

• ALWAYS keep children and animals away from heater.

• Bulk fuel storage should be a minimum of 25 ft. from heaters, torches, portable generators or other sources of ignition.

All fuel storage should be in accordance with federal, state or local authorities having jurisdiction.

3. RISK OF ELECTRIC SHOCK!

• Use only the electrical power (voltage and frequency) specied on the model plate of the heater.

• Use only a three-prong, grounded outlet and extension cord.

• ALWAYS install the heater so that it is not directly exposed to water spray, rain, dripping water or wind.

• ALWAYS unplug the heater when not in use.

PROPOSITION 65 WARNING: Fuels used in gas, wood-burning or oil red appliances, and the

products of combustion of such fuels, contain chemicals known to the State of California to cause cancer,

birth defects and other reproductive harm.

MASSACHUSETTS RESIDENTS: Massachusetts state law prohibits the use of this heater in any

building which is used in whole or in part for human habitation. Use of this heating device in

Massachusetts requires local re dept. permit (M.E.L.C. 148, Section 10A.)

CANADIAN RESIDENTS: Use of this heater shall be in accordance with authorities having

jurisdiction and CSA Standard B139.

NEW YORK CITY RESIDENTS: For use only at construction sites in accordance with applicable NYC

codes under NYCFD certicate of approval # 5034 and 5037.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

ITEM PAGE #

PRECAUTIONS - SAFETY GUIDE ......................................................... 1

1. INTRODUCTION ............................................................................... 2

2. FEATURES .......................................................................................... 2

3. UNPACKING AND ASSEMBLY ....................................................... 4

4. FUELS ................................................................................................. 6

5. OVERVIEW OF HEATER DESIGN ................................................... 7

6. FUELING YOUR HEATER ................................................................ 8

7. OPERATION ....................................................................................... 8

8. LONG TERM STORAGE OF YOUR HEATER ................................ 9

9. MAINTENANCE ................................................................................ 10

10. REPLACING FUSE ............................................................................ 14

11. TROUBLESHOOTING GUIDE ......................................................... 15

12. WIRING DIAGRAM ........................................................................... 16

13. SPECIFICATIONS .............................................................................. 17

14. EXPLODED PARTS DRAWING ........................................................ 18&21

15. PARTS LIST ........................................................................................ 19,20&22,23

1. INTRODUCTION

Please read this USER’S MANUAL carefully. It will show you how to assemble, maintain, and operate the

heater safely and efciently to obtain full benets from its many built-in features.

2. FEATURES

Figure 1. KFA50H/KFA80H MODELS

CONTENTS OF USER’S MANUAL

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Front Guard

Hot Air Outlet

Lower Shell

Fuel Tank

Side Cover

Lamp

Thermostot Knob

(80H Model Only)

Power/Reset Switch

Upper Shell

Handle

Fan Guard

Cord Wrap

(80H Model Only)

Fuel Gauge

Pressure Gauge

(80H Model Only)

Fuel Cap

Power Cord

(Piggy Back, 80H Model Only)

Figure 2. KFA135H MODEL

Figure 3. KFA220H MODEL

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Power Cord

(Piggy Back)

Rear Handle

Cord Wrap

Pressure Gauge

Fan Guard

Fuel Drain Bolt

Front Handle

Upper Shell

Hot Air Outlet

Shell Lower

Fuel Gauge

Fuel Cap

Side Cover

Lamp

Thermostat Knob

Room Temp. Display

Power/Reset Switch

10” Flat Free Wheel

Front Handle

Upper Shell

Rear Handle

Cord Wrap

Pressure Gauge

Fan Guard

Fuel Drain Bolt

Power Cord

BTU Control Switch

Hot Air Outlet

Shell Lower

Fuel Gauge

Fuel Cap

Side Cover

Lamp

Thermostat Knob

Room Temp. Display

Power/Reset Switch

(Piggy Back)

Figure 4. KFA50H/80H MODELS

Figure 5. KFA135H/220H MODELS

3. UNPACKING AND ASSEMBLY

1. REMOVE THE HEATER AND ALL PACKING MATERIALS FROM THE BOX. (Fig. 4 and 5)

NOTE : Save the shipping carton and packing materials for future storage.

KFA50H

KFA80H KFA135H KFA220H

Wheel Support Frame No Yes Yes

Wheel No Yes Yes

Threaded Axle No Yes Yes

Front Handle No Yes Yes

Rear Handle No Yes Yes

Handle Yes No No

Cord Wrap 50H No/80H Yes Yes Yes

Hardware kit : HW-KFA1016 No Yes Yes

Wheels

(10” Flat Free) Cord Wraps

Screws

Nuts Cap Nuts S

Hardware Kit : HW-KFA1016

Bushings Cap Nuts L

Flange Screws

Front Handle

Threaded Axle

Wheel Support Frame

Rear Handle

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Handle Cord Wraps

(KFA80H Model Only)

2. ASSEMBLY

For KFA50H/80H Models only

(Assembly time for this product is 3 minutes)

Tools Required

• Medium Phillips Screwdriver.

1) Lift front guard for arrow direction and make

sure that guard’s wedged portion ts into the slit

hole on the upper housing.

2) Remove the pre-assembled screws on the

shell upper and side cover.

3) Align the holes in the upper housing with two

mounting holes on the handle as shown in Figure 6.

4) Secure handle with the screws removed.

5) Insert cord wrap into the rectangle holes on the

supportor and align the hole on the cord wrap with

the mounting hole on the side cover as shown in

Figure 6. (KFA80H Model only)

6) Secure cord wrap with the screws removed.

For KFA135H/220H Models only (Assembly time for this product is 10 minutes)

Tools Required

• Medium Phillips Screwdriver.

• 3/4 inch socket or adjustable wrench

Assembling Handle & Wheel and Cord Wrap

1) Slide threaded axle through the rear section of the wheel support frame.

2) Slide one axle bushing on to each side of the axle. Slide one wheel on to each side of the axle.

Attach one cap nut on to each side of the threaded axle and tighten well.

3) Place heater on wheel support frame. Align the holes on fuel tank ange with holes on wheel support

frame.

4) Position the Handles on top of fuel tank ange.

Insert screws through handles, fuel tank ange and wheel support frames as shown in Figure 8 and

attach nut nger tight after each screw is inserted.

5) Align the hole on the handles with the mounting hole on the Cord Wrap.

Insert Screws through Cord Wrap, handles and attach nut nger tight after each screw is inserted.

6) After all screws are inserted, tighten nuts rmly.

Figure 6. Assembling Handle & Cord Wrap

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Handle

Screw

Front Guard

Wedged Portion

Slit Hole

Side Cover

Cord Wrap

Screw

Shell Upper

Remove Screws

Remove

Screws

Hot Air Outlet

Front Handle

Fuel Tank Flange

Wheel Support Frame

Nut

Wheel

Cap Nut L

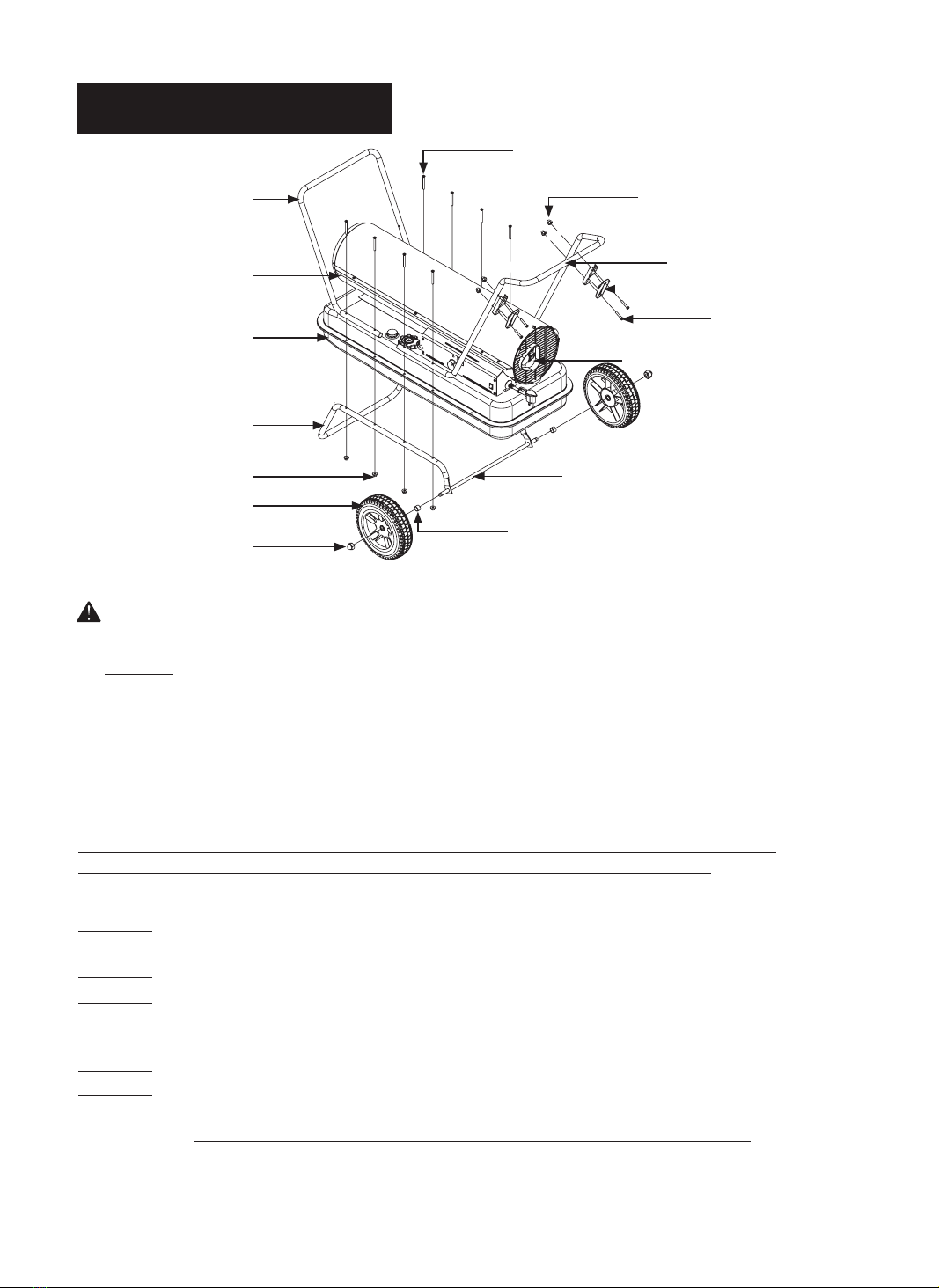

Figure 7. Assembling Handle, Wheel and Cord Wrap

Wheel Bushing

Threaded Axle

Air Inlet

Flange Screw

Cord Wrap

Rear Handle

Cap Nut S

Screw

CAUTION: DO NOT OPERATE heater without support frame assembled to tank.

NOTE: Heater should be inspected before each use, and at least annually by a qualied service person.

4. FUELS

For optimal performance of this heater, it is strongly suggested that 1-K kerosene be used. 1-K kerosene has

been rened to virtually eliminate contaminants, such as sulpher. Which can cause a rotten egg odor during

the operation of the heater. However, #1/#2 diesel/fuel oil, JET A or JP-8 fuels may also be used if 1-K

keroseneis not available. Be advised that these fuels do not burn as clean as 1-K kerosene, and care should

be taken to provide more fresh air ventilation to accomodate any added contaminants that may be added to

the heated space. #2 diesel/fuel oil heavier than 1-K kerosene in extreme cold temperatures without non

toxic anti-icer additives will not ignite properly.

NEVER store kerosene in the living space. Kerosene should be stored in a well ventilated place outside the

living area.

NEVER use any fuel other than 1-K kerosene (#1/#2 diesel/fuel oil, JET A or JP-8 fuels are acceptable substitutes)

NEVER use fuel such as gasoline, benzene, alcohol, white gas, camp stove fuel, paint thinners, or other oil

compounds in this heater. These are volatile fuels that can cause an explosion or uncontrolled

ames.

NEVER store kerosene in direct sunlight or near a source of heat.

NEVER use kerosene that has been stored from one season to the next. Kerosene deteriorates over time.

KEROSENE SHOULD ONLY BE STORED IN A BLUE CONTAINER THAT IS CLEARLY

MARKED “KEROSENE”. NEVER STORE KEROSENE IN A RED CONTAINER.

Red containers are associated with gasoline.

“OLD KEROSENE” WILL NOT BURN PROPERLY IN THIS HEATER.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

5. OVERVIEW OF HEATER’S DESIGN

Fuel System: This heater is equipped with an electric

air pump that forces air through the air

line connected to the fuel intake and then

through a nozzle in the burner head.

When the air passes in front of the fuel

intake it causes fuel to rise from the tank

and into the burner nozzle. This fuel and

air mixture is then sprayed into the

combustion chamber in a ne mist.

“Sure Fire Ignition” : The electronic ignitor sends voltage to a specially designed spark plug.

The spark plug ignites the fuel and air mixture described above.

The Air System : The heavy duty motor turns a fan that forces air into and around the combustion chamber.

Here the air is heated and then forced out the front of the heater.

The Safety System :

A. Temperature Limit Control : This heater is equipped with a Temperature Limit Control designed to turn

off the heater should the internal temperature rise to an unsafe level. If this

device activates and turns your heater off it may require service.

B. Electrical System Protection : This heater’s electrical system is protected by a fuse mounted to the PCB

assembly that protects it and other electrical components from damage.

If your heater fails to operate check this fuse rst and replace as needed.

C. Flame-Out Sensor : Utilizes a photocell to monitor the ame in burn chamber during normal operation.

It will cause the heater to shut-off should the burner ame extinguish.

MODELS Internal Shut-Off Temp.

Plus/Minus 10 Degrees

Reset Temperature

Plus/Minus 10 Degrees

KFA50H 176˚F/80˚C 122˚F/50˚C

KFA80H 158˚F/70˚C 104˚F/40˚C

KFA135H 158˚F/70˚C 104˚F/40˚C

KFA220H 194˚F/90˚C 140˚F/60˚C

FUSE TYPE: All Models 125 volt / 8 amps

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

6. FUELING YOUR HEATER

NEVER FILL THE HEATER FUEL TANK IN THE LIVING SPACE : FILL THE TANK OUTDOORS.

DO NOT OVERFILL YOUR HEATER AND BE SURE HEATER IS LEVELED.

IMPORTANT NOTICE REGARDING FIRST IGNITION OF HEATER :

The rst time you light the heater, it should be done outdoors. This allows the oils, etc. used in

manufacturing the heater to burn off outside.

B.) OPERATION

TO START HEATER

1. Fill fuel tank with fuel.

NOTE : Kerosene is recommended when the temperature drops below 0℉(-18℃) to prevent

ignition delay or failure.

2. Attach fuel cap.

3. Plug power cord of heater into three-prong, grounded extension cord. Extension cord must be at

least six feet long.

Extension Cord Wire Size Requirements

• 6 to 100 feet (1.8 to 30.5 meters) long, use 16 AWG conductor.

• 101 to 200 feet (30.8 to 61 meters) long, use 14 AWG conductor.

4. Turn “THERMOSTAT CONTROL knob” to desired setting (setting range : 40˚F ~ 110˚F)

(KFA80H/135H/220H Models Only)

5. Push “BTU control Switch” to “High” level. (See Figure 8.) (KFA220H Model Only)

6. Push Power Switch to “ON” position, Power lndicator Lamp will light and heater will start.

7. After startup, push “BTU control switch” to desired level “High or Low”

NOTE: Room Temperature display explanations are as follows: (KFA135H/KFA220H Models only)

  • Whentheroomtemperatureisless0℉,theLEDdisplaywillshow“Lo”

  • Whenroomtempisbetween0℉and99℉,thenumbershownonthedisplayisthecurrent

room temperature.

  • Whenroomtemperatureisgreaterthan99℉,theLEDdisplaywillshow“Hi”

If heater does not start, the thermostat setting may be too low, turn “thermostat Control Knob” to

higher position to start heater. If heater still does not start, turn power switch to “OFF” and then to

“ON” position. If heater still does not start, see Troubleshootiong Guide on page15.

NOTE : User can select to operate the heater on two different BTU levels(High or Low). To stabilize heater

and prevent ignition delay, select BTU level after turning the heater on, or while it is in operation by

pushing the BTU control switch. If the heater is started at low BTU level in cold weather or low fuel

tank, ignition failure can occur.

NOTE:Incoldweather,ignitionmaybeimprovedbyholdingangerovertheendofthereliefvalveorblock

fanguard in half with newspaper etc. until the heater ignites.

7. OPERATION

A.) VENTILATION

RISK OF INDOOR AIR POLLUTION/USE HEATER ONLY IN WELL VENTILATED AREAS.

Provide a fresh air opening of at least three square feet (2,800 sq. cm) for each 100,000 BTU/Hr.

rating. Provide extra fresh air if more heaters are being used.

Example : A KFA220H heater requires one of the following:

• a two-car garage door raised six inches (15.24 cm)

• a single-car garage door raised nine inches (22.86 cm)

• two, thirty-inch (76.20 cm) windows raised fteen inches (38.1 cm)

WARNING!! : NEVER REFILL HEATER FUEL TANK WHEN HEATER IS OPERATING OR STILL HOT.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

NOTICE : The major electrical components of this heater are protected by a safety fuse mounted to the PCBboard.

   Ifyourheaterfailstostart,checkthisfuserstandreplaceasnecessary.Youshouldalsocheckyour

power source to insure that proper voltage and frequency are being supplied to the heater.

TO STOP HEATER

1. Turn switch to “OFF” and unplug power cord.

TO RESTART HEATER

1. Wait 10 seconds after stopping heater.

2. Repeat steps under to start heater.

PIGGYBACK POWER CORD

WARNING : SHOCK HAZARD!

• Always cover electric outlet when not in use.

• Don’t plug and use a appliance more than 120V/60Hz 5A

current in this outlet.

Figure 9. Piggyback Power Cord

Figure 10. Fuel Drain Bolt

KFA80H/135H/220H Models only

Outlet

Cover

Seal

Fuel Drain Bolt

8. LONG TERM STORAGE OF YOUR HEATER

FUEL TANK DRAIN

1. Drain fuel tank through fuel cap opening.

(For KFA50H/80H Models Only)

2. Remove fuel drain bolt from rear bottom side of fuel tank using 3/4” socket or adjustable wrench and drain.

(For KFA135H/220H Models Only. See Figure 10)

3. Using a small amount of kerosene, swirl and rinse the inside of the tank.

NEVER mix water with the kerosene as it will cause rust inside the tank.

Pour the kerosene out making sure that you remove it all.

IMPORTANT : Do not store kerosene over summer months for use during next heating season.

Using old fuel could damage heater.

4. Reinstall fuel cap. Properly dispose of old and dirty fuel. (For

KFA50H/80H Models Only)

5. Reinstall fuel drain bolt to Fuel tank and tighten rmly using 3/4”

socket or adjustable wrench.

(For KFA135H/220H Models Only. See Figure 10)

IMPORTANT : Before reinstalling the fuel drain bolt, make sure the

seal is on the bolt. If the seal is not used the bolt can

not be installed correctly and the fuel tank will leak.

6. Store heater in dry well ventilated area. Make sure storage place is free of dust and corrosive fumes.

7. Store the heater in the original box with the original packing material and keep the USER’S MANUAL

with the heater.

NEVER LEAVE THE HEATER

UNATTENDED WHILE BURNING!

Figure 8. Controls for All Models

LED Power

Switch

KFA50H/80H Models KFA135H/220H Models

Room Temp. Display

LED Power

Switch

Thermostat

Control Knob

(80H MODEL ONLY)

Thermostat

Control Knob

Lamp Lamp

BTU Control Switch

Push to “HIGH”

Push to “LOW”

Fan Guard

Btu Control Switch

Relief Valv

This manual suits for next models

Table of contents

Other Dyna-Glo Heater manuals

Dyna-Glo

Dyna-Glo LPC25 Series Owner's manual

Dyna-Glo

Dyna-Glo WK95C6C User manual

Dyna-Glo

Dyna-Glo KFA50H Manual

Dyna-Glo

Dyna-Glo Delux KFA650DGD Manual

Dyna-Glo

Dyna-Glo WK11C8 User manual

Dyna-Glo

Dyna-Glo HeatAround360 Manual

Dyna-Glo

Dyna-Glo RMC-KFA45T, RMC-KFA65T, RMC-KF User manual

Dyna-Glo

Dyna-Glo Delux KFA50DGD Manual

Dyna-Glo

Dyna-Glo WORKHORSE FA43 Series Manual

Dyna-Glo

Dyna-Glo RA18LPDG User manual

Dyna-Glo

Dyna-Glo EG4000DG Installation and operating instructions

Dyna-Glo

Dyna-Glo WK95C6C User manual

Dyna-Glo

Dyna-Glo IRSS6LPT-2P User manual

Dyna-Glo

Dyna-Glo RMC-KFA65TDLX, RMC-KFA120TDLX,... User manual

Dyna-Glo

Dyna-Glo HA1360RH Manual

Dyna-Glo

Dyna-Glo RMC-KFA50DGP Manual

Dyna-Glo

Dyna-Glo EG4800DGP Installation and operating instructions

Dyna-Glo

Dyna-Glo WK11C8 User manual

Dyna-Glo

Dyna-Glo RA125DGD Service manual

Dyna-Glo

Dyna-Glo Delux KFA400DGD Manual

Dyna-Glo

Dyna-Glo IR6PMDG-1 User manual

Dyna-Glo

Dyna-Glo BF10PTDG-4 User manual

Dyna-Glo

Dyna-Glo Delux KFA50DGD Manual

Dyna-Glo

Dyna-Glo Delux RMC-FA300DGD Instructions for use

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
