Dyna-Glo DGE486SSP User manual

Français p. XX

Español p. XX

70-10-028

4-BURNER LP

GAS GRILL WITH

SIDE BURNER

Model #DGE486SSP

#DGE486SSP-D

ATTACH YOUR RECEIPT HERE

Serial Number _____________________________ Purchase Date ______________________

Questions, problems, missing parts? Before returning to your retailer, call our customer

service department at 1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday

or e-mail us at [email protected].

ANS Z21.58b- 2012

CSA 1.6b- 2012

Outdoor Cooking

Gas Appliance

Français p. 33

Español p. 65

WARNING:DANGER:

Assembler/Installer: This manual contains important information necessary for the proper

assembly and safe use of this appliance. Read and follow all warnings and instructions before

assembling and using this appliance. Leave these instructions with the consumer.

Consumer/User: Follow all warnings and instructions when using this appliance.

Retain these instructions for future reference.

TABLE OF CONTENTS

Safety Information ...................................................................................................................... 3

Package Contents ...................................................................................................................... 5

Hardware Contents .................................................................................................................... 6

Preparation ................................................................................................................................. 6

Assembly Instructions ................................................................................................................ 7

Operation Instructions ................................................................................................................. 19

Care and Maintenance ................................................................................................................. 24

Troubleshooting ........................................................................................................................... 27

Warranty ...................................................................................................................................... 29

Replacement Parts List .............................................................................................................. 30

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open ame.

3. Open lid.

4. If odor continues, keep away from the

appliance and immediately call your

local re department.

1. Do not store or use gasoline or other

ammable liquids or vapors in the vicinity

of this or any other appliance.

2. An LP (liquid propane) cylinder not

connected for use shall not be stored in

the vicinity of this or any other appliance.

3. This grill is for outdoor use only and shall

not be used in a building, garage, under

overhangs or any other enclosed area.

4. Do not leave a lit grill unattended. Keep

children and pets away from the grill at all times.

Fuels used in gas or oil red appliances and the products of combustion of such fuels contain

chemicals known to the State of California to cause cancer, birth defects or other reproductive

harm. This product contains chemicals, including lead and lead compounds, known to the State of

California to cause cancer, birth defects or other reproductive harm. Wash hands after handling.

CALIFORNIA PROPOSITION 65

DANGER

CAUTION

• Do not use in an explosive atmosphere. Keep grill area clear and free from combustible

materials, gasoline and other ammable vapors and liquids.

Please read and understand this entire manual before attempting to assemble, operate or install

the product. If you have any questions regarding the product, please call customer service at:

1-877-447-4768, 8:30 a.m. – 4:30 p.m., CST, Monday – Friday.

• Never use charcoal or lighter uid with the grill.

• Do not use gasoline, kerosene or alcohol for lighting.

• The LP gas cylinder used with this appliance must be:

(a) Constructed and marked in accordance with the Specications for LP-Gas Cylinders

of the U.S. Department of Transportation (D.O.T.) or the National Standard of Canada,

CAN/CSA-B339, Cylinders, Spheres and Tubes for Transportation of Dangerous Goods;

and Commision, as applicable; and

(b) Provided with a listed overlling prevention device.

cooking appliances. This grill is not intended to be used in or installed on recreational

vehicles and/or boats.

• Never keep a lled container in a hot car or car trunk. Heat will cause the gas pressure to

increase, which may open the relief valve and allow gas to escape.

• Always open grill lid slowly and carefully as heat and steam trapped within the grill can burn

you severely.

SAFETY INFORMATION

• Do not place the grill under overhead

combustible construction or awnings.

Minimum clearance from sides and

back of unit to combustible construction,

36 inches (914.4mm) from sides and

back.

NOTE: The installation must conform with

local codes or, in the absence of local

codes, with either the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, Natural

Gas and Propane Installation Code, CSA

B149.1, or Propane Storage and

Handling Code, B149.2.

CAUTION

• Do not store or use gasoline or other ammable liquids or vapors in the vicinity of this or any

other appliance.

• An LP cylinder not connected for use shall not be stored in the vicinity of this or any other

appliance.

• This grill is for use with propane gas only (propane cylinder not included).

• Never attempt to attach this grill to the self-contained propane system of a boat, camper trailer,

motor home or house.

• Do not attempt to move the grill while it is lit or when it is hot. The casters should be locked

when not moving the grill.

• Do not use the grill unless it is completely assembled and all parts are securely fastened and

tightened.

• Keep all combustible items and surfaces at least 36 inches (91.44 cm) away from the grill at all

times.

• Do not touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid

burns, unless you are wearing protective gear (pot holders, gloves, BBQ mittens, etc…).

• Do not alter this grill in any manner.

• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or

leaks, the hose must be replaced prior to operating the appliance. The replacement hose

assembly will be that which is specied by the manufacturer, listed in the repair parts list in this

manual.

• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.

• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the

grill before each use. Do not obstruct the ow of gas or ventilation air.

• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability

to properly assemble or safely operate the grill.

• Do not leave a lit grill unattended. Keep children and pets away from the grill at all times.

• Do not place this grill on any type of tabletop surface. The grill should be placed on a at and

level surface.

• Do not use the grill in high winds.

WARNING

36in 36in

914.4mm 914.4mm

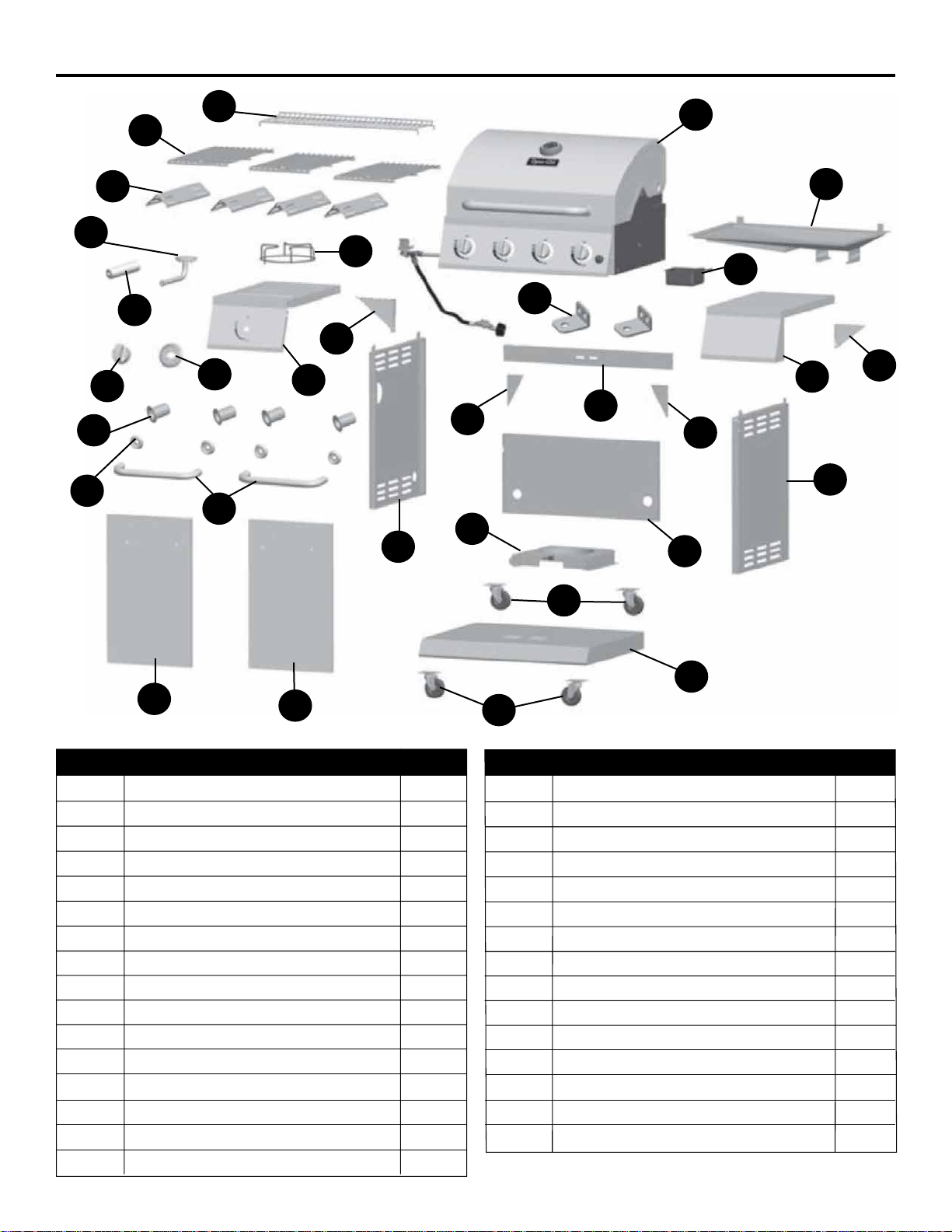

PACKAGE CONTENTS

PART DESCRIPTION QUANTITY

A Bottom Shelf 1

B AA Battery (1.5v) 1

C Non-Locking Swivel Caster 2

D Locking Swivel Caster 2

E Cart Right Side Panel 1

F Heat Tents 4

G Tank Shelf 1

H Cart Left Side Panel 1

I Cart Rear Panel 1

J Left Door Assembly 1

K Right Door Assembly 1

L Door Handle 2

M Door Handle Bezel 4

N Door Handle Sleeve 4

O Side Burner Control Knob 1

P Side Burner Control Knob Bezel 1

PART DESCRIPTION QUANTITY

Q Left Side Burner Table Support 1

R Side Burner Cooking Grate 1

S Side Burner Assembly 1

T Left Side Burner TableAssembly 1

Left Support - Upper Door Brace

Right Support - Upper Door Brace

W Support for Door Pin 2

X Right Side Table Support 1

Y Upper Front Door Brace 1

Z Right Side Table Assembly 1

A1 Grease Cup 1

B1 Grease Pan 1

C1 Grill Body 1

D1 Warming Rack 1

E1 Cooking Grate 3

HARDWARE CONTENTS (shown actual size)

M6x12

Qty. 41 M4x12

Screw

Qty. 28

Spring

Washer

Qty. 16

M6x12

Qty. 4

NOTE:

4 (AA) screws

preassembled

in door handle.

Plain

Washer

Qty. 26

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package

contents list on previous page and hardware contents above. If any part is missing or damaged, do

not attempt to assemble the product. Contact customer service for replacement parts.

Estimated Assembly Time: 50 minutes with 2 people.

Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle

CAUTION

THIS UNIT IS HEAVY. Two people required for safe assembly.

Two people required for safe assembly. Some parts may contain sharp edges. Wear protective

gloves if necessary. Read and follow all safety statements, warnings, assembly instructions and

use and care instructions before attempting to assemble and use.

AA AA CC DD

ASSEMBLY INSTRUCTIONS

1. Assemble the casters, 2 non-locking swivel

caster (C), 2 locking swivel caster (D), onto

bottom shelf (A) with 4 M6 screw (AA), plain

washer (BB) and spring washer (CC) for each

caster as shown.

Hardware Used

M6x12 Screw

Spring

Washer

x 16

Plain

Washer

x 16

2. Insert 4 screws (AA) into holes in bottom shelf

(A), leaving 4-6mm clearance from screw head

to bottom shelf (A). Attached cart left side

panel (H) by placing the panel keyhole over

the screw heads (AA) on the left side of

bottom shelf (A), slide the cart left side panel

(H) so that the screw head is over the smaller

part of keyhole. Thread the screw (AA) down

snug but do not tighten at this step. Repeat

with cart right side panel (E).

Hardware Used

AA M6x12 Screw x 4

ASSEMBLY INSTRUCTIONS

3. Insert one screw (AA) into the rear holes of the

cart left side panel and cart right side panel

(H&E), leaving 4-6mm clearance from screw

head to the side panels (H&E). Attached the

cart rear panel (I) by sliding the keyholes in

the cart rear panel over the inserted screws

and then push with force. Secure the cart

rear panel (I) to the bottom shelf (A) using 3

screws (AA). Tighten the 2 screws on the side

panels (H&E).

Hardware Used

AA M6x12 Screw x 5

4. Align upper front door brace (Y) to the holes

1 on cart left side panel (H). Secure upper

front door brace to 2 using 2 screws (AA).

Repeat and secure upper front door brace (Y)

to cart right side panel (E).

Hardware Used

AA M6x12 Screw x 4

AA Y

ASSEMBLY INSTRUCTIONS

5. Insert 2 screws (DD) into left edge of upper front

door brace (Y), but do not tighten. Leave 4-6mm

clearance from screw head to the bottom of upper

front door brace (Y). Attached left support for upper

front door brace (U) onto the inserted screws.

Secure with 2 additional screws (DD) and tighten all

four screws (DD). Repeat with right support for

upper front door brace (V).

Hardware Used

DD M4x12 Screw x 8

6. Remove preassembled 2 screws (AA) and

door handle sleeve (N) from the door handle

(L). Insert the 2 door sleeves (N) into the holes

located on the back of the door assembly (J),

Insert 2 screws (AA) into the door handle

sleeve (N), through the door handle bezels

(M) and into the thread holes in the door

handles (L). Tighten the screws. As shown on

below gure. Repeat with right door

assembly (K).

Hardware Used

AA M6x12 Screw x 4

UDD

ASSEMBLY INSTRUCTIONS

8. Place tank shelf (G) onto bottom shelf (A) with

care. Secure the right of tank shelf (G) to

bottom shelf (A) using 2 screws (DD) and

tighten the screws. Repeat and secure the left

of tank shelf (G).

Hardware Used

DD M4x12 Screw x 4

7. Insert the bottom axis in left door assembly (J)

into the hole (1) on bottom shelf. Insert the

upper axis in left door assembly (J) into the

hole of support for door pin (W), secure

support for door pin (W) to cart left side panel

(H) using 2 screw (DD). Repeat with right door

assembly (K).

Hardware Used

DD M4x12 Screw x 4

G A

Left Right

This manual suits for next models

Table of contents

Languages:

Other Dyna-Glo Grill manuals

Dyna-Glo

Dyna-Glo DGF350CSP User manual

Dyna-Glo

Dyna-Glo DGB390BNP User manual

Dyna-Glo

Dyna-Glo DGD381BNC-D User manual

Dyna-Glo

Dyna-Glo DGP350NP and Manual

Dyna-Glo

Dyna-Glo DGN486DNC-D User manual

Dyna-Glo

Dyna-Glo DGE530BSP-D User manual

Dyna-Glo

Dyna-Glo DGA550SSP User manual

Dyna-Glo

Dyna-Glo DGF481CRP User manual

Dyna-Glo

Dyna-Glo DGA550SSN User manual

Dyna-Glo

Dyna-Glo M365GMDG14 User manual

Dyna-Glo

Dyna-Glo DGX440SGN User manual

Dyna-Glo

Dyna-Glo DGP480CSP-D Manual

Dyna-Glo

Dyna-Glo Signature Series User manual

Dyna-Glo

Dyna-Glo DGP552SSP User manual

Dyna-Glo

Dyna-Glo DGN486DNC User manual

Dyna-Glo

Dyna-Glo DGP700SSB-D Manual

Dyna-Glo

Dyna-Glo DGF510SBP User manual

Dyna-Glo

Dyna-Glo Premier DGG424CNP User manual

Dyna-Glo

Dyna-Glo DGN576SNC User manual

Dyna-Glo

Dyna-Glo DGP480CSP Manual

Dyna-Glo

Dyna-Glo DGP397SNP User manual

Dyna-Glo

Dyna-Glo SEARPLUS DGF481CRN User manual

Dyna-Glo

Dyna-Glo DGB730SNB Technical Document

Dyna-Glo

Dyna-Glo DGH353CRP User manual

Popular Grill manuals by other brands

Orbegozo

Orbegozo GR 2300 instruction manual

bora

bora PT11 Operating and installation instructions

Klarstein

Klarstein 10031664 manual

Garland

Garland MWE3W Installation and operation manual

Char-Broil

Char-Broil 463722714 Product guide

Nexgrill

Nexgrill 720-0830HK Operating instruction

Kenmore

Kenmore 415.16123800 Use and care guide

Camp Chef

Camp Chef PG24CLAU Warning & instruction booklet

Tucker Barbecues

Tucker Barbecues GTR Series Assembly, installation and operating instructions

Monogram

Monogram ZGG540NCP1SS owner's manual

Equipex

Equipex Sodir Savoy Operation manual

Gaggenau

Gaggenau VR 414 610 use and care manual

Miele

Miele KM 408-1 operating instructions

George Foreman

George Foreman GGR50B owner's manual

AOG

AOG T series quick start guide

Gorenje

Gorenje TG2000CB Instruction manua

Weber

Weber Genesis Silver-B Permamount NG 051701 owner's guide

Glen

Glen SA 3037 user guide
