Dyna-Glo EG4800DG Installation and operating instructions
Before the rst use of this heater, please read this USER’S MANUAL
very carefully. This USER’S MANUAL has been designed to instruct
you as to the proper manner in which to assemble, maintain, store,
and most importantly, how to operate the heater in a safe and efcient
manner. Please keep this manual for future reference.
CONSUMER: Retain this manual for future reference.
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 877-447-4768 8:00 a.m. - 4:30 pm CST, Monday - Friday.
190626
Electric Garage Heater
INSTALLATION & MAINTENANCE INSTRUCTIONS
4,800 / 240V / 16,380 BTU
EG4800DG
Plug Type
30 amp 240V
NEMA #6-30P
4003667
CONFORMS TO UL
STD.2021 CERTIFIED
TO CSA STD.C22.2 NO.46
PET OWNERS WARNING: The health of some small pets including birds are extremely
sensitive to the fumes produced during the rst-time use of many appliances. These fumes are
not harmful to humans but we recommended that you do not use your heater around birds and
small pets during its initial use until the manufacturing corrosion coatings burn off.
When using electrical appliances, basic precautions should always be followed
to reduce the risk of re, electric shock, and injury to persons, including the
following:
1. Read all instructions before installing or using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front
of the heater and keep them away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near children
or invalids and whenever the heater is left operating and unattended.
4. Always turn off the power of heater when not in use.
5. Do not operate any heater with the heater malfunctions, has been
dropped or damaged in any manner. Return heater to authorized service
facility for examination, electrical or mechanical adjustment, or repair.
6. Do not use outdoors.
7. This heater is not intended for use in bathrooms, laundry areas and
similar indoor locations. Never locate heater where it may fall into a
bathtub or other water container.
8. Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or re, or damage the heater.
9. To prevent a possible re, do not block air intakes or exhaust in any
manner. Do not use on soft surfaces, like a bed, where openings may
become blocked.
10. A heater has hot and arcing or sparking parts inside. Do not use it in areas
where gasoline, paint, or ammable liquids are used or stored.
11. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause re, electric shock, or
injury to persons.
IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This Product can expose you to chemicals including Diisononyl phthalate (DINP) which is known
to the State of California to cause cancer and Di-isodecyl phthalates (DIDP) which is known to the
State of California to cause birth defects or other reproductive harm.
For more information go to www.p65Warnings.ca.gov
WARNING
3
ITEM PAGE #
SPECIFICATIONS........................................................................... 3
SAFETY INFORMATION................................................................. 3
INSTALLATION ............................................................................... 4
OPERATION.................................................................................... 4
MAINTENANCE .............................................................................. 5
REPLACEMENT PARTS................................................................. 5
TROUBLESHOOTING .................................................................... 6
EG4800DG
Voltage 240 V
Frequency 60 Hz
Output Power (Watts) 4800 W
Electric Current (A) 20 A
Dimensions 270 mm x 245 mm x 325 mm
Net Weight 16.5 LBS / 7.48 KGS
TABLE OF CONTENTS
SPECIFICATIONS
SAFETY INFORMATION
Figure 1

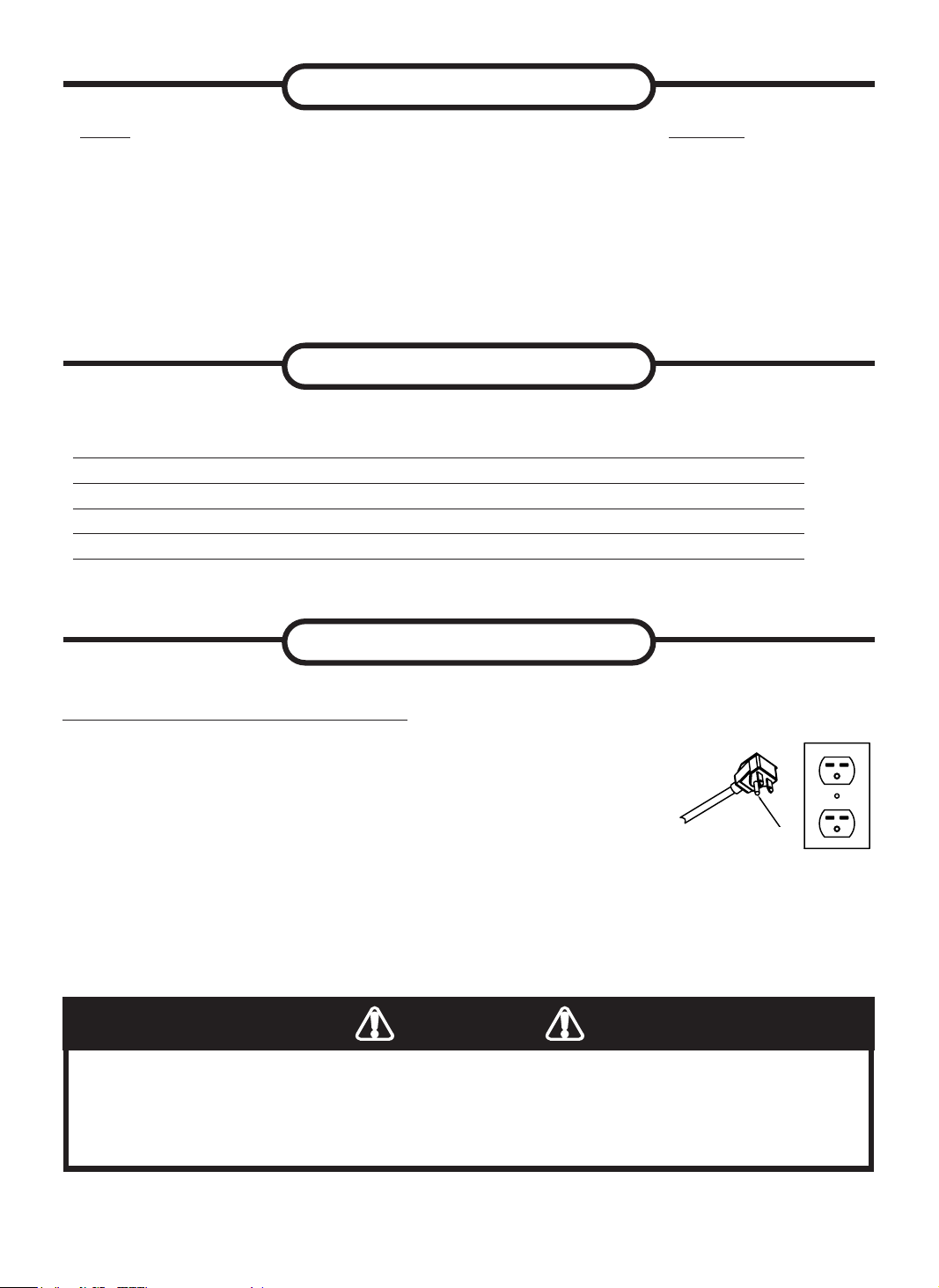

Prior to operating heater, make sure the electrical outlet is of the
conguration and capacity appropriate for the heater. See outlet
conguration on front page of manual. This heater is for use on
240 volts. The cord has a plug as shown in Figure 1. No adapter
is available for this blade conguration, and none should be used.
The type outlet is a 240 volt grounding outlet. When properly
installed, it provides a ground connection through the cord to the
heater to protect the operator from electric shock.
GENERAL SAFETY INFORMATION
BE CAREFUL NOT TO DIRECT THE HEATER TOWARD DRAPERIES, FURNITURE, OR OTHER
OBJECTS THAT COULD BE DAMAGED BY HEAT. DO NOT PLACE THE HEATER WHERE A SMALL
CHILD MAY FALL OVER THE HEATER. DO NOT PLACE THE HEATER WHERE THE POWER CORD
MAY BE WALKED ON, TRIPPED OVER OR OTHERWISE SUBJECTED TO HARD USAGE.
WARNING
GROUNDING PIN
4
INSTALLATION
OPERATION
The heater is for oor mounting. Place the heater on oor or
other at surface and insert plug into the proper wall outlet.
FLOOR APPLICATION
The heater must be properly installed before it is used.
Set thermostat to its full counterclockwise position. Plug the unit into a properly
grounded 240V outlet. Set the thermostat to the farthest clockwise position. The fan
should come on and the unit will start heating the room. When the room reaches
comfort level, turn the thermostat counterclockwise until the heater turns off.
The heater will cycle automatically around this preset temperature. To increase
temperature, turn the thermostat knob clockwise. To lower temperature, turn the
thermostat counterclockwise. Do not attempt to tamper with the thermostat.

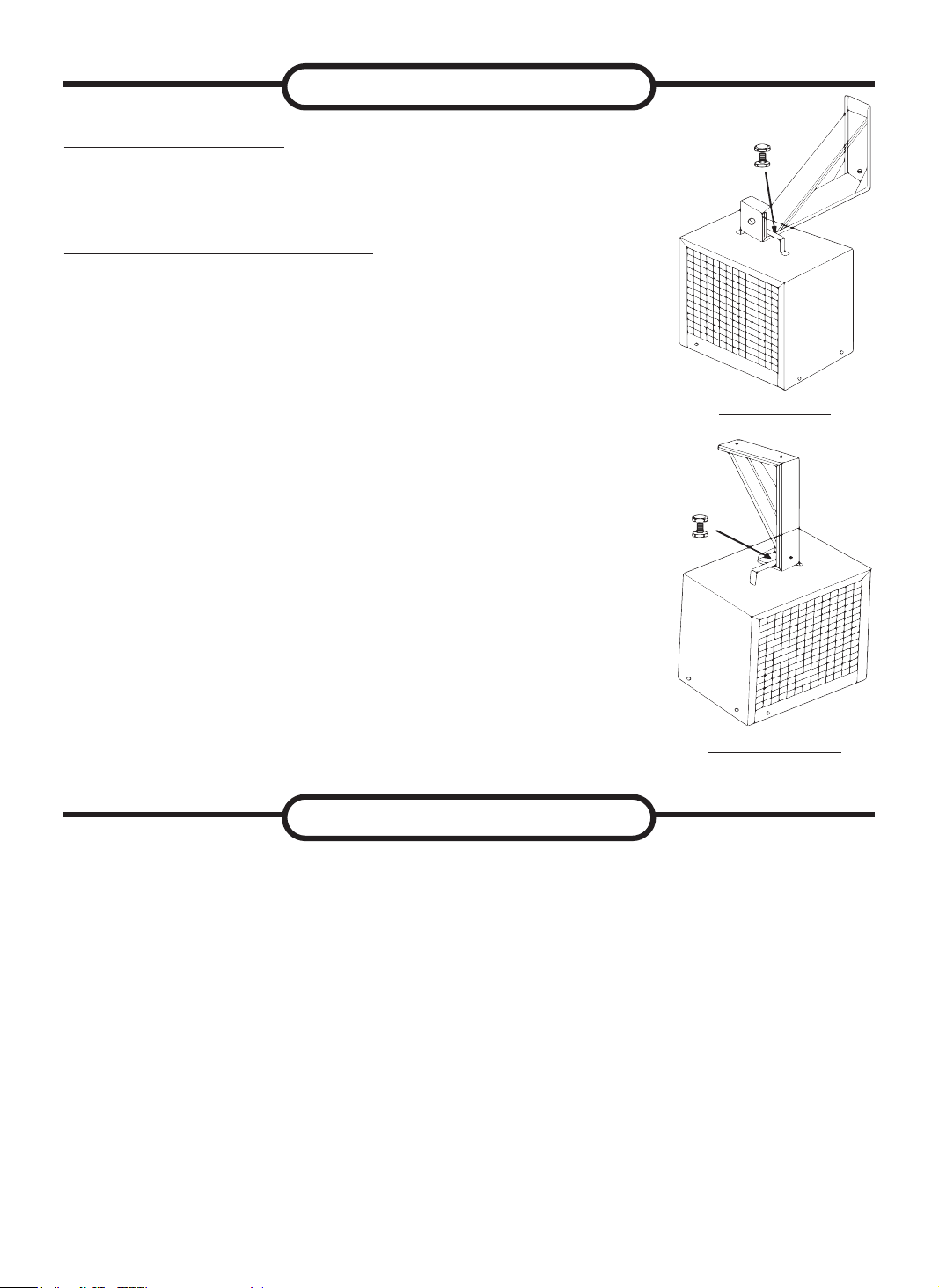

The EG4800DG garage heater include a wall / ceiling
mounting bracket. The bracket should be mounted to
a structure that is capable of supporting the combined
weight of the heater and the bracket. Ideally, the bracket
should be secured to a wall stud, roof truss, or onto a
solid block wall using the proper mounting hardware. The
heater should be mounted as close to the power supply as
possible to avoid the use of an extension cord.
1. Drill two holes in a wall/ceiling, the distance of the
holes should match the bracket.
2. Screw two M10*30 screws (not included) to wall/
ceiling, make sure the bracket is secured.
3. Hang the heater as shown below, secure the heater
to the bracket by inserting a bolt through a washer
(included) into the pre-drilled holes.
4. Secure the bolt with a lock washer and nut (included).
Tighten with a wrench.
WALL OR CEILING MOUNTING
CEILING MOUNT
WALL MOUNT
5
MAINTENANCE
The heater should be cleaning twice for a year. Turn thermostat off and remove plug
from electrical outlet and make sure that the heating element of the heater is cool
before cleaning heater. Use a soft cloth for dusting. For cleaning, use only a damp rag
and non-abrasive dish detergent. Do not use abrasive chemical cleaners as these
may harm the nish. If heater is used in very dusty location, use a vacuum cleaner
dust brush to remove dust and other foreign material from the grilles. Always unplug
cord and wrap around heater handle when not in use. Move heater to a safe location
for storage.
CLEANING AND STORAGE
This heater does not require any routine maintenance other than occasional cleaning
to prevent clogging of intake grille opening. To clean air intake grille, use vacuum with
brush attachment or high pressure air. The motor is permanently lubricated. Do not
operate the heater with a damaged cord or plug or if the heater malfunctions or has
been damaged in any manner. Any other servicing should be performed by qualied
service personnel. Return heater to authorized service facility for examination,
electrical, or mechanical adjustment, or repair.
SERVICE
OPERATION OF THE SAFETY THERMAL LIMIT CONTROL INDICATES THE HEATER HAS BEEN
SUBJECTED TO SOME ABNORMAL CONDITIONS. IT IS RECOMMENDED THAT THE HEATER BE
CHECKED BY A REPUTABLE ELECTRICIAN OR REPAIR SERVICE TO INSURE THE HEATER HAS
NOT BEEN DAMAGED.
WARNING

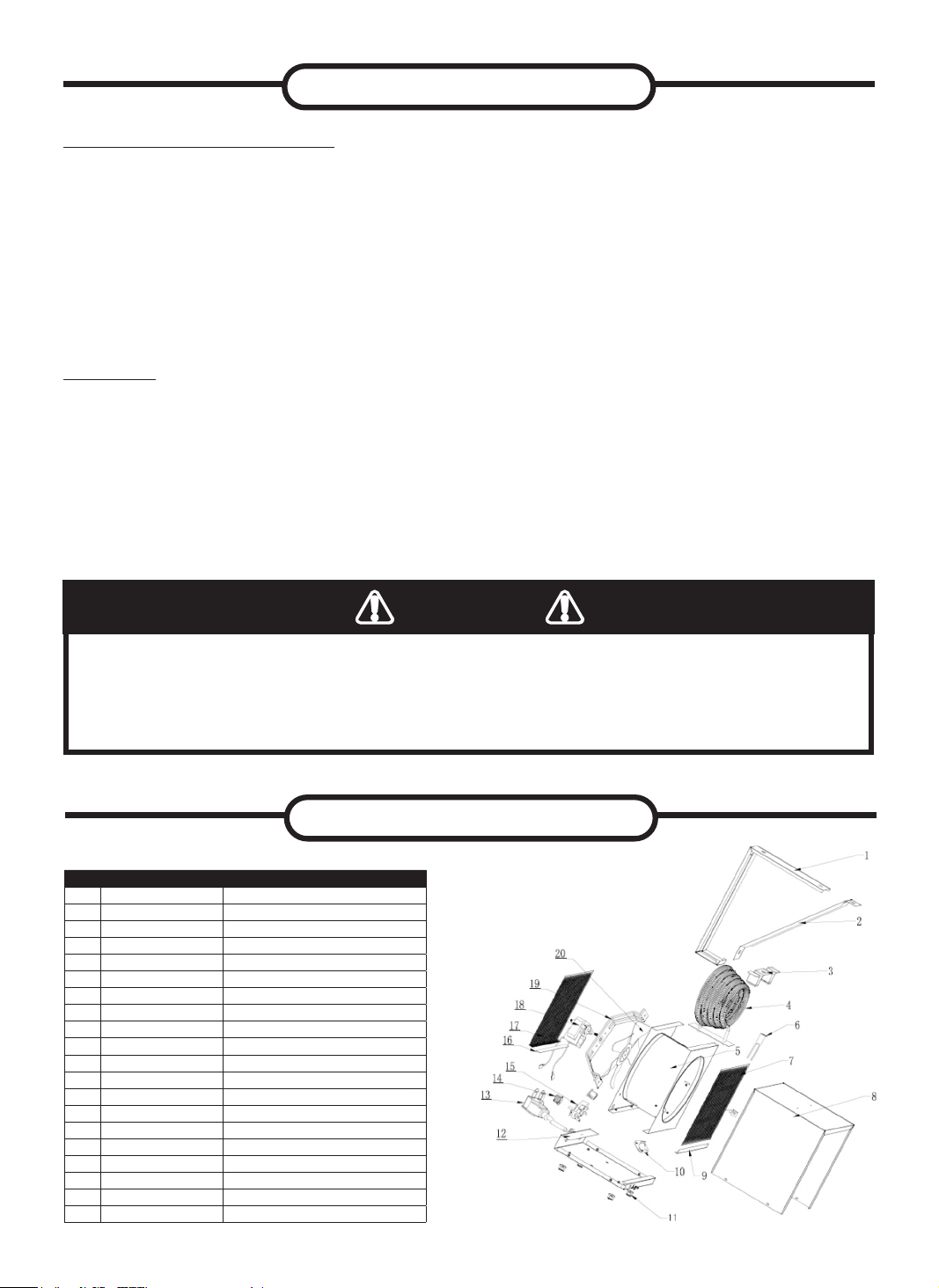

Part Description EG4800DG
1 Main support EH4800DG001
2 Main support plate EH4800DG002
3 Wall mount panel EH4800DG003
4 Heater EH4800DG004
5Air panel assy EH4800DG005
6 Heater clasp panel EH4800DG006
7 Front mesh EH4800DG007
8 Shell EH4800DG008
9 Front mesh support EH4800DG009
10 Thermostat EH4800DG010
11 Leg EH4800DG011
12 Bottom panel EH4800DG012
13 Supply cord EH4800DG013
14 Knob EH4800DG014
15 Temperature Switches EH4800DG015
16 Back mesh support EH4800DG016
17 Back mesh EH4800DG017
18 Motor EH4800DG018
19 Motor support EH4800DG019
20 Wind leaves EH4800DG020
REPLACEMENT PARTS
TROUBLESHOOTING
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Unit is not
heating.
The overheat protection has
activated.
Inspect the garage heater and check
that the air inlets and outlets are not
blocked as this may cause overheat-
ing. Switch off the circuit breaker to
the garage heater for 30 minutes and
allow it to cool down. Turn the power
back on and operate.
The breaker has tripped Reset the breaker at the fuse panel
and restart the heater
Garage heater
emits a
burning smell
The room temperature has
already reached the set
thermostat temperature
Adjust the temperature setting to
make sure the thermostat
setting temperature is higher than
current room temperature.
During production dust and/
or oil debris gathered on
heating coils.
Make sure the room is well
ventilated. Allow the garage heater to
run until the smell is dissipated.
Check and make sure there
is no combustible material
within 0.9 meters (3 feet) of
the garage heater.
Remove the combustible material
around the garage heater.
This heater must be
mounted at least 8 feet
off the oor, for specic
clearances, please check
the "LOCATING HEATER"
section in the instruction
manual
Relocate the garage heater so there
is enough space between the heater
and adjacent wall and oor.
6
Warranty
LIMITED WARRANTY:
This limited warranty is extended to the original retail purchaser of this Forced Air/Convection/Radiant Heater and warrants against any defect
in materials and workmanship for a period of one (1) year from the date of retail sale.GHP Group, Inc., at it’s option, will either provide
replacement parts or replace or repair the unit, when properly returned to the retailer where purchased or one of our service centers
as directed by GHP Group,Inc., within one (1) year of retail purchase. (Shipping costs, labour costs,etc. are the responsibility of the purchaser.)
DUTIES OF THE OWNER:
This heating appliance must be operated in accordance with the written instructions furnished with this heater. This warranty shall not excuse
the owner from properly maintaining this heater in accordance with the written instructions furnished with this heater. A bill of sale, canceled
check or payment record must be kept to verify purchase data and establish warranty period. Original carton should be kept in case of
warranty return of unit.
WHAT IS NOT COVERED:
1. Damage resulting from use of improper fuel.
2. Damage caused by misuse or use contrary to the owners manual and safety guidelines.
3. Damage caused by a lack of normal maintenance.
4. Fuses
5. Use of non-standard parts or accessories.
6. Damage caused in transit. Freight charges on warranty parts or heaters to and from the factory shall be the responsibility of the owner.
This warranty does not imply or assume any responsibility for consequential damages that may result from the use, misuse, or the lack of
routine maintenance of this heating appliance. A cleaning fee and the cost of parts may be charged for appliance failures resulting from lack of
maintenance. This warranty does not cover claims which do not involve defective workmanship or materials. FAILURE TO PERFORM
GENERAL MAINTENANCE (INCLUDING CLEANING) WILL VOID THIS WARRANTY.
THIS LIMITED WARRANTY IS GIVEN TO THE PURCHASER IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE. THE
REMEDY PROVIDED IN THIS WARRANTY IS EXCLUSIVE AND IS GRANTED IN LIEU OF ALL OTHER REMEDIES. IN NO EVENT
WILL GHP GROUP, INC. BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Some states do not
allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.
CLAIMS HANDLED AS FOLLOWS:
1. Contact your retailer and explain the problem.
2. If the retailer is unable to resolve the problem, contact our Customer Service Dept. detailing the heater model, the problem, and proof
of date of purchase.
3. A representative will contact you. DO NOT RETURN THE HEATER TO GHP GROUP, INC. unless instructed by our Representative.
Thiswarrantygivesyouspeciclegalrightsandyoumayalsohaveotherrightswhichvaryfromstatetostate.
TO REGISTER THE WARRANTY ON YOUR HEATER, PLEASE FILL OUT THIS CARD COMPLETELY
AND MAIL WITHIN 14 DAYS FROM DATE OF PURCHASE OR REGISTER ON-LINE AT www.ghpgroupinc.com
NAME: _______________________________ PHONE: ( ) _________________ EMAIL: ____________________________________
ADDRESS: ___________________________ CITY: ________________________ STATE: _____________________ ZIP:___________
MODEL:______________________________ SERIAL#: _____________________ DATE PURCHASED: _________________________
DEALER PURCHASED FROM: _________________________________________ TYPE OF STORE: __________________________
CITY & STATE WHERE PURCHASED: ___________________________________ PRICE PAID: _______________________________
Please Take 1 Minute To Give Us Your Answers To The Following Questions.
All Responses Used Solely For Market Research And Are Held In Strict Condence.
Who primarily decided this purchase? Male Female 18-24 25-39 40-59 60 and over of age?
Do you own any other portable heaters? Yes No If yes, type ______________________ brand ____________________________
How do you intend to use your new heater? Construction Site Farm Warehouse/Commercial Garage/Outbuilding Other
How did you become aware of this heater? In-Store Display Newspaper Ad Magazine Ad Friend/Relative
TV Commercial Store Salesperson Other____________________________________________________________________
What made you select this heater? Style Size/Portability Price Package Brand Other __________________________
Do you: Own Rent Would you recommend this heater to a friend? Yes No
Please give us your comments _____________________________________________________________________________________
THANK YOU FOR COMPLETING THIS FORM!
Information will be held condential.
WARRANTY REGISTRATION
IMPORTANT: We urge you to ll out your warranty registration card within fourteen (14)
days of date of purchase. You can also register your warranty on the internet at
www.ghpgroupinc.com. Complete the entire serial number. Retain this portion of the card
for your records.
Place
Postage
Stamp
Here
SAVE THIS CARD!
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
Tel: (877) 447-4768
www.ghpgroupinc.com
GHP Group, Inc.
6440 W Howard St
Niles, IL 60714-3302
Antes de utilizar por primera vez este calentador, lea este MANUAL DEL
USUARIO atentamente. Este MANUAL DEL USUARIO ha sido diseñado
para instruirle la forma adecuada de ensamblar el calentador, brindarle
mantenimiento, guardarlo y lo más importante: cómo hacerlo funcionar de
manera segura y ecaz. Conserve este manual para referencia futura.
CONSUMIDOR: Conserve este manual para referencia futura.
¿Preguntas, problemas, partes faltantes? Antes de regresar al distribuidor,
llame a nuestro departamento de servicio al 877-447-4768 de 8:00 a.m. a
4:30 p.m. hora estándar del centro, de lunes a viernes o envíenos un correo
Calefactor de garaje eléctrico
INSTRUCCIONES DE INSTALACIÓN Y MANTENIMIENTO
4,800 / 240V / 16,380 BTU
EG4800DG
Tipo de
Enchufe
30 A 240V
NEMA N.˚ 6-30P
4003667
CUMPLE CON UL
STD.2021 CERTIFICADO
A CSA STD.C22.2NO.46
ADVERTENCIA PARA DUEÑOS DE MASCOTAS: Algunas mascotas pequeñas, incluidos los
pájaros, son muy sensibles a la exposición de los humos que se producen durante el uso de
electrodomésticos por primera vez. Estos humos no son dañinos para los seres humanos, pero
le recomendamos que no utilice el calefactor cerca de pájaros y mascotas pequeñas durante el
primer uso de la unidad hasta que los recubrimientos anticorrosivos se quemen por completo.
Al usar electrodomésticos, siempre se deben respetar las precauciones básicas
para reducir el riesgo de incendio, choques eléctricos y lesiones personales,
incluidas las siguientes:
1. Lea todas las instrucciones antes de instalar o usar este calefactor.
2. Este calefactor se calienta cuando está en uso. Para evitar quemaduras,
notoquelassuperciescalientesconlapieldescubierta.
Mantenga los materiales combustibles, como muebles, almohadas, ropa
de cama, papeles, vestimenta, cortinas, etc. a una distancia mínima de 3
pies (0,90 m) de la parte frontal del calefactor, y alejados de los laterales
y de la parte trasera.
3. Se debe tener sumo cuidado al usar calefactores junto a niños o
personas inválidas, o cerca de ellos, y en todo momento en que el
calefactor se deje prendido y desatendido.
4. Siempre desconecte la alimentación al calefactor cuando no esté en uso.
5. No ponga en funcionamiento ningún calefactor después de que haya
fallado. Desconecte la alimentación en el panel de servicio eléctrico
y haga revisar el calefactor por un electricista profesional antes de volver
a utilizarlo.
6. No lo utilice al aire libre.
7. Este calefactor no está diseñado para usarse en baños, lavaderos o
lugares cubiertos similares. No ubique el calefactor en un lugar donde
pueda caerse dentro de una bañera u otro contenedor de agua.
8. No inserte ni permita que ingresen objetos extraños en ninguna abertura
de ventilación o escape porque podrían provocar un choque eléctrico, un
incendio o daños en el calefactor.
9. Para evitar posibles incendios, no bloquee las tomas de aire ni el
conducto de escape de ninguna manera. No haga funcionar el calefactor
sobresuperciesblandas,comounacama,dondelasaberturaspuedan
bloquearse.
10. El calefactor contiene piezas internas que se calientan, forman arcos
eléctricos o generan chispas. No lo use en áreas donde se utilice o se
guardegasolina,pinturaolíquidosinamables.
11. Utilice este calefactor solo como se describe en este manual. Otros
usos no recomendados por el fabricante podrían provocar incendios,
choques eléctricos o lesiones personales.
INSTRUCCIONES IMPORTANTES
GUARDE ESTAS INSTRUCCIONES
Este producto puede exponerlo a usted a agentes químicos incluyendo ftalato de diisononilo
(DINP), reconocido por el estado de California como causante de cáncer, así como ftalatos de
diisodecilo (DIDP), reconocidos por el estado de California como causantes de defectos congénitos
y otros daños al sistema reproductor.
Para obtener más información, visite www.p65Warnings.ca.gov
ADVERTENCIA
Table of contents
Languages:
Other Dyna-Glo Electric Heater manuals
Dyna-Glo
Dyna-Glo EQR1500DG User manual
Dyna-Glo
Dyna-Glo EG7500DH Manual
Dyna-Glo
Dyna-Glo Workhorse EG7500WH Installation and operating instructions
Dyna-Glo
Dyna-Glo EG7500DGP Installation and operating instructions
Dyna-Glo
Dyna-Glo GRAB 'N GO HA10BK Manual
Dyna-Glo
Dyna-Glo EG7500DG Manual
Dyna-Glo
Dyna-Glo EG7500DGC Installation and operating instructions
Dyna-Glo
Dyna-Glo EG10000WB Installation and operating instructions
Dyna-Glo
Dyna-Glo EG5000DGP Installation and operating instructions
Dyna-Glo
Dyna-Glo WHF100 Installation instructions manual
