Dymo LabelWriter 450 Duo Label Printer User manual

LabelWriter®450 Duo

450 Duo

Quick Start Guide

No part of this document or the software may be reproduced or transmitted in any form or by any means, or translated into

another language without the prior written consent of Sanford, L.P.

Trademarks

DYMO, LabelWriter, and DYMO Label are registered marks in the United States and other countries. All other trademarks

are the property of their respective holders.

For complete information about your label printer, you can view the LabelWriter Printer User Guide

from the DYMO Label v.8 Help menu or from the DYMO Web site at www.dymo.com.

Follow these steps to install the LabelWriter printer and print your first label.

1. Unpacking your LabelWriter Printer

NOTE Do not connect the printer into your computer until after the software installation is complete.

1Unpack your printer and save the packing materials.

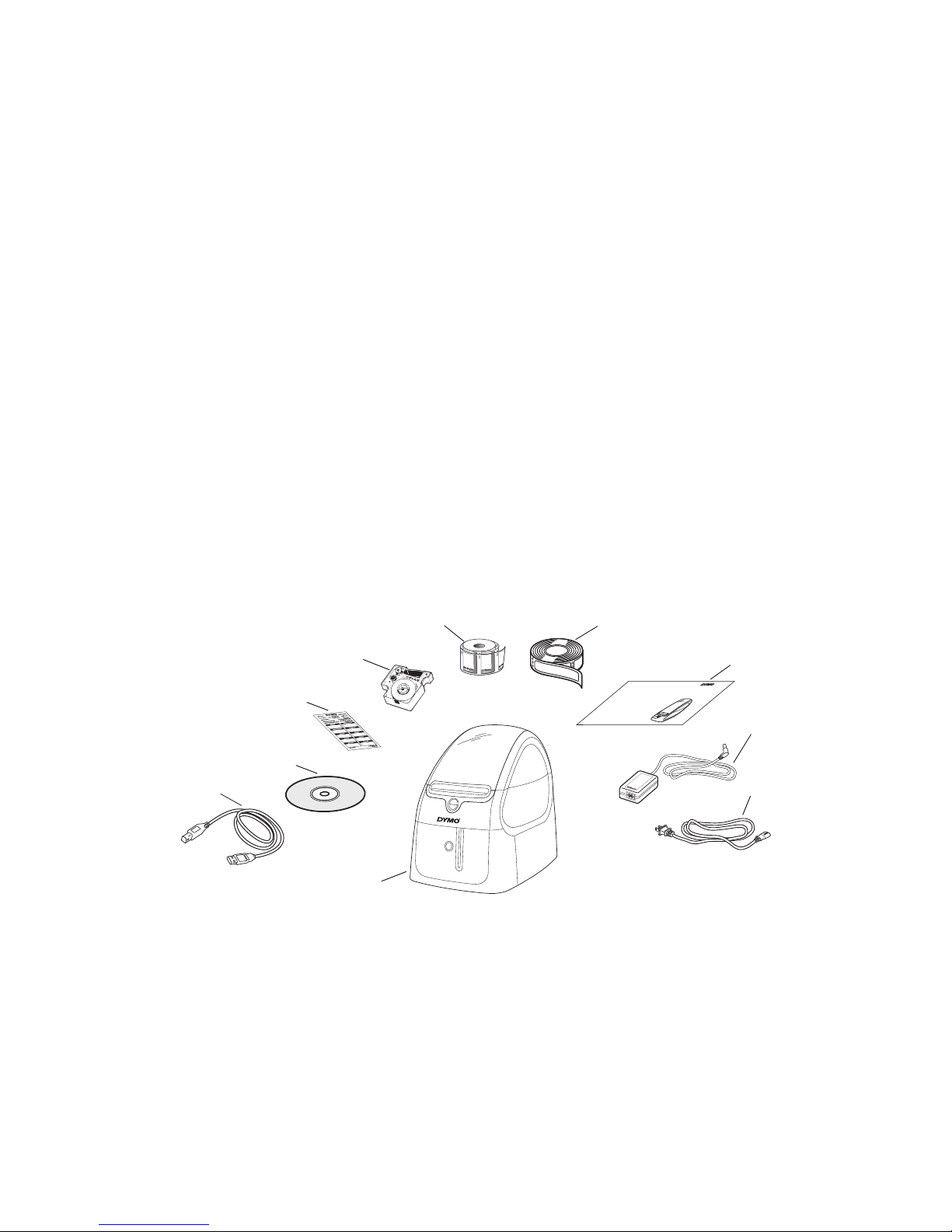

2Make sure you have all the items shown in Figure 1. (Labels included in the package may vary.)

LabelWriter

Quick Start

Figure 1

CD-ROM

Quick Start Guide

Power adapter

Power cord

LabelWriter printer

USB cable

Roll of Address labels

D1 label

cassette

Cleaning card

Roll of DYMO Stamps labels

Quick Start Guide

Become familiar with the printer’s major components. See Figure 2.

LabelWriter Printer Features

Your LabelWriter printer is a direct thermal printer and does not use ink or toner. Instead, the printer

uses heat from a thermal print head to print on specially treated labels. Labels are the only supplies

you will ever need to buy.

The form-feed button on the front of the printer advances a single label. The label eject button is

used to remove labels from the printer when changing rolls.

The status light visually shows the current state of the printer:

•Solid blue - power is on and the printer is ready.

•Flashing blue - labels are not loaded properly or the label roll is empty.

•Dimmed blue - printer is in power saving mode.

USB

connector

DC power

connector

Top cover

Label spool

Label release

Label feed path

and tear bar

Label roll

Label eject

button

Form-feed

button and LED Label exit

slot

Figure 2

2. Installing the Software

Do not connect the printer to your computer until after the software installation is complete.

Windows Depending on your system configuration, the software installation could take

some time while the required Microsoft .NET™software is installed.

To install the software on a Windows system

1Close all open Microsoft Office applications.

2Insert the DYMO LabelWriter CD into your CD-ROM/DVD drive.

After a few seconds, the installation screen appears.

3Click Install and follow the instructions in the installer.

QuickBooks If you have QuickBooks 2007 or later, you will be prompted to install the DYMO Label

Add-in for QuickBooks. (US Only.)

To install the software on a Mac OS system

1Insert the DYMO LabelWriter CD into the CD-ROM/DVD drive.

After a few seconds, the DYMO Label Installer icon appears.

2Double-click the Installer icon and follow the instructions.

3. Connecting your LabelWriter Printer

NOTE Do not connect the printer to your computer until after the

software installation is complete.

To connect the power

1Plug the power cord into the power adapter. See Figure 3.

2Plug the power adapter into the power connector on the back of

the printer. See Figure 4.

3Plug the other end of the power cord into a power outlet.

4Plug the USB cable into the USB port on the back of the printer.

5When the software is completely installed, connect the other end of

the USB cable into an available USB port on your computer.

Mac OS If the printer is not in the printer list when the installation is

complete, refer to the ReadMe file for instructions on how to add

the printer.

Figure 3

Power adapter

Power cord

USB

Power

Figure 4

4. Loading Labels

The LabelWriter Duo printer prints two types of labels: die-cut paper labels (such as Address or

Shipping labels) and D1 label cassettes.

Important!

In order for the labels to feed properly during printing, pay attention to the following when loading

labels on the spool and into the printer:

•The label spool guide must be pushed flush against the label roll, with no gap. See

Figure 6.

•The labels must be loaded with the left edge of the label inserted against the left edge of the

label feed slot. See Figure 8.

To load a label roll

1Press the form-feed button to eject the labels that protected the

printer during shipment.

2Open the top cover and remove any packing material inside the

label compartment.

3Remove the label spool from inside the top cover and pull the spool

guide from the spindle.

4Hold the spool spindle in your left hand and place the label roll on the

spindle so that the labels feed from underneath and the left edge of the label roll is firmly

against the side of the spool. See Figure 5.

Figure 5

Spool

guide

Spool

spindle

5Slide the spool guide onto the right side of the spool and press the

guide tightly against the side of the label roll, leaving no gap

between the roll and the spool. See Figure 6.

NOTE To ensure proper feeding of labels during printing, the label roll

must fit snugly against both sides of the label spool, with no gaps.

6Insert the label spool into the slot in the printer cover with the labels

extending from underneath the roll. See Figure 7.

7Align the left edge of the label with the left edge of the label feed slot

and insert the label into the slot. See Figure 8.

The printer automatically feeds the label, stopping at the beginning of

the first label.

If the printer does not feed the labels, make sure the

first label is fully inserted and then press the form-feed

button.

If the first label on the roll is not a full label, press the

form-feed button to eject the partial label.

8Slide the label guide to the left until the label guide aligns

with the right edge of the label. See Figure 8.

Make sure that the label guide does not pinch the label.

9Carefully lower the top cover.

Figure 6

Figure 7

Align labels

against left

edge

Slide label

guide against

labels

Figure 8

To load a label cassette

1Press the button on the front of the printer to open the label

cassette tray.

NOTE The first time you use the printer, remove the protective

cardboard insert from the label exit slot. See Figure 9.

2Make sure the label and ribbon are taut across the mouth

of the cassette and that the label passes between the

label guides.

If necessary, turn the ribbon rewind spool clockwise to tighten

the ribbon.

3Insert the cassette and press firmly until the cassette clicks

into place. Make sure label and ribbon are positioned

correctly. See Figure 10.

4Press the button on the front of the printer to close the label

cassette tray.

Remove

cardboard

insert

Figure 9

Push down gently

Figure 10

5. Printing your First Label

The first time you open the application, you are asked to register the software. Registering the

software ensures that you will be informed of any software updates.

During the registration process, you will be asked to enter the serial number for your label printer.

The serial number is located on the bottom of the printer.

To print your first label

1Start DYMO Label software by doing one of the following:

•

For Windows, click

Start

, then

Programs

DYMO

DYMO Label v.8

•For Macintosh, double-click the DYMO Label icon in the Applications folder.

The first time you start DYMO Label software, a list of available label types is displayed on the

left side of the window and an address label is displayed in the Edit area. (See Figure 11.)

2Click once in the address label in the Edit area and type some text.

3Optionally, choose a font and a justification setting from the Formatting toolbar.

4Click to print the label.

To print a D1 tape label

1Select a tape label from the Labels tab, and then select a layout.

Make sure that the width of the tape label you select matches the width of the label cassette

loaded in the label cassette tray.

2Click once on the tape label in the Edit area and type some text.

3Optionally, choose a font and a justification setting from the Formatting toolbar.

4Click to print the label.
