Dunlop FUZZFACE FFM2 MINI User manual

92503014462 REVA

FFM2 MINI

Dunlop Manufacturing, Inc.

150 Industrial Way

P. O. Box 846

Benicia, CA 94510

Phone: 707.745.2722

Fax: 707.745.2658

WARNING: The information contained

in this document is the intellectual

property of Dunlop. Any use and/or

reproduction, in whole or in part, must

have the written permission of Jim

Dunlop Manufacturing, Inc.

ffm2 mini fuzz face

ReD manual

4/4 cOlOR PROceSS

DUNLOP PART #: 92503014462REVA

UPC #: N/A

FILE NAME:

92503014462REVA_FFM2_MAN.INDD

FILE DATE: 01/09/13

DIELINE DOES NOT PRINT

FLAT SIZE: W= 8” X L= 4.875“

FINISHED SIZE: W= 4” X L= 4.875”

PRINT MATERIAL: 100# DULL COVER

PRINTING SIDE 1: 4CP = CMYK

PRINTING SIDE 2: 4CP = CMYK

FONTS: (ALL FONTS OUTLINED)

LINKED IMAGES: N/A

BINDERY: SCORE & FOLD

NOTES:

CONCEPT

REVISED

PROOF

QUOTE

FINAL ART

PROJECT DIRECTOR: GRAHAM SHAW

DESIGNER: HANK ALVA

CONTACT: GSHAW@JIMDUNLOP.COM

92503014462revA_FFM2_man.indd 1-3 1/9/13 2:19 PM

SPECIFICATIONS

Input Impedance 10 kΩ

Output Impedance

Max Volume 2 kΩ

-6 dB Volume 115 kΩ

Max Gain 45 dB

Bypass True Hardwire

Current Draw 3.4 mA

Power Supply 9 volts DC

DUNLOP MANUFACTURING, INC.

P.O. BOX 846 BENICIA, CA 94510 U.S.A.

TEL: 1-707-745-2722 FAX: 1-707-745-2658

DESCRIPTION

• Legendary Fuzz Face tone with

pedalboard-friendly size, AC

power and on/bypass status LED

• Based on ’66-’68 era pre-silicon

Fuzz Faces

• Warm vintage fuzz tones

provided by slightly mismatched

germanium transistors

• True Bypass

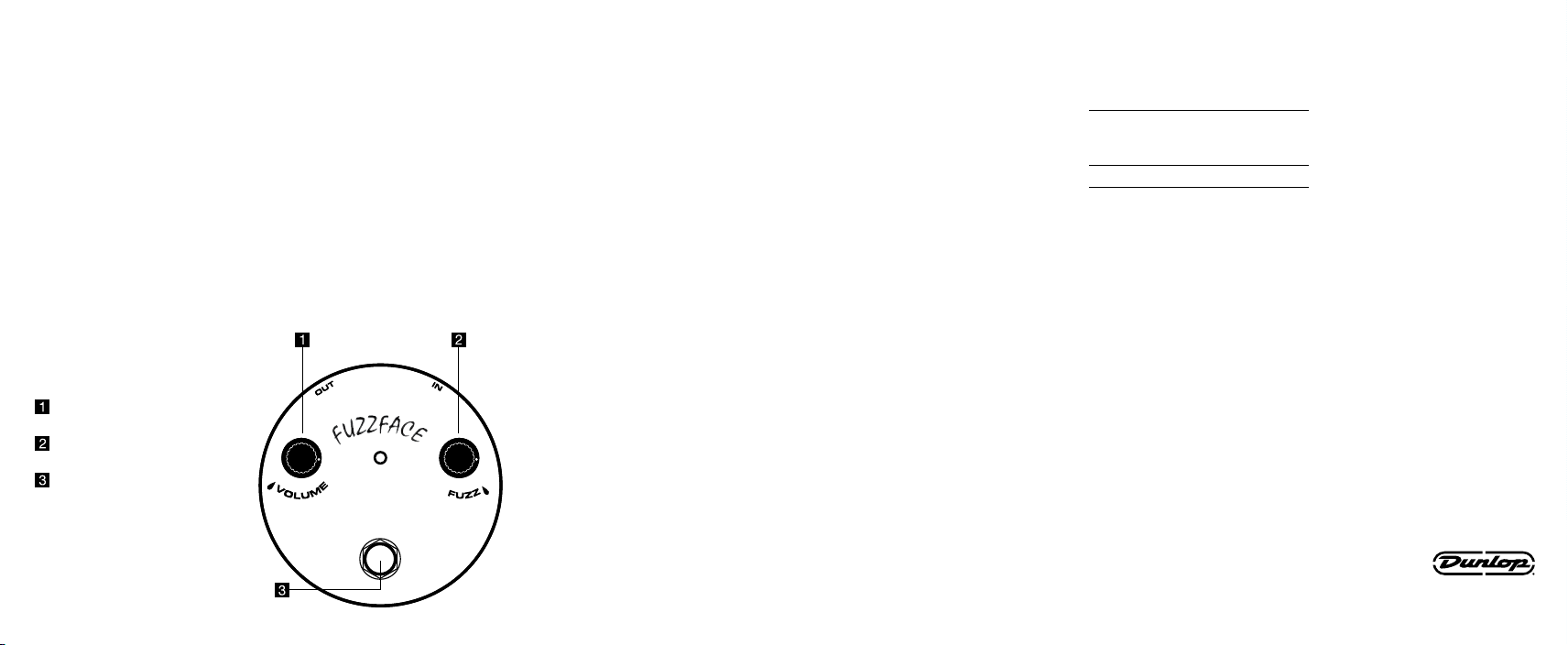

CONTROLS

VOLUME knob controls overall

effect volume

FUZZ knob controls amount

of fuzz

FOOTSWITCH toggles on/

bypass (Blue LED indicates on)

DIRECTIONS

• Run a cable from your guitar

to the Fuzz Face’s Input jack

and another cable from the

Face Face’s Output jack to

your amplier.

• Start with both controls at 12

o’clock.

• Turn the effect on by depressing

the footswitch.

• Rotate the VOLUME knob

clockwise to increase

overall effect volume or

counterclockwise to decrease it.

• Rotate the FUZZ knob clockwise

to increase amount of fuzz or

counterclockwise to decrease it.

FFM2 MINI FUZZ FACE

POWER

The FFM2 Fuzz Face is powered

by one 9 volt battery (open

battery door on underside of

pedal to install), a 9 volt AC

Adapter such as the Dunlop

ECB003/ECB003EU or a power

supply such as the DC Brick™.

SCORE/FOLD SCORE/FOLD SHORT TRIM

92503014462revA_FFM2_man.indd 4-6 1/9/13 2:19 PM
