Drive Ultra Light Plus User manual

Ultra Light Plus

Item# 15030

8

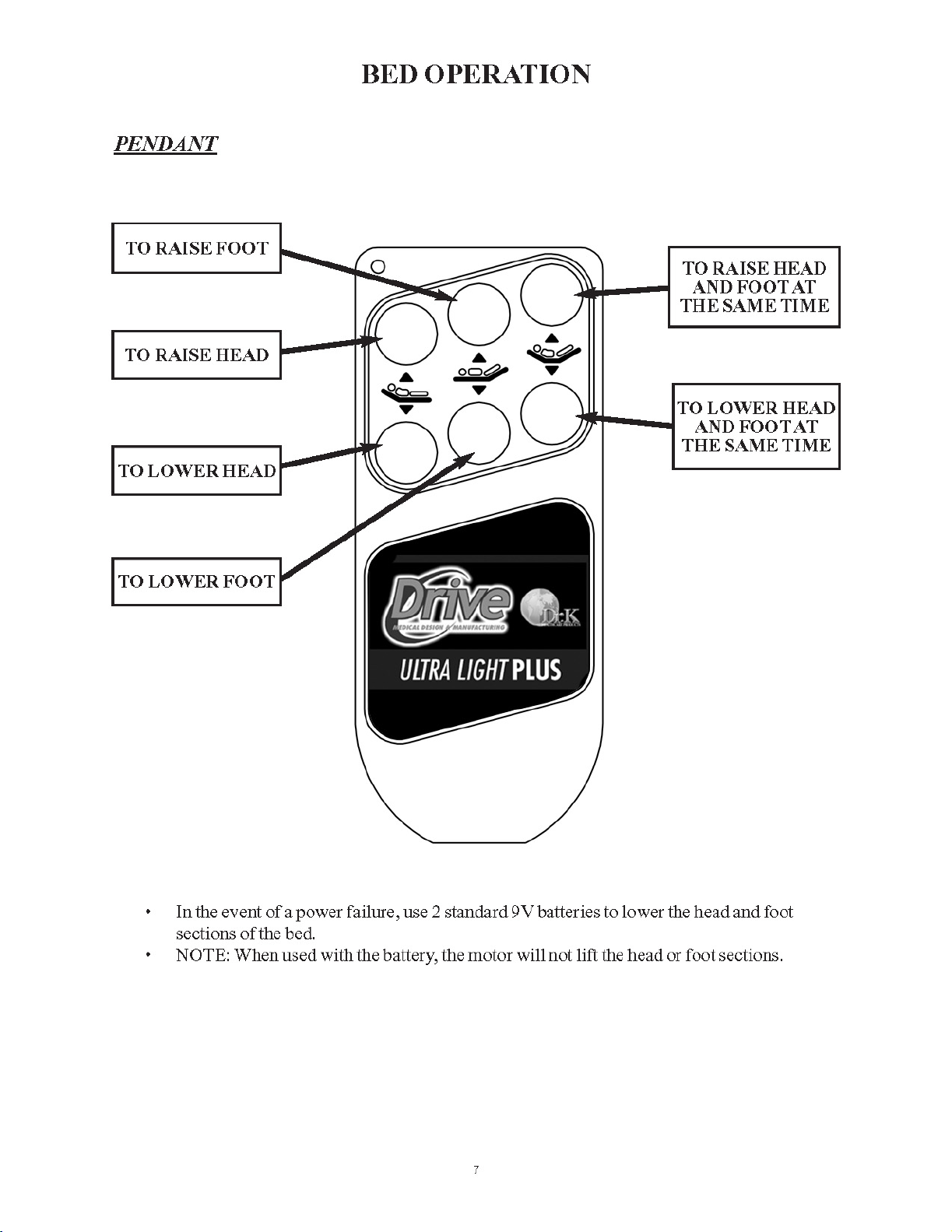

BEDOPERATION(CONT.)

SEMI-ELECTRICMOTORUNIT

Step1. Carefully, put the bed on it's side as shown in

Figure 10.

Step2. Lift the head section and lift the foot section of

the springs. See Figure 10.

Step3. Remove the slide caps from both ends of the

motor. See Figure 11.

Step4. Hold the motor and position it into the head

section of the bed. Position the large center section

towards the outside of the bed on the side of the motor.

See Figure 12.

Step5. While holding the head section of the motor,

make sure the cam is positioned deep into the motor

cavity. Replace the motor slide cap on this end.

Step6. Hold the motor and position it into the foot

section of the bed, making sure the cam is positioned

deep into the motor cavity. Replace the motor slide

cap on this end.

Step7. Lower the head section and lower the foot

section of the springs.

Step8. Carefully, return the bed to the upright

position with it's wheels on the floor. See figure 13.

FIGURE10

FIGURE11

FIGURE12

FIGURE13
