W10

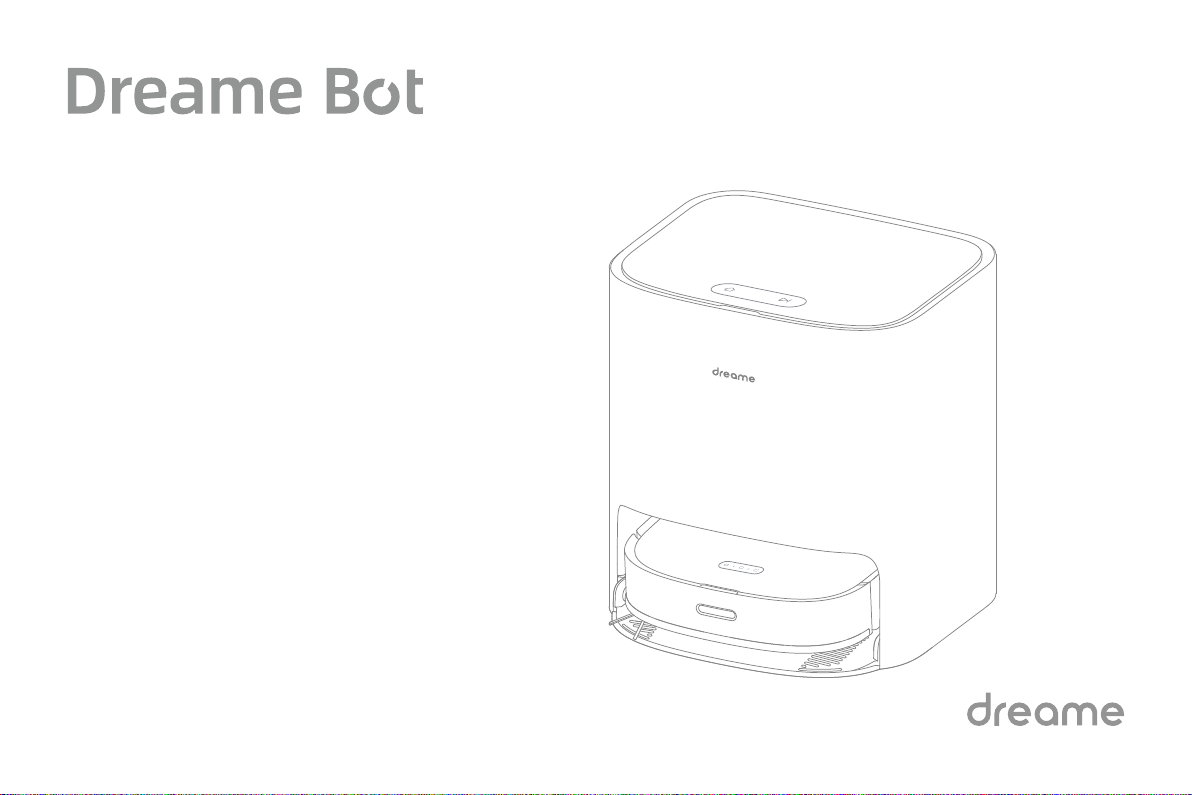

Self-Cleaning Robot Vacuum and Mop

User Manual

Before using the appliance, read this manual carefully and keep it for future reference.

Contents

User Manual

Benutzerhandbuch

Manuel d'utilisation

Manuale utente

Manual de usuario

Руководство пользователя

Instrukcja obsługi





116

139

162

185

Usage Restrictions

Safety Information

· This product can be used by children aged 8 years and above and

persons with physical, sensory, intellectual deficiencies, or limited

experience or knowledge under the supervision of a parent or guardian to

ensure safe operation and to avoid any risks. Cleaning and maintenance

shall not be done by children without supervision.

· Children shall not play with this product. Ensure children and pets are kept

at a safe distance from the robot while it is operating.

· This product is for floor cleaning in a home environment only. Do not use it

outdoors, on non-floor surfaces, or in a commercial or industrial setting.

· Do not use the robot in an area suspended above ground level without a

protective barrier.

· Do not place the robot upside down. Do not use the LDS cover, robot cover,

or bumper as a handle for the robot.

· Do not use the robot at an ambient temperature above 40° C or below 0° C

or on a floor with liquids or sticky substances.

· Pick up any cables from the floor before using the robot to prevent it from

dragging them while cleaning.

· Remove fragile or small items from the floor to prevent the robot from

bumping into and damaging them.

· Keep hair, fingers, and other body parts away from the suction opening of

the robots.

· Keep the cleaning tool out of reach of children.

· Do not place children, pets, or any item on top of the robot regardless of

whether it is stationary or moving.

Usage Restrictions · Do not use the robot to clean any burning objects.

· Do not vacuum hard or sharp objects.

· Make sure the robot is turned off and the self-wash base is unplugged

before cleaning or performing maintenance.

· Do not use a wet cloth to wipe or any liquid to rinse the robot and base.

Washable parts must be dried completely before installing and using

them.

· Please use this product in accordance with the instructions in the User

Manual. Users are responsible for any loss or damage that arise from

improper use of this product.

Batteries and Charging · Do not use any third-party battery orself-washbase. Use only with

RCS3 supply unit.

· Do not attempt to disassemble, repair, or modify the battery or self-

washbase on your own.

· Do not place the self-washbase near a heat source.

· Do not use a wet cloth or wet hands to wipe or clean the base's

charging contacts.

· Do not improperly dispose of old batteries. Unneeded batteries should

be discarded at an appropriate recycling facility.

· This product contains batteries that can only be replaced by qualified

technicians or after-sales service.

Batteries and Charging

Safety Information

· If the power cord becomes damaged or broken, stop using it immediately

and contact after-sales service.

· Make sure the robot is turned off when being transported and kept in its

original packaging if possible.

· If the robot will not be used for an extended period of time, fully charge it,

then turn it off and store it in a cool, dry place. Recharge the robot at least

once every 3 months to avoid over-discharging the battery.

Hereby, Dreame Trading (Tianjin) Co., Ltd. declares that the radio equipment type RLS5C is in compliance with Directive 2014/53/EU. The full text of the EU

declaration of conformity is available at the following internet address: www.dreame-technology.com

For detailed e-manual, please go to https://www.dreame-technology.com/pages/user-manuals-and-faqs

Laser Distance Sensor · The laser distance sensor complies with the IEC 60825-1:2014 standard for

Class 1 laser products and does not generate dangerous laser radiation.

Note:The illustrations in this manual are for reference only. Please refer to the actual product.

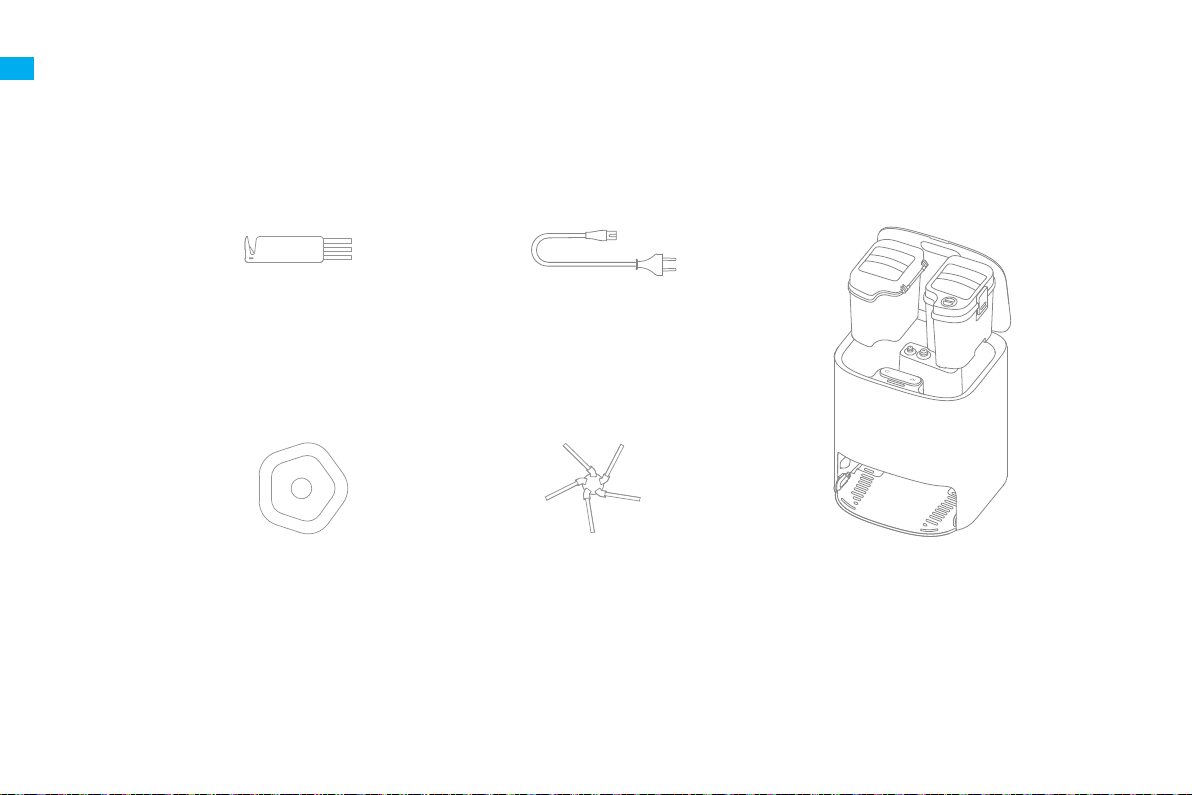

Power Cord Cleaning Tool

Mop Pad (×2) Side Brush Self-Wash Base

(Including a fresh tank, waste tank,

and washboard)

Accessories

Product Overview

Spot Cleaning Button

· Press brie󶀅y to start spot cleaning

Power/Clean Button

· Press and hold for 3 seconds to turn on or o󶀃

· Press brie󶀅y to start cleaning after the robot is turned on

Status Indicator

· On White: Cleaning or cleaned

· Blinking Orange: Error

Return-to-Base Button

· Press brie󶀅y to send the robot back to the base

Robot

EN Product Overview

Return-to-Base Sensor

Air Outlet /

Speaker

Wi-Fi Indicator

Reset Button

· Press and hold for 3

seconds to restore to

factory settings Main Wheel

Cli󶀃 Sensors

Main Wheel

Main Brush

Brush Guard Clips

Magnetic Mounts

Universal Wheel

Side Brush

Auxiliary Wheel

Edge Sensor

Charging Contacts

LDS Upper Cover

Bumper

Cli󶀃 Sensors

Cover

Laser Distance Sensor (LDS)

Robot and Sensors

Ultrasonic Sensor
