Drazice OKH 100 NTR Specification sheet

Operation and Installation Manual

TANK TYPE INDIRECT WATER HEATERS

OKH 100 NTR/HV OKH 100 NTR

OKH 125 NTR/HV OKH 125 NTR

OKH 160 NTR

Družstevní závody Dražice – strojírna s.r.o.

Dražice 69

294 71 Benátky nad Jizerou

Tel.: 326 370 911, fax: 326 370 980

www.dzd.cz

dzd@dzd.cz

Read carefully the below instructions prior to the installation of the heater!

Dear Customer,

The Works Cooperative of Dražice – Machine Plant, Ltd., would like to thank you for your decision to use a product of

our brand.

With this guide, we will introduce you to the use, location, construction, maintenance and other information on the tank

type pressure water heater.

Product’s reliability and safety is proven by tests implemented by the Engineering Test Institute in Brno.

We believe you will be fully satisfied with our product.

The manufacturer reserves the right for engineering modification of the product.

The product is designed for permanent contact with drinkable water.

Guide Contents

1. FUNCTION DESCRIPTION..................................................................................................................... 2

2. MESSAGE FOR CUSTOMERS................................................................................................................ 3

3. TECHNICAL DESCRIPTION .................................................................................................................. 3

4. OPERATING ACTIVITY.......................................................................................................................... 4

5. SERVICING............................................................................................................................................... 4

6. PLUMBING FIXTURE ............................................................................................................................. 5

7. CONNECTION OF INDIRECT HEATER TO HOT WATER HEATING SYSTEM ............................. 6

8. ELECTRIC INSTALLATION................................................................................................................... 7

9. PUTTING THE HEATER INTO OPERATION ....................................................................................... 8

10. HEATER CLEANING AND ANODE ROD EXCHANGE...................................................................... 8

11. IMPORTANT NOTICES........................................................................................................................... 8

12. FIRE-FIGHTING REGULATIONS FOR INSTALLATION AND USE OF HEATER .......................... 9

13. INSTALLATION REGULATIONS .......................................................................................................... 9

14. MOST FREQUENT FUNCTION FAILURES AND THEIR CAUSES ................................................... 9

15. PRODUCT ACCESSORIES...................................................................................................................... 9

Environment Type:

It is recommended to use the product in indoor environment with air temperatures from +2°C to 45°C and a

max relative humidity of 80%.

Placement:

The heater is placed on the ground, next to the heating water source, or in its vicinity. All wiring connections

must be properly insulated from heat.

1. FUNCTION DESCRIPTION

Indirect stationary heaters of NTR and NTR/HV series are used for hot service water preparation in conjunction with

another source of heating water, most often a gas boiler. Their nominal performance provides sufficient amount of hot

water for large flat units, premises, restaurants, and similar establishments. In case of increased hot water

consumption, these tanks heat water continuously, operating similarly to flow heaters.

2. MESSAGE FOR CUSTOMERS

Hot water consumption

Consumption of hot water in households depends on the number of people, amount of sanitary equipment, length,

diameter and insulation of piping in the flat, or on individual habits of users.

Energy saving

Hot utility water reservoir is insulated by means of a first-class polyurethane foam with zero freon content.

Adjust the temperature of the heater's thermostat to that level only that you need to run your home. Thus you will

reduce electricity consumption, as well as the amount of lime sediments on the walls of the receptacle and on the heat

exchanger.

Advantages of using indirect heater

- Easy installation and connection to hot water supply.

- Very fast hot water heating system

- Enamelled steel tank ensures all hygienic requirements on the quality of hot utility water.

- Built-in Mg anode increases resistance to corrosion.

- Good quality polyurethane insulation ensures minimum thermal losses.

- Continuously adjustable temperature of hot utility water| up to 74°C

- Connection of multiple withdrawal points.

- Heater operation control light.

- Accurate check of hot service water temperature.

- Possibility of connecting hot service water circulation.

3. TECHNICAL DESCRIPTION

The heater receptacle is made of a steel plate and tested by 0.9 MPa overpressure. The inside of the receptacle is

enamelled. A flange is welded onto the upper bottom of the receptacle with a flange lid is screwed to it. A sealing ring

is inserted between the flange lid and the flange.

Thermowells for thermostat sensors and thermometer installation are placed in the flange lid. Anode rod is

mounted on M8 nut. The water reservoir is insulated by means of polyurethane foam. Electric wiring is placed

underneath the plastic removable cover. The temperature of water can be set using the thermostat.

Heat exchanger is welded in the pressure tank.

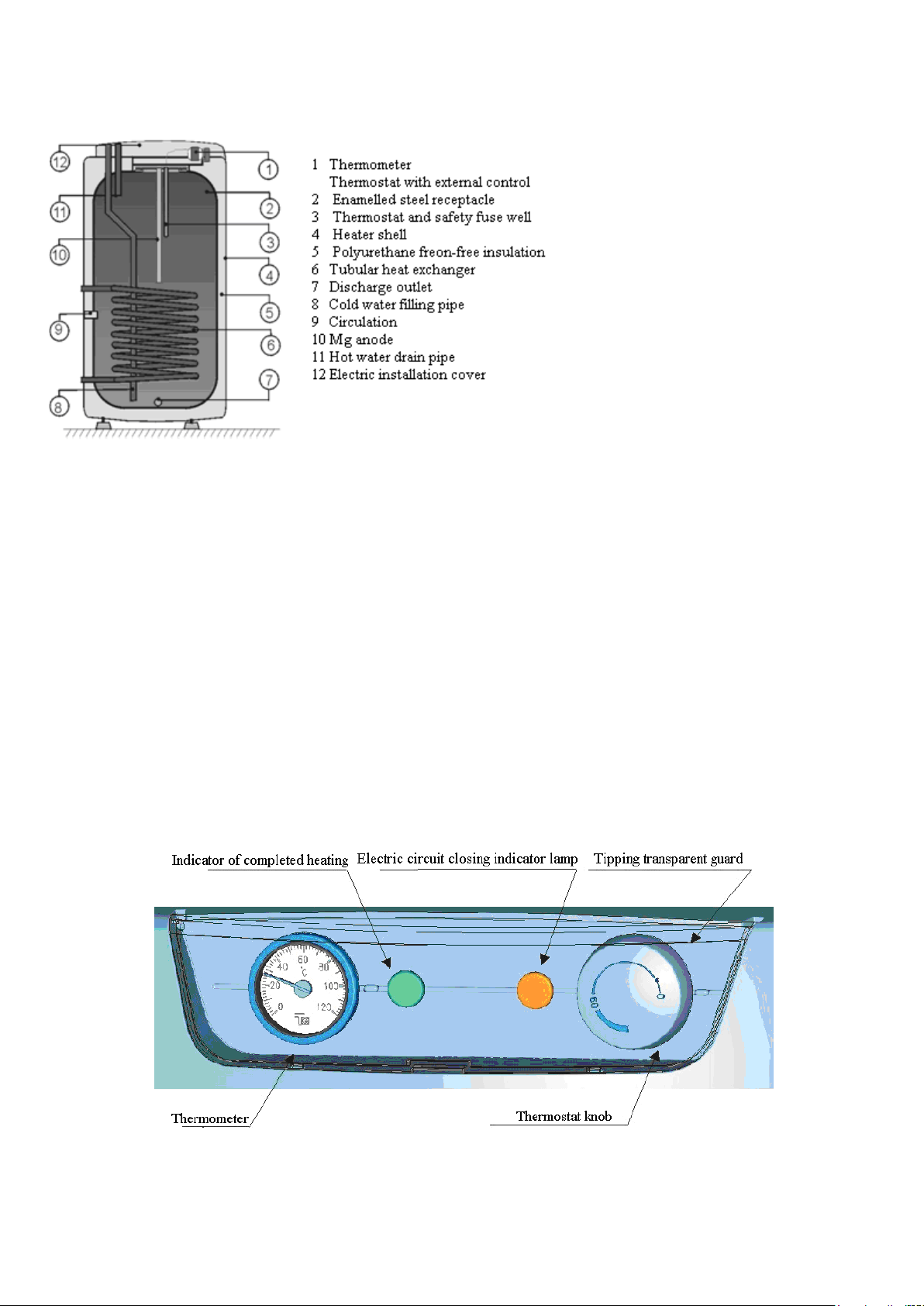

Technical description:

OKH 100 NTR, OKH 125 NTR, OKHC 160 NTR,

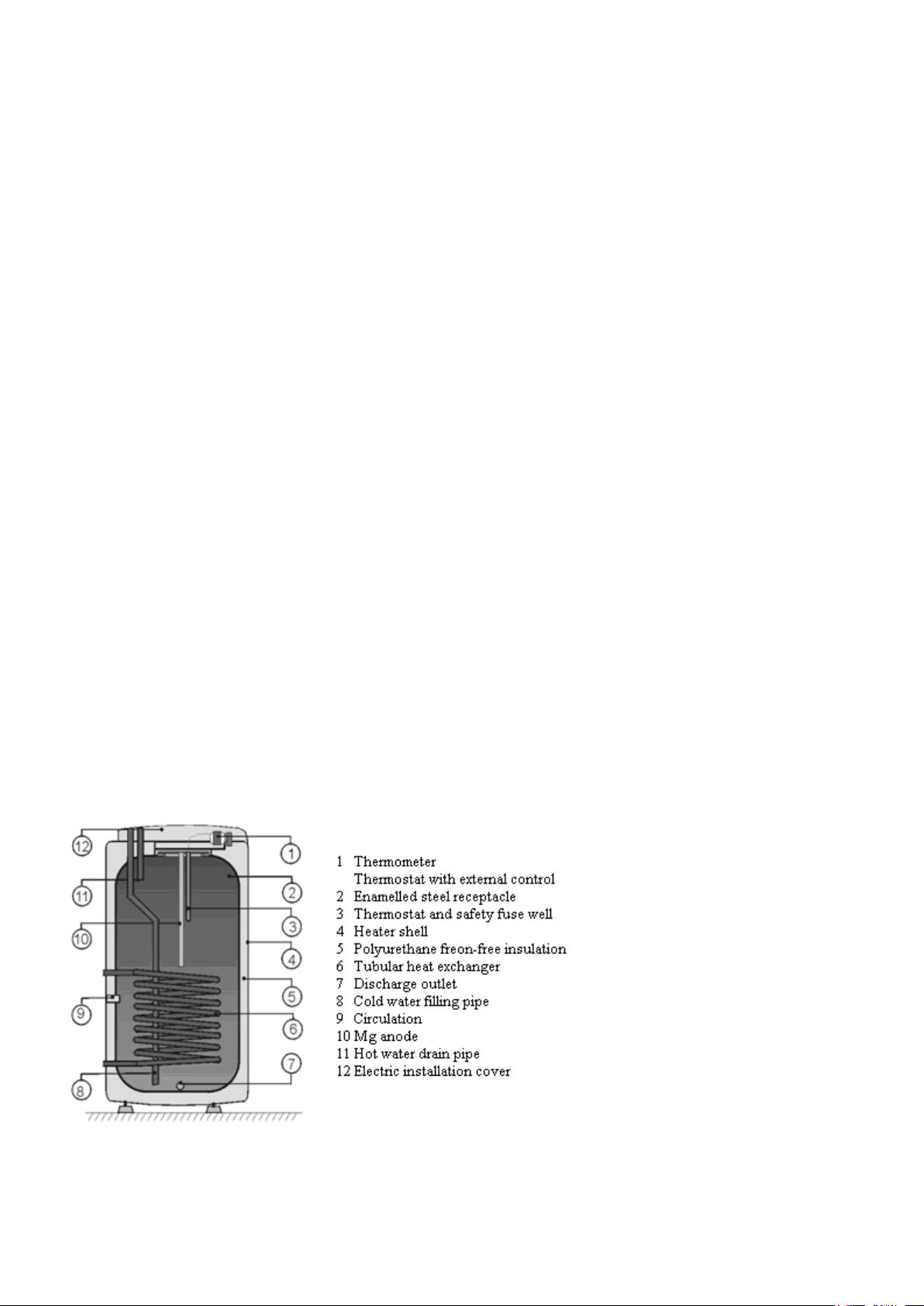

Technical description:

OKH 100 NTR/HV, OKH 125 NTR/HV

4. OPERATING ACTIVITY

Service water heating via thermal energy through heat exchanger

Closing valves of the heat exchanger must be opened which ensures heating water flow from the hot water

heating system.

Together with closing valve, it is recommended to install an air outlet valve at the inlet to the heat exchanger in

order to bleed the heat exchanger (Fig. 1) as needed, in particular before the beginning of the heating season.

The time of heating using the heat exchanger depends on the temperature and flow of water in the hot water

heating system. Combined heater is made in universal design –depending on the need of connecting the closing valves

to the heating element from the right or left (Fig.1).

5. SERVICING

Service devices of heaters of 100 to 160 l capacity are located under the transparent guard of the control panel.

PANEL OF OKH NTR & OKH NTR/HV HEATERS of 100 up to 160 l capacity

Temperature setting

Water temperature is set by turning the thermostat knob. The desired symbol is adjusted against the fixed point on the

control panel.

Notice: Adjusting the thermostat selector at the left backstop does not mean permanent shutoff of the heating element.

When the heater is in use without blocking the daily rate, we do not recommend the temperature to be set above 65°C.

The maximum value to select is “60“.

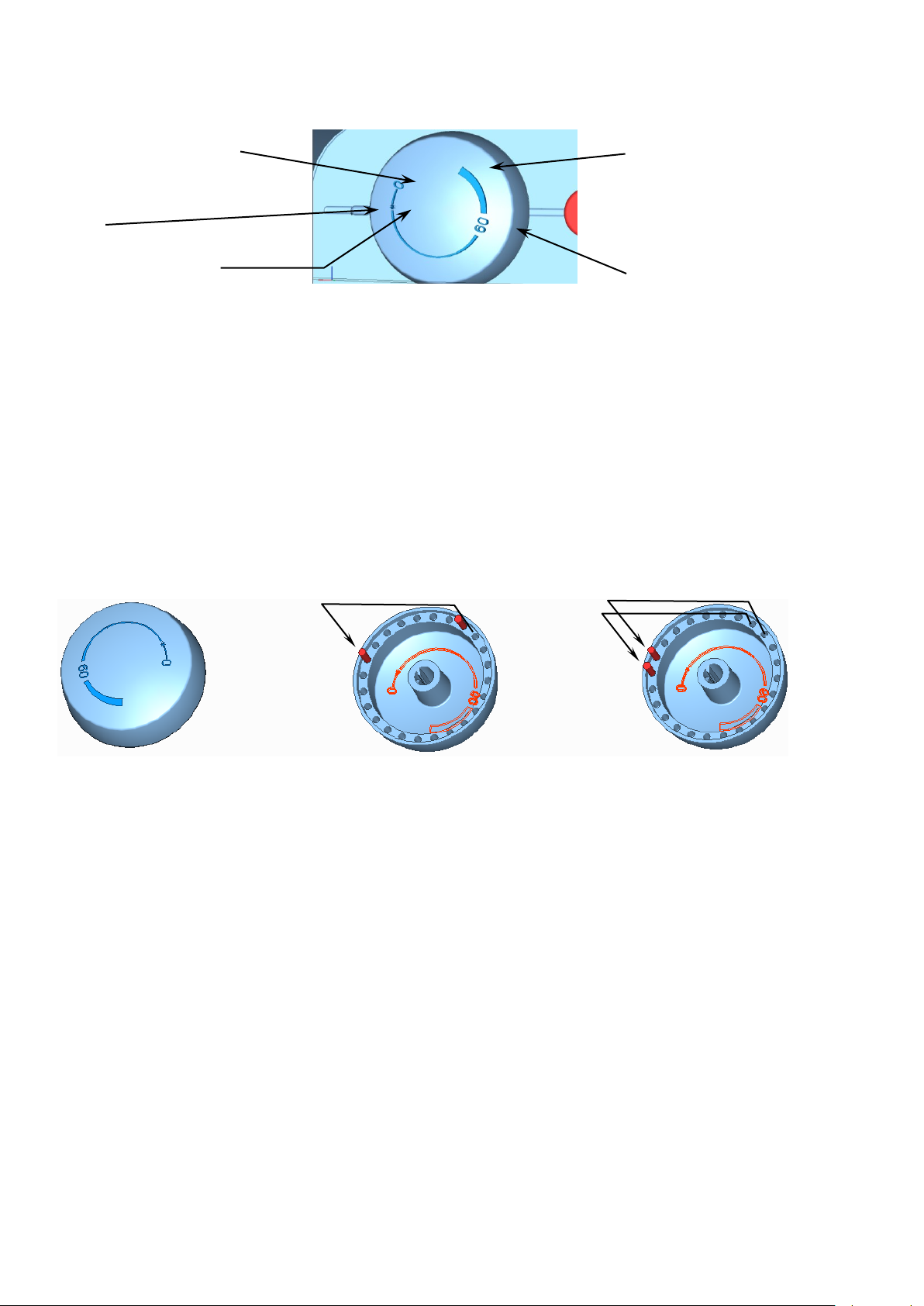

Limiting the regulation range; locked settings. (Applies to 100 up to 160 l capacities only.)

For various safety reasons (unintentional scalding, preventing children or unauthorised person from handling), the

regulation range can be limited, or the setting on the thermostat blocked.

Limited regulation –pull off the thermostat knob (it will be hard for the first time), and you will find

two 2.15mm cylindrical pins on the back side of the knob

- pull off one pin and insert it to the corresponding hole of the selected maximum temperature.

- put the knob back on (to the stop).

Setting blocked –set the selected temperature

pull off the thermostat knob without changing the setting, there are two pins on the back side of the

knob.

Pull off both of them and fit them to the holes corresponding with the selected temperature so that the

gap between the pins was without a hole, and the position was opposite the set temperature.

6. PLUMBING FIXTURE

Connection of heaters to plumbing fixtures is illustrated on Fig.1. For potential disconnection of the heater, the

service water inlets and outlets must be provided with screw coupling Js 3/4“. If the hot service water distribution is

equipped with circulation circuit, the reverse pipe is connected to the inlet identified as CIRCULATION.

The 100, 125, 160 NTR and 100, 125 NTR / HV types are equipped with a discharge outlet.

Connection of heaters to plumbing fixtures is illustrated on Figures 1 and 2. For potential disconnection

of the heater, the service water inlets and outlets must be provided with screw coupling Js 3/4“. Safety valve is mounted

on the cold water inlet identified with a blue ring.

Each hot service water pressure heater must have a safety valve with a membrane spring. Nominal clearance of safety

valves is defined in the ČSN 0 60830 standard. The heaters are not equipped with a safety valve. The safety valve must

be easily accessible, as close to the heater as possible. The input pipes must have at least the same clearance as the

safety valve. The safety valve is placed high enough to secure dripping water drain by gravity. We recommend

mounting the safety valve onto a branch pipe. This allows easier exchange without having to drain the water from the

heater. Safety valves with fixed pressure settings from the manufacturer are used for the assembly. Starting pressure of

Lower temperature range

limit (about 5°C)

Fixed point on the control

panel

Anti-freezing temperature

(about 8°C)

Upper temperature range

limit (about 74°C)

”Ideal” temperature

(about 60°C)

Regulation limited

Setting blocked

a safety valve must be identical to the maximum allowed heater pressure, and at least 20% higher than the maximum

pressure in the water main. If the water main pressure exceeds such value, a reduction valve must be added to the

system. No stop valves can be put between the heater and the safety valve. During the assembly, follow the guide

provided by the safety equipment manufacturer. It is necessary to check the safety valve each time before putting it into

operation. It is checked by manual moving of the membrane from the seat, turning the make-and-break device button

always in the direction of the arrow. After being turned, the button must click back into a notch.

Proper function of the make-and-break device results in water draining through the safety valve outlet pipe. In common

operation, such a check needs to be implemented at least once a month, and after each heater shutdown for more than 5

days. Water may be dripping off the drain pipe of the safety valve; the pipe must be open into the air, pointed down;

environment temperatures must not drop below zero.

When draining the heater, use a recommended drain valve. First, close water input into the heater.

Find necessary pressure values in the following table.

For proper safety valve operation, a backflow valve must be mounted on the inlet pipes, preventing spontaneous heater

draining and hot water penetrating back into the water main.

We recommend that the hot water

distribution from the heater was as short as

possible to minimise heat losses.

Heaters must be provided with a discharge valve mounted on the cold service water inlet to the heater (Fig. 2) for

potential disassembly or repair.

When assembling the security equipment, follow ČSN 06 0830.

7. CONNECTION OF INDIRECT HEATER TO HOT WATER HEATING SYSTEM

(examples of connection + Fig. 1)

It is recommended to install stop valves on the heating water inlet and outlet (for possible dismantling of the heater).

The valves have to be as close to the heater as possible to avoid higher thermal losses.

The heating circuit is connected to marked inputs and outputs of the heater exchanger; the deaerating valve is

mounted in the highest place. It is necessary to install a filter into the circuit in order to protect the pumps, the three-

way valve, and backflow flaps, and the exchanger from sedimentation. It is recommended to flush the heating circuit

before the assembly. All wiring connections must be properly insulated from heat. If the system works with priority

heating of hot service water using a three-way valve, always follow the installation instructions of the three-way valve’s

manufacturer.

Safety valve starting

pressure (MPa)

Admissible operating

water heater pressure

(MPa)

Max. pressure in the cold

water pipe (MPa)

0.6

up to 0.48

0.7

up to 0.56

up to 0.8

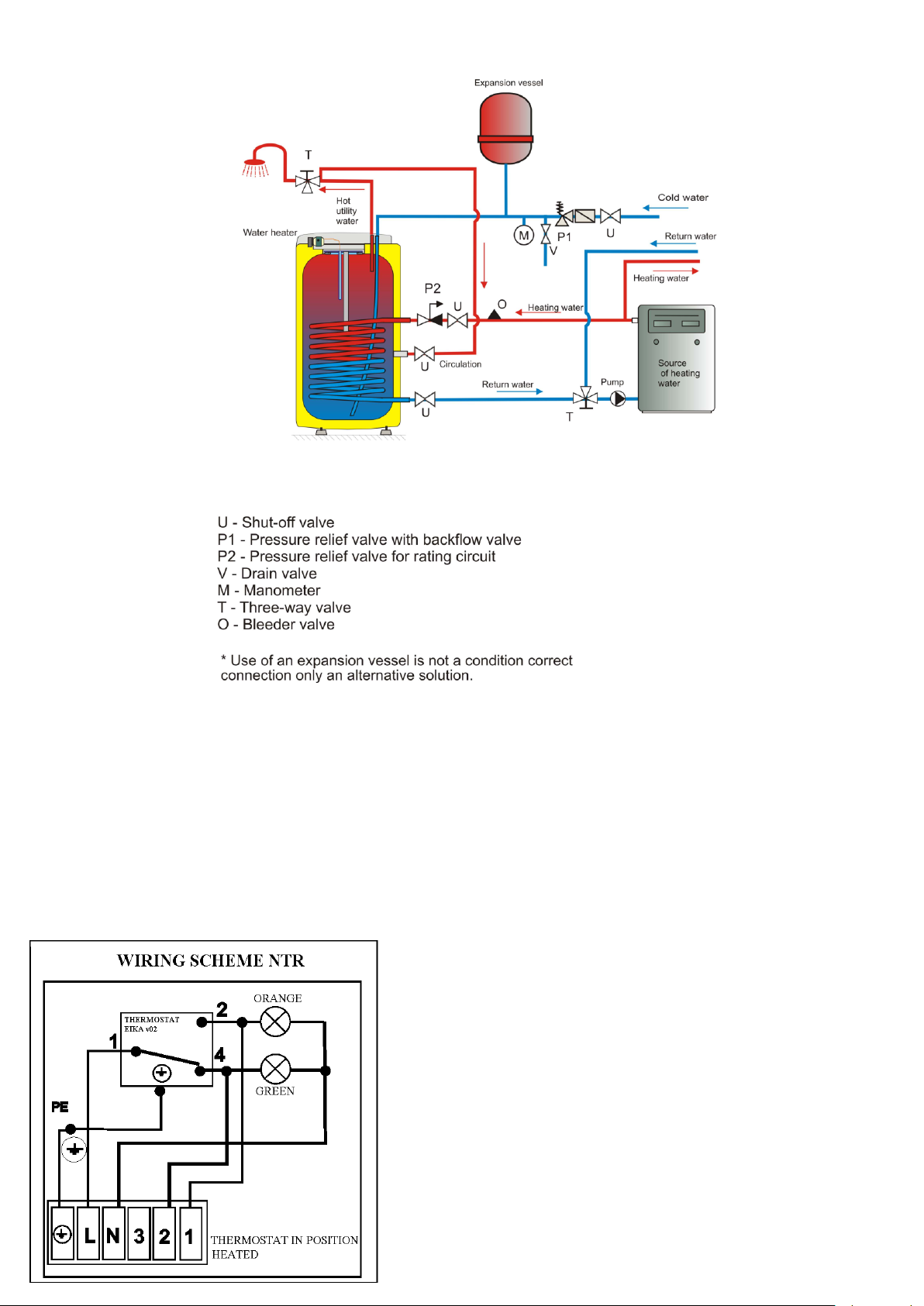

Examples of connection of the heater to water and heating system

8. ELECTRIC INSTALLATION

Electric connection of heater:

OKH 100 NTR, OKH 125 NTR, OKH 160 NTR

OKH 100 NTR/HV, OKH 125 NTR/HV

Check insertion of the thermostat sensor in the thermowell, the so-called insertion all the way.

The heater can be connected to any hot water heating boiler up to the power output of 50 kW. Electrically, the heater is

powered directly by boiler with 230 V/50Hz control voltage. Elastic cable CYSY 4C x 0.75 can be used for

interconnection. Connecting terminals are identified on the terminal board of the heater.

- there is voltage on connecting terminal 2 when heater is heated

- there is voltage on connecting terminal 1 when heater is not heated

Installations in bathrooms, lavatories and showers must obey

the ČSN33 2000-7-701 standard.

Capillary thermometer is installed on the control panel to

control the temperature of water, additionally there is a capillary

thermometer control device to set the desired water temperature and

two signal lights –“green” – heater heated, and “orange” – heating

in process.

9. PUTTING THE HEATER INTO OPERATION

After connecting the heater to the water main, hot water heating system and power supply, and after checking the safety

valve (following the instructions attached to the valve), the heater can be put into operation.

Procedure:

a) Check both water and electric installation; for combined heaters, check the installation to a hot water heating

system. Check proper placement of thermostat sensors; The sensors in the thermowell have to be inserted all the

way.

b) Open the hot water valve on the combination faucet

c) Open the cold water inlet valve to the heater.

d) As soon as the water starts running through the hot water valve, the heater is filled and the valve closes.

e) In case of a leakage (flange lid), we recommend fastening the flange lid bolts.

f) Fasten the electric installation cover.

g) When heating service water with electric energy from the hot water heating system, open the heating water inlet

and outlet valves, possibly de-aerate the heat exchanger.

h) When commencing operation, flush the heater until the cloudiness in the water is gone.

i) Make sure to fill in properly the warranty certificate.

10. HEATER CLEANING AND ANODE ROD EXCHANGE

Repetitive water heating causes limestone sediment on both the tank walls and chiefly the flange lid.

The sedimentation depends on the hardness of water heated, its temperature, and amount of hot water consumed.

We recommend checking and cleaning the tank from scale and eventual replacement of the anode rod

after two years of operation. The anode life is theoretically calculated for two years of operation; however, it changes

with water hardness and chemical composition in the place of use. Based on such an inspection, the next term of anode

rod exchange may be determined. Have the company in charge of service affairs clean and exchange the anode. When

draining water from the heater, the combination faucet valve for hot water must be open, preventing occurrence of

under-pressure in the heater tank which would stop the water from draining.

11. IMPORTANT NOTICES

Check and exchange the Mg anode regularly.

No stop valves can be put between the heater and the safety valve.

If the overpressure in the eater main exceeds 0.6 MPa, a reduction valve must be

mounted before the safety valve.

All hot water outputs must have a combination faucet.

Before filling the heater with water for the first time, it is recommended to fasten the

flange connection nuts of the tank.

It is not allowed to handle the thermostat, aside from temperature resetting with a

control button.

All electric installation handling, adjustment and replacement of the regulation

elements shall only be performed by an authorised service company.

Disposal of packaging material and functionless product

A service fee for providing return and recovery of packaging material has been paid for the packaging in which the

water heater was delivered was paid pursuant to Act No. 477/2001 Coll., as amended, at EKO-KOM a.s. The client

number of the company is F06020274. Take the water boiler packages to a waste disposal place determined by the

town. When the operation terminates, disassemble and transport the discarded and unserviceable heater to a waste

recycling centre (collecting yard), or contact the manufacturer.

12. FIRE-FIGHTING REGULATIONS FOR INSTALLATION AND USE OF HEATER

We would like to emphasise that the heater must not be connected to power supply if work involving

flammable liquids (petrol, spot remover) or gases, etc., is performed nearby.

13. INSTALLATION REGULATIONS

Regulations and instructions that must be obeyed if the heater is connected

a) to the heating system

ČSN 06 0310 – Thermal systems in buildings –Designing and Installation

ČSN 06 0830 – Thermal systems in buildings –Protecting devices

b) to the electrical network

ČSN 33 2180 - Connecting of electric devices and appliances

ČSN 33 2000-4-41 - Low voltage electric installations Protective measures to ensure safety –Protection against

electric shock

ČSN 33 2000-7-701 - Low voltage electric installations Single-purpose devices and devices in special premises

- Premises with tub or shower to hot service water heating system

c) to the hot water heating system

ČSN 06 0320 - Thermal systems in buildings - Hot water preparation –Design and Project Engineering

ČSN 06 0830 – Thermal systems in buildings –Protecting devices

ČSN 73 6660 – Internal water conduits

ČSN 07 7401 - Water and steam for thermal energy equipments with working steam pressure up to 8 MPa

ČSN 06 1010 - Tank water heaters with water and steam heating; and combined with electric heating. Technical

requirements. Testing.

ČSN EN 12897 – Water supply –Indirectly heated closed tank-type water heaters

Both electric and water installation must follow and meet requirements and regulations relevant in the country of use.

14. MOST FREQUENT FUNCTION FAILURES AND THEIR CAUSES

Water is dripping off the safety valve –glow lamp is off –faulty safety valve, high water pressure at the inlet

Do not try to repair the failure yourselves. Seek either expert or service help. It does not take much for an expert to

remove the defect. When making a repair appointment, report the type and serial number you find on the performance

plate of your water heater.

15. PRODUCT ACCESSORIES

G3/4" safety valve is packed with the product and the OKH 100, 125, 160 NTR and OKH 100, 125

NTR/ HV types are additionally equipped with a discharge valve.

It is in your own interest to check the completeness of the accessories.

Fig. 1

Connection of the heater exchanger (left, right) and fittings at the cold water inlet

Technical Data

0 - Air outlet valve

U -Shut-off valve

P1 - Safety valve with backflow flap

P2 - Safety valve for heating circuit

M -Manometer

Z - Test valve

V -Drain valve

Connection on the cold water inlet must conform to

ČSN 060830

Type OKH 100 NTR/HV OKH 125 NTR/HV

Capacity l95 120

Weight kg 56 70

Heat transfer surface

m21,08 1,45

Max tank pressure MPa

Max pressure of exchanger MPa

Max temperature of HSW °C

Recommended HSW temperature °C

HSW connection

Heating water connection

El.protection

Connecting voltage

Rated thermal output at water

temperature of 80°C and flow 720 l/h

W24000 32000

Heating time from 10 to 60°C by exchanger

min 14 14

Heat losses kW/24h

G 3/4"

IP44

1 PEN AC 230V, 50 Hz

0,6

Type OKH 100 NTR OKH 125 NTR OKH 160 NTR

Capacity l95 120 160

Weight kg 57 69 77

Heat transfer surface

m21,08 1,45 1,45

Max tank pressure MPa

Max pressure of exchanger MPa

Max temperature of hot service water °C

Recommended hot service water temperature

°C

HSW connection

Heating water connection

El.protection

Connecting voltage

Rated thermal output at water

temperature of 80°C and flow 720 l/h

W24000 32000 32000

Heating time from 10 to 60°C by exchanger

min 14 14 17

Heat losses kW/24h

IP44

1 PEN AC 230V, 50 Hz

0,6

G 3/4"

G 1"

Other manuals for OKH 100 NTR

This manual suits for next models

Table of contents

Other Drazice Water Heater manuals

Drazice

Drazice NADO v1 Quick start guide

Drazice

Drazice OKC 250 NTR Specification sheet

Drazice

Drazice OKH 100 NTR/HV Specification sheet

Drazice

Drazice OKHE 80-SMART Specification sheet

Drazice

Drazice OKC 80 Specification sheet

Drazice

Drazice OKC 500 NTRR/HP/SOL Specification sheet

Drazice

Drazice Okce 100 Specification sheet

Drazice

Drazice OKC 300 NTR/1 MPa Specification sheet

Drazice

Drazice NAD 250 v1 User manual

Drazice

Drazice OKH 100 NTR/HV Specification sheet

Drazice

Drazice OKC 80 Specification sheet

Drazice

Drazice OKCE 100 S/2.2 kW User manual

Drazice

Drazice OKCE 100 NTR Specification sheet

Drazice

Drazice NADO 300/20v11 Specification sheet

Drazice

Drazice BTO 5UP User manual

Drazice

Drazice OKC 80 Specification sheet

Drazice

Drazice OKHE ONE/E 30 Specification sheet

Drazice

Drazice NADOS 800/140v1 Specification sheet

Drazice

Drazice OKC 800 NTR/1Mpa Specification sheet

Drazice

Drazice OKC 100 NTR/HV Specification sheet

Drazice

Drazice OKCE 80 Specification sheet

Drazice

Drazice OKC 80 Specification sheet

Drazice

Drazice OKC 100 NTR Specification sheet

Drazice

Drazice OKC 500 NTR/HP Specification sheet

Popular Water Heater manuals by other brands

Kenmore

Kenmore 153.582400 Use & care guide

Applimo

Applimo Edel AIR Installation and operating instructions

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Operating and installation instructions

clage

clage E-Mini Series Operating and installation instructions

Toyotomi

Toyotomi Oil Miser OM-180 installation manual

Bradford White

Bradford White EF Series Service manual

Eccotemp

Eccotemp 40-H Use & care manual

Dimplex

Dimplex ECSd125-580 Installation and user instructions

Dux

Dux 32FCR6N installation manual

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Operation and maintenance instructions

Noritz

Noritz N-132M Owner's guide and installation manual

TESY

TESY GCV7/4S 10047 Instructions for use and maintenance

A.O. Smith

A.O. Smith Gphe 50 instruction manual

Koryo

Koryo KWHZF15Y user manual

Pentair

Pentair PSC-14-4-02 Installation and operation manual

GE 40M06AAG Energy guide

Thermor

Thermor AEROMAX SPLIT 2 Instructions for use

American Hometec

American Hometec AHQ-B03X Installation and operation manual
