INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |2

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Content

Electrode & Lead Placement

3-6

Docking, Transport, & Power

7-8

Fixed Keys

Patient Category, Admit, Discharge, Standby, Pri-

vacy, & Transferring Data

10-

Alarms Priorities

Alarm Pause

Alarm Limits Table

14-15

Fast Access Fixed Key

Event Recall & Printing Stored Events

Trends, Graphs, & Reports

17-18

Screen Setup / Auto Display

Parameter boxes

HR / ECG

19-20

Respiratory Monitoring

20-22

NIBP

Temperature

SpO2

Advanced Parameters

12 Lead ECG Monitoring

Invasive Pressures

Pulmonary Artery Pressures

24-25

Cardiac Output

25-26

Hemo / Oxy / Ventilation Calculations

etCO2Microstream

27-28

etCO2Modules & Pods

28-30

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |3

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Electrode & Lead Placement

DO’S & DO NOT’S

Do place the electrode on a clean and dry

area of skin.

Do utilize soap, water, and dry skin thor-

oughly.

Do remove hair if necessary for proper elec-

trode placement.

Do change electrodes Q 24-

48 hours, or per

hospital policy.

Do Not utilize alcohol to dry and clean area

of skin for electrode placement.

Do Not place electrodes over bony promi-

nences or area of increased muscle move-

ment/activity.

Do Not assume electrodes are “go

od” if the

tape portion is attached to the patient’s skin.

Do Not braid, tie or knot leads.

*Always follow hospital

-approved practices or the recommen-

dations of the electrode manufacturer.

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |4

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Electrode Colors*

IEC

AHA/US

Electrode

Location

Yellow

Black

Left arm

Green

Red

Left leg

Red

White

Right arm

Black

Green

Right leg (neutral)

White

Brown

Moveable

chest

C+

Gray

& White

V+

Gray

& Brown

2nd M

oveable

chest

Standard

Lead

Configuration

IEC

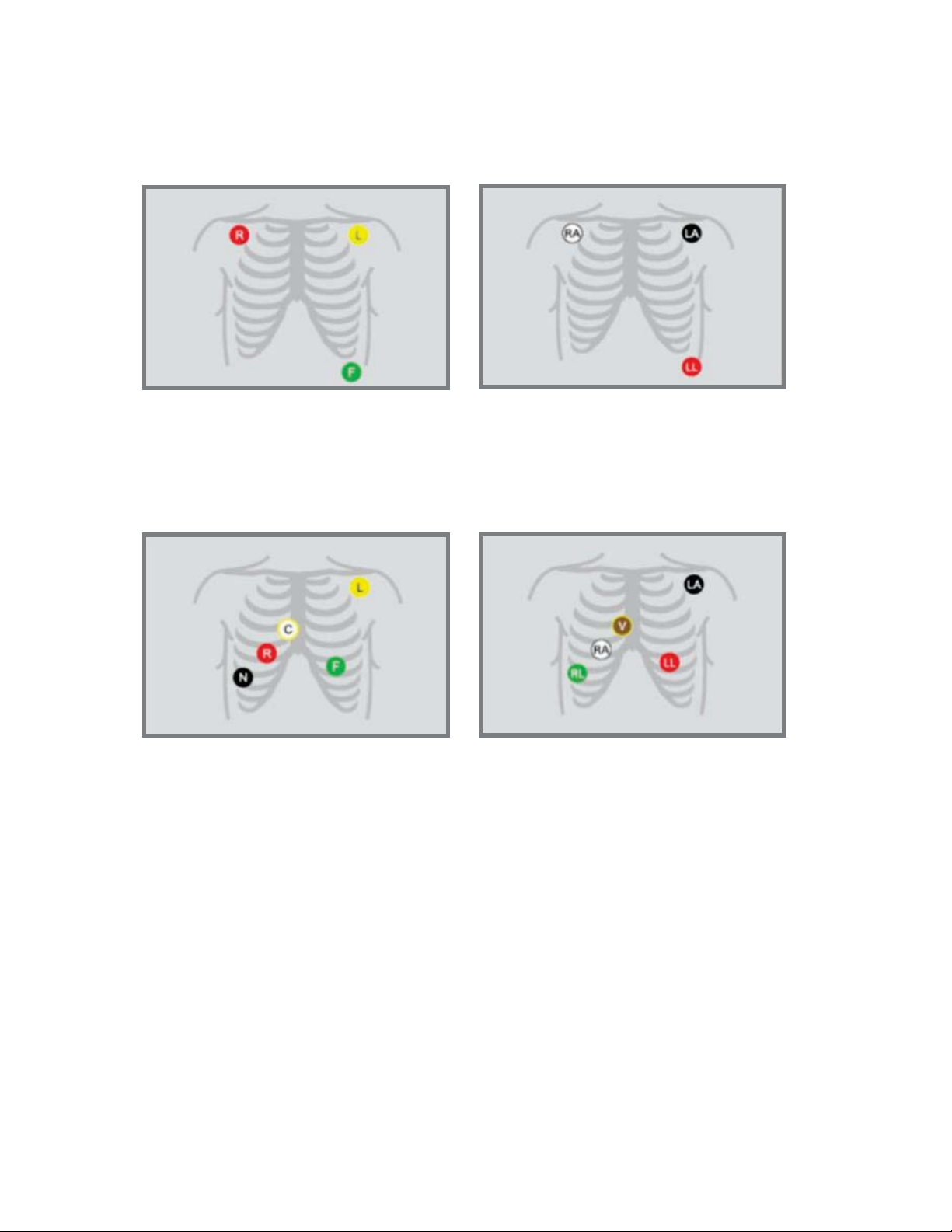

Standard 5 Lead Configuration

IEC

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |5

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

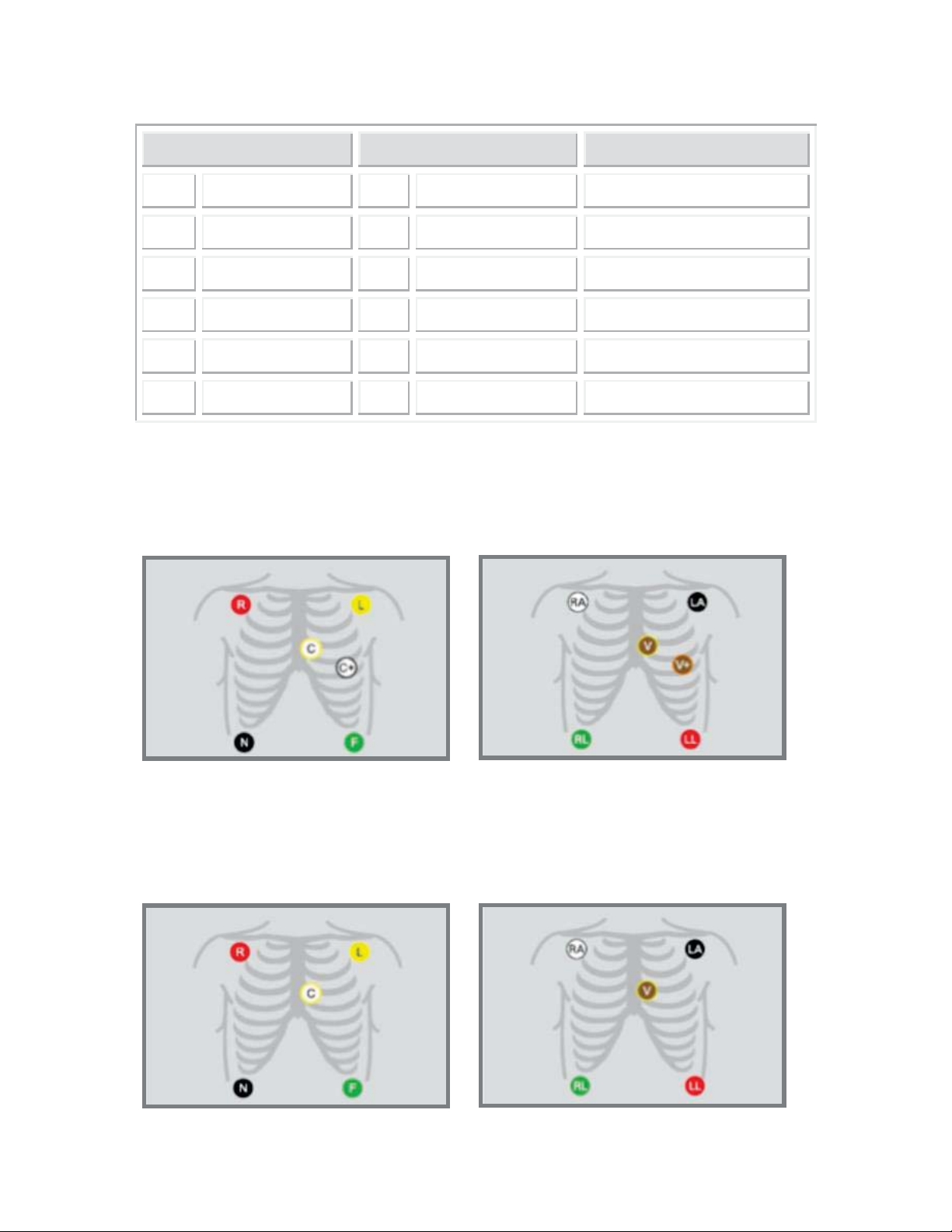

Standard 3 Lead Configuration

IEC

Pacemaker Configuration 5 electrodes

IEC

Warning: Make sure the pacemaker detection is turned OFF for patients

without pacemakers and that it is ON for patients with pacemakers. Al-

ways keep pacemaker patients under close surveillance.

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |6

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

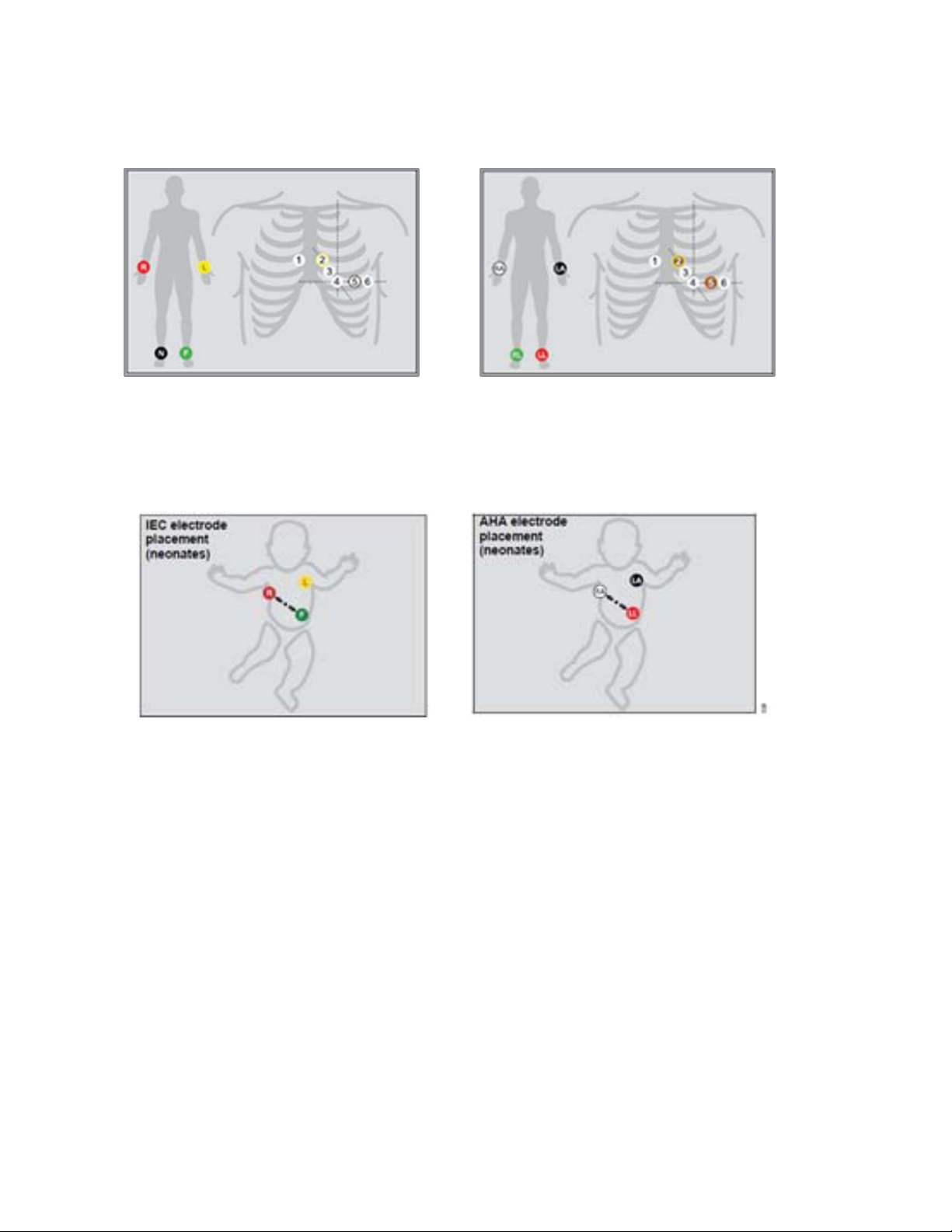

12-Lead Configuration (ten electrodes)

IEC

Respiratory lead placement for infants

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |7

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Docking, Transport & Power

PICK AND GO TRANSPORT (Delta/Delta XL only)

- The Pick and Go patient transport system allows the monitor

to travel with the patient to different care stations within the

hospital.

- By uploading setups from the IDS at the new care station, the

monitor adapts to its new clinical “home” (OR, ICU, CCU, etc.)

while retaining patient data.

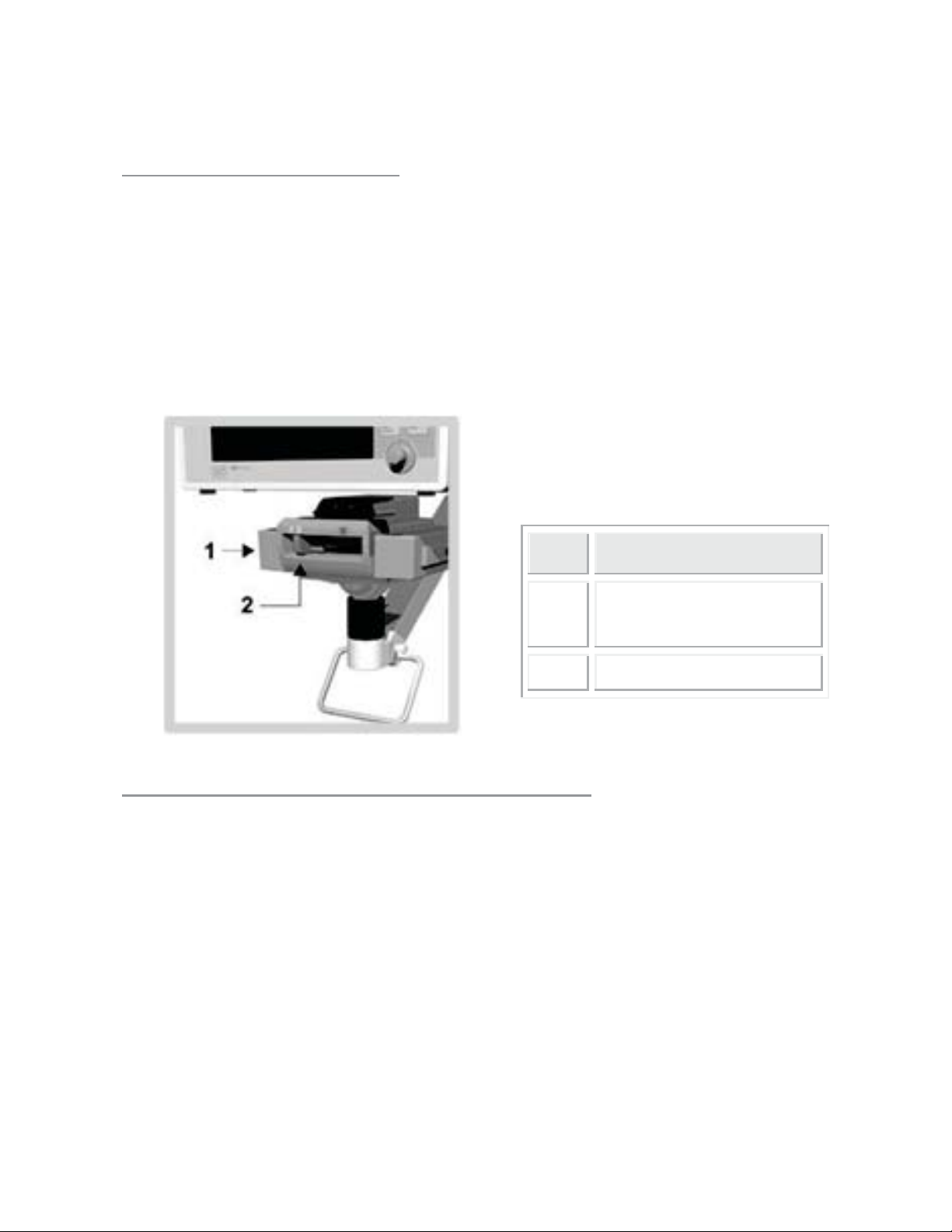

UN-DOCKING & RE-DOCKING THE MONITOR

1. Hold the monitor firmly by its handle. Slide the lever on the

docking station to the left to disengage. The monitor auto-

matically switches to battery power.

2. Continue to move the lever to the left until it clicks. Use both

hands to tilt the monitor forward and lift it off the IDS or Dock-

ing Station.

3. Reverse the process to re-dock, noting the green Battery Indi-

cator light is lit on lower left hand corner of monitor.

Nos.

Description

Infinity Docking Sta-

tion

Lever

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |8

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

BATTERY POWER

- The Delta/Delta XL has an internal lithium ion battery, which

can power the monitor while on transport for approximately

240 minutes when new.

- When the monitor is re-docked the battery will recharge.

- Backup battery for Kappa is 240 minutes.

⑥

ROTARY KNOB

- The rotary knob allows you to browse menus, choose settings,

and execute menu functions.

- Scroll through menu items by turning the rotary knob.

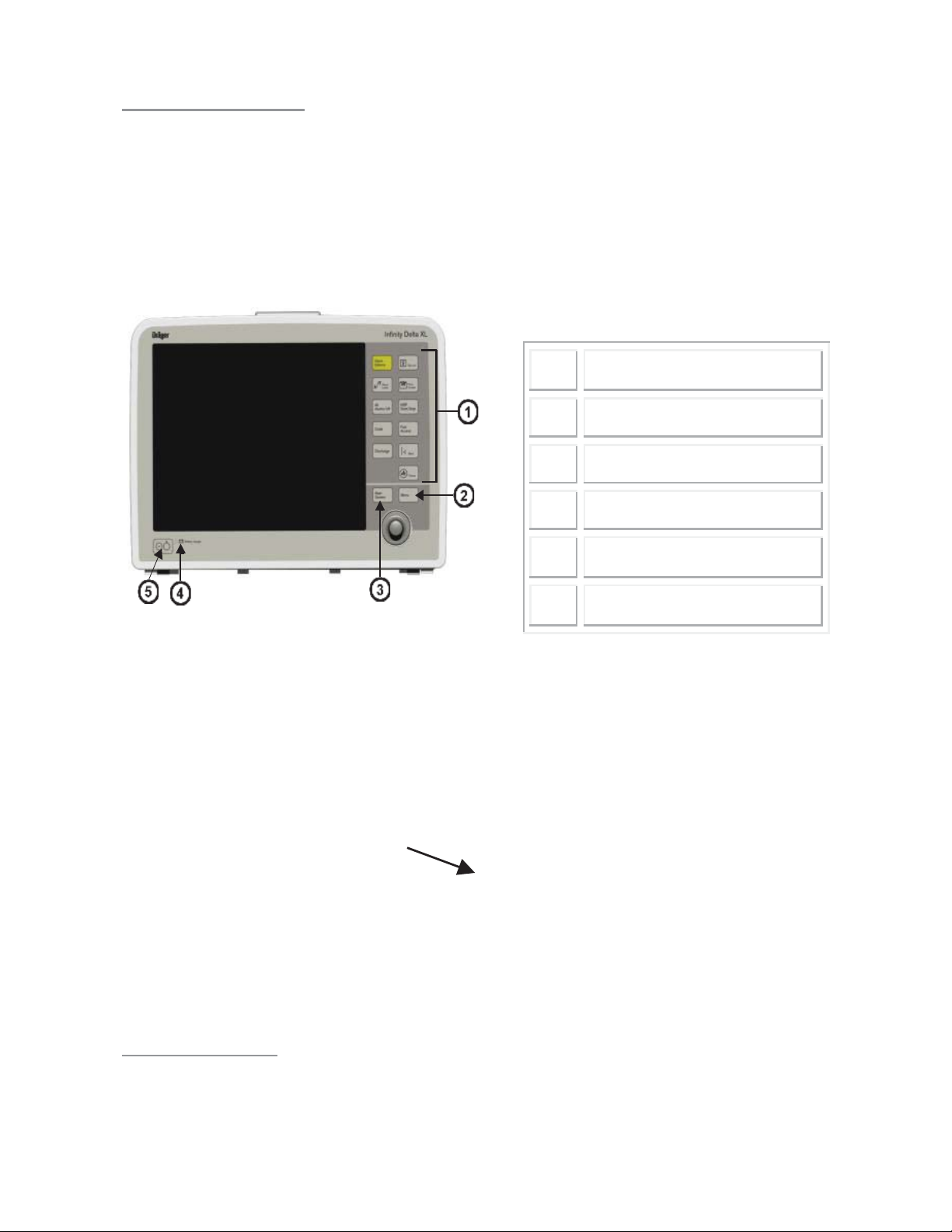

Fixed Keys

Main menu fixed

Main screen fixed

Battery charge

Power Switch

Rotary Knob

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |9

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

- Press the knob (or click) to confirm

2014 Draeger

Medic

Inc

INFINITY DELTA / KAPPA QUICK REFERENCE GUIDE |10

THIS GUIDE IS INTENDED

FOR REFERENCE

ONLY. REFER

INSTRUCTIONS FOR USE

MANUAL.ADDITIONAL INFORMATION

Fixed Keys

Key

Function

ALARM SILENCE

Silences the active alarm tone for 2 minutes or

cancels the Alarm Silence

*Note: Silences the active alarm tone for 1 mi-

nute when Backwards Compatibility is Enabled,

subsequent key press resets the timer to 1 mi-

nute

ALARM LIMITS

Opens a table from which you can set upper and

lower alarm limits

ALL ALARMS OFF

Suspends all alarms for a pre- selected time or

cancels the suspension

CODE

Activates a set of monitor functions for urgent

care

DISCHARGE

Accesses the Discharge menu.

*Note: Press the Discharge key a second time to

discharge the patient.

MAIN SCREEN

Activates the main screen.

RECORD

Starts/stops a timed recording.

PRINT SCREEN

Prints the currently displayed screen to a net-

work laser printer.

NBP START STOP

Starts or stops a non-invasive blood pressure

(NBP) measurement.

FAST ACCESS

Displays the Fast Access menu.

MARK

Creates and stores a waveform and correspond-

ing vital signs with a time stamp that may be

viewed in the Alarm History and Event Recall.

FREEZE (DELTA XL

ONLY)

Freezes the waveforms

Activates the main menu.
