DORIC DS5010 User manual
Head oce:
38 Redfern St
Wetherill Park NSW 2164
Australia
Ph: 1300 132 389
Fax: 1300 652 292
www.doric.com.au
INSTALLATION
GUIDE
DS5011
DS5010
v1.1 - 11/08/2021
I
SLIDING DOOR
KEEPER
DS5010
DS5011
Head oce:
38 Redfern St
Wetherill Park NSW 2164
Australia
Ph: 1300 132 389
Fax: 1300 652 292
www.doric.com.au
INSTALLATION GUIDE
5mm Packer
(Available Separately)
5mm Packer
(Available Separately)
2mm Packer
(Available Separately)
2mm Packer
(Available Separately)
Mounting
Screw
Mounting
Screw
DS5010
Side Cover
DS5011
Side Cover
Keeper
Base
Keeper
Base
DS5011
DS5010
5mm Packer
(Available Separately)
5mm Packer
(Available Separately)
2mm Packer
(Available Separately)
2mm Packer
(Available Separately)
Mounting
Screw
Mounting
Screw
DS5010
Side Cover
DS5011
Side Cover
Keeper
Base
Keeper
Base
DS5011
DS5010
2
I
SLIDING DOOR
KEEPER
DS5010
DS5011
v1.1 - 11/08/2021
Head oce:
38 Redfern St
Wetherill Park NSW 2164
Australia
Ph: 1300 132 389
Fax: 1300 652 292
www.doric.com.au
INSTALLATION GUIDE
1. Placing Keeper
Install the Keeper
base, secured loosely
in the CROSS FIXED
holes using the
mounting screws
provided.
Do not tighten the
screws yet.
2. Vertical Adjustment
Adjust the Keeper base vertically
until the correct position is found
in relation to the door lock.
The keeper base offers adjustment
up to 9mm
Now tighten the mounting screws.
3. Fitting Cover
Install the side cover,
Unless adding INLINE
fixing proceed to step 5.
a) Remove the two pop out tabs on
the rear of the cover.
b) Fit the side cover (Step 3).
c) Add additional INLINE fixing
screws through the cover cutouts.
4. Additional Fixing
(Optional)
If additional INLINE fixing is to
also be used:
a)
c)
5. Horizontal Adjustments
a) To increase horizontal adjustments,
loosen the top and bottom adjustment
screws to the desired amount (up to
5mm)
b) Loosen the centre adjustment screw
until the faceplate comes into contact
with the top and bottom adjustment
screws
c) To decrease the horizontal adjustment,
tighten the centre adjustment screw, and
then tighten the top and bottom
adjustment screws until firm
a)
b)
3
I
SLIDING DOOR KEEPERDS5010
v1.1 - 11/08/2021
Head oce:
38 Redfern St
Wetherill Park NSW 2164
Australia
Ph: 1300 132 389
Fax: 1300 652 292
www.doric.com.au
INSTALLATION GUIDE

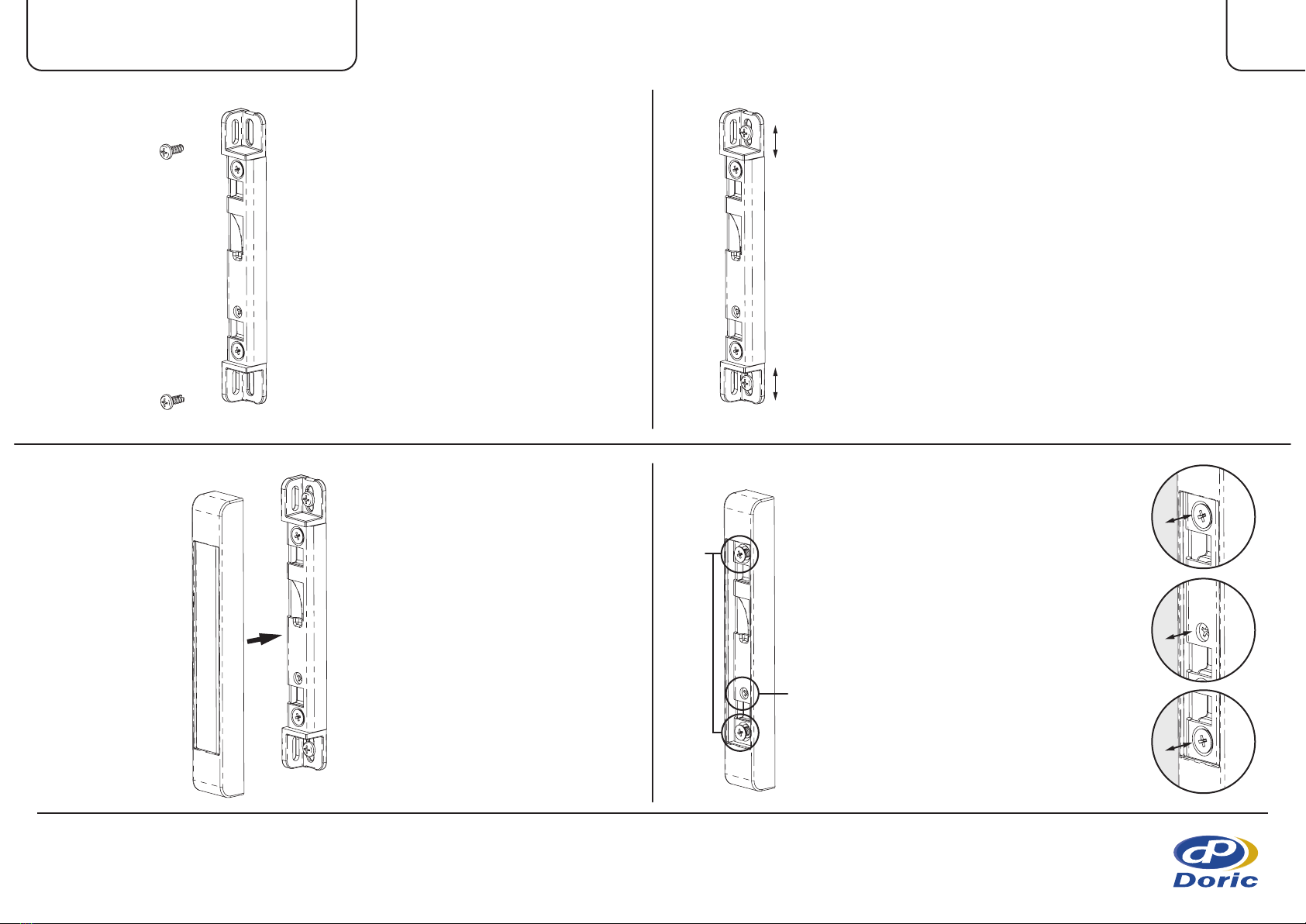

3. Fitting Cover
Install the front cover.
4. Horizontal Adjustments
a) To increase horizontal
adjustments, loosen the top and
bottom adjustment screws to the
desired amount (up to 5mm)
b) Loosen the centre adjustment
screw until the faceplate comes into
contact with the top and bottom
adjustment screws
c) To decrease the horizontal
adjustment, tighten the centre
adjustment screw, and then tighten
the top and bottom adjustment
screws until firm
a)
b)
1. Placing Keeper
Install the Keeper base,
secured loosely in the INLINE
fixing holes using the mounting
screws provided.
Do not tighten the screws yet.
2. Vertical Adjustment
Adjust the Keeper base vertically until the correct
position is found in relation to the door lock.
The Keeper base offers adjustment up to 9mm
Now tighten the mounting screws.
4
v1.1 - 11/08/2021
I
SLIDING DOOR KEEPERDS5011
