Donjoy JZ3 Series User manual
JZ3单级均质泵
使用运行、维护说明书
OPERATING MANUAL

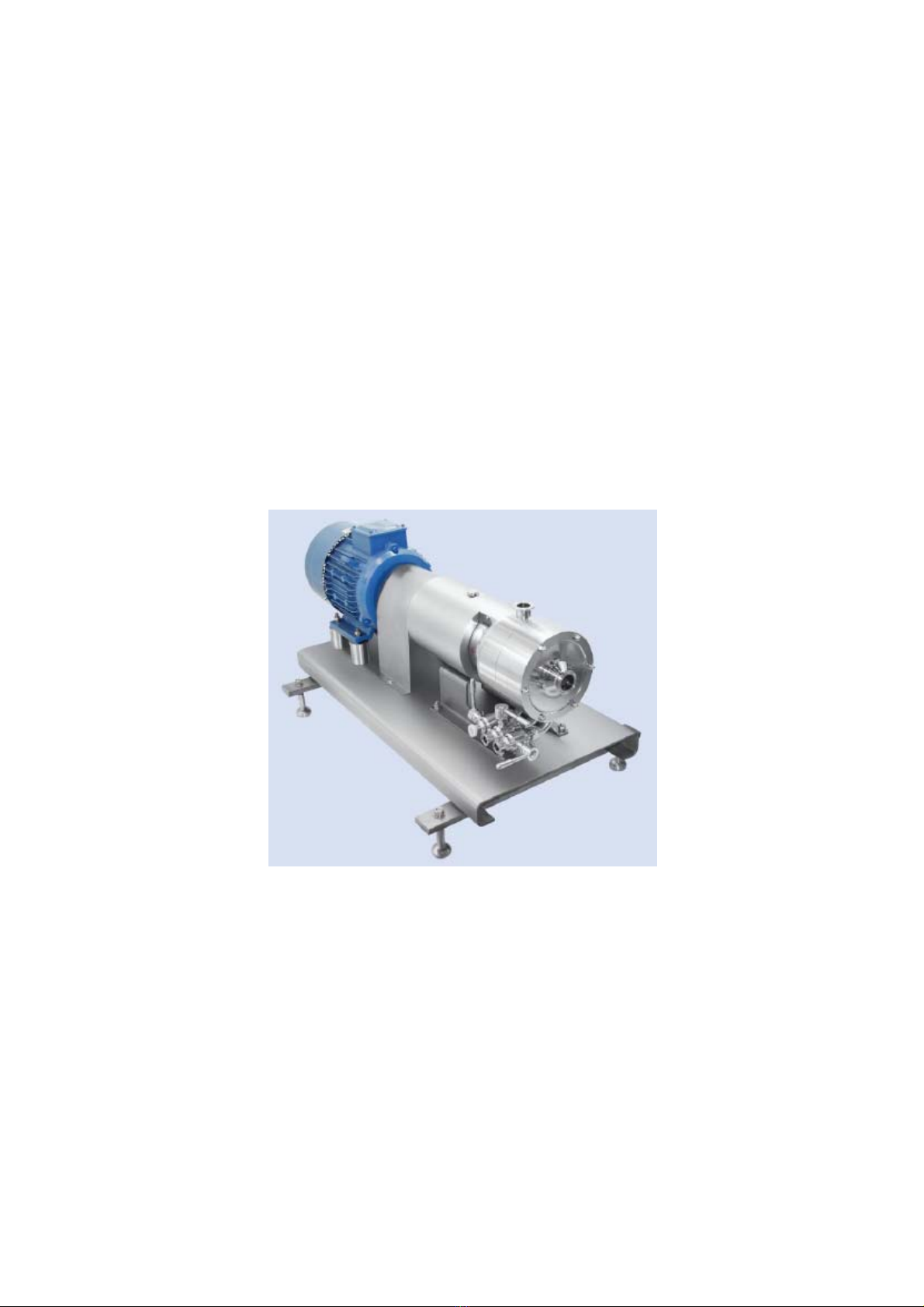

EMULSIFYING HOMOGENIZING PUMPS
TYPE JZ3
东正科技有限公司
DONJOYTECHNOLOGYCO.，LTD.
REV.01
JZ3 SERIES PUMP
CATALOGUE
1 Summarize 3
1.1 About the User Manual 3
1.2 Safety warning symbol 3
1.3 Delivery content 3
2 Security announcements 3
2.1 Basic security instructions 3
2.2 Application range 3
2.3 Common error operation 3
2.4 Safety instruction for pump 4
2.5 Nameplate 4
2.6 Warning sign 4
2.7 Waste treatment 4
3 Structural features and working principles 5
3.1 Basic structure 5
3.2 General configuration 5
3.3 Model 5
3.4 Model Description 6
4 Transportation 6
5 Storage 7
5.1 Storage environment of the pump 7
5.2 Restart to use 7
6 Installation and use procedures 7
6.1 Installation safety instructions 7
6.2 Precautions for pump installation 7
6.3 Reduce noise and vibration 8
6.4 Installation method 8
6.5 Pipeline installation 8
6.6 Electrical installation 9
6.7 Water flush pipeline connection 9
6.8 Cleaning 10
1
JZ3 SERIES PUMP
7 Running Operation 10
7.1 Safety Instruction 10
7.2 Advance Preparation 10
7.3 Observe operation 10
7.4 Finish operation 10
8 Cleaning 11
8.1 CIP cleaning 11
8.2 SIP cleaning 11
9 Common Fault and Removal 11
10 Maintenance 11
10.1 Security instructions 11
10.2 Check rinse solution (double mechanical seal) 11
10.3 Replace mechanical seal 11
10.4 Disassembly of Pump 12
10.5 Pump head assembly 14
11 Appendix 15
11.1 Torque table for bolts and nuts 15
11.2 Common operating problem and troubleshooting 16
11.3 Exploded view and parts list 17
2
JZ3 SERIES PUMP
1 Summarize
1.1 About the User Manual
Manual is composed of two parts, the text part and the appendix. The text part of the manual contains the
general knowledge of the storage, installation, operation and maintenance of LX/KLX/CLX Centrifugal pump. The
appendix of the manual includes the special debugging of this pump and the name of spare parts.
1.2 Safety warning symbol
Warning symbol Warning symbol
Warning you of personal danger Warning of electrical hazard
Warning symbol Warning symbol
Warning of falling objects Warning the danger of mechanical injury
Attention symbol Warning symbol
Ensure security responsibilities Warning risk of mechanical damage
1.3 Delivery content
• Package attached list
• Contain motor (Option to provide pump head only)
• Pump instruction
• Motor instruction
2 Safety precautions
2.1 Basic safety instructions
Before using the pump, please read this operation manual carefully and
save the manual in the pump working area for easy viewing.
All pump-related work require careful operation by experienced person
2.2 Application range
• JZ3 pumps are commonly used in food, pharmaceutical, biopharmaceutical, daily chemical.
• JZ3 pumps have different stator and rotor are selected, according to different media requirements.
(Contact DNJOY)
2.3 Common error operation
Improper media may cause damage to the pump
Impurities present in the media may cause the pump to get stuck or even be damaged
3
JZ3 SERIES PUMP
2.4 Safety instruction for pump
• Running without medium
Pump is strictly prohibited to run without medium
If using double mechanical seal , it is allowed to run without medium for a short time.
• Pump surface high temperature
It will couse high temperature after pump running , do not touch , it will hurt you
Check the surface temperature before touching pump
2.5 Name plate
2.6 Warning sign
Please set warning sign in the pump working area
2.7 Waste treatment
Please follow the relevant regulations to dispose of the disassembled waste.
Danger exectric shock
Be careful with hand
Serial No.:
Date:
:V :Hz
:kW :min-1
DONJOY Type:
Name:
DONJOY Technology Co.,Ltd
:Inlet/Outlet
:m3/h :M
No.25GangfuRoad,KonggangNewDistrict,Wenzhou,China
380
7.5
4
50
2900
10
JZ Pump
1.5"/1.5"
JZ3-130-C-A
DJ19LH0126
2019.03.16
02-11
NOTES:
MUST CONNECTION THE COOLING WATER BEFORE RUN THE DOUBLE SEAL PUMP
4
JZ3 SERIES PUMP
3 Structural feature and working principle
3.1 Basic structure
3.2 General configuration
•Double mechanical seal
3.3 Model
JZ1 Series
DJ-JZ3-130
DJ-JZ3-150
DJ-JZ3-170
DJ-JZ3-190
DJ-JZ3-210
DJ-JZ3-240
5
JZ3 SERIES PUMP
3.4 Model Description
For example：DJ-JZ3-130-4T-10-7.5KW-380V-50HZ-M-1.5"/1.5"-S
4 Transportation
Trained person are required to transport the pump
The complete set pump can be handled by forklift or crane
4.1 Safety instructions
• Be careful to drop or unfixed parts that can cause severe abrasions.
• Do not remove the inlet and outlet end caps of the pump until the piping is connected.
4.2 Forklift transportation instructions
• Pay attention to parts falling, which may cause serious injury and bruises on your hands and feet.
To prevent rollover during transportation, use a conveyor belt or bolt to fix the plate
Connectionstandard
连接标准：DIN(D)SMS(S)3A(A)RJT(R)ISO/IDF(I)
Inlet/Outlet SIZE
进/出口规格
Connectionmethod:Thread(M)Clamp(C)Flange(F)
连接方式：螺纹（M）卡箍（C）法兰(F)
Motorfrequency
电机频率：50HZ；60HZ
Voltage:110V220V380V(seetable)
电压：110V220V380V(详见选型表)
Motorpower:1.1kw1.5kw2.2kw........
电机功率:1.1kw1.5kw2.2kw........
DJ-JZ3 130 4T 10 7.5kw 380V 50hz M 1.5"/1.5" S
Pumphead(seetable)
泵扬程（详见选型表）
Pumpflow（seetable）
均质泵流量（详见选型表）
Pumpmodel
均质泵型号
Emulsifyinghomogenizingpumpcode:DJ-JZ3
多级均质泵代码：DJ-JZ3
6
JZ3 SERIES PUMP
4.3 Crane transportation instructions
• "Warning", pay attention to parts falling, which may cause serious injury, bruises and even death.
To prevent falling during transportation, use a suitable lifting tool.
• Please make sure that the crane and the rope are strong enough.
• Make sure nobody stay under pump
5 Store
5.1 Storage environment of the pump
• The pump shall be stored according to the following procedures:
1. Drain the pump medium and keep it dry. Store it in a dry environment.
2. Storage temperature should not be too high or too low,
suitable for storing temperature is 20 ℃to 25 ℃(rnormal temperature).
3. The storage environment shall be ventilated and dust-free.
4. All parts of the pump are required to rotate regularly (three months)
5.3 Restart to use
• After storage, please check the mechanical seal before restart to use.
6 Installation and use procedures
6.1 Installation safety instructions
• Make sure that each part is fixed during installation,
falling parts may cause damage to the pump, as well as injury to personnel.
• please wear labor protection shoes when installing.
• Fix bolt according to the specified torque, please check 11.1 《Bolt Fixed Torque Table》
• Use a torque wrench
6.2 Precautions for pump installation
• Confirm the installation environment of the pump,
explosion-proof pump should be used in the explosion-proof environment.
• The environment must be dust-free.
• Working environment temperature at-20 ℃to 40 ℃.
•The installation platform must be strong enough to support the whole pump.
• The installation platform must be horizontal.
•Sufficient maintenance space must be guaranteed.
• Ensure the air circulation of the installation environment and promote the heat dissipation of the motor.
7
JZ3 SERIES PUMP
6.3 Reduce noise and vibration
6.3.1 Main measures
• Operate in optimum working conditions to avoid cavitation.
• Avoid resonance of inlet and outlet pipeline.
• Fix inlet and outlet pipelines.
6.3.2 Auxiliary measures
• Isolation measures can be used to isolate noise, such as sound insulation coverage, space isolation, etc.
6.4 Installation method
• Use base mounting to install the pump ,and the pump is mounted on a fixed mounting platform.
• Use base mounting to install (with adjustable support foot), the height of the support foot can be adjusted
freely to ensure the stable installation of the pump.
6.5 Pipeline installation
• Reduce pipe resistance as much as possible and
avoid to use unnecessary elbows and valves.
• When designing piping connection, try to avoid
causing pressure loss and avoid cavitation caused by
inhalation end
• The inlet and outlet control valves should be as close
as possible to the inlet and outlet end.
• Inhalation end pipeline should be as short as
possible
• The inlet end pipeline should be installed horizontally
to reduce the possibility of residual air in the pipeline.
• Design pipeline reasonably according to pressure,
temperature and medium characteristics.
• Avoid stress from pipes to pumps (pipes must be
supported independently)
8
JZ3 SERIES PUMP
6.6 Electric Power Installation
• "Warning". Attention should be paid to using ground wire to connect pumps to eliminate static electricity
• Electrical connections need to be completed by qualified electrical engineers
1. Check motor nameplate to confirm rated power, rated voltage and wiring mode.
2. Follow the wiring diagram in the Motor junction box to connect the electricity.
3. Click start motor with less than 1 second and check motor rotation direction.
4.Rewiring is required if the rotation direction is wrong.
Attached image, correct rotation direction of motor
6.7 water flushing pipeline connection (double machine seal)
• pumps with double mechanical seals must be connected to water flushing lines and supplied with cooling
water.
OD of Hose
couping
connection Inlet and outlet
thread connection
6mm G1/8
• It is recommended that the flushing water should be entered from below and discharged from the top.
9
