Dometic DM50D User manual

Drawer Minibar

Installation and Operating Manual . . . 3

DM50

Please read this operating manual carefully before starting the device.

Keep it in a safe place for future reference. If the device is passed on to

another person, this operating manual must be handed over to the user

along with it.

The manufacturer cannot be held liable for damage resulting from

improper usage or incorrect operation.

Contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4 Proper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

9 Cleaning and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

10 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

11 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Explanation of symbols DM50

1 Explanation of symbols

➤Action: This symbol indicates that action is required on your part. The

required action is described step-by-step.

✓This symbol describes the result of an action.

Fig. 15, page 3: This refers to an element in an illustration. In this case,

item 5 in figure 1 on page 3.

2 Safety instructions

2.1 General safety

!WARNING!

Do not operate the device if it is visibly damaged.

This device may only be repaired by qualified personnel.

Improper repairs can lead to considerable hazards.

This device can be used by children aged 8 years and above as

well as persons with reduced physical, sensory or mental capa-

bilities or lack of experience and knowledge, if they are super-

vised or have been instructed to safely use the device and if

they understand the hazards resulting out of it.

WARNING!

Safety instruction: Failure to observe this instruction can cause

fatal or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to

injury.

NOTICE!

Failure to observe this instruction can cause material damage and

impair the function of the product.

NOTE

Supplementary information for operating the product.

DM50 Safety instructions

Cleaning and user maintenance must not be carried out by chil-

dren without supervision.

Always keep and use the device out of the reach of children

under the age of 8 years.

Children must be supervised to ensure that they do not play with

the device.

If this device's power cable is damaged, it must be replaced by

the manufacturer, customer service or a similarly qualified

person in order to prevent safety hazards.

Do not store any explosive substances such as spray cans with

a flammable propellant in the device.

!CAUTION!

Disconnect the device from the mains

– before each cleaning and maintenance

– after every use

Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

Connect the device with the 230 V connection cable to the

230 V AC mains supply.

Check that the voltage specification on the type plate

corresponds to that of the energy supply.

The cooling device is not suitable for transporting caustic

materials or materials containing solvents.

Never pull the plug out of the socket by the cable.

2.2 Operating the device safely

ANOTICE!

Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for the purpose.

Do not place the device near naked flames or other heat

sources (heaters, direct sunlight, gas ovens etc.).

Scope of delivery DM50

Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the

heat that arises during operation does not build up. Make sure

that the device is sufficiently far away from walls and other

objects so that the air can circulate.

Ensure that the ventilation openings are not covered.

Do not fill the inner container with ice or fluid.

Never immerse the device in water.

Protect the device and the cable against heat and moisture.

3 Scope of delivery

The following main alternatives are obtainable:

Minibar DM50D with door panel, without lock

Minibar DM50D with door panel, with lock

Minibar DM50F without door panel, without lock

Minibar DM50F without door panel, with lock

Quantity Description

1 Minibar

1 Cable for 230 Vwconnection

4 Screw ø4 x 45 mm (Installation)

4 Plug (Installation)

1 Handle DM50D only

2 Plug (Handle installation) DM50D only

1 Inlet filter

6 Screw ø3 x 12 mm(Filter installation)

2 Plug (Wooden panel) DM50F wooden version

only

1 Lock decor (Wooden panel) DM50F wooden version

with lock only

2 Key Lock version only

1 Installation and Operating manual

DM50 Proper use

4 Proper use

The Dometic Minibars DM50D and DM50F are designed for use inside a

piece of furniture and are suitable for cooling beverages and food.

The device is designed for use with a 230 V AC mains supply.

The cooling device is intended to be used in household and similar

applications such as

staff kitchen areas in shops, offices and other working environments

farm houses

clients in hotels, motels and other residential type environments

bed and breakfast type environments

catering and similar non-retail applications

5 Technical description

The minibar has a main drawer for bottles and cans as well as a mini drawer

for miniatures and snacks. The main drawer has room for 33 bottles with a

maximum height of 30 cm.

The minibar DM50D comes with a anthracite panel and pull handle.

The minibar DM50F is delivered without panel and is prepared for fitting the

hotel's own door decor.

Its cooling system is a non-wearing Peltier cooling system with the heat

discharged by a fan.

A lock is optionally available.

CAUTION! Health hazard!

Please check if the cooling capacity of the device is suitable for

storing the food or medicine you wish to cool.

Technical description DM50

5.1 Description of the device

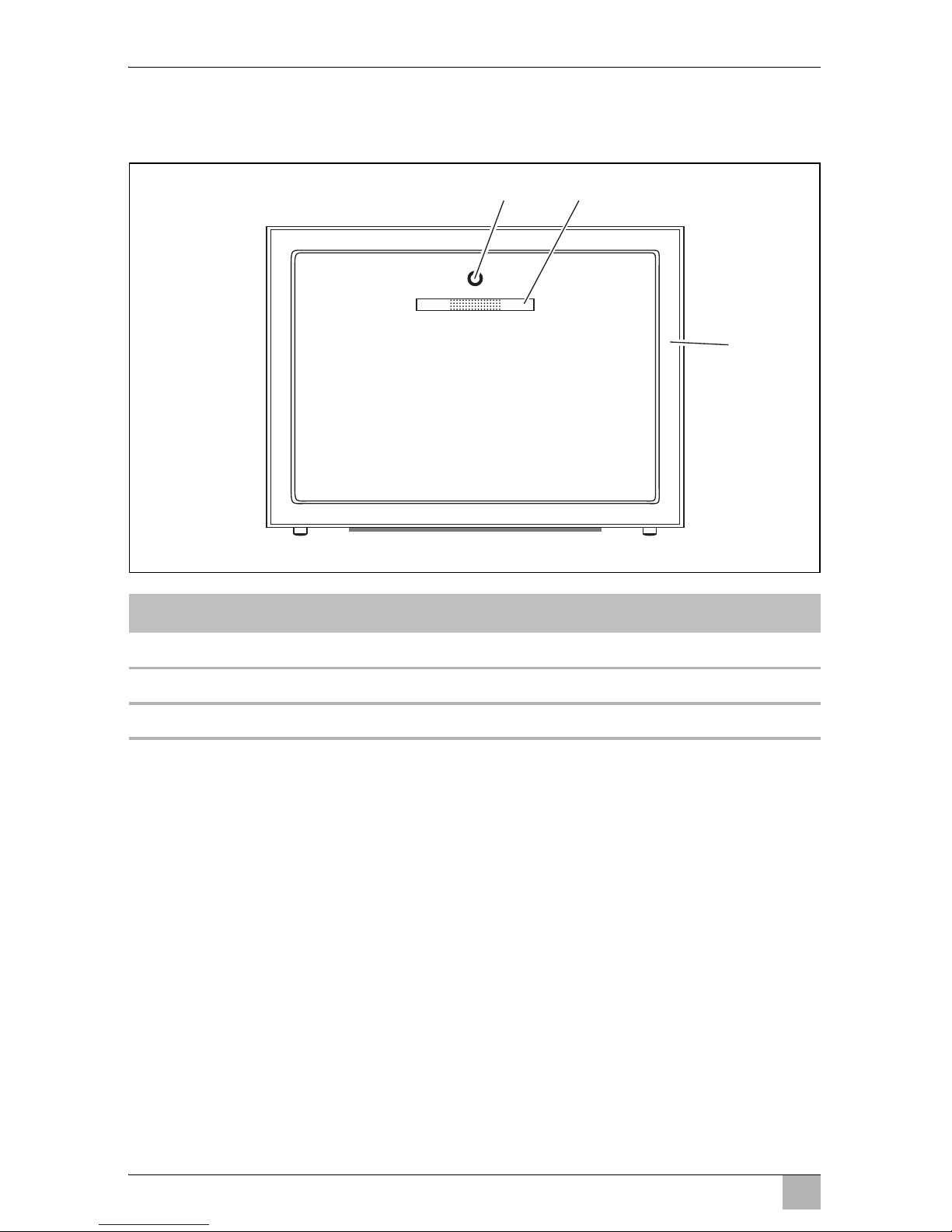

Front panel

Item Description

1 Lock (optional)

2 Handle (DM50D only)

3 Door panel (DM50D only)

DM50 Technical description

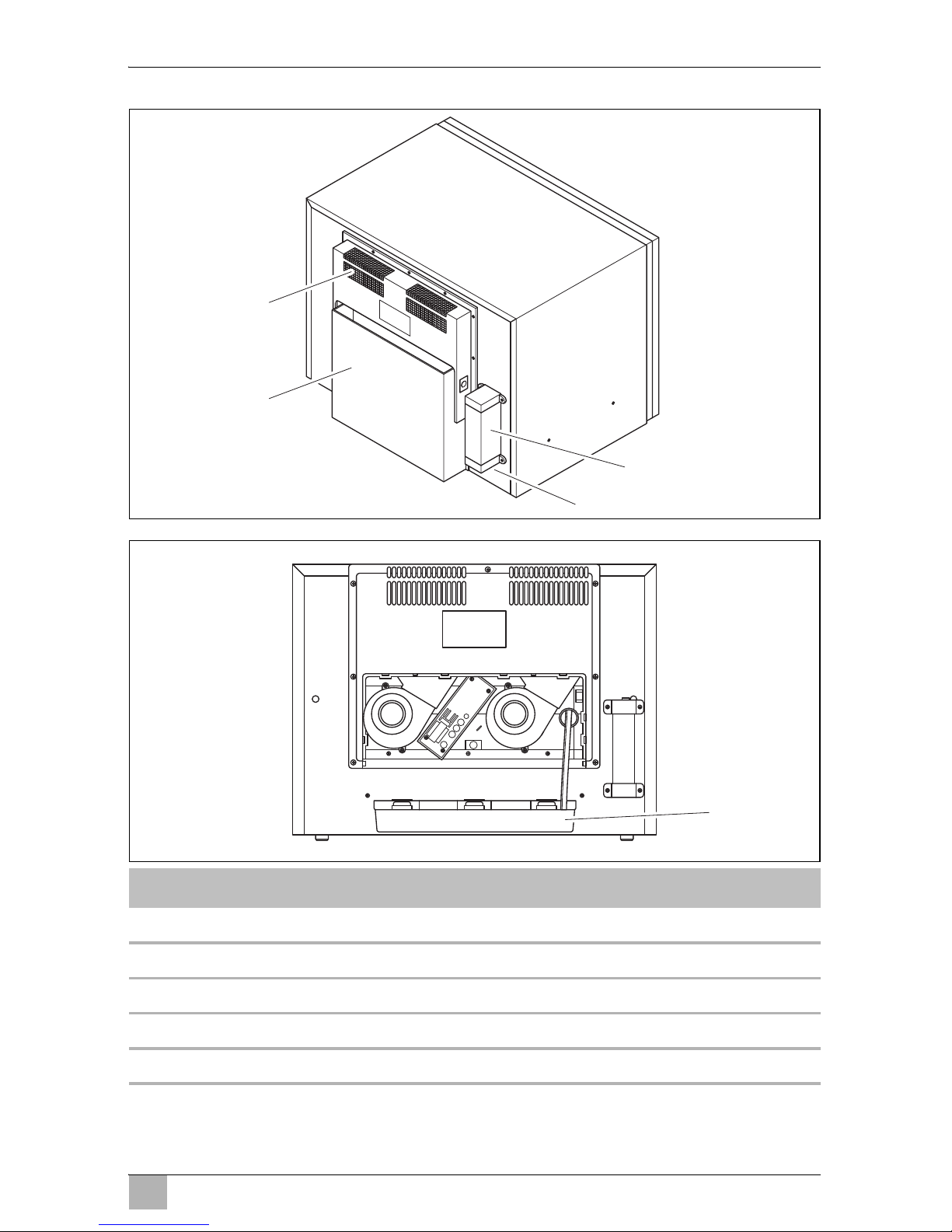

Rear side

Item Description

1 Mains adaptor

2 12 Vgsocket

3 Cooling unit cover

4 Ventillation openings

5 Drip tray

Technical description DM50

Control panel (inside the device)

Item Description

1 Lamp

2 Error LED

3 Status LED

4 Setting button

12 43
