Dirt Devil DDC06-E01 User manual

user

guide

DDC06-E01/DDC06-P01

Bagless Cleaner

CYLiNder VACuuM

15 12

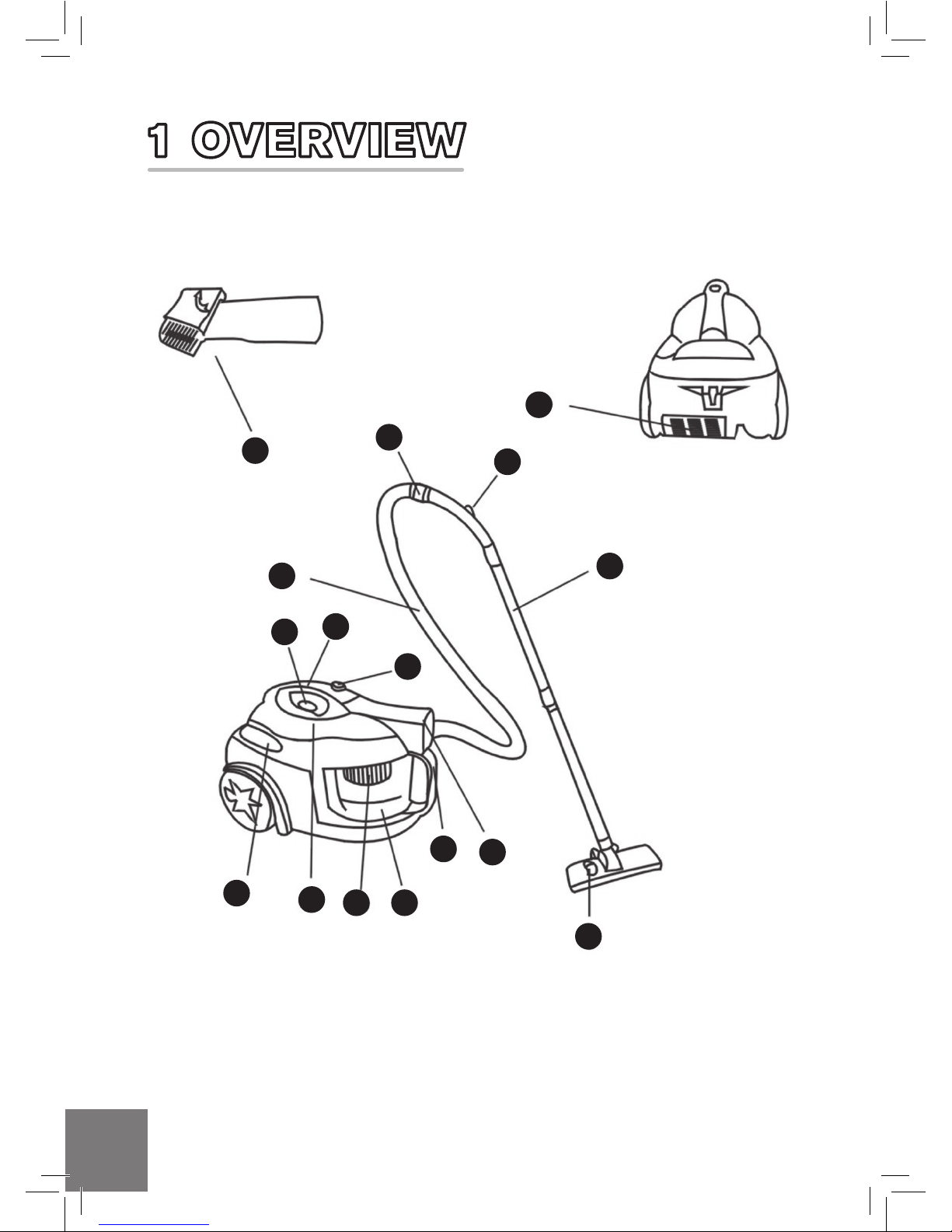

overview

1Lid

2Hose inlet

3Carry handle

4On/off switch-button

5Cable rewind button

6Dirt container

7Dirt container release button

8Dirt container handle

9Filter

10 Post motor ﬁlter

11 Air vent

12 Hose handle

13 Flexible hose

14 Extension tube (plastic)

15 Multi purpose nozzles (dusting brush and

crevice tool)

16 Combi tool

MACHINE OVERVIEW TABLE OF CONTENTS

Technical Data

Bagless Cylinder Vacuum Cleaner

QuickPower

DDC06-E01 / DDC06-P01

220 – 240V ~, 50 Hz

1,000W

1.5

5 m

5.5 kg

Type of appliance:

Model name:

Model number:

Voltage:

Power:

Dirt bin capacity:

Power cord length:

Weight:

We reserve the right to make changes to technical and

design specifications in the interest of continuous product

improvement. © Dirt Devil.

1Overview of your vacuum 2

Technical data 3

Guarantee 3

2Safety instructions 4

3Before use 6

3.1 Selecting a tool/accessory 6

3.2 Assembly 7

4Use 8

4.1 Operational safety 8

4.2 How to Use 8

4.3 Switching off 9

4.4 Transport and storage 9

5 Maintenance 10

5.1 Empty the dirt container 10

5.2 Cleaning dirt container and pre-motor ﬁlter 11

5.3 Cleaning the post-motor ﬁlter 12

5.4 Spare parts and accessories 13

5.5 Troubleshooting 14

LIMITED GUARANTEE

It’s quick and easy to register for your free 1 year guarantee online at

www.DirtDevil.co.uk.

Please retain your original receipt for proof of purchase. Please make a note of

the serial number and model number of the product before calling.

WArNiNg

BASiC SAFeTY PreCAUTioNS

• This vacuum cleaner is

intended for household use

only and NOT for commercial

or industrial use.

• Only use the vacuum cleaner

indoors on dry surfaces and

keep the area you’re cleaning

well lit.

• Keep ngers, hair and loose

clothing away from moving

parts and openings whilst

using the vacuum cleaner.

• This vacuum cleaner can be

used by children aged from 8

years and above and persons

with reduced physical, sensory

or mental capabilities or lack of

experience and knowledge if

they have been given

supervision or instruction

concerning use of the vacuum

cleaner in a safe way and

understand the hazards

involved. Children shall not

play with the vacuum cleaner.

Cleaning and user

maintenance shall not be made

by children without supervision.

• Only Dirt Devil recommended

tools should be used with the

vacuum cleaner, use of

non-branded Dirt Devil

accessories/tools will invalidate

your guarantee.

• Don’t use the vacuum cleaner

if it has been dropped,

damage or left outdoors.

• Don’t run over the power cord

or use vacuum cleaner if the

power cord or plug is

damaged. Please contact our

Customer Service on:

0330 026 2626 (Mon-Fri

9:00am-5:00pm).

• Don’t handle the plug or use

the vacuum cleaner with

wet hands.

• Don’t pull or carry the vacuum

cleaner by the power cord.

• Don’t use the power cord as a

handle, pull the power cord

around corners, sharp edges

or close a door over the

power cord.

• Don’t unplug the vacuum

cleaner by pulling on the power

cord.

• Don’t vacuum up any

ammable or combustible

materials (lighter uid, petrol,

kerosene etc) or use the

vacuum cleaner in an area with

explosive vapours or liquid.

• Don’t vacuum up hot coals,

cigarette butts, matches or

smoking hot burning items

DoN'TS

WArNiNg

or use in an area where there

may be harmful uids (chlorine,

bleach, and ammonia drain

cleaner).

• Don’t attempt to remove

blockages with sharp objects

as this may cause damage

to the vacuum cleaner, remove

blockages only as instructed in

this guide.

• Don’t vacuum up hard or sharp

objects such as glass, nails,

screws or coins etc.

• Don’t use the vacuum cleaner

with incorrect voltage as this

may result in damage or injury

to the user. The correct voltage

is listed on the ratings label.

DoN'TS CoNTiNUeD...

• Turn off all controls on the

vacuum cleaner before

disconnecting or connecting

the plug from the mains socket.

• Always make sure both the

pre-motor/post-motor lters are

in place before use.

• Take extra care when using

and positioning the vacuum

cleaner on the stairs

• Always switch off the vacuum

cleaner before disconnecting

or connecting the hose and

accessories.

• Keep all openings clear and

free from debris as this may

affect the airow/suction.

• Always replace the fuse in the

plug with a British 13amp fuse.

Always protect the power

cable from heated surfaces

and open ames.

• Use only CE approved 13amp

extension cords, non-approved

extension cords may overheat.

Care should be taken to

arrange the extension cord as

it can be a trip hazard.

• Store the vacuum cleaner in a

cool, dry area. If the lters have

been cleaned as per the user

guide instructions ensure they

are thoroughly dry before

storing away.

PLEASE KEEP INSTRUCTIONS

FOR FURTHER USE AND USE

ONLY AS INSTRUCTED IN

THIS GUIDE.

Do'S

SAFeTY

iNSTrUCTioNS

2. Check the selected tool/accessory

for damage.

1. Select the tool/accessory according to

the surface to be cleaned:

- Combi tool (Fig. 2.1):

Floor tool for cleaning both carpets and

hard ooring.

- 2 in 1 tool (Fig. 2.2):

Dusting brush and crevice tool.

- Turbo tool (Fig. 2.3*):

Is used to vacuum stairs, upholstery, car

interiors and pet hairs.

*Some models only.

ATTENTION: Use only intact tool/accessory.

If damaged, the nozzle may allow dust to escape

or scratch the surface.

3.1 SELECTING A TOOL/ACCESSORY

BeFore

USe

CAuTiON

Before vacuuming, make sure that the ﬁtted tool/

accessory suits the surface to be cleaned. Also observe

the ﬂooring manufacturer's recommendations.

IMPORTANT: Risk of injury! Only attach the tool/accessory if the appliance is not connected to the power supply. The

cylinder vacuum cleaner could be switched on by accident.

1. Press both buttons at the end of the hose

and insert the hose into hose entry point

(Fig. 3.1).

2. Insert the hose grip into the widest end

of one of the extension tubes (Fig 3.2).

3. Push both extension tubes together

(Fig 3.3).

4. Insert the other end of the extension tube

into the oor head (Fig 3.4).

3.2 ASSEMBLY

CAuTiON

Only use the cylinder vacuum cleaner when all ﬁlters are intact,

dry and correctly ﬁtted. Make sure that no objects obstruct the

telescopic tube, the suction hose or other openings.

4.1 OPERATIONAL SAFETY

IMPORTANT: Risk of injury! Check machine and power cord before each use. A damaged machine must never be used.

IMPORTANT: Take extra care when positioning and using the vacuum cleaner on the stairs.

IMPORTANT: The vacuum cleaner is equipped with a thermal cut-out. If for any reason the vacuum cleaner does

overheat the thermostat will automatically turn the vacuum cleaner off. If this happens, switch the vacuum cleaner

off and unplug. Remove and empty the dirt container also check the vacuum cleaner for blockages. Allow the vacuum

cleaner to cool for approximately 1 hour (if you have cleaned the ﬁlters please wait 24 hours for the ﬁlters to fully dry

before putting back into the machine).

4.2 HOW TO USE

IMPORTANT: When unwinding the power cord do not pull further than the yellow marker.

1. Fully unwind the power

cord. Do not pull past

the yellow marker (Fig

4.1).

2. Plug into the mains

socket and press the

on/off button to switch

the vacuum cleaner on

(Fig 4.2).

3. For use on carpets

click the rocker switch

forward. For use on

hard floors click the

rocker switch back

(Fig 4.3).

4. Raised brushes

for carpets (Fig 4.4).

5. Lowered brushes

for hard floors (Fig 4.5).

6. Slide vent cover on

hose grip open to

reduce suction if

required (Fig 4.6).

IMPORTANT: When leaving your working-area, switch off the appliance and comply with the notices in chapter 4.3,

"Switching off". This will help avoid accidents.

CAuTiON

Never store the machine directly next to heat sources

(e.g. heater, oven). Avoid exposure to direct sunlight.

Heat can damage the machine.

USe

4.3 SWITCHING OFF

1. Switch off the cylinder vacuum cleaner

with the on/off switch and unplug

from the mains.

2. Keep the plug in your hand.

3. To retract the power cord, push the cord

retracting button.

4.4 TRANSPORT AND STORAGE

n Only carry the machine by its carrying-

handle (Fig. 5/1).

nIf you want to store the machine for longer

period of time, empty the dirt container,

> Chapter 5.1, 'Emptying the dirt container

module'.

nStore the machine in a cool, dry place, out

of the reach of children. For storage you

can park the telescopic tube on the

vacuum cleaner by inserting the parking-

hook (Fig. 5/2) of the combi tool into the

parking slot (Fig.5/3).

5.1 EMPTYING THE DIRT CONTAINER

CAuTiON

Switch off the machine before emptying

the dirt container. This will prevent dirt

from damaging the machine.

n It is best to empty the dirt container after

each vacuuming session.

1. Press the lid release button and raise

the lid (Fig 6.1).

2. Lift to remove the dirt container from the

vacuum cleaner (Fig 6.2).

3. Hold dirt container over a bin. Press the

release clip at the bottom of the container.

The dirt release door will open allowing dirt/

debris to fall out (Fig 6.3).
