INSTRUCTION MANUAL

AINSTRUCTION MANUAL

STICK VACUUM CLEANER 2in1

ITEM NO: 871125247504

MODEL: DD9007 / V8206-13

INSTRUCTIONS FOR SAFE USE

This appliance should only be used for domestic cleaning, as

described in this user guide. Please ensure that this guide is fully

understood before operating the appliance.

• Always switch off and remove the charger from the socket before

cleaning the appliance or any maintenance task.

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children

without supervision.

• If the power cord is damaged stop using the appliance immediately.

• To avoid a safety hazard, an authorized agency service engineer

must replace the power cord.

• Keep hands, feet, loose clothing and hair away from rotating

brushes.

• Use only the original charger supplied with the appliance.

• Check that your supply voltage is the same as that stated on the

charger.

• If the appliance is to be disposed, the batteries must rst be

removed. The appliance must be disconnected from the supply

mains when removing the battery. Dispose of the batteries safely.

Run the appliance until it stops because the batteries need to be

fully discharged. Used batteries should be taken to a recycling

station and not disposed of with household waste. To remove the

batteries, please contact the Agency Customer Centre or proceed

according to the following instructions.

NOTE: Should you experience any difculty in dismantling the

unit or for more detailed information on treatment, recovery and

recycling of this appliance, please contact your local city ofce or

your household waste disposal service.

Scan QR-Code for

extended manual

• When charging the appliance, the power switch must be off.

• Never charge the batteries in temperatures above 37°C or below

0°C.

• It is normal for the charger to become warm to the touch when

charging. Use only attachments, consumables or spares

recommended or supplied by Agency.

• Static electricity: some carpets can cause a small buildup of static

electricity. Any static discharge is not hazardous to health.

• Do not use your appliance outdoors, on any wet surface or pick up

with wet hands.

• Do not pick up hard or sharp objects, matches, hot ashes, cigarette

ends or other similar items.

• Do not spray with or pick up ammable liquids, cleaning uids,

aerosols or their vapors.

• Do not run over the power cord when using your appliance or

remove the plug by pulling on the power cord.

• Do not continue to use your appliance or charger if it appears

faulty.

• Agency service: To ensure the continued safe and efcient

operation of this appliance we recommend that any servicing

or repairs are only carried out by an authorized Agency service

engineer.

• Do not use the appliance to clean animals or people.

• Do not replace the batteries with non-rechargeable batteries.

PRODUCT DESCRIPTION

MAIN CLEANER HANDHELD CLEANER

A. Carpet and Floor Nozzle K. On/Off Switch

B. Main Body L. Charing/Power indicator

C. Handheld Release Button M. Dust Container Release Button

D. Handle Release Button N. Dust Container

E. On/Off Switch

F. Product Holder FILTER

G. Charger O. Cloth lter

H. Handheld Unit

I. Crevice Tool / Dusting Brush

J. Nozzle Release Button

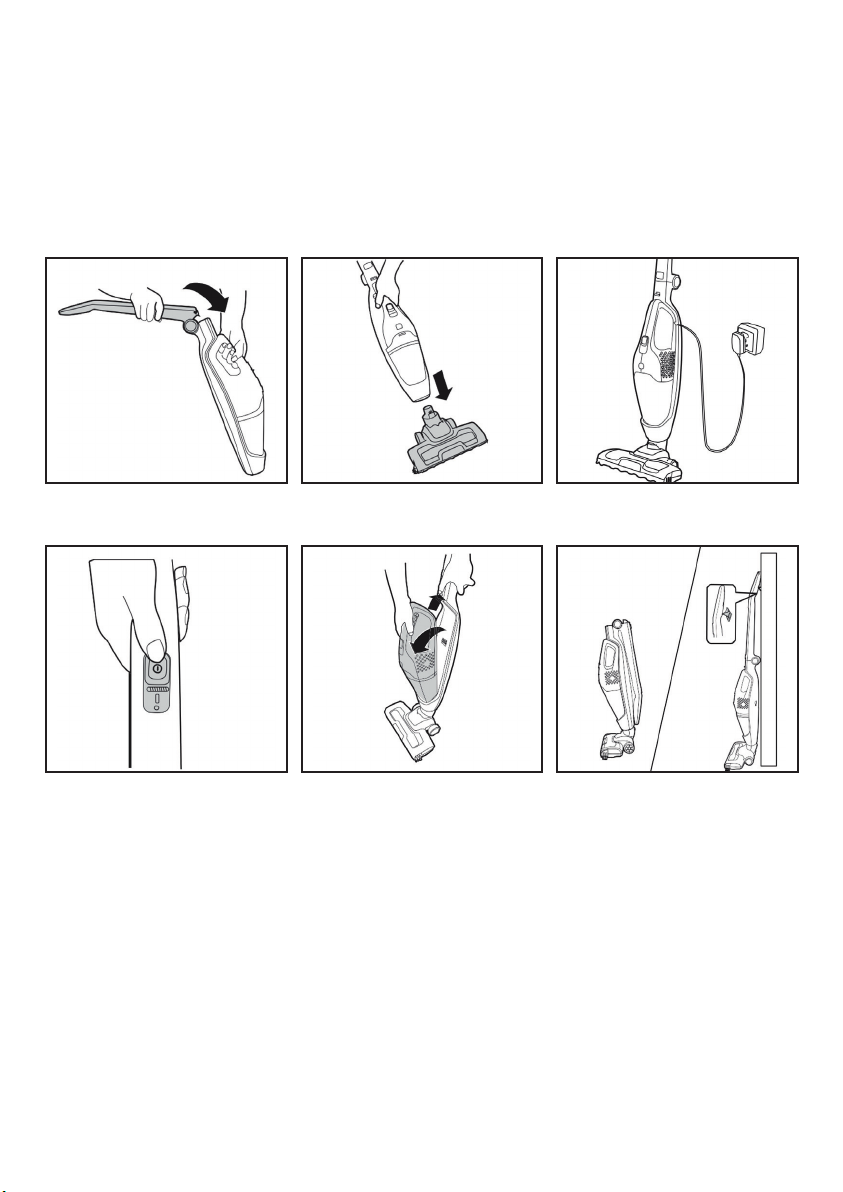

PREPARATION OF THE ITEM

1. Unfold the handle from the main body until it locks in place. [1]

2. Line up the nozzle with the main body and rmly push into the main body until

the nozzle locks in place. [2]

3. For rst use, charge your cleaner for 5 hrs and completely discharged. After rst

use the normal charging time is 4 hrs.

4. The indicator light will blink when charging and remain lit when fully charged.[3]

5. Fix the Product Holder to your wall using the screw and holder provided.

1. 2. 3.

USING YOUR CLEANER

4. 5. 6.

MAIN CLEANER

Turn the cleaner on by sliding the On/Off switch[E] to the required settings:[4]

• HARD FLOOR: First position of On/Off switch, the agitator and nozzle LED

lights are OFF.

• CARPET: Second position of On/Off switch, the agitator and nozzle LED

lights are ON.

HANDHELD CLEANER

1. Push the handheld release button upward, lift the handheld unit from the main

body.[5]

2. Turn the handheld cleaner on by sliding the On/Off switch [K] forward.

CHARGING/POWER INDICATION*

This cleaner is equipped with a LED display. When the product is working, the display

will report the following indication:

BATTERY LEVEL INDICATOR:

3 points = Fully Charged

2 points = 2/3 charge

1 point = 1/3 charge

DISCHARGE INDICATOR: When the batteries are fully discharged, the indicator will

ash for around 20 seconds before cleaner switches off automatically.

CREVICE TOOL / DUSTING BRUSH

The accessory is stored at the rear of the main body. It ts directly onto the handheld

unit.

IMPORTANT: During storage and charging, secure your appliance handle into the

product holder. [6]

CLEANER MAINTENANCE

7. 8. 9.

12.10. 11.

13. 14.

15. 16.

EMPTYING THE DUST CONTAINER

1. Push the handheld unit release button upwards, lift the handheld unit from main

body.

2. Press the dust container release button and remove the dust container. [7]

3. Lift the lter from the dust container. [8]

4. Turn the dust container upside down over a bin to instantly empty it. [9]

5. Reassemble the handheld unit and return to the cleaner main body.

CLEANING THE FILTER

1. Push the handheld release button upwards, lift the handheld unit from cleaner

main body.

2. Press the dust container release button and remove the dust container.

3. Remove the lter from the dust container and clean.

4. Wash the lter in lukewarm water and leave to dry for 24 hours. Once thoroughly

dry return to the dust container.[10, 11]

5. If required, wash the dust container in lukewarm water. Ensure it is fully dry

before returning to the main body of the cleaner.

6. Reassemble the handheld unit and return to the cleaner main body. [12,13]

NOTE: Do not use hot water or detergents when cleaning the lters. In the unlikely

event of the lters becoming damaged, t a genuine part replacement. Do not try use

the product without a lter tted. IMPORTANT: For optimum performance, always

keep your lter clean. We recommend that the lter should be washed at least once

a month.

CHANGING AND CLEANING THE AGITATOR

IMPORTANT: Always switch off the cleaner before changing the agitator.

1. Using a coin turn the lock to the open position. [14]

2. Remove the Agitator cover.

3. Remove the Agitator.

4. Replace with the new Agitator or clean it. This can only t in one direction. [15]

5. Re- t the Agitator cover and lock with a coin.

BATTERY REPLACEMENT

For reasons of safety the Lithium-Ion batteries in this cleaner are only replaceable

by a Agency Service engineer. When the batteries fail to maintain charge, please

contact the Agency Customer Service Centre to arrange a replacement.

END OF PRODUCT LIFE BATTERY DISPOSAL

If the cleaner is to be disposed of the batteries should be removed. Used batteries

should be taken to a recycling station and not disposed whit household waste.

To remove the batteries, please contact the Agency Customer Service Centre or

proceed according to the following instructions:

IMPORTANT: Always fully discharge the batteries before removal and ensure

charger is unplugged.

1. Run the unit until the batteries are completely empty.

2. Release the handheld unit from the main body of the cleaner.

3. Press the dust container release button and remove the dust container.

4. Remove screws and open the unit. [16]

5. Remove the motor /battery housing and disconnect the cables.

6. Remove the batteries from the housing.

NOTE: Should you experience any difculties in dismantling the unit or for more

detailed information about treatment, recovery and recycling of this product, please

contact your local city ofce, your household waste disposal service.

TROUBLE SHOOTING

Should you have any problem with you cleaner, follow this simple check list before

calling the Agency Customer Service Centre:

A. Cleaner does not switch on.

Check if the cleaner is charged.

B. Loss of suction or no suction

Empty the dust container and wash the lter

Remove nozzle and check for any blockages in the duct.

C. Batteries cannot be charged.

This may be a result of very long storage periods (over 6 months). Contact

Agency customer service to arrange battery replacement. If the problem persists

contact the Agency customer service center.

PRODUCT SPECIFICATIONS

Power source type : Battery powered

Power adapter cable length : 1.8m

Maximum power consumption : 105W

Dust capacity : 0.5l

Material : ABS Plastic

With dust bag or bagless : Bagless

Charging cradle : No

Suitable for liquids : No

Cordless : Yes

Number of power settings : 2

HEPA air lter : N/A

Operating voltage : 22.2V

Brush type : Motorized brush

Maximum suction power : 3300Pa

Brushless motor : No

Weight : 2400g

Operation time lowest power mode : 38 min

Operation time in highest power mode : 17 min

Charging time : 3,5h

Foldable : Yes

Use only with Power Adapter:WJG-Y132600500W,Input 100-240V,50-60Hz,24W

PACKAGING CONTENT

1x stick vacuum cleaner

1x 2-in-1 crevice nozzle

1x wall mount

1x power adapter

THE ENVIRONMENT

The symbol on this appliance indicates that this appliance may not be treated as

household waste. Instead it must be handed over to the applicable collection point

for the recycling of electrical and electronic equipment. Disposal must be carried

out in accordance with local environmental regulations for waste disposal. For more

detailed information about treatment, recovery and recycling of this appliance, please

contact your local city ofce, your household and waste disposal service or the shop

where you purchased the appliance.

This appliance complies with the European Directives 2014/30/EC, 2014/35/EC and

2011/65/EU.

BBEDIENUNGSANLEITUNG

STABSTAUBSAUGER 2in1

ARTIKEL-NR.: 871125247504

MODELL: V8206-13

HINWEISE ZUM SICHEREN GEBRAUCH

Dieses Gerät ist nur zu Reinigungszwecken in Wohnräumen gedacht,

wie in dieser Benutzeranleitung beschrieben. Stellen Sie sicher, dass

Sie diese Anleitung vollständig verstanden haben, bevor Sie das Gerät

verwenden.

• Schalten Sie das Ladegerät immer aus und trennen Sie es von der

Steckdose, bevor Sie das Gerät reinigen oder warten.

• Dieses Gerät darf von Kindern ab 8 Jahren und Personen

mit eingeschränkter körperlicher, sensorischer oder

geistiger Leistungsfähigkeit oder mangelnder Erfahrung und

unzureichendem Wissen nur dann verwendet werden, wenn diese

beaufsichtigt werden oder eine Unterweisung in der sicheren

Verwendung des Geräts erhalten haben und wenn sie die damit

verbundenen Gefahren verstehen.

• Kinder dürfen nicht mit dem Gerät spielen.

• Reinigung und Wartung dürfen nicht von Kindern unbeaufsichtigten

durchgeführt werden.

• Wenn das Netzkabel beschädigt ist, verwenden Sie das Gerät

nicht mehr.

• Um ein Sicherheitsrisiko zu vermeiden, muss ein autorisierter

Kundendiensttechniker den Austausch des Netzkabels

durchführen.

• Halten Sie Hände, Füße, lose Kleidung und Haare von den

rotierenden Bürsten fern.

• Verwenden Sie nur das im Lieferumfang des Geräts enthaltene

Original-Ladegerät.

• Prüfen Sie, ob die Netzspannung der auf dem Ladegerät

angegebenen Spannung entspricht.

• Vor der Entsorgung des Geräts sind die Akkus zu entfernen. Beim

Ausbau des Akkus muss das Gerät vom Versorgungsnetz getrennt

werden. Entsorgen Sie die Akkus in sicherer Weise. Lassen Sie

das Gerät laufen, bis die Akkus vollständig entladen sind. Bringen

Sie gebrauchte Akkus zu einer Recyclingstation. Entsorgen Sie sie

nicht über den Hausabfall. Informationen zum Entfernen der Akkus

Scannen Sie den QR-Code für

erweitertes Handbuch

This manual suits for next models

Table of contents

Other Dirt Devil Vacuum Cleaner manuals

Dirt Devil

Dirt Devil DD 5255 User manual

Dirt Devil

Dirt Devil REBEL25HFC User manual

Dirt Devil

Dirt Devil M08210 Scorpion User manual

Dirt Devil

Dirt Devil DDST6V User manual

Dirt Devil

Dirt Devil Featherlite User manual

Dirt Devil

Dirt Devil Libero User manual

Dirt Devil

Dirt Devil Bean User manual

Dirt Devil

Dirt Devil Centrino Cleancontrol M2881-9 User manual

Dirt Devil

Dirt Devil Centrino User manual

Dirt Devil

Dirt Devil DDC06-E01 User manual

Dirt Devil

Dirt Devil Vacuum Cleaner User manual

Dirt Devil

Dirt Devil LET'S GO DASH UD70250B User manual

Dirt Devil

Dirt Devil Wet Dry User manual

Dirt Devil

Dirt Devil DWV22B2 User manual

Dirt Devil

Dirt Devil Centrino XL3 User manual

Dirt Devil

Dirt Devil F91 User manual

Dirt Devil

Dirt Devil Carpet + Hard Floor Cyclonic Upright User manual

Dirt Devil

Dirt Devil DDW03-E01 User manual

Dirt Devil

Dirt Devil rebel 70 User manual

Dirt Devil

Dirt Devil UD20010 User manual

Dirt Devil

Dirt Devil M08225X User manual

Dirt Devil

Dirt Devil M120000 User manual

Dirt Devil

Dirt Devil Lithium Cordless Hand Vacuum User manual

Dirt Devil

Dirt Devil popster DD 2820 User manual

Popular Vacuum Cleaner manuals by other brands

Bissell

Bissell LittleGreen Proheat 1425 Series user guide

Panasonic

Panasonic MC-YL637S147-AE Service manual

NEFF

NEFF N17XH10 0 Series instruction manual

LG A9 Series owner's manual

Oreck

Oreck Cordless Captura BK51700 Series user guide

Kogan

Kogan KAVACROBVWA user manual

Kränzle

Kränzle VENTOS 50 ID Use and maintenance

EVVO

EVVO Ai35 instruction manual

DeWalt

DeWalt DWH200D instruction manual

Pontec

Pontec Pondomatic Vacuum Cleaner operating instructions

Cleanmaxx

Cleanmaxx PC-P007E instruction manual

Exido

Exido 240-114 manual

RIDGID

RIDGID WD1685AU0 owner's manual

Ezviz

Ezviz RE4P manual

STG global

STG global TANVAC HDV3000 Operator's manual

Shark

Shark ROTATOR PRO COMPLETE NV550 Series manual

Factory

Factory M3340 operating manual

Shop-Vac

Shop-Vac VN92 SERIES user manual
