INSTALLATION GUIDE
CHROMAPATH®BUNDLE: DOME
CHROMAPATH®BUNDLE: DOME INSTALLATION GUIDE
ALUMINUM CHANNEL
COMPATIBILITY LIST
The following products are compatible with this CHROMAPATH®
Bundle Channel and Cover. Components not listed here are not
compatible.
DRY LOCATION
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Install in accordance with national and local electrical
code regulations.
2. This product is intended to be installed and serviced by
a qualied, licensed electrician.
3. Do not modify or disassemble this product beyond
instructions or the warranty will be void.
4. Do not use if there is any damage to the xture or wiring.
Inspect periodically.
5. Do not install near areas with exposure to salt water or
chlorinated water.
6. Do not install in direct sunlight or damage to the LED
phosphor will occur.
7. Do not attempt to x this product in the eld.
8. Failure to follow safety warnings, and installation
instructions will void the warranty for this product.
SAFETY & WARNINGS
UL Listed
Field
Cuable
AVENUE 24™
BLAZE™
DAZZLE®RGB
DAZZLE®RGBW
DAZZLE®RGBW 4D
TAPE LIGHT
DOUBLE BLAZE™
FLUID VIEW®
ULTRA BLAZE™
VALENT®
VALENT®HD
CLICKTIGHT
CLICKTIGHT PRO
CONNECTORS
CLICKTIGHT 10MM
CLICKTIGHT RGB
2 OF 4 IG060418-1.0
CHROMAPATH®BUNDLE: DOME INSTALLATION GUIDE
CHROMAPATH®BUNDLE: DOME
ALUMINUM CHANNEL
INSTALLATION GUIDE
TOOLS FOR INSTALL INSTALLATION
DETERMINE TAPE LIGHT & CHANNEL
LENGTH
®
+
−
®
+
−
1/4 in.
(6mm)
1/4 in.
(6mm)
Ex. 3 ft. 1 1/2 in. CHROMAPATH Fixture
DETERMINE CHROMAPATH FIXTURE LENGTH
Reector end caps add additional 1/4 in. length to each
side of CHROMAPATH channel.
Total Length = 2x End Caps + CHROMAPATH Channel
1. Pencil
2. Ruler
3. Scissors
4. Band Saw or Rotary Saw
5. Metal File
6. Screwdriver / Electric Drill
®
+
−®
+
−
Ex. 3 ft. Tape Light + Connector
DETERMINE CHROMAPATH CHANNEL CUT LENGTH
The simplest approach is to add 1 in. to CHROMAPATH
Channel and Cover, which will provide space to t end
cap harness. The total channel length is now 3 ft. 1 in.
®
+
−®
+
−
Ex. 3 ft. 1in. CHROMAPATH Channel
TEST CONNECTION
Prior to assembling xture, connect tape light to Class
2 LED driver and turn on power. Ensure connection is
secure and system is working properly. Turn off power
again before mounting. See tape light installation guide
for information on powering xture.
1.3
1.2
DETERMINE TAPE LIGHT LENGTH
Cut to desired length (cut at scissors icon) and attach
appropriate connectors, which will slightly extend total
length. For this example the total length is 3 ft.
1.1
1
1
2
3
4
5
6
3 OF 4 IG060418-1.0
CHROMAPATH®BUNDLE: DOME INSTALLATION GUIDE
CHROMAPATH®BUNDLE: DOME
ALUMINUM CHANNEL
INSTALLATION GUIDE
ASSEMBLE CHROMAPATH FIXTURE
®
+
−
Peel off 3M™adhesive backing from Tape Light.
Press Tape Light gently but rmly against channel, taking
care not to press directly on LEDs.
CUT CHANNEL & COVER
ALUMINUM CHANNELS
Channels can be cut to size with a bandsaw, rotary saw,
or handsaw tted with an appropriate blade to cut metal
objects. Once cut, nish edges with metal le.
CHANNEL COVERS
Covers can be cut to size with heavy duty scissors or a
saw.
INSERT COVER
Run an alcohol wipe along the inside of the channel to
remove any dust or debris.
2
3
INSTALLATION (CONT.)
4
CLEAN CHANNEL AND ADHERE TAPE
LIGHT
4.1
3.3
3.2
3.1
Fasten cover by rmly pressing one edge into channel,
then the other.
4.2 Continue pressing in lens along channel until fully seated.
®
BLAZE
™
E469769
®
+
−
®
BLAZE
™
E469769
®
+
−
4 OF 4
®Toll Free: 877.817.6028 | Fax: 415.592.1596 | www.DiodeLED.com | info@DiodeLED.com
© 2018 Elemental LED, Inc. All rights reserved. Specicaons are subject to change without noce.
IG060418-1.0
CHROMAPATH®BUNDLE: DOME INSTALLATION GUIDE
CHROMAPATH®BUNDLE: DOME
ALUMINUM CHANNEL
INSTALLATION GUIDE

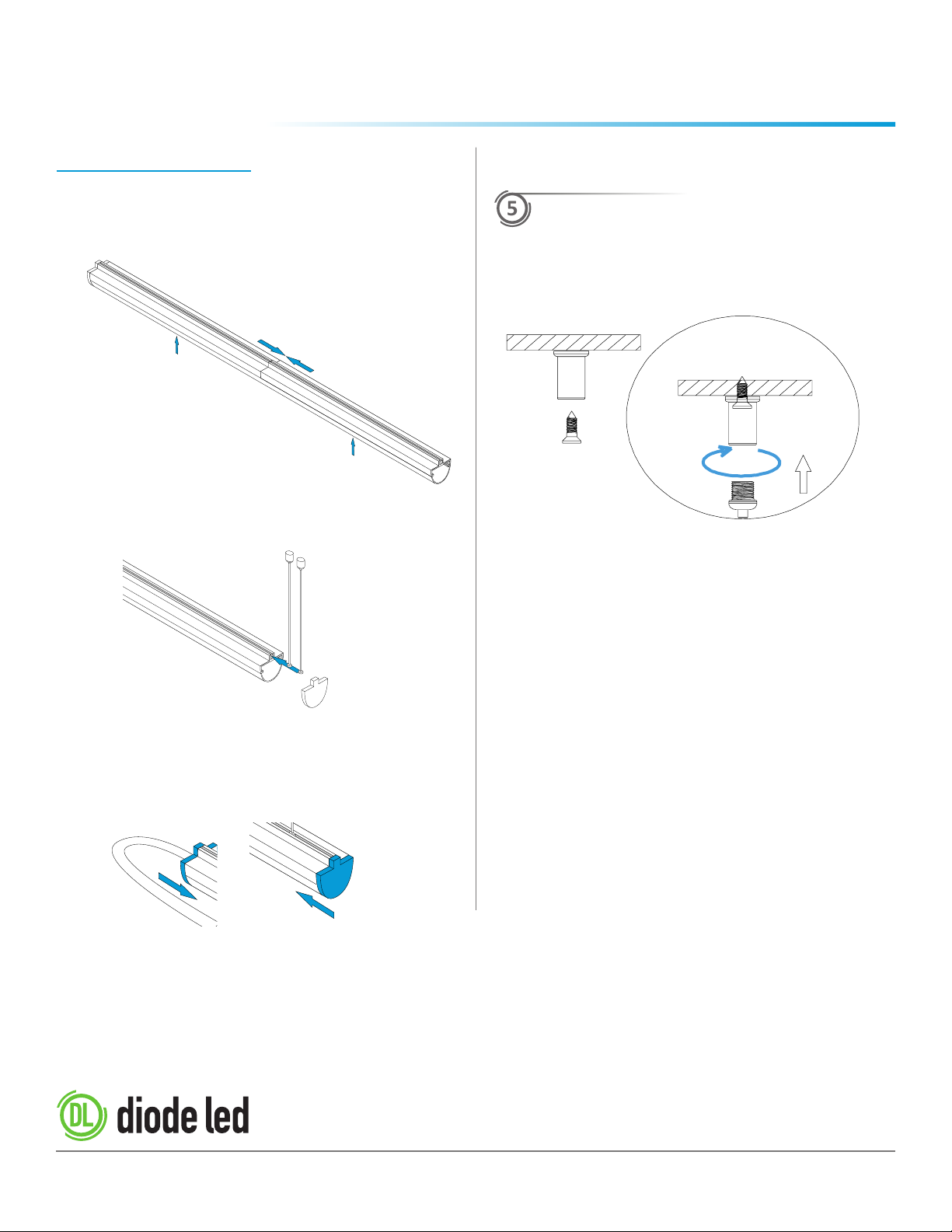

Attach end caps. Adhere with adhesive or glue if desired.
INSTALL MOUNTING HARDWARE ONTO
CEILING
INSTALLATION (CONT.)
Open end cap Closed end cap
5
To bridge between two channels, lay channels
end-to-end, then place cover over gap to keep ends
ush.
4.3
4.5
Place mounting wire within track.
4.4
Fasten hardware to ceiling using included screws.
Thread messenger cables into installed hardware until
tight.
