Dinstar DAG1000-4O User manual

Quick Installation Guide

DAG1000-4O

DAG1000-8O

DAG2000-16O

Thanks for Choosing Dinstar’s VoIP Gateway!

Please read this guide carefully before installing the gateway. If you need any technical

support, .please contact us

Tel: +86 755 61919966

Email: support@dinstar.com

Website: www.dinstar.com

DAG3000-32O

DAG3000-128O

v2.0 2021

Product Model & Number of Ports

Description of Indicators

DAG1000-4O

DAG1000-8O

DAG2000-16O

Model

Port Type

WAN

LAN

RJ45

Indicator Deﬁnition Status Description

Power Indicator

Running Indicator

FXO In-use Indicator

Off

The gateway is powered on

The gateway has no power input

or power supply is abnormal

Off

Slow Flashing

Flashing

Link (Green)

Speed

PWR

RUN

FXO

WAN/LAN

The gateway is running properly

SIP account is registered successfully

The gateway is running improperly

FXO port is currently occupied

FXO port is idle or faulty

The gateway is properly connected to network

The gateway is not connected to network

or network connection is improper

Work at 100Mbps

Work at 10Mbps

Fast Flashing

RJ11

DAG3000-32O

DAG3000-128O

Please check the model of your gateway before installation,and then refer to corresponding

installation instructions.

Dinstar’s VoIP gateways have two types of FXO ports, namely RJ11 and RJ45. For the number of

ports of each model,please refer to the table above.

GE0/GE1

Speed On

Off

Work at 1000Mbps

Work at 100Mbps

Link (Green)

Off

Flashing The gateway is properly connected to network

The gateway is not connected to network

or network connection is improper

DAG1000-4O

DAG1000-8O

Indicators & Interfaces

Power Indicator

Running Indicator

Network Link Indicator

Network Speed Indicator FXO In-use Indicator

Power Indicator

Running Indicator

Network Link Indicator

Network Speed Indicator FXO In-use Indicator

Power Port FXO Ports LAN Ports WAN Port

Reset Button

Power Port FXO Ports LAN Ports WAN Port

Reset Button

DAG2000-16O

FXO Ports 0-15

Power Switch Power Jack LAN Ports Ground Point

Power Indicator

Running Indicator

FXO In-use Indicator

100-24 0VAC

50/60Hz

Screw

Power Indicator

Running Indicator

Console Port

User Board

Main Control Board

Reset Button

USB

Power Indicator

Running Indicator

FXO In-use Indicator

LAN Ports

Ground Point Power Switch Power Jack Power Switch Power Jack

DAG3000-32O

FXO Ports

100-240VAC

50/60Hz

100-240VAC

50/60Hz

User Board Main Control Board User Board

Power Indicator

Running Indicator

FXO In-use Indicator

FXO Ports

Screw

Power Indicator

Running Indicator USB

Console Port

Reset Button

Ground Point Power Switch Power Jack

DAG3000-128O

LAN Ports

100-240VAC

50/60Hz

100-240VAC

50/60Hz

Installation Attentions

Product model: please check the model of your gateway before installation;

Anti-jamming: to reduce the interference with PSTN lines, it’s highly recommended that

PSTN lines connected to the gateway should be placed away from power cables;

Power supply: DAG1000-4O and DAG1000-8O are equipped with 12VDC power adapter,

while DAG2000-16O, DAG3000-32O and DAG3000-128O accepts AC input voltage of

100-240V. Please ensure safe and stable power supply;

Network bandwidth: please ensure there is enough network bandwidth so as to guarantee

stabilized running of the gateway;

Ventilation: to avoid overheating, please do not pile up the gateway with other devices and

make sure the gateway has good ventilation around;

Temperature and humidity: to avoid any accident that might cause malfunction,it’s advised

to install the gateway in an equipment room where temperature and humidity are

appropriate;

Mechanical load: please make sure the gateway is placed steadily to avoid damage.It’s

highly advised to horizontally place the gateway on a ﬂat surface or a cabinet.

Installation Instructions

Connection Diagram for DAG1000-4O

Connect gateway with network

Network Cable

Connect FXO port with PSTN line

LAN

Telecom

Operator User

PSTN

PSTN Line

Network Cable

Router

Connect gateway with power input

DC12V Power Plug

Connection Diagram for DAG1000-8O

Network Cable

Router

PC LAN

Telecom Operator User

PSTN Line

PSTN

Connect gateway with network

Network Cable

Connect FXO port with PSTN line

Connect gateway with power input

PSTN

Connect gateway with power input

AC 100-240V

Grounding Cable

Ground Point

Telecom Operator

Connect gateway with network

Network Cable

Switch

Connect FXO port with PSTN line

User

PSTN Line

Connection Diagram for DAG2000-16O

Network Cable

100-240VAC

50/60Hz

100-240VAC

50/60Hz

PSTN

Connect gateway with power input

AC 100-240V

Grounding Cable

Ground Point

Telecom Operator

Connect gateway with network

Network Cable

Switch

Connect FXO port with PSTN line

User

PSTN Line

Connection Diagram for DAG3000-32O

Network Cable

AC 100-240V

100-240VAC

50/60Hz

100-240VAC

50/60Hz

PSTN

Connect gateway with power input

AC 100-240V

Grounding Cable

Ground Point

Telecom Operator

Connect gateway with network

Network Cable

Switch

Connect FXO port with PSTN line

User

PSTN Line

Connection Diagram for DAG3000-128O

Network Cable

100-240VAC

50/60Hz

100-240VAC

50/60Hz

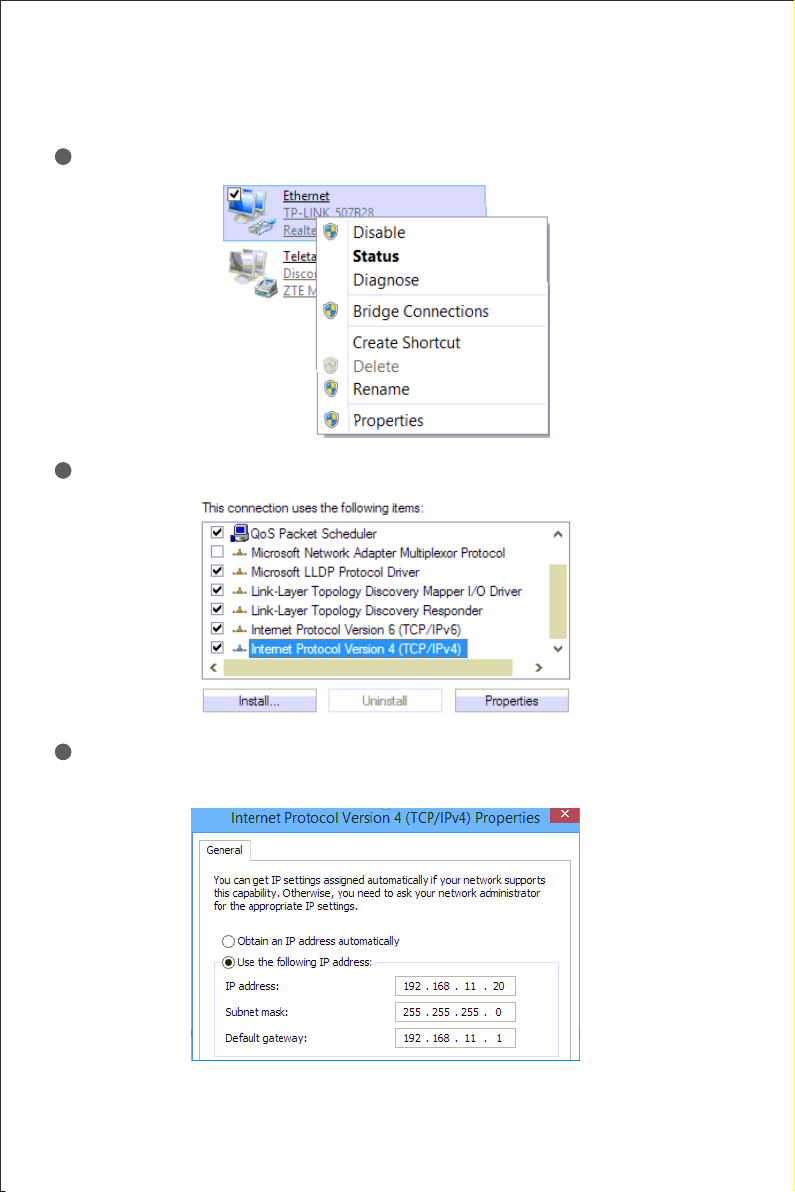

Modify PC’s IP Address

On the PC, click ‘Network (or Ethernet) → Properties’.

Double-click ‘Internet Protocol Version 4 (TCP/IPv4)’.

Select ‘Use the following IP address’, and then enter an available IP address

‘192.168.11.XXX’ which is at the same network segment with ‘192.168.11.1’.

To log in the Web Management System of the gateway, you need to modify the IP address

of PC first to make it at the same network segment with the gateway.

To log in the Web Management System of the gateway, you need to modify the IP address

of PC first to make it at the same network segment with the gateway.
