DINKO Instruments A-60-F User manual
1
HIGH FLOW PERISTALTIC PUMP
Manual
May 2023
c/ Encarnació , 123-125. Tel. +34 93 284 69 62
2
Content
1- Security ································································· 3
2- Get to know the peristaltic pump ·································· 4
3- Pump head and tube ················································· 5
4- Specifications ·························································· 7
5- How to use ······························································ 8
6- Menu configuration ················································ 13
7- Maintenance ························································· 16
8- Troubleshooting ····················································· 17
9- Packing list ··························································· 18
10- Annexes 1, 2, 3 and 4 ·············································· 19
3
1) Security
Please read this manual carefully before using it!
●To avoid fire or electric shock, please do not use the pump
outdoors, or in a humid environment.
●To reduce the risk of electric shock and the possibility of damage to the
equipment, please use a standard 220 V AC plug with a ground connection.
●When installing, first plug the 220VA C power cord into the socket at the rear
of the pump, then turn on the power.
●Please do not place heavy objects on the pump or allow liquid to enter the
pump.
●Please do not cover the vents of the pump.
●Since some of the electrical components of the pump are in operation after
the power is turned on, please turn off the power after stopping the pump,
if it is not used in a long period of time, please unplug the power cord.
● The tube is the only consumable. Cracks due to tube wear may cause liquid
to leak out of the tube, then it may cause damage to human or equipment.
It depends on your understanding and control of the fluid being pumped,
with no legal causal relationship to the pump.
4
2 ) Get to know the peristaltic pump.
The 353 series peristaltic pump is a smart pump that combines flow, timing
and fill dosing functions. It can be operated by buttons, or controlled by an
external signal or foot switch. It has a full speed emptying function and the
suction angle etc can be adjusted. The high definition LCD display shows
pump speed, flow rate, operating parameters and other information on the
same screen. It is a multifunctional intelligent product with the advantages of
simple operation, stable and reliable performance, long-term continuous
operation, and the ability to save input work parameters. It is suitable for
bioengineering, chemical, pharmaceutical, hospital, food. laboratories of
production and research units, etc. It is an essential product for fluid testing
and scientific research.
Screen
LCD
Driver
Pump head
M. keyboard
Tub
e retainer
5

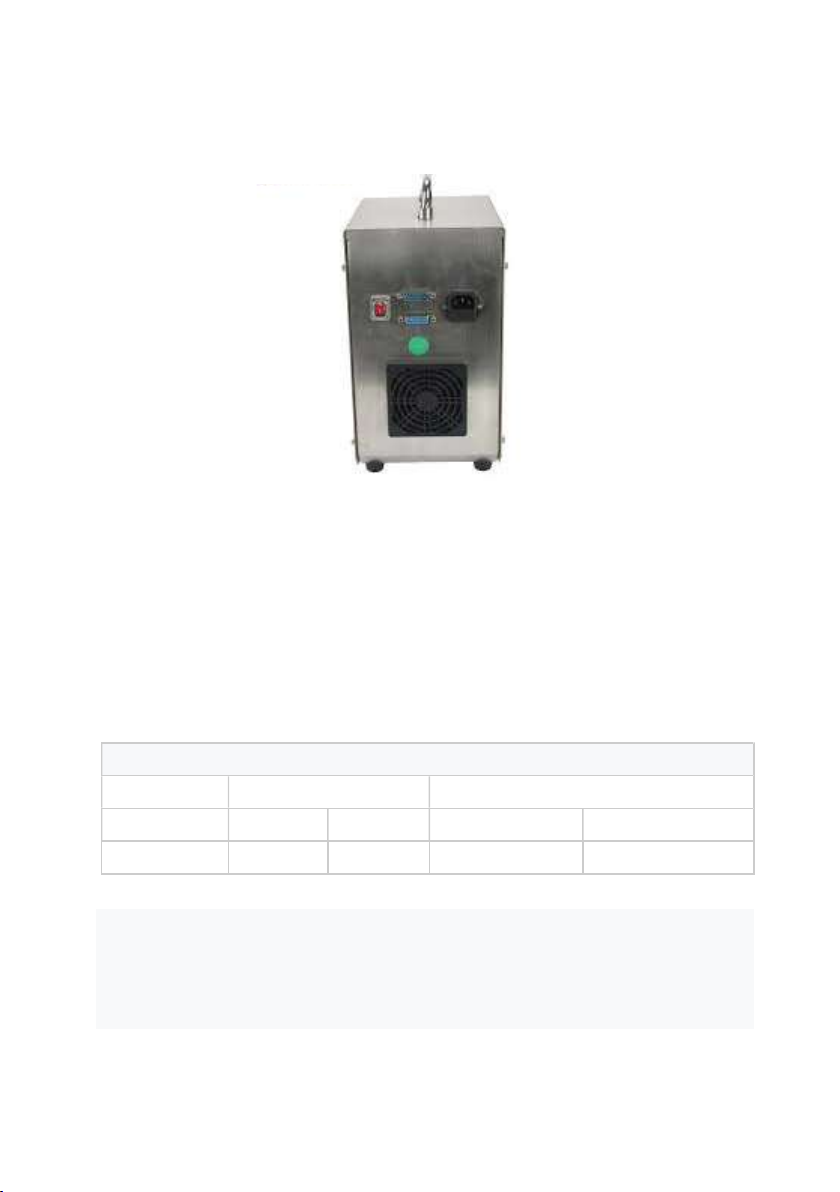

3 ) Head and tube of the pump.
6
Reference flows ( unit : L/min)
Tube type Silicone A-60-F
Tube number
73# 82# 73# 82#
Max. flow 8 13.2 7.8 11.8
Flow description
1. The flow is measured at room temperature of 23°C and without pressure at
the inlet and outlet, and when clean water is pumped.
2. The total flow of multiple series = the flow of a single pump head * the
number of pump heads in series
7
4 ) Specifications
1) Specifications.
Item/Code 353Y /1.9754.00
Speed range 30 - 600rpm
Maximum speed 600rpm
Speed resolution 1rpm
Maximum suction 0.17MPa
Outlet pressure 0.17MPa
Control mode membrane keyboard
Principal function Manual control, automation, timing, filling, external
control
External control 0-5V, 0-10V, 4-20mA, RS485
Display LCD
Power and current AC 100 - 240V +/-10%, 50Hz/60Hz 3.0A
Consumption power <200W
Type of motor Brushless DC motor with reducer
Motor life 6000 – 20,000 hours
Working conditions Temperature 0-60 ℃ , relative humidity <85%
Equipment sizes Length240 x Width160 x Height322.5 mm
Unit weight 8kg
IP Rating IP 31
Pump head 353Y/ Code 1.0080.xx
8
5 ) How to use
1) Install the pump head
2) Install the tube
. Align the pump head output shaft
with the groove in the rubber coupling
and rotate it to align the pump head
locating hole with the drive locating pin
Tighten the two screws separately. Note:
1. When tightening the screws, the user should try to
ensure that the two screws have the same tightness and
should not be over-tightened to prevent the pump head
from being deformed and causing noise.
First turn the lever counterclockwise to raise the
upper clamp.
Then push up the clips on both sides of the
pump head, put the tube into the pump head
(the gap between the upper and lower
Finally, turn the lever clockwise to depress the upper
clamp and the tube installation is complete. (Note:
The tube clips on both sides of the pump head are
fixed freely by the spring. You can slide the clips
freely during charging.
9
Observation:
1. The pump head is installed on the motor at the factory. Only remove the pump head
when cleaning or replacing the pump head. Please follow the steps above when
installing.
3) Use the bomb
Turn on the power → welcome interface → standby operation.
The factory setting is the basic common "flow" runtime program.
The peristaltic pump has a power off memory function. When the " start -stop" button is
pressed or the power is turned off, the peristaltic pump remembers the last set state.
Knob: a) For speed adjustment in the running state, rotate to change the speed and flow
of the pump, press to enter the flow percentage adjustment (rotation can be
corrected, then press memory and exit).
b) Setting button: in standby mode, press once to enter menu, rotate to select parameter,
press again to confirm (can be used alternately during operation).
Star /Stop: In operation, as an operation command button.
Cw / ccw: The address can be changed in the working or standby state.
Return: Returns to the previous level in the menu options.
10
Full Speed - Full speed emptying, press to highest pump speed, press again to restore,
press start-stop button to stop, use as a cleaning tube in the app.
Remark: only “Knob” is valid in the external control standby state, and the other function
buttons are invalid (entering the setup menu through the “Knob”, the external
control enable is disabled for interface button to take effect).
4) Function introduction
The pump accepts button control, foot control or external signal control.
Control button: The pump is operated by the pump button, the rotation speed can be
arbitrarily rotated to adjust the flow rate, the pump can be started and
stopped, the direction can be changed, and the maximum speed command
can be executed.
Foot Switch Control: The pump can automatically recognize the foot switch and can be
used as a start and stop command button. For more information,
please refer to the configuration interface.
External signal control: can provide analogue communication protocol, etc. to control
the pump.
The factory setting of the pump is push button control. If you need to externally control
the pump, please press “Knob” in the standby state → select “Parameter setting” → set
the external control enable to “ON” state (if you need to set it to Internal control, set it to
"off").
Internal control function: start and stop, forward and reverse, speed up and down,
maximum speed
