Dimplex Saletto LPP050 User manual



ContactDetails



Pleasenotethatsomeofthecontactdetailson

thisPDFdocumentmaynotbecurrent.



Pleaseusethefollowingdetailsifyouneedto

contactus:



Telephone:08448793588

Email:[email protected]



Thecustomersupportsectionofourwebsitealsofeaturesawide

rangeofinformationwhichmaybeofusetoyouandisavailable

24hoursaday.Itincludes:



•Operatingandinstallationinstructions

•Easy‘Howtouse’guidesforstorageheaters

•Serviceandrepairs

•Wheretobuyourproducts

•Literaturedownloads

•Heatingrequirementcalculator



Visit‐www.dimplex.co.uk/support

A division of GDC Group Ltd

Millbrook House Grange Drive Hedge End Southampton SO30 2DF

www.dimplex.co.uk

istered No: 1313016 En

land

VAT GB 287 1315 50004

EEE Producer Registration Number –

WEE/GE0057TS

Paper from sustainable sources

A world of expertise Operating Instructions

These instructions should be read carefully and

retained for future use. Note also the information

presented on the appliance.

Saletto

Low Profile Panel Heaters

Models: LPP050 LPP075

LPP100 LPP150

INDLUKP1RG ISSUE 0

IMPORTANT

These instructions should

be read carefully and

retained for future use.

Note also the information

presented on the

appliance.

IMPORTANT SAFETY ADVICE

When using electrical appliances, basic precautions should

always be followed to reduce the risk of ﬁre, electrical shock,

and injury to persons, including the following:

IMPORTANT - The wall bracket supplied with the appliance must

be used.

WARNING - DO NOT USE THIS HEATER IN THE IMMEDIATE

SURROUNDINGS OF A BATH, A SHOWER OR A SWIMMING

POOL.

IMPORTANT - If the heater is installed in a room containing

a bath or shower, it must be installed that switches and other

controls cannot be touched by a person using a bath or shower.

Do not use outdoors.

Do not locate the heater immediately below a ﬁxed socket outlet

or connection box.

Do not cover the heater. Do not place material or garments on

the heater, or obstruct the air circulation around the heater, for

instance by curtains or furniture, as this would cause overheating

and a ﬁre risk.

The heater carries the Warning symbol indicating that it

must not be covered.

WARNING - THE SURFACES OF THIS HEATER CAN BE HOT.

Momentary contact with any part of the heater should not cause

injury.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety. Children should be

supervised to ensure that they do not play with the appliance.

Notethat duecare andconsiderationmustbetakenwhenusingthis

heater in series with a thermal control, a program controller, a timer

or any other device that switches on the heat automatically, since a

ﬁre risk exists when the heater is accidentally covered or displaced.

If the supply cord is damaged is damaged it must be replaced

by the manufacturer, its service agent or a similarly qualiﬁed

persons in order to avoid a hazard.

Electrical

WARNING- THIS APPLIANCE MUST BE EARTHED

The electrical installation must be carried out by a competent

electrician, and be in strict accordance with the current I.E.E.

regulations for Electrical Equipment in Buildings.

The wires in this mains lead are coloured in accordance with the

following code:

GREEN AND YELLOW: EARTH

BLUE: NEUTRAL

BROWN: LIVE

BLACK: PILOT WIRE

- see also ‘Pilot Wire Connection’

The heater is ﬁtted with a length of ﬂexible cable type H05VV-F

size 4x1.0mm2for connection to the ﬁxed wiring of the premises

through a suitable connection box positioned adjacent to the

heater.

A means of disconnection must be incorporated in the ﬁxed wiring

of the premises in accordance with the wiring rules. The supply

circuit to the heater must incorporate a double pole isolating

switch having separation of at least 3mm.

Pilot Wire Connection

The BLACK wire is designed to carry a signal from slot in or wall

mounted Dimplex programmers. If, however a programmer is not

being used, the pilot wire should be isolated in accordance with

the current IEE Wiring Regulations.

IMPORTANT - DO NOT connect the BLACK pilot wire to earth.

Care should be taken with the installation of pilot wire(s) as when

switching to background (set back) they become energised at

240V although only at a current less than 100mA. In every case

a suitable means of isolation must be provided for the pilot wire

and marked to indicate that two sources of supply may be present

at the heater.

Where pilot wires are installed separately from the heater ﬁnal

sub-circuit they should be protected, double insulated and carry

their own integral earth continuity conductor.

Supplementary Earth Bonding

Should Equipotential Earth Bonding be required the earthing

conductor in the supply cord is deemed to provide the

supplementary bonding connection (see Regulation 544.2.5,

17th Edition I.E.E. Wiring Regulations).

General

The heater is designed for wall mounting on the

wall bracket supplied. It should only be operated

when in the upright position. - see Fig.1 and

Fig.2.

All models are splashproof to IPX4 standard

and may be used in bathrooms, however not in

the immediate vicinity of baths, showers, water

connections, wash basins or swimming pools.

Before connecting the heater check that the supply

voltage is the same as that stated on the heater.

NOTE - Lit cigarettes, candles and oil burners,

combined with the convection effect of electric

heaters can cause soot deposits to build up on

the surface directly above and to the sides of the

heater. This is not a fault of the heater. Extensive

burning of candles or smoking in the operating

environment of this product can produce heavy

discolouration within a few months of use.

Dimensions

Model(s) Watt A (mm)

LPP050 0.5kW 746

LPP075 0.75kW 746

LPP100 1.0kW 877

LPP150 1.5kW 1142

Wall Mounting

IMPORTANT - The wall bracket supplied with

the appliance must be used. The heater should

be positioned observing the minimum clearances

stated around the heater - see Fig.1 and Fig.2.

DO NOT locate the heater immediately below a

ﬁxed socket or connection box.

Re1. move wall mounting bracket from the back

of the heater by depressing the spring latch at

the top of each bracket - see Fig.3.

Fix2. the wall bracket securely to the wall through

the two screw holes provided.

Pre3. sent the heater to the wall bracket, and

engage lower slots in the back with the

bracket.

Rai4. se the heater to upright position and push

the heater onto bracket to engage top latch.

235

150

Min.

150 Min.

Fig. 1

Fig. 2

Fig. 3

100

170 Min.

50mm

50 Min.

Shelf

50mm

than

wider

Shelf

LPP050 672

LPP075 672

LPP100 803

LPP150 1068

250 Min.

Operation

Switching On the Heater (see Fig.4)

The controls are located on the right hand side

on the top of the appliance, lift ﬂap to access the

controls - see Fig.4.

The buttons marked ‘ ‘ controls the electricity

supply to the electronic thermostat. An indicator

beside the ‘ ‘ button shows when the unit is

powered ‘ON’.

Setting Desired Temperature (see Fig.5)

The heater is ﬁtted with an adjustable thermostat

enabling the room temperature to be controlled by

adjusting the slider accordingly.The min setting ‘ ’

represents a room temperature of approximately

5oC and may be used for protection against frost.

The ‘MAX’ setting represents a room temperature

of approximately 30oC.The ‘ ’ symbol glows when

the elements are actually heating.

Turn on the heater using the ‘ ’ button and move

the thermostat slider to the desired position.When

the room temperature has reached the desired

level, the power to the elements will be reduced,

the heater will then maintain the room temperature

at the chosen level.

NOTE - Should your heater fail to come on when

the thermostat slider is at a low setting, this may

be due to the room temperature being higher than

the thermostat setting.

Background Temperature

When used in conjunction with a remote

programming device supporting background/

setback setting, the heater will automatically

operate at a room temperature setting of 5oC less

than the thermostat setting when the programme

is in background/setback mode.

Limiting the thermostat setting

Before wall mounting the product the installer may

wish to limit the heat selection slider movement for

the operator. This may be achieved by removing

the two plastic pins (see ‘x’ in Fig.6) from the

rear of the thermostat moulding using pliers and

inserting them in the preferred holes to limit the

slider movement.

‘x’

Fig. 4

Fig. 5

Fig. 6

Notes to the Installer

Test Mode

When the heater is connected via a pilot wire

system, the test mode allows the installer to check

whether the heater is responding correctly to the

incoming pilot wire signal.

Before switching the heater on at the mains, place

the thermostat slider to the ‘MAX’ position, then

press and hold the ‘ ’ button whilst switching on

the mains.

The unit will now enter a test state for 4 mins.

During this test state the ‘ ’ neon will indicate the

pilot wire status:

NEON PILOT WIRE

CONTROLLER MODE

Neon on - ON

Neon off - OFF

Neon ﬂashing fast approx every 0.1 sec - FROST

Neonﬂashingslowapproxevery0.5sec-SETBACK

Accessory Modules

Optional accessory modules are available for use

with this range of heaters - see separate User

Instruction for details on the operation of each

module.

Before ﬁtting a control module switch the heater

off at the mains supply.

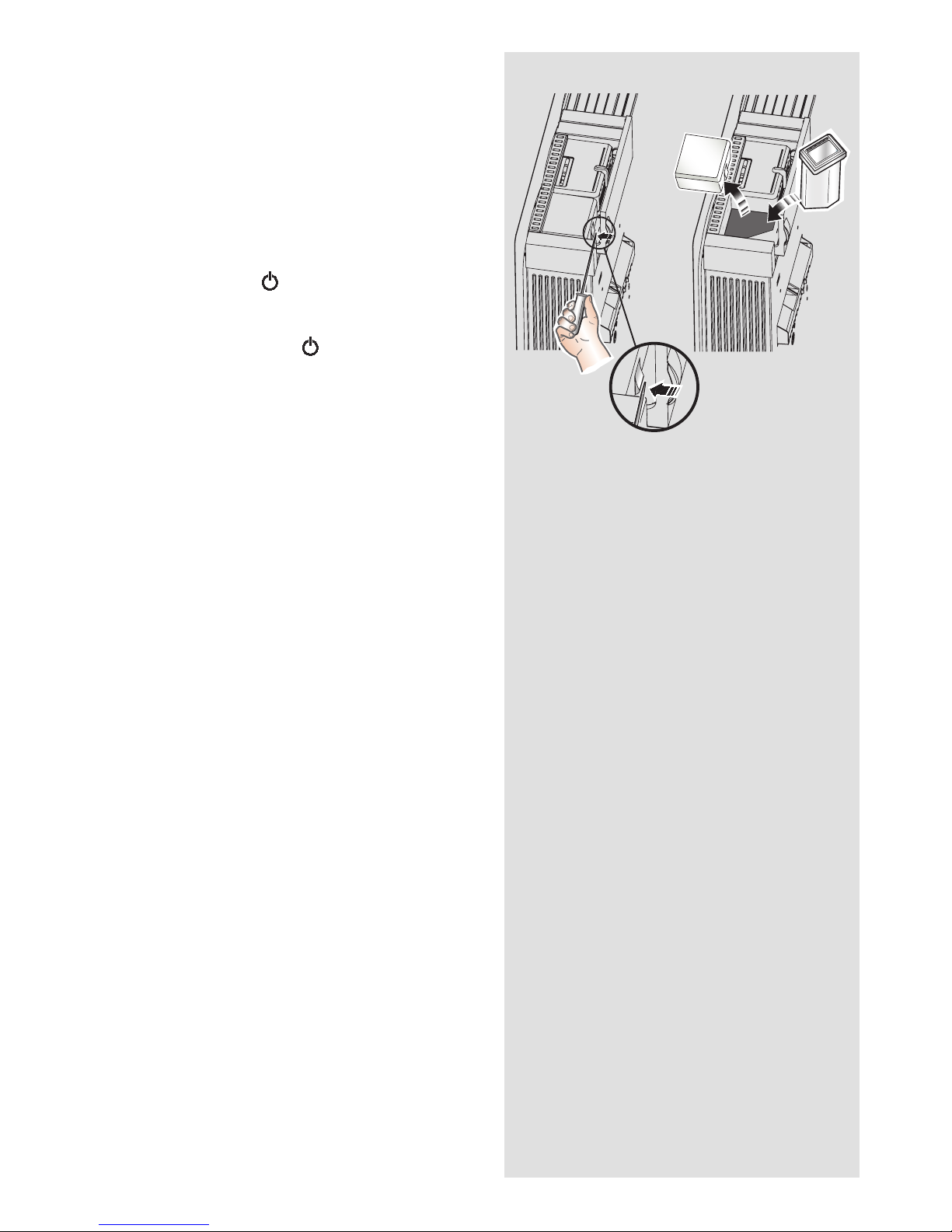

To insert a module, the plug-in protective cover on

the right hand side of the thermostat unit at the

back of the heater must ﬁrst be removed.

Insert a ﬂat-head screwdriver into the side cover

and prise away from the heater - see Fig.7.

Lift the cover away from the heater to reveal the

slide in compartment.

Insert the accessory module into the slot ensuring

it is positively located in position - see Fig.7.

Switch the heater on at the mains supply.

Safety - Overheat Protection

For your safety this appliance is ﬁtted with a

thermal cut-out. In the event that the product

overheats for some reason, the cut-out prevents

excessive temperatures on the product by cutting

power to the heater. Once the heater has cooled

down, it will reset automatically, it will continue to

cycle on and off automatically until the reason for

overheating is removed.

Fig. 7

Energy Saving Tips

The energy we use to heat, light and power our homes contributes over a quarter of

UK’s carbon emissions, the principle contributor to climate change.

Around half the energy used in the home is for heating and hot water, so using your

heating system efﬁciently will not only help the environment, but also save you money.

Energy efﬁciency tips for heating and hot water

1. Don’t set the temperature to high...

By reducing the thermostat setting by just 1oC can reduce your energy use by as much as

10%. And if you’re going away for the winter, leave the thermostat on the frost protection

setting to provide protection from freezing at a minimum cost.

2. Use it where you need it...

Set the appropriate temperature on your heaters for the room they are in; for example,

leave the thermostat on a heater in a spare bedroom on a lower setting.

3. Use it when you need it...

Use heaters ﬁtted with timers or linked to central controllers to turn the heating on only

when you need it and automatically switch it off when you don’t.

4. Curtains...

Close your curtains at dusk to stop heat escaping through the windows.

5. Windows...

Nearly 25% of heat loss can occur through poorly insulated frames and single glazing.

If you can’t afford to double glaze all your windows, go for the rooms you heat most.

6. Treat your hot water tank...give it a jacket

An insulating jacket for hot water tanks costs only a few pounds and pays for itself within

months. Fit one that’s at least 75mm (3”) thick and you could save £10-15 a year.

7. Water

Use a shower if you have one to save time, money and water.

Don’t set the thermostat too high on your water heater- 60oC/ 140oF is usually adequate

for bathing and washing.

Put the plug in when running hot water in your sink - leaving hot taps running is both

wasteful and expensive.

Ensuring dripping taps are repaired quickly. In just one day, you could waste enough

water to ﬁll a bath.

Other Energy Saving Tips for Around the Home

1. Lights

Turn off lights whenever you leave a room for more than ten minutes

Use low-energy bulbs wherever you can as they use less than a quarter of the electricity

used by ordinary light bulbs and last ten times longer!

2. Cooking

Use the right size pan for food and cooker hob.

Keep saucepan lids on - this enables you turn down the heat.

Boil water for cooking in a kettle.

This product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3.

These cover the essential requirements of EEC Directives 2006/95/EC and 2004/108/EC

Dimplex, a division of GDC Group Limited, Millbrook House, Grange Drive, Hedge End, Southampton SO30 2DF

Customer Help Line: 0845 600 5111 Fax: 01489 773050 Email: [email protected].uk Website: www.dimplex.co.uk

This product is protected by intellectual propery rights owned by the GDC Group Ltd or members of the Glen Dimplex Group on an

international basis. The Glen Dimplex Group of Companies will actively protect these rights.

A world of expertise

Cleaning

WARNING - ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE

CLEANING THE HEATER.

Before commencing cleaning, unplug the heater and allow it to cool. Disconnect the

electricity supply to the appliance.

The outside can be cleaned by wiping it over with a soft damp cloth and then dried. Do

not use abrasive cleaning powders or furniture polish, as this can damage the surface

ﬁnish.

To release the heater from the wall bracket for cleaning or redecoration, depress the

latch on both brackets (See Fig.3) and hinge forward.

Recycling

For electrical products sold within the European Community.

At the end of the electrical products useful life it should not be disposed of with household

waste. Please recycle where facilities exist. Check with a Local Authority or retailer for

recycling advice in your country.

After Sales Service

Your product is guaranteed for two years from the date of purchase.

Within this period we undertake to repair of exchange this product free of charge provided

it has been installed and operated in accordance with these instructions.

Your rights under this guarantee are additional to your statutory rights, which in turn are

not affected by this guarantee.

Should you require after sales information or assistance with this product please go to

www.dimplex.co.uk where you will ﬁnd our self help guide by clicking on “After Sales”

or ring our helpdesk on 0845 600 5111 (UK) or 01 842 4833 (R.O.I.).

Spare parts are also available on the website www.dimplex.co.uk

Please do not return a faulty product to us in the ﬁrst instance.

Please retain your receipt as proof of purchase.

This manual suits for next models

Table of contents

Other Dimplex Heater manuals

Dimplex

Dimplex Electricaire R7 User manual

Dimplex

Dimplex Tipsy DXUFSR2 User manual

Dimplex

Dimplex LST050E User manual

Dimplex

Dimplex SCH5 User manual

Dimplex

Dimplex HL 185 T User manual

Dimplex

Dimplex OFX750 User manual

Dimplex

Dimplex KBE 50 User manual

Dimplex

Dimplex FrostWatcher FW600 User manual

Dimplex

Dimplex XL6N User manual

Dimplex

Dimplex XL6N User manual

Dimplex

Dimplex LC Series User manual

Dimplex

Dimplex WH 6100770000 User manual

Dimplex

Dimplex VFE 20 User manual

Dimplex

Dimplex PCH2000TCW User manual

Dimplex

Dimplex BY 802 S User manual

Dimplex

Dimplex 3071 User manual

Dimplex

Dimplex Coldwatcher MPH 500 User manual

Dimplex

Dimplex AC3RE User manual

Dimplex

Dimplex FX 20V User manual

Dimplex

Dimplex Heater User manual

Dimplex

Dimplex XLS24N User manual

Dimplex

Dimplex H 260E User manual

Dimplex

Dimplex QM050RF User manual

Dimplex

Dimplex CFH90 User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
