Dimplex DCPFAC40 User manual
DCPFAC40
40cm Multidirectional
Pedestal Fan
www.dimplex.com.au
INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT.
www.dimplex.com.au
CONTENTS
WARNINGS AND PRECAUTIONS 1
STRUCTURE 3
OPERATION 4
CLEANING AND MAINTENANCE 12
TECHNICAL REFERENCE DATA 13
WARRANTY 13
1
Warnings
• Never place the unit near gas appliances, ames or ammable liquids.
• Never hit or shake the unit. Doing so may cause damage.
• Never cover or obstruct the air inlet or outlet. Doing so may cause
overheating.
• Never spray water on or place the unit near water. Doing so may cause
electric shock.
• Never connect other appliances to the same power outlet.
• Never connect or disconnect the power plug with wet hands. Doing so
may cause electric shock.
• Never insert ngers or objects through the guards when the unit is
operating.
• Never use an extension cord.
• Always have a professional technician, manufacturer or service agent
replace a damaged power cord.
Precautions
• This appliance is for indoor use only.
• Do not use the unit near windows or where water collects. Rain and
water collection may lead to a risk of re or electric shock.
• Do not place the unit in a damp place or where humidity is high (such
as a bathroom).
• Do not leave the unit operating while unattended.
• Do not place the unit in direct sunlight to avoid surface discolouration.
• This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
WARNINGS & PRECAUTIONS
2
• Children should be supervised to ensure they do not play with the
appliance.
• Avoid electromagnetic interference. Keep the unit at least 1 metre away
from electric appliances such as televisions and radios.
• Avoid scratching and damaging the surface. Do not use chemical
solvents (i.e. Benzene, alcohol) to clean the surface.
• Place the unit on a stable surface when operating.
• Unplug the unit before cleaning, servicing or maintenance.
• Electrical connections must be in accordance with National or Local
Codes.
• The rear of the unit must be at least 50cm away from the wall.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
• The product design and specications are subject to change without
prior notice.
WARNING - KEEP BATTERIES OUT OF REACH OF CHILDREN
• Swallowing may lead to serious injury in as little as 2 hours or death,
due to chemical burns and potential perforation of the oesophagus.
• f you suspect your child has swallowed or inserted a button battery
immediately call the 24-hour Poisons Information Centre on 13 11 26 (in
Australia) or 0800 764 766 (in New Zealand) for fast, expert advice.
• Examine devices and make sure the battery compartment is correctly
secured, e.g. that the screw or other mechanical fastener is tightened.
Do not use if the compartment is not secure.
• Dispose of used button batteries immediately and safely. Flat batteries
can still be dangerous.
WARNINGS & PRECAUTIONS
3
1. Cover plate
2. Front grill
3. Fan blade knob
4. Fan blade
5. Fan ring
6. Fan ring clip
7. Rear grill mounting nut
8. Rear grill
9. Fan body
10. Power cord
11. Locking screw
12. Lower pole
13. Base
14. L-type locking screw
STRUCTURE
4
OPERATION
DISPLAY PANEL & REMOTE CONTROL
ICON Description
Power ON/OFF button/indicator
Fan speed (Low, Medium & High)
Swing button
Mode button (Normal, Natural & Sleep)
Timer Button (1H, 2H, 4H, 8H hour indicator lights)
5
OPERATION
BEFORE FIRST USE
•
Please read these instructions carefully before use and keep them for
future reference.
•
Check your local main voltage whether it is the same as stated on the
appliance.
•
Before using for the rst time, remove any protective lms or stickers
from the appliance and ensure the power supply is “Off”.
1.
Insert the lower pole into the hole of the base, then tighten using the
L-type screw. (Fig.1)
2.
Place the fan body over the lower pole, then tighten using the locking
screw. (Fig. 2)
3.
Position the rear grill over the motor body head, making sure that the 3
holes are aligned with the 3 prongs, then rmly screw on the rear grill
mounting nut by turning in a clockwise direction.(Fig. 3)
Fig. 1 Fig. 2
Fig. 3
6
OPERATION
4. Mount the fan blade onto the motor shaft; and fasten the fan blade knob
rmly by turning in an anti-clockwise direction. (Fig. 4)
5.
Attach the front grill with fan ring to the rear grill by pushing the round
edges of the grills rmly together, then lock the fan ring clip attached to
the fan ring. Using a phillips head screwdriver, tighten the fan ring clip
screw provided. (Fig.5)
6.
After assembly, plug into a power outlet.
Fig. 4
Fig. 5
7
OPERATION
On/Off Button
Press the On/Off button to turn the unit “On”. A beeping sound should be
heard when the fan is rst plugged in and it will be in standby mode.
To turn the unit “Off” press this button again. The unit may take a few
seconds to power off completely.
Fan Speed Button
The fan speed can be selected in the following sequence: Low > medium >
high. The selected fan speed will show on the display panel.
Swing Button
Press the “Swing” button to set the desired horizontal oscillation angle.
Pressing this button will cycle through 0° (no oscillation) > 60° > 90° >
180° > 360°. The display panel will show the seected oscillation angle.
NOTE: Vertical oscillation is set manually up to 90°. Horizontal oscillation
can also be set manually to any angle from 0-360°. Press the button again
to turn off the swing function.
Timer Button
The timer can be set via the following sequence: 1H > 2H > 4H > 8H > Off.
The time isn’t accumulated and the MAX timer is 8H. The set time will be
indicated by the LED lights on the display panel.
LED Display
The LED lights will dim after there is no operation for 1 minute (33% less
than original brightness). As soon as a button is pressed, the lights will
return to normal brightness.
8
OPERATION
Mode Button
The default mode after turning “On” is normal. Press this button to select
modes in this sequence: normal > natural > sleep. The display panel will
show the selected mode.
Normal: Constant wind speed.
Natural: Changing wind speeds (the indicator lights only show the
initial wind speed when the speed changes, and other changes are not
indicated).
Sleep: In natural sleep mode, the wind speed LED changes with the
30-minute cycle change, but does not indicate with the change of natural
wind.
High: 30 minutes high speed natural wind > 30 minutes medium
level natural wind > low level natural wind (until turned off).
Medium: 30 minutes medium level natural wind > low level natural
wind (until turned off).
Low: Low level natural wind (until turned off).
Table of contents
Other Dimplex Fan manuals
Dimplex
Dimplex DCFF45A User manual
Dimplex
Dimplex DCAC20T User manual
Dimplex
Dimplex DCACP23 User manual
Dimplex

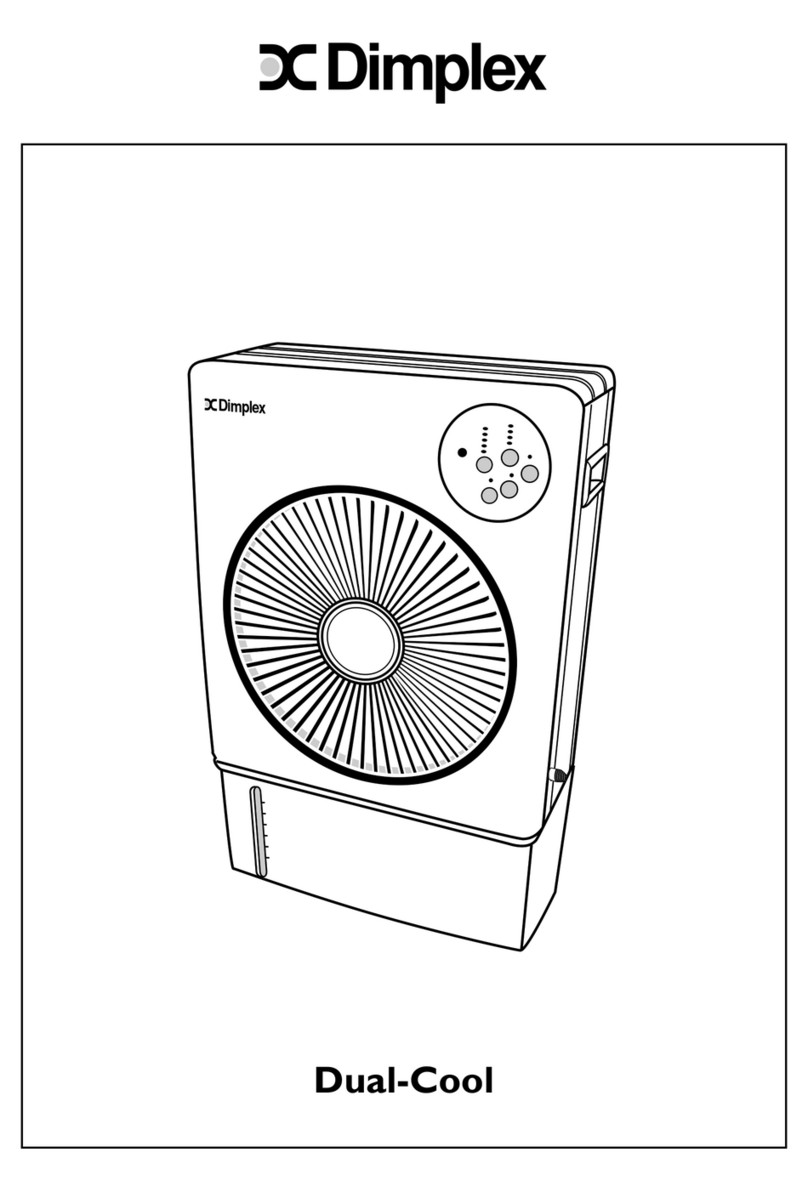

Dimplex Dual-Cool User manual
