Digitus DN-95351 User manual

GIGABIT MANAGED

PoE SWITCH

DN-95351 (16 Port)

DN-95352 (24 Port)

Quick Start Guide

Introduction

Gigabit managed switch designed and developed solely for the purpose of

building high-performance gigabit network requirements. Provide a

comprehensive security protection system Perfect QoS strategy and rich

VLAN function Management and maintenance are simple and can be

applied to small and medium enterprises Core layer of community and

school.

Parameter



Support Port/MAC/IP/VLAN ID four Yuan intelligent scanning binding



Quickly locate user information, simplify operation and simplify network

management.



The CPU frequency of 500Mhz, 128M ﬂash, 4M cache, 128M RAM.



Support IEEE 802.1Q VLAN, Voice VLAN and other rich VLAN function.



The comprehensive security system, tackling the problem, ensure long

term stable operation of the network.



The rich QoS strategy and control function of ACL multi-service access,

efﬁcient integration of operation.



Support multiple spanning tree protocol and port aggregation; improve

the ability to link redundancy backup.



Support STP, RSTP, MSTP fast spanning tree protocol; support EPPS, EAPS

ring network protocol.



The visual interface of POE, standard POE duty management



Support the CLI command line, Web network, SNMP SSH, a variety of

management methods.



The multiple timing restart function.



We provide network diagnosis, cable detection, system log function.

Item list:

Please open the switch package carefully, confirm the packing box should

be as follows:



1*Managed Switch



1*power cable



1*User Manual



2*mounting brackets



4*mats



6*brackets screw

Product Display

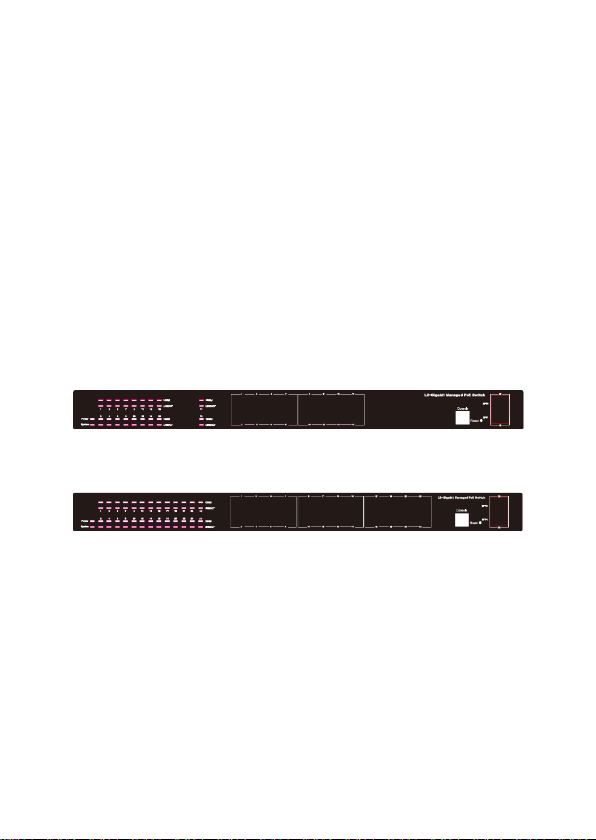

Front panel sketch map

1. DN-95351: 16*10/100/1000M PoE Port+2*1000M SFP+1*Console,

Rackmount, 19-inch steel case.

2. DN-95352: 24*10/100/1000M PoE Port+2*1000M SFP+1*Console,

Rackmount, 19-inch steel case

PWR: The indicator lights up to indicate that the switch is

connected to the power supply.

SYS: CPU state indicator light, after the initialization is completed,

per-second flicker once.

PoE: The indicator lights up, corresponding port is supplying

power to the connecting device

Giga/1000M: The transmission rate of the corresponding port is 1000M

Link: Data transmission on the corresponding port

Back panel sketch map

1. The 19-inch steel case, back panel sketch map

Power adapter interface: The power supply of the switch is inserted into

the port, insert additional adapter

Single phase three wire socket: The power supply of the switch is inserted

into the port, and the input voltage of AC terminal is 100-240V 50/60Hz

Grounding: Make the equipment ground

Product mounting

Attention

In order to avoid improper use of equipment damage and personal injury,

please note the following:

1. During the installation, the power supply remains closed, while wearing

anti-static wrist, and ensure that anti-static wrist and skin good contact,

to avoid potential safety hidden danger;

2. The switch can work normally under the correct power supply. Please

confirm that the supply voltage is consistent with the voltage indicated

by the switch;

3. Before the switch is switched on, please confirm that it will not cause

overload of the power circuit, so as not to affect the normal operation of

the switch or even cause unnecessary damage;

4. In order to avoid the risk of electric shock, switch work should not open

the shell, even in the case of no electricity, do not open on its own;

5. Before cleaning the switch, the switch power plug should be pulled out,

please do not wipe with wet fabric, please don't use liquid cleaning;

6. Install the equipment rack generally from the bottom, avoid overload

installation;

7. The switch surface to avoid placing other heavy objects, so as to avoid

accidents.

Mounting Switch

Rack Mounting

1. Check the grounding and stability of the rack.

2. Secure the supplied rack-mounting brackets to each side of the device

with supplied screws, as illustrated in the following ﬁgure.

3. After the brackets are attached to the device, use suitable screws (not

provided) to secure the brackets to the rack, as illustrated in the

following ﬁgure.

Figure 2-1 Bracket Installation

Figure 2-2 Rack Installation

Desktop mounting

1. To install the device on the desktop, please follow the steps:

2. Set the device on a ﬂat surface strong enough to support the entire

weight of the device with all ﬁttings.

3. Remove the adhesive backing papers from the rubber feet.

4. Turnover the device and attach the supplied rubber feet to the recessed

areas on the bottom at each corner of the device.

Connect Port

Connect Ethernet port

Connect an Ethernet port of the switch to the device by RJ45 cable as the

following ﬁgure shows

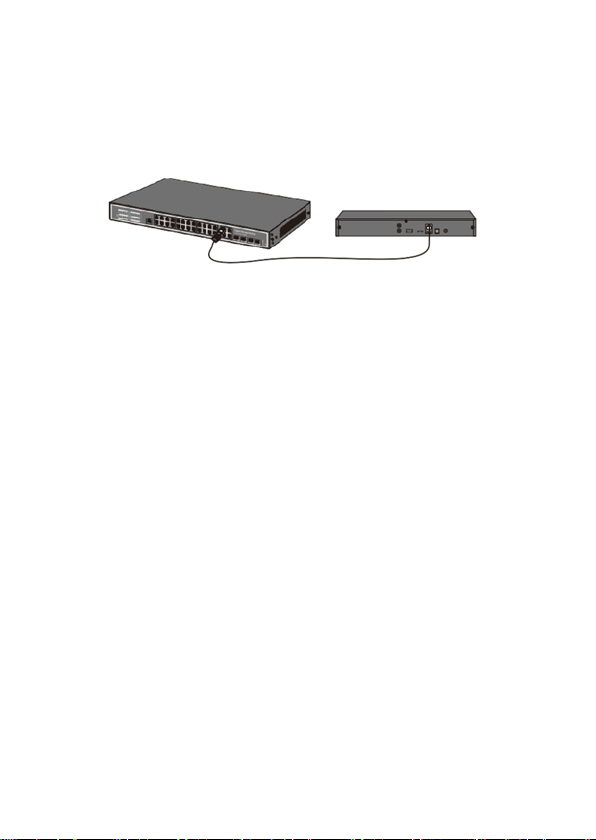

Figure 3-1 Connect Ethernet port

Connect SFP port

The optical fiber module is grabbed from the side and inserted smoothly

along the switch SFP slot until the optical module is in close contact with

the switch.

Note: to avoid improper operation cause damage to equipment or personal

injury, please pay attention to the following matters



Excessive bending of optical fibers is not allowed, and the radius of

curvature should not be less than 10cm.



Ensure the cleanliness at the end of the fiber.



Please do not look directly at the optical fiber connector; otherwise it

may cause damage to your eyes.

Remarks: it is recommended to adopt straight line -568B international

standard connection method, as the following ﬁgure shows

Power supply socket specification

Switch power line single-phase three wire power socket, the middle foot to

ground, and the left foot on the right foot for the zero line and FireWire,

please check before the operation.

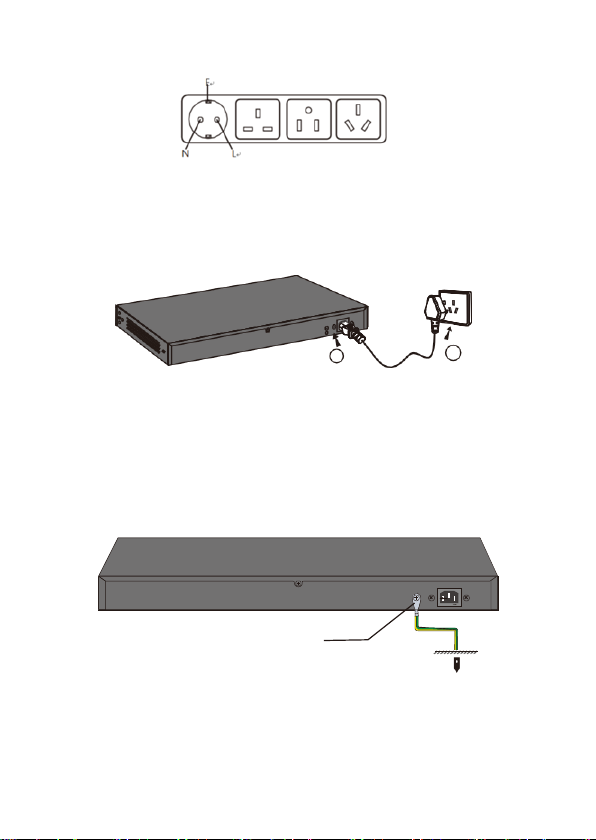

Figure 4-1 Single phase three wire power outlet

Connect the power cord

The Rackmount direct access to AC100~240V, 50~60Hz city electricity

Figure 4-2 Power core connect

Connecting to the Ground

The grounding cable is important to protect the switch from electrical

interference. It is advised to use the grounding cable; if your power is

ungrounded which could damage the switch or its functionality

Figure 4-4 Connecting Grounding Terminal

Note: The grounding bar and the ground cable are not provided with our

product. If needed, please self-purchase them.

Grounding Terminal

Check after installation

Please check the following items after installation:



check whether there is enough space for heat exchange, air circulation is

smooth



check the power supply socket power supply switch is in accordance

with the specifications



check the power supply, switchboard, rack and other equipment have

been properly grounded

The machine-default IP address is 192.168.2.11, subnet mask is

255.255.255.0. So when you log on to the switch, make sure the IP address

of the computer network card and the IP of the switch in the same network

segment: 192.168.2. *** (1 <*** <255, *** is not equal to 11).

Please enter user name: guest, password: guest, then you can use the web

browser-based configuration to manage switch.

Managed PoE Switch Hardware Parameters

Type

DN-95351

DN-95352

Port

16*10/100/1000M

24*10/100/1000M

2*SFP

1*Console

PoE standards

IEEE802.3af/at, single port PoE power 30W

PoE Port

PoE Budget

380W

Reset

Bandwidth

56Gbps

Packet forwarding

40.32Mpps

40.32 Mpps

CPU

500Mhz

RAM

128M

MAC

Buffer

4.1M

FLASH

128M

Transmission

Store and forward

Working

temperature

0°C ~50°C

Storage temperature

-40°C ~70°C

Operating humidity

10%~90% Non-coagulation

Storage humidity

5%~95% Non-coagulation

Product size

440*290*45mm

Packing size

497*313*97mm

Power in

AC 100-240V, 50/60Hz

Power Supply

400W

Management switch WEB software function

Standards

IEEE 802.3x

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z IEEE

802.3ad

IEEE 802.3q, IEEE 802.3q/p

IEEE 802.1w, IEEE 802.1d, IEEE 802.1S, IEEE802.1X

MAC Address

16K MAC addresses; MAC address learning and aging

VLAN

STP (Spanning Tree Protocol) Up to 4095 VLAN

Voice VLAN, can configure QoS for voice data 4k VLANS;

Port-based VLANs；802.1Q VLAN

Spanning Tree

STP (Spanning Tree Protocol)

RSTP/MSTP (Rapid Spanning Tree Protocol) EPPS ring

network protocol 802.1x argumentation agreement

Link

Aggregation

Max 8 aggregation groups TRUNK, each supports

8 ports Static aggregation and dynamic aggregation

Port Mirror

Many-to-one port mirroring

Loop Guard

Loop protection function, real-time detection, rapid

alarm, accurate positioning, intelligent blocking,

automatic recovery

Isolation

Support downlink ports isolated from each other and

communicate with upstream port

Port flow

control

Half duplex based back pressure control Full duplex

based on PAUSE frames

Line rate

Support port-based input / output bandwidth

management

IP binding

Support static ARP

Static routing

Support static routing

IGMP Snooping

Support 256 layers of set table capacity IGMPv1/2/3

and MLDv1/2 Snooping GMRP protocol registration

Multicast address management, multicast VLAN,

multicast routing ports, static multicast addresses

DHCP

DHCP Snooping

Storm

suppression

Unknown unicast, multicast, unknown multicast, storm

suppression of broadcast type Storm suppression based

on bandwidth tuning and storm filtering

This manual suits for next models
