Digitus DS-55522 User manual

4K HDBaseT™ HDMI KVM

Extender Set, 150 m

Quick Installation Guide

DS-55522

Table of Contents

1. Introduction ........................................................ 3

2. Feature................................................................ 3

3. Package Content ................................................. 3

4. Specifications ...................................................... 4

5. Product Overview................................................ 5

5.1 Transmitter Panel.......................................... 5

5.2 Receiver Panel............................................... 7

5.3 IR Pin Definition ............................................ 8

6. Application Example............................................ 9

1. Introduction

The HDBaseT ™HDMI KVM Extender Set enables uncompressed,

high-resolution AV signal transmission over large distances using a

CAT6 (or higher) network cable. The maximum transmission distance

is 150 m. Thanks to PoC, only one unit needs to be supplied with

power by an external power adapter. The receiver unit features two

USB (1.1) ports for connection of mouse and keyboard in order to

control the signal source conveniently from the output display.

Bi-directional IR transmission is also included as a feature.

2. Feature

1. Supports HDBaseT™ 1.0 via CAT6/7/8 cable up to 150 m

2. Transmission distance – Full HD (1080p/60Hz): 150 m (max.)

3. Transmission distance – UHD (4K/60Hz): 120 m (max.)

4. Supports 4K2K/60Hz (4:4:4)

5. Video bandwidth: 18 Gbps

6. Connection of mouse and keyboard on receiver (2x USB 1.1)

in order to control the signal source conveniently from the

output display

7. PoC (Power over Cable) – Only the unit requires an external

power adapter

8. EDID support (2 modes) – 1: Copy – HDMI output receiver /

2: Standard – 1080p, 2 channel

9. Bi-directional IR signal transmission

10. HDMI 2.0b / HDCP 2.2

3. Package Content

1x Transmitter unit

1x Receiver unit

1x IR transmission cable (1.5 m)

1x IR receiver cable (1.5 m)

1x Power adapter (DC 24V/1A, 1. 5 m)

1x USB connecting cable (1.5 m)

1x Mounting material

1x User manual

4. Specifications

Technical

HDMI Compliance

HDMI 2.0b

HDCP Compliance

HDCP 2.2

Video Bandwidth

18Gbps

Video Resolution

Up to 4K2K@60Hz YUV 4:4:4

USB Compliance

USB 1.1

IR Level

5Vp-p

IR Frequency

Wideband 20K-60KHz

Transmission

Distance

1080P@60--150m, 4K60 --120m

Color Space

RGB, YCbCr_4:4:4, YCbCr_4:2:2

Color Depth

8-bit, 10-bit, 12-bit (1080P@60Hz)

8-bit (4K2K@60Hz YUV4:4:4)

8-bit, 10-bit, 12-bit (4K2K@30Hz)

HDR

HDR, HDR10, HDR10+, Dolby Vision, HLG

Audio Format

LPCM 7.1CH, Dolby True HD,

and DTS-HD Master

ESD Protection

Human body model – ±8kV (Air-gap

discharge) & ±4kV (Contact discharge)

Connection

Transmitter

Input: 1× HDMI IN (Type A, 19-pin female)

1× IR IN (3.5mm Stereo Mini-jack)

1× SERVICE (Micro-USB jack)

1× USB (USB-B, 4-pin female)

Output:1× HDBT OUT (RJ45)

1× IR OUT (3.5mm Stereo Mini-jack)

Receiver

Input: 1× HDBT IN (RJ45 with light)

1× IR IN (3.5mm Stereo Mini-jack)

1× SERVICE (Micro-USB jack)

Output:1×HDMI OUT (Type A, 19-pin female)

1× IR OUT (3.5mm Stereo Mini-jack)

2× USB (USB-A, 4-pin female)

Mechanical

Housing

Metal Enclosure

Color

Black

Dimensions

140mm (W)×65mm (D)×18mm (H)

Weight

Transmitter: 246g, Receiver: 246g

Power Supply

DC 24V/1A; Support POC function

Power

Consumption

10W

Operating

Temperature

0°C ~ 40°C / 32°F ~ 104°F

Storage

Temperature

-20°C ~ 60°C / -4°F ~ 140°F

Relative Humidity

20~90% RH (non-condensing)

5. Product Overview

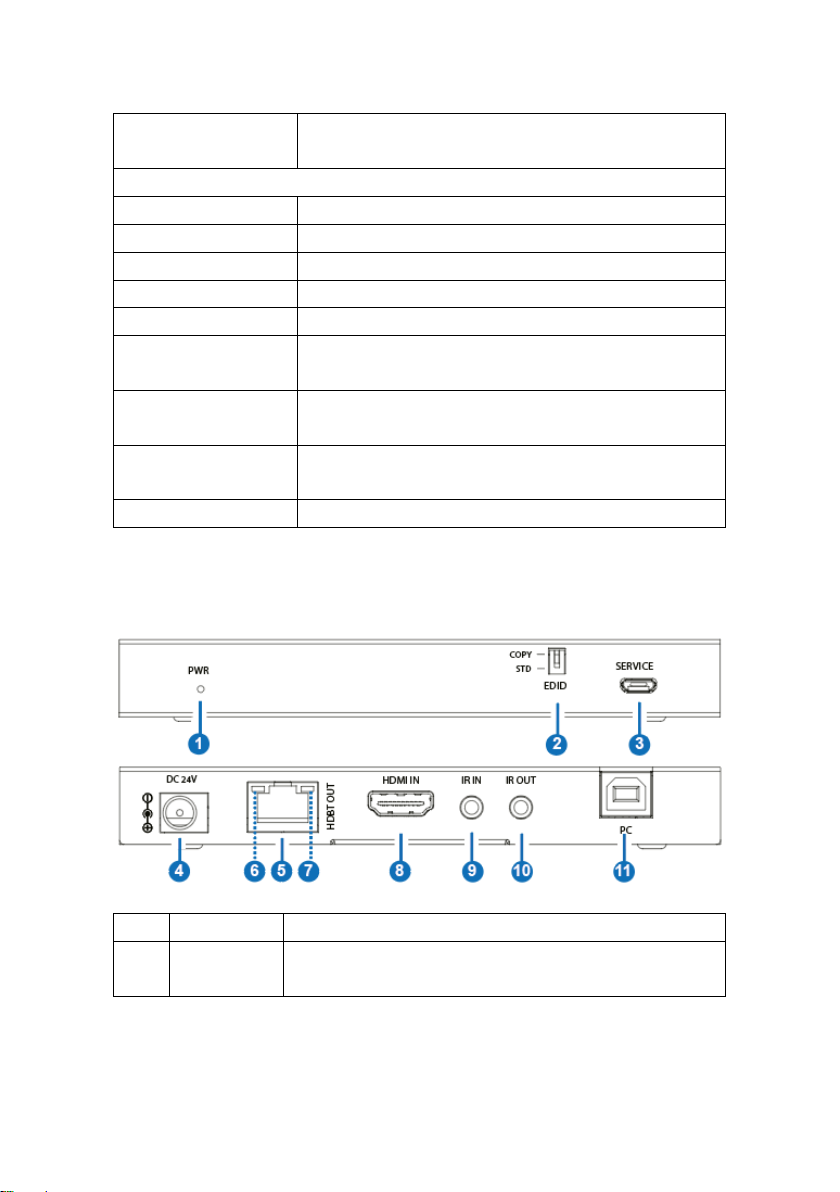

5.1 Transmitter Panel

No.

Name

Function Description

PWR LED

The red LED is on when the Transmitter is

powered on.

EDID DIP

switch

Used for EDID setting (dial to COPY by default).

COPY: Copy the EDID of the HDMI OUT port of

Receiver. STD: Default 1080P 2CH

SERVICE

Firmware update port.

DC 24V

DC 24V/1A power input port.

Note that the extender supports POC function, it

means that either Transmitter or Receiver is

connected to 24V/1A power supply, the other

doesn’t need power supply.

HDBT

OUT

HDBT output port, connecting to the HDBT IN

port of the Receiver with CAT6 cable.

Link

Signal

Indicator

(Green)

Illuminating: Transmitter and Receiver are in

good connection status.

Flashing: Transmitter and Receiver are in

poor connection status.

Dark: Transmitter and Receiver are not

connected.

Data

Signal

Indicator

(Yellow)

Illuminating: HDMI signal with HDCP.

Flashing: HDMI signal without HDCP.

Dark: No HDMI signal.

HDMI IN

HDMI signal input port, connecting to HDMI

source device such as DVD play or Set Top Box.

IR IN

Connect to IR receiver cable, the IR receive

signal will emit to the IR OUT port of the

Receiver.

IR OUT

Connect to IR blaster cable, the IR emit signal

is from the IR IN port of the Receiver.

USB-B port, connecting to PC.

5.2 Receiver Panel

No.

Name

Function Description

Power LED

The power LED is on when the Receiver is

powered on.

SERVICE

Firmware update port.

DC 24V

DC 24V/1A power input port.

Note that the extender supports POC function,

it means that either Transmitter or Receiver is

connected to 24V/1A power supply, the other

doesn’t need power supply.

HDBT IN

HDBT input port, connecting to the HDBT

OUT port of Transmitter with CAT6 cable.

Link

Signal

Indicator

(Green)



Illuminating: Transmitter and Receiver are

in good connection status.

Flashing: Transmitter and Receiver are in

poor connection status.

Dark: Transmitter and Receiver are not

connected.

Data Signal

Indicator

(Yellow)



Illuminate: HDMI signal with HDCP.

Flash: HDMI signal without HDCP.



Dark: No HDMI signal.

HDMI OUT

HDMI signal output port, connecting to

HDMI display device such as TV or monitor.

IR IN

Connect to the IR receiver cable. The IR

signal will send to the IR OUT port of the

Transmitter.

IR OUT

Connect to the IR blaster cable, the IR signal

is from IR IN port of the Transmitter.

USB ports

Two USB-A ports, connecting to keyboard

and mouse respectively.

5.3 IR Pin Definition

IR Receiver and Blaster pins definition is as below:

IR RECEIVER

IR BLASTER

1) IR Blaster Signal

2) Power

3) NC

1) IR Signal

2) Power

3) Grounding

Note:

When the angle between the IR receiver and the remote control is

± 45°, the transmission distance is 0-5 meters;

When the angle between the IR receiver and the remote control is

± 90°, the transmission distance is 0-8 meters.

6. Application Example

Transmitter

Receiver

Power Supply

CAT6 Cable

DVD or Blu-ray Player

IR Receiver

IR Blaster

UHDTV

Keyboard

Mouse
