Digitus DA-71547 User manual
NVMe/SATA Docking Station
Quick Installation Guide
DA-71547
2
1. Description
The SSD Docking Station from DIGITUS® can accommodate M.2
SSDs in NVMe or SATA technology with up to 4 TB. Supports NVMe
SSDs with B+M Key & M-Key and SATA SSDs with B+M-Key, each in
the formats 2242, 2260, 2280 & 22110. Easily extend the storage
capacity of numerous USB-C™ devices such as PCs, notebooks, TVs,
gaming consoles or routers.
2. Feature
Supports SATA M.2. B+M Key SSD and NVMe M Key SSD
Supported formats: 2242, 2260, 2280 & 22110
Supports cards NVMe & SATA SSDs up to 4 TB capacity
High data transfer rate of up to 10 Gbps (U.A.S.P + T.R.I.M
support)
USB-C™ connection: USB 3.2 Gen2
Backwards-compatible with USB 3.0 / USB 2.0
Ideal storage extension for notebooks, PCs, gaming consoles,
TVs, NAS or routers (USB-C™)
Supports Hot Swap (Plug in and eject during operation)
Plug and Play, no driver installation required
LED indicators for hard drive transfer (blue), and power (blue)
Manufacturer's notes: Not all USB-C™ ports support all features
of the USB Type-C™ standard. Make sure that the USB-C™ port
of your notebook supports DisplayPort Alternate Mode (DP-Alt
modes) as well as USB Power Delivery (PD).
3
3. Package content
1 x SSD Docking Station
1 x Quick start guide
4. Specification
USB-C™ connection
1 x Data USB-C™ 3.2 Gen2,
1 x Power jack USB-C™
Storage formats
NTFS, FAT, FAT32
Connection cable
18cm
Dimensions
W: 6 x D: 6 x H: 1,45cm
Weight
40 g
Material
Aluminum + ABS
Color
black
Operating
temperature
-40°C ~ 80°C
Systems
Windows 11/10/8/8.1/7/XP, mac OS
10.0 or higher
Applications
PC, notebook, TV, router or gaming
console (with USB-C™ connection)
4
5. Product Details
1
M.2 Slot
3
Power Switch
2
Power LED
4
Type-c
5
6. PC mode (Read and Write)
6.1 SSD installation
Insert NVMe M.2 SSD into M.2 slot.
6

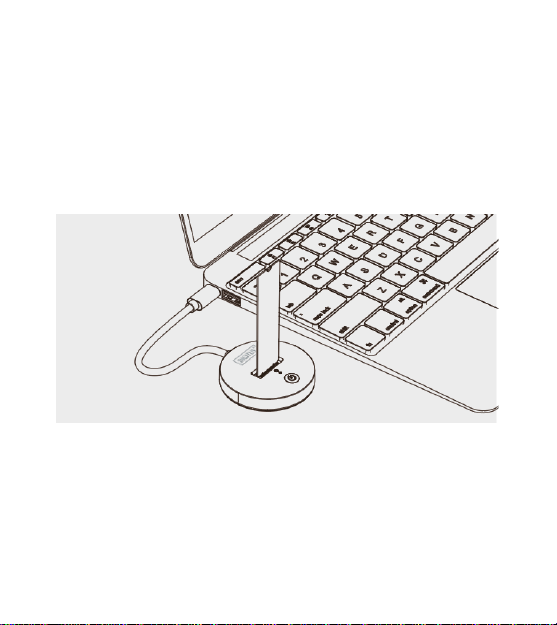

6.1 Reading & Writing
Connect to PC with Type C port.
Press the power button, blue light will be on when connected
to power, flash when reading & writing HDD / SSD
Driver will be installed automatically; you can see the notice at
the lower right corner of the computer.
When driver is installed successfully, click disk management to
find the external M.2 SSD
Note: If it is used SSD, you could find it in “computer “, reading &
writing normally.
If it is new SSD, need to initialize, partition, format it before use.
7
7. New hard disk format
7.1 View “computer-Manage-disk management” to find
the new disk.
8
7.2 Right click the “Disk 1” then click “New Simple
Volume”.
9
8. Hard disk partition
8.1 According to the instruction, choose the size of
partition then click “Next” to finish.
8.2 Then you can find the new hard disk in the “computer”,
it’s ready to be use.
10
Hereby Assmann Electronic GmbH, declares that the Declaration of
Conformity is part of the shipping content. If the Declaration of
Conformity is missing, you can request it by post under the below
mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
