Digigram BOB8 User manual

BOB8/BOB12/BOB16AES

 User’smanual 



BOB8/BOB12/BOB16AES



ProfessionalBreakoutBoxes

forDigigramMultichannelSoundCardsandIQOYA*SERV/LINK



BOB8/BOB12/BOB16AES
 User’smanual 





1IMPORTANTNOTICE
2CONTENTSOFTHISPACKAGE
3PRODUCTSPECIFICATIONS
3.1Sizeandweight
3.2Connectors
3.3RearpanelBOB8/BOB12/BOB16AES
3.4BOB8frontpanel
3.5BOB8wiringdiagram
3.6BOB8pinout
3.7BOB12frontpanel
3.8BOB12wiringdiagram
3.9BOB12pinoutbrochage
3.10BOB16AESfrontpanel
3.11BOB16AESwiringdiagram
3.12BOB16AESpinout
4MOUNTINGTHEBRACKETS
5WHICHBOBforWHICHCARD?
















Copyright2005Digigram.Allrightsreserved.
No portion of this manual may be reproduced without prior written consent from Digigram. The copyright protection claimed                 
hereincludesphotocopying,translationand/orreformattingoftheinformationcontainedinthismanual.
Whileeveryefforthasbeenmadetoensureaccuracy,Digigramisnotresponsibleforerrorsandomissions,andreservesthe
righttomakeimprovementsorchangesintheproductsandprogramsdescribedwithoutnotice.
DigigramandtheDigigramlogo,BOB8,andBOB12areregisteredtrademarksortrademarksofDigigramS.A.Other
trademarksarepropertyoftheirrespectiveholders.





BOB8/BOB12/BOB16AES

 User’smanual 

ThankyouforpurchasingaDigigramBreakoutBox.

Digigram’s BOB8, BOB12 and BOB16AES allow straightforward and secure        

connectiontoallI/OsofcompatibleDigigrammultichannelsoundcards:

∙PCX/LCM/VX cards disposing of a SubD 62 HD connector, with a connection           

cableSubD62HDmale/SubD62HDmale

∙Cards of the miXart 8 range

*

, with a connection cable SubD 62 HD / SCSI 40               

(analog)plusMDR26(digital)

*

onmiXart8CNandmiXart8ES,onlytheanalogI/OsaretransmittedtoBOB8

BOB8andBOB12useNeutrik



highqualityconnectors.

Forfurtherinformationorspecificcables,donothesitatetocontactyoursupplier.





 

BOB8/BOB12/BOB16AES

 User’smanual 

1IMPORTANTNOTICE



To ensure full compliance of our products, the breakout boxes have been tested in             

combination with Digigram sound cards against the following standards and found to           

comply:

∙International:CISPR22ClassB

∙Europe:EMC89/336/CEE(1992)specifications

∙UnitedStates:FCCRulesPart15ClassB(digitaldevice)



Inordertoguaranteecompliancewiththeabovestandardsinaninstallation:

∙thebreakoutboxesmustnotbemodified

∙ additional cables used must have their respective shield connected to each           

extremity



2CONTENTSOFTHISPACKAGE



Thepackageconsistsofthefollowingcomponents:

● a2U19inchbreakoutbox

● 4mountingbrackets(includingfastenings)

● theUser’sManualathand

● acable(SubD62HDmaletomale)toconnectyourDigigramSoundcardto

thebreakoutbox*

● Acableof2metersisincludedinthedeliveryofany

BOB8/BOB12/BOB16AESpackagedwithaDigigrammultichannelsound

card.



Foraseparatelypurchasedbreakoutbox,cablesareavailableoptionally.





Alsoavailable(optional):

Setofthreelabelcarriers

BOB8/BOB12/BOB16AES

 User’smanual 

3PRODUCTSPECIFICATIONS

3.1Sizeandweight



BOB8

BOB12

BOB16AES

Dimensions

2U19''rack

440x88x150mm(widthxheightxdepth)



Mountingbrackets:

0.09x0.35x0.07''(22x88x16mm)

Weight

~2.65kg(~5.85

lbs)

~2.60kg(~5.75

lbs)

~2.55kg(~5.65lbs)

Note: themountingbracketsdeliveredwithDigigram’sbreakoutboxeshavebeendesigned

toensureutmostflexibilityallowinganyoftheseinstallationconfigurations:rackfront

end,rackbackend,underatable,topofatable



3.2Connectors



BOB8

BOB12

BOB16AES

Analoglineinputs(mono)

8

2



DigitalAES/EBUstereoinput(s)

4

1

8

DigitalAES/EBUSyncstereo

input

1

StandardWordClockinput

1

VideoSyncinput

1



SMPTE/LTCSyncinput

(LinearTimeCode)

1



Analoglineoutputs(mono)

8

12



DigitalAES/EBUstereooutputs

4

6

8

StandardWordClockoutput

1



BOB8/BOB12/BOB16AES

 User’smanual 



3.3RearpanelBOB8/BOB12/BOB16AES

TherearpanelsofthebreakoutboxesareequippedwithaSubD62HD(female)connector

tointerfaceyoursoundcardandBOB8orBOB12.







3.4BOB8frontpanel



BOB8/BOB12/BOB16AES

 User’smanual 

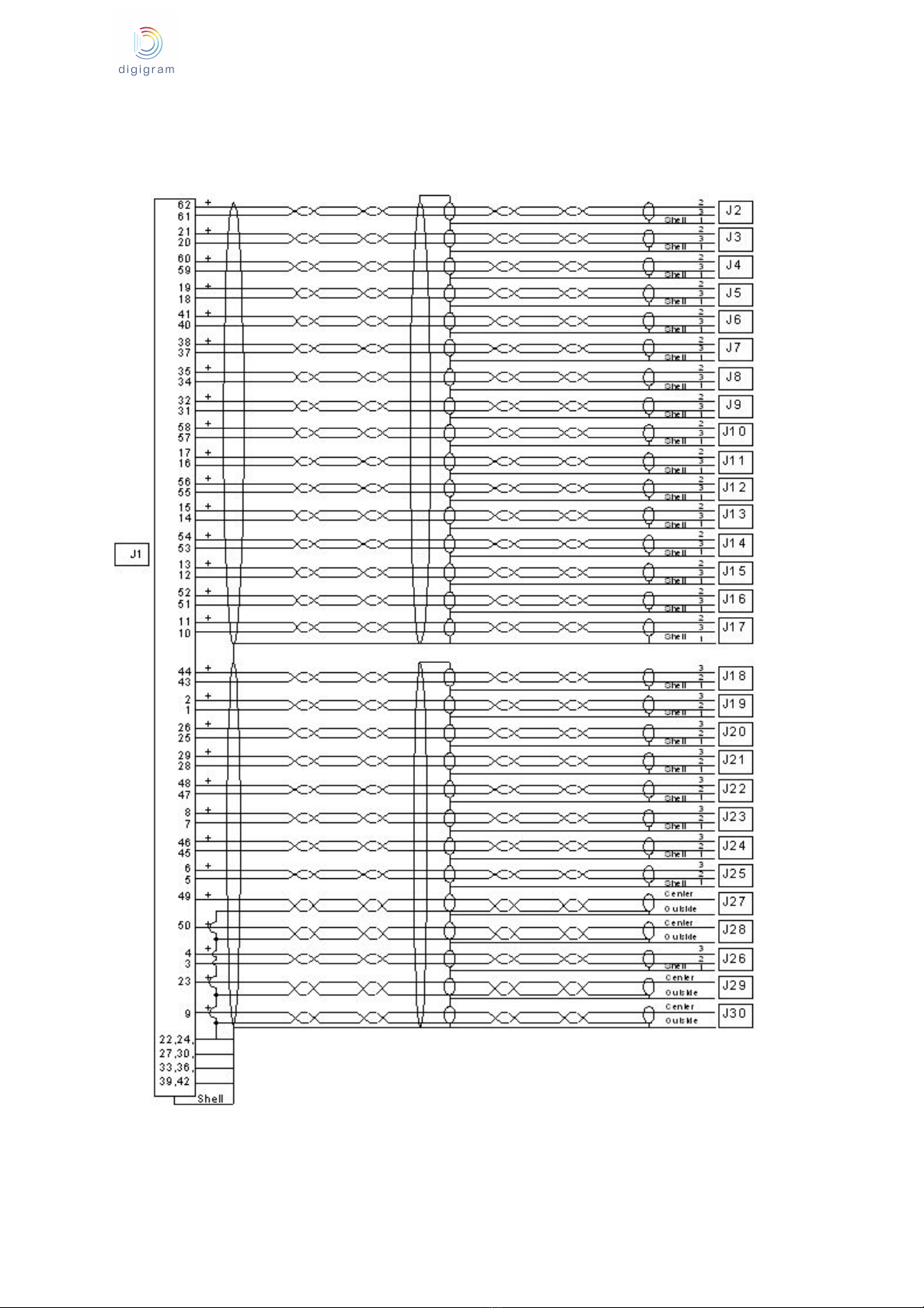

3.5BOB8wiringdiagram



BOB8/BOB12/BOB16AES

 User’smanual 

3.6BOB8pinout

Digita

l

Pin

Signal

Pin

Signal

Pin

Signal

1

AES/EBUIN

2

22

GND

43

AES/EBUIN

1

2

AES/EBUIN

2+

23

VidéoIN

44

AES/EBUIN

1+

3

AES/EBU

SYNC

24

GND

45

AES/EBU

OUT3

4

AES/EBU

SYNC+

25

AES/EBUIN

3

46

AES/EBU

OUT3+

5

AES/EBU

OUT4

26

AES/EBUIN

3+

47

AES/EBU

OUT1

6

AES/EBU

OUT4+

27

GND

48

AES/EBU

OUT1+

7

AES/EBU

OUT2

28

AES/EBUIN

4

49

WordClock

IN

8

AES/EBU

OUT2+

29

AES/EBUIN

4+

50

WordClock

OUT

Analo

g

9

LTCIN

30

GND

51

OUT7

10

OUT8

31

IN8

52

OUT7+

11

OUT8+

32

IN8+

53

OUT5

12

OUT6

33

GND

54

OUT5+

13

OUT6+

34

IN7

55

OUT3

14

OUT4

35

IN7+

56

OUT3+

15

OUT4+

36

GND

57

OUT1

16

OUT2

37

IN6

58

OUT1+

17

OUT2+

38

IN6+

59

IN3

18

IN4

39

GND

60

IN3+

19

IN4+

40

IN5

61

IN1

20

IN2

41

IN5+

62

IN1+

21

IN2+

42

GND





BOB8/BOB12/BOB16AES

 User’smanual 

3.7BOB12frontpanel



BOB8/BOB12/BOB16AES

 User’smanual 

3.8BOB12wiringdiagram



3.9BOB12pinoutbrochage

Digi

tal

Pin

Signal

n

Signal

n

Signal

1

NC

22

GND

43

AES/EBU

IN1
