OWNER’S OPERATION AND INSTALLATION MANUAL

Model: RP30B and CGP18B

BLUE-FLAME VENT-FREE

PROPANE GAS HEATER

WARNING: If the information in this manual is not followed exactly, a fire or

explosion may result causing property damage, personal injury, or loss of life.

— Do not store or use gasoline or other flammable vapors and liquids in the

vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Donottouchanyelectricalswitch;donotuseanyphoneinyourbuilding.

• Immediately call your gas supplier from a neighbor’s phone. Follow the

gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a qualified installer, service

agency, or the gas supplier.

100098

CONTENTS SECTION PAGE

Safety Information.........................................................................2

Product Identification .................................................................... 4

Local Codes ...................................................................................4

Unpacking......................................................................................4

Product Features ............................................................................4

Fresh Air For Combustion And Ventilation ..................................5

Installing To Wall..........................................................................9

Connecting To Gas Supply............................................................14

Checking Gas Connections............................................................15

Operating Heater ........................................................................... 17

Inspecting Burner ..........................................................................19

Cleaning And Maintenance ...........................................................21

Troubleshooting.............................................................................21

Technical Service ..........................................................................25

Specifications ................................................................................ 25

Service Hints ................................................................................. 25

Replacement Parts .........................................................................26

Parts Centrals.................................................................................26

Accessories ....................................................................................27

Illustrated Parts List.......................................................................28-31

Warranty Information .................................................................... Back Cover

WARNING ICON G001

WARNINGS

IMPORTANT: Read this Owner’s Manual carefully and completely

before trying to assemble, operate, or service this heater. Improper

use of this heater can cause serious injury or death from burns, fire,

explosion, electrical shock, and carbon monoxide poisoning.

WARNING ICON G001

DANGER

Carbon monoxide poisoning may lead to death!

Carbon Monoxide Poisoning: Early signs of carbon monoxide poisoning

resemble the flu, with headaches, dizziness, or nausea. If you have these signs, the

heater may not be working properly. Get fresh air at once! Have heater serviced.

Some people are more affected by carbon monoxide than others. These include

pregnant women, persons with heart or lung disease or anemia, those under the

influence of alcohol, and those at high altitudes.

Propane Gas: Propane gas is odorless. An odor-making agent is added to

propane gas. The odor helps you detect a propane gas leak. However, the odor

added to propane gas can fade. Propane gas may be present even though no odor

exists.

Make certain you read and understand all Warnings. Keep this manual for

reference. It is your guide to safe and proper operation of this heater.

SAFETY

INFORMATION

Safety Information continued on page 3

100098

SAFETY

INFORMATION

Continued

WARNING ICON G001

WARNINGS

Continued

WARNING: Any change to this heater or its controls can be dangerous.

1. Use only propane gas. Do not convert heater to use different fuel type.

2. Do not place propane supply tank(s) inside any structure. Locate propane

supply tank(s) outdoors.

3. This heater shall not be installed in a bedroom or bathroom.

4. If you smell gas

• Shut off gas supply

• Do not try to light any appliance

• Do not touch any electrical switch; do not use any phone in your building

• Immediately call your gas supplier from a neighbor’s phone. Follow the

gas supplier’s instructions

• If you cannot reach your gas supplier, call the fire department

5. Never install the heater

• in a recreational vehicle

• where curtains, furniture, clothing, or other flammable objects are less than

36 inches from the front, top, or sides of the heater

• as a fireplace insert

• in high traffic areas

• in windy or drafty areas

6. This heater needs fresh, outside air ventilation to run properly. This heater has

an oxygen depletion sensor (ODS) pilot light safety system. The ODS shuts

down the heater if not enough fresh air is available. See Fresh Air for Combus-

tion and Ventilation, pages 5 through 8.

7. Never run heater in small, closed room.

8. If heater shuts off, do not relight until you provide fresh, outside air. If heater

keeps shutting off, have it serviced.

9. Do not run heater

• where flammable liquids or vapors are used or stored

• under dusty conditions

10.Never place any objects on the heater.

11.Surface of heater becomes very hot when running heater. Keep children and

adults away from hot surface to avoid burns or clothing ignition. Heater will

remain hot for a time after shut-down. Allow surface to cool before touching.

12.Carefully supervise young children when they are in same room with heater.

13.Make sure grill guard is in place before running heater.

14.Do not use heater if any part has been under water. Immediately call a quali-

fied service technician to inspect the room heater and to replace any part of the

control system and any gas control which has been under water.

15.Turn off and unplug heater and let cool before servicing. Only a qualified

service person should service and repair heater.

16. Operating heater above elevations of 4,500 feet may cause pilot outage.

100098

PRODUCT

IDENTIFICATION

Figure 1 - Vent-Free Propane Gas Heater

Ignitor Button Control Knob

Heater

Cabinet

Front

Panel

Heat Shield

(RP30B) or

Glass Panel

(CGP18B)

Grill

Guard

PRODUCT

FEATURES

Safety Device

This heater has a pilot with an Oxygen Depletion Sensor Shutoff System (ODS).

The ODS/pilot is a required feature for vent-free heaters. The ODS/pilot shuts off

the heater if there is not enough fresh air.

Piezo Ignition System

This heater has a piezo ignitor. This system requires no matches, batteries, or other

sources to light heater.

UNPACKING 1. Remove heater from carton.

2. Remove all protective packaging applied to heater for shipment.

3. Check heater for any shipping damage. If heater is damaged, promptly inform

dealer where you bought heater.

LOCAL CODES Install and use heater with care. Follow all local codes. In the absence of local

codes, use the latest edition of National Fuel Gas Code ANSI Z223.1, also known

as NFPA 54*.

*Available from: American National Standards Institute, Inc.

1430 Broadway

New York, NY 10018

National Fire Protection Association, Inc.

Batterymarch Park

Quincy, MA 02269

100098

FRESH AIR

FOR

COMBUSTION

AND

VENTILATION

WARNING ICON G 001

WARNING

This heater must have fresh air for proper operation. If not, poor

fuel combustion could result. Read the following instructions to

insure proper fresh air for this and other fuel-burning appliances

in your home.

Today’s homes are built more energy efficient than ever. New materials, increased

insulation, and new construction methods help reduce heat loss in homes. Home

owners weather strip and caulk around windows and doors to keep the cold air out

and the warm air in. During heating months, home owners want their homes as

airtight as possible.

While it is good to make your home energy efficient, your home needs to breathe.

Fresh air must enter your home. All fuel-burning appliances need fresh air for

proper combustion and ventilation.

Exhaust fans, fireplaces, clothes dryers, and fuel burning appliances draw air from

the house to operate. You must provide adequate fresh air for these appliances.

This will insure proper venting of vented fuel-burning appliances.

PRODUCING ADEQUATE VENTILATION

All spaces in homes fall into one of the three following ventilation classifications:

1. Unusually Tight Contruction; 2. Unconfined Space; 3. Confined Space.

The information on pages 5 through 8 will help you classify your space and provide

adequate ventilation.

Unusually Tight Construction

The air that leaks around doors and windows may provide enough fresh air for

combustion and ventilation. However, in buildings of unusually tight construction,

you must provide additional fresh air.

Unusually tight construction is defined as construction where:

a. walls and ceilings exposed to the outside atmosphere have a continu-

ous water vapor retarder with a rating of one perm or less with open-

ings gasketed or sealed

and

b. weather stripping has been added on openable windows and doors

and

c. caulking or sealants are applied to areas such as joints around window

and door frames, between sole plates and floors, between wall-ceiling

joints, between wall panels, at penetrations for plumbing, electrical, and

gas lines, and at other openings.

If your home meets all of the three criteria above, you must provide addi-

tional fresh air. See

Ventilation Air From Outdoors

, page 8

If your home does not meet all of the three criteria above, continue reading.

Unconfined Space

An unconfined space has a minimum air volume of 50 cubic feet for each 1000

BTU/Hr input rating of all appliances in the space (cubic feet equals length x

width x height of space). Include adjoining rooms only if there are doorless

passageways or ventilation grills between the rooms.

Confined Space

A confined space has an air volume of less than 50 cubic feet for each 1000

BTU/Hr input rating of all appliances in the space (cubic feet equals length x

width x height of space). Include adjoining rooms only if there are doorless

passageways or ventilation grills between the rooms. Continued

100098

FRESH AIR

FOR

COMBUSTION

AND

VENTILATION

Continued

WARNING ICON G001

WARNING

You must provide additional ventilation air in a confined space.

DETERMINING FRESH-AIR FLOW FOR HEATER LOCATION

Determining if You Have a Confined or Unconfined Space

Use this worksheet to determine if you have a confined or unconfined space.

Space: Includes the room in which you will install heater plus any adjoining rooms with

doorless passageways or ventilation grills between the rooms.

1. Determine the volume of the space (length x width x height).

Length x Width x Height = ___________________ cu. ft. (volume of space)

Example:

Space size 20 ft. (length) x 16 ft. (width) x 8 ft. (ceiling height) =

2560 cu. ft. (volume of space)

If additional ventilation to adjoining room is supplied with grills or openings, add the

volume of these rooms to the total volume of the space.

2. Divide the space volume by 50 cubic feet to determine the maximum BTU/Hr the space

can support.

____________ (volume of space) ÷50 cu. ft. = (Maximum BTU/Hr

the space can support)

Example:

2560 cu. ft. (volume of space) ÷50 cu. ft. =51.2 or 51,200 (maximum

BTU/Hr the space can support)

3. Add the BTU/Hr of all fuel burning appliances in the space.

Vent-free heater ___________________ BTU/Hr

Gas water heater* ___________________ BTU/Hr

Gas furnace ___________________ BTU/Hr

Vented gas heater ___________________ BTU/Hr

Gas fireplace logs ___________________ BTU/Hr

Other gas appliances* +___________________ BTU/Hr

Total =___________________ BTU/Hr

Example:

Gas water heater 40,000 BTU/Hr

Vent-free heater +18,000 BTU/Hr

Total =58,000 BTU/Hr

* Do not include direct-vent gas appliances. Direct-vent draws combustion air from the

outdoors and vents to the outdoors.

4. Compare the maximum BTU/Hr the space can support with the actual amount of BTU/

Hr used.

_________________ BTU/Hr (maximum the space can support)

_________________ BTU/Hr (actual amount of BTU/Hr used)

Example:

51,200 BTU/Hr (maximum the space can support)

58,000 BTU/Hr (actual amount of BTU/Hr used)

The space in the above example is a confined space because the actual BTU/Hr used is

more than the maximum BTU/Hr the space can support. You must provide additional fresh

air. Your options are as follows:

A. Rework worksheet, adding the space of an adjoining room. If the extra space provides

an unconfined space, remove door to adjoining room or add ventilation grills between

rooms. See Ventilation Air From Inside Building, page 7.

B. Vent room directly to the outdoors. See Ventilation Air From Outdoors, page 8.

C. Install a lower BTU/Hr heater, if lower BTU/Hr size makes room unconfined.

If the actual BTU/Hr used is less than the maximum BTU/Hr the space can support, the

space is an unconfined space. You will need no additional fresh air ventilation.

100098

FRESH AIR

FOR

COMBUSTION

AND

VENTILATION

Continued

VENTILATION AIR

Ventilation Air From Inside Building

This fresh air would come from an adjoining unconfined space. When ventilating to an

adjoiningunconfinedspace,you must provide two permanent openings: one within 12" of the

ceilingandonewithin12"of theflooronthewallconnectingthetwospaces(seeoptions 1and

2, Figure 2). You can also remove door into adjoining room (see option 3, Figure 2).

WARNING ICON G001

WARNING

Rework worksheet, adding the space of the adjoining unconfined

space.

The combined spaces must have enough fresh air to supply all

appliances in both spaces.

Figure 2 - Ventilation Air from Inside Building

Remove

Door into

Adjoining

Room,

Option 3

Ventilation Grills

Into Adjoining Room,

Option 2

12"

Ventilation

Grills

into Adjoining

Room,

Option 1

Continued

100098

FRESH AIR

FOR

COMBUSTION

AND

VENTILATION

Continued

VENTILATION AIR

(Continued)

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation grills or ducts. You must provide two perma-

nent openings: one within 12" of the ceiling and one within 12" of the floor. Connect these

items directly to the outdoors or spaces open to the outdoors. These spaces include attics

and crawl spaces. Follow the National Fuel Gas Code NFPA 54/ANSI Z223.1, Section 5.3,

Air for Combustion and Ventilation for required size of ventilation grills or ducts.

IMPORTANT:

Do not provide openings for inlet or outlet air into attic if attic has a thermo-

stat-controlled power vent. Heated air entering the attic will activate the power vent.

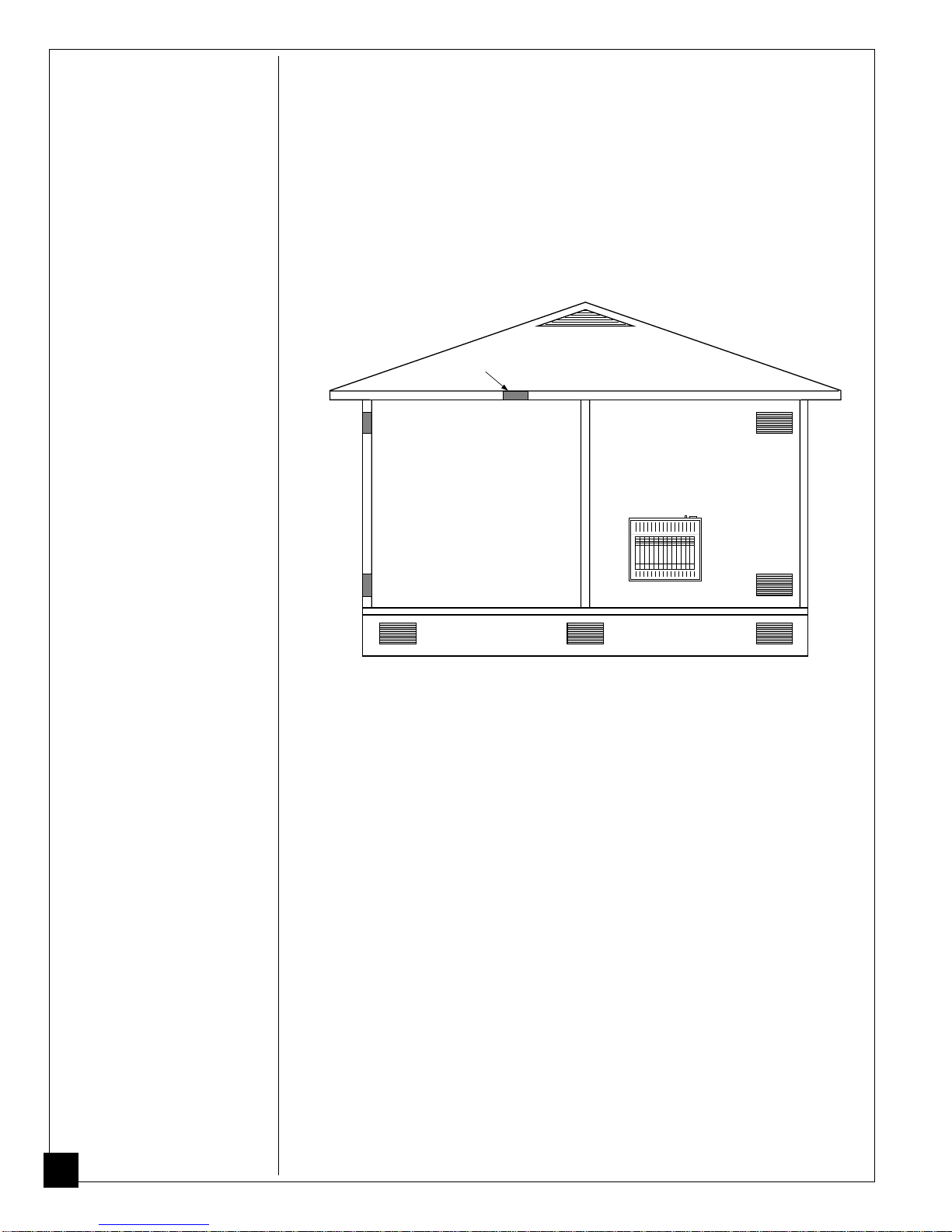

Outlet

Air Ventilated

Attic

Outlet

Air

Inlet

Air

Inlet Air Ventilated

Crawl Space

Crawl

Space

To Attic

Figure 3 - Ventilation Air from Outdoors

100098

INSTALLING

TO WALL NOTICE

Aqualifiedservicepersonmustinstallheater.Followalllocalcodes.

CHECK GAS TYPE

Use only propane gas. If your gas supply is not propane, do not install heater. Call

dealer where you bought heater for proper type heater.

INSTALLATION ITEMS

Before installing heater, make sure you have the items listed below.

• external regulator (supplied by

installer, see page 14)

• piping (check local codes)

• sealant (resistant to propane gas)

• manual shutoff valve *

• ground joint union

• test gauge connection * (see

Figure 13, page 15)

• sediment trap

• tee joint

• pipe wrench

* AnA.G.A. design certified manual shutoffvalve with 1/8" NPT tapis an acceptable

alternative to test gauge connection. Purchase the optional A.G.A. design certified

manual shutoff valve from your dealer. See Accessories, page 27.

LOCATING HEATER

This heater is designed to be mounted on a wall.

Continued

WARNING ICON G 001

WARNING

MaintaintheminimumclearancesshowninFigure4(page10).Ifyou

can, provide greater clearances from floor, ceiling, and joining wall.

You can locate model CGP18B on floor, away from a wall. An optional floor

mounting stand is needed. Purchase the floor mounting stand from your dealer. See

Accessories, page 27.

WARNING ICON G 001

WARNING

Never install the heater

• in a bedroom or bathroom

• in a recreational vehicle

• wherecurtains,furniture,clothing,orotherflammableobjectsare

less than 36 inches from the front, top, or sides of the heater

• as a fireplace insert

• in high traffic areas

• in windy or drafty areas

WARNING ICON G001

CAUTION

This heater creates warm air currents. These currents move heat

to wall surfaces next to heater. Installing heater next to vinyl or

cloth wall coverings or operating heater where impurities in the air

(such as tobacco smoke) exist, may discolor walls.

IMPORTANT:

Vent-free heaters add moisture to the air. Although this is beneficial, in-

stalling heater in rooms without enough ventilation air may cause mildew to form from

too much moisture. See Fresh Air for Combustion and Ventilation, pages 5 through 8.

100098

INSTALLING

TO WALL

Continued

WARNING ICON G 001

CAUTION

If you install the heater in a home garage

• heater pilot and burner must be at least 18 inches above floor

• locate heater where moving vehicle will not hit it

For convenience and efficiency, install heater

• where there is easy access for operation, inspection, and service

• where strong wind gusts from an open door or garage door can not blow

directly into heater.

An optional fan kit is available from your dealer. See Accessories, page 27. If

planning to use fan, locate heater near an electrical outlet.

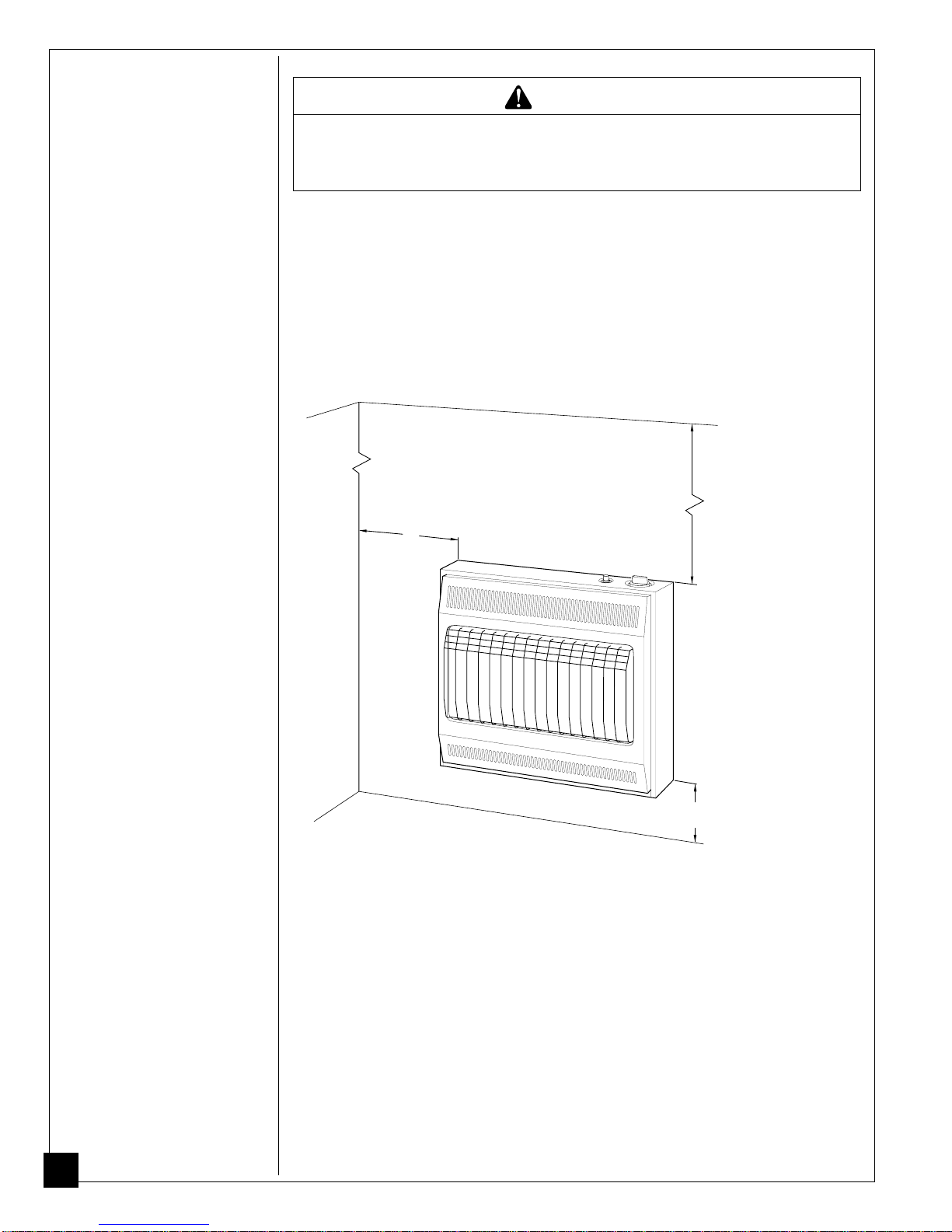

36"

FLOOR

CEILING

Minimum

Minimum To Floor

Minimum

From

Sides Of

Heater

Left

Side Right

Side

*163/4" - RP30B

*3" - CGP18B

Figure 4 - Mounting Clearances As Viewed From Front of Heater

This manual suits for next models

Table of contents

Other Desa Gas Heater manuals

Desa

Desa Comfort Glow CGP10A Quick start guide

Desa

Desa GN30A Original instructions

Desa

Desa Comfort Glow CCL3924NR Quick start guide

Desa

Desa 24" Variably-Controlled Models Quick start guide

Desa

Desa Design Dynamics HCA-18-RFN Quick start guide

Desa

Desa VN10TA Quick start guide

Desa

Desa Glo-Warm FB-10BA Quick start guide

Desa

Desa Flame-Max VYD24 Specification sheet

Desa

Desa GN30T Original instructions

Desa

Desa BLP375AT User manual

Desa

Desa VN1000BTA Quick start guide

Desa

Desa NZ108 Original instructions

Desa

Desa Flame-Max VYM27PR Quick start guide

Desa

Desa FLAME-MAX FLAME-MAX Golden Specification sheet

Desa

Desa VMH3000TPA Quick start guide

Desa

Desa VGC24NR User manual

Desa

Desa CDL3924NT Quick start guide

Desa

Desa RCP275 User manual

Desa

Desa CGP18C Quick start guide

Desa

Desa 102783-01B Quick start guide

Desa

Desa 10542 Original instructions

Desa

Desa FLAME-MAX VYM27NR Quick start guide

Desa

Desa HRB3624 Quick start guide

Desa

Desa BLP50VA User manual

Popular Gas Heater manuals by other brands

Superior

Superior BGE18NV Installation and operation instructions

Dru

Dru Room-sealed atmospheric gas-fired heating... user manual

klover

klover TKR 35 user guide

Rothenberger Industrial

Rothenberger Industrial 035984 instruction manual

New Buck Corporation

New Buck Corporation 34 user manual

Hargrove

Hargrove Timberland Glow Operation and installation guide

Kinder

Kinder Cameo BF Installation and maintenance instructions

Qlima

Qlima GH 438 B-2 Directions for use

Gasmate

Gasmate AH100 Series instructions

Medallion

Medallion MBP20TLB OWNER'S OPERATION AND INSTALLATION MANUAL

Clarke

Clarke DEVIL 910SS User instructions

Superior

Superior BGE18NR Operation instructions

Brant Radiant Heaters

Brant Radiant Heaters QTD Series User instruction

L.B. White

L.B. White Therma Grow HW220 Owner's manual and instructions

Sealey

Sealey LP35.V5 instructions

Italkero

Italkero Falo Evo User manual and assembly instructions

Williams

Williams 2509822A owner's manual

Romotop

Romotop Heckla 1301 Installation, operator and maintenance manual
