Denver LDD-2466T2CS User manual

LED TV with DVB-T2/S2/DVB-C

Model: LDD-2466T2CS

User’s Guide

NOTE:

Read all of the instructions before using this TV and keep the instruction

manual in a safe place for future reference.

Contents

Auto Installation Setup 8

1.Channel Setting 9-13

OSD MENU 9-15

2.Picture menu 13

3.Sound menu 14

4.Time menu 14

5.Setup menu 14

Media Player 16

6.Lock menu 15

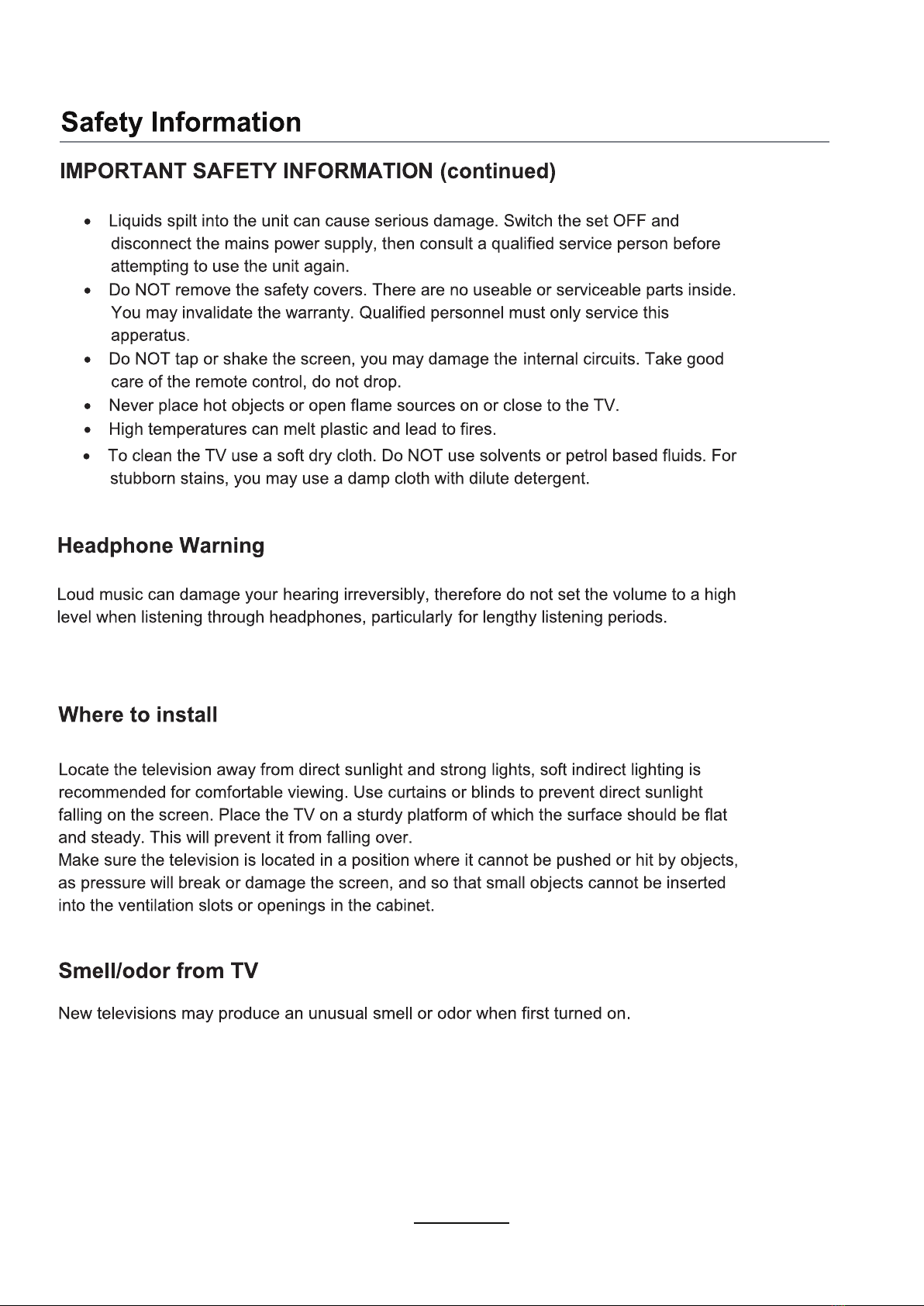

Due to the manufacturing process of components, televisions and other electronic products

can have parts that may produce a smell after the product is first turned on and warms up.

The smell will usually dissipate within a few days of use and does not return.

This is normal and occurs with many electronic products. Please ensure there is sufficient

ventilation around the TV and in the room and the odor will dissipate.

STANDBY:

Power Switch

(LDD-2466T2CS)

INPUT:

HDMI: Connect DVD/Blu-ray player or other equipment.

PC AUDIO

Coax: Digital output to AV receiver.

USB: Connect to USB device for multimedia (up to 1080P).

TV2(T2/C):

VGAPC AUDIOSCARTHDMIUSB

TV1(S2) TV2(T &C) COAX Common Interface

MINI

YPbPr

ETUMREWOP

EPG

INPUT

TIXEUNEM

HCLOV


SETUP

A-B GOTO

D-MENU

TITLE

HOLD SIZE SUBPAGE INDEX

NICAM/A2

TV/TXT CANCEL REVEAL

SOUND SLEEP

FAV

123 4

567 8

9 0

DISPLAY

REP

SUBTITLE

CH/LIST

PRO

SLOW

SCREEN

LAN

POWER: Turn the TV on/standby.

MUTE: Press to mute the sound, press again or press

VOL+ to unmute.

CH/LIST: Display the programs list.

SUBTITLE: Turn on/off the subtitle display in DTV mode

and DVD mode.

EPG: To show the Electronic Program Guide during no-menu

state only in DTV mode.

REP: Repeat playing the title or chapter.

: Load/eject DVD disc.

CURSOR KEYS OK

Allows you to navigate the on-screen menus and adjust the

system settings to your preference.

NUMBER BUTTONS

Press0-9 to select a TV channel directly when you

are watching TV.

Return to the previous channel viewed.

INPUT: Press to display the input source menu.

DISPLAY: Press to display the current mode’s information.

MENU: System setup menu.

EXIT: Exit the OSD menu.

FAV: Display the favorite program list.

: Previous chapter.

: Next chapter.

: Fast reverse.

: Fast forward.

: Stop program.

: Pause program.

: Play program.

ETUMREWOP

EPG

INPUT

TIXEUNEM

HCLOV


SETUP

A-B GOTO

D-MENU

TITLE

HOLD SIZE SUBPAGE INDEX

NICAM/A2

TV/TXT CANCEL REVEAL

SOUND SLEEP

FAV

1 2 3 4

5 6 7 8

9 0

DISPLAY

REP

SUBTITLE

CH/LIST

PRO

SLOW

SCREEN

LAN

SETUP: DVD system setup.

D-MENU: DVD play list/Disc menu.

TITLE: DVD title.

PRO: Edit the program and play.

LAN: Select DVD disc language.

A-B: Select and play the preferable paragraph of DVD program

by pressing this key twice at the beginning and end of it.

GOTO: Play your favorite title/chapter/track.

SLOW: Play DVD programs at slow speed.

CH / : Scan through channels.

VOL / : Adjust the volume.

PICTURE: Select the picture mode.

NICAM/A2: TV Nicam/A2 select.

SOUND: Select the sound mode.

SLEEP: Standby timer.

SCREEN: Turn on/off the screen display on USB music mode.

TV/TXT: Turn off/on the Teletext display.

CANCEL: Cancel the Teletext display.

REVEAL: Reveal any hidden text.

HOLD: Hold or carry on the current subpage.

SIZE: Press to see top half of page double size,

Press again to see the bottom

half of page double size. Press again for normal size.

SUBPAGE: Press to enter subpages, pressagain to cancel.

INDEX: Go to index.

Colour buttons:Short cuts-follow the coloured links in the text

blue

Use the Left/Right/Down keys to select your Language,

Country and Energy Model.

First Time Installation

Language < English >

Country < Germany >

Energy Mode < Home Mode >

Auto Standby < 4H >

OK Auto Tuning

Tune Type < DTV+ATV >

Tuning Setup

MENU Back OK Start

Digital Type < DVB-C >

Scan Type <Network Scan >

Network ID < Auto >

Frequency < Auto >

Sysmbol Rate < Auto >

Sorting by LCN < Off >

1.Press the Menu button on the remote control on your

LED TV to select the Setup menu.

2.Press the buttons to select the First Time

Installation.
