Denon AVR-X3200W User manual

Lisez-moi en premier.... / Lea esto primero....

ENGLISH

FRANÇAIS

ESPAÑOL

AVR-X3200W

INTEGRATED NETWORK AV RECEIVER

Quick Start Guide

Read Me First....

Guide de conguration rapide / Guía de conguración rápida

Please do not return this unit to the

store.

If you need help…

Check our AVR setup tips online

Usa.denon.com/SetupTips

Ca.Denon.com/SetupTips

Call for Assistance

1-855-MY.DENON (USA) 1-855-693-3666

1-800-668-0652 (Canada)

Monday – Friday 10:00AM to 10:00PM E.S.T

Saturday 12:00PM to 8:00PM E.S.T

1. AVR-X3200WE3_QSG_ENG_150520.indd 1 2015/05/22 11:54:50

All manuals and user guides at all-guides.com

all-guides.com

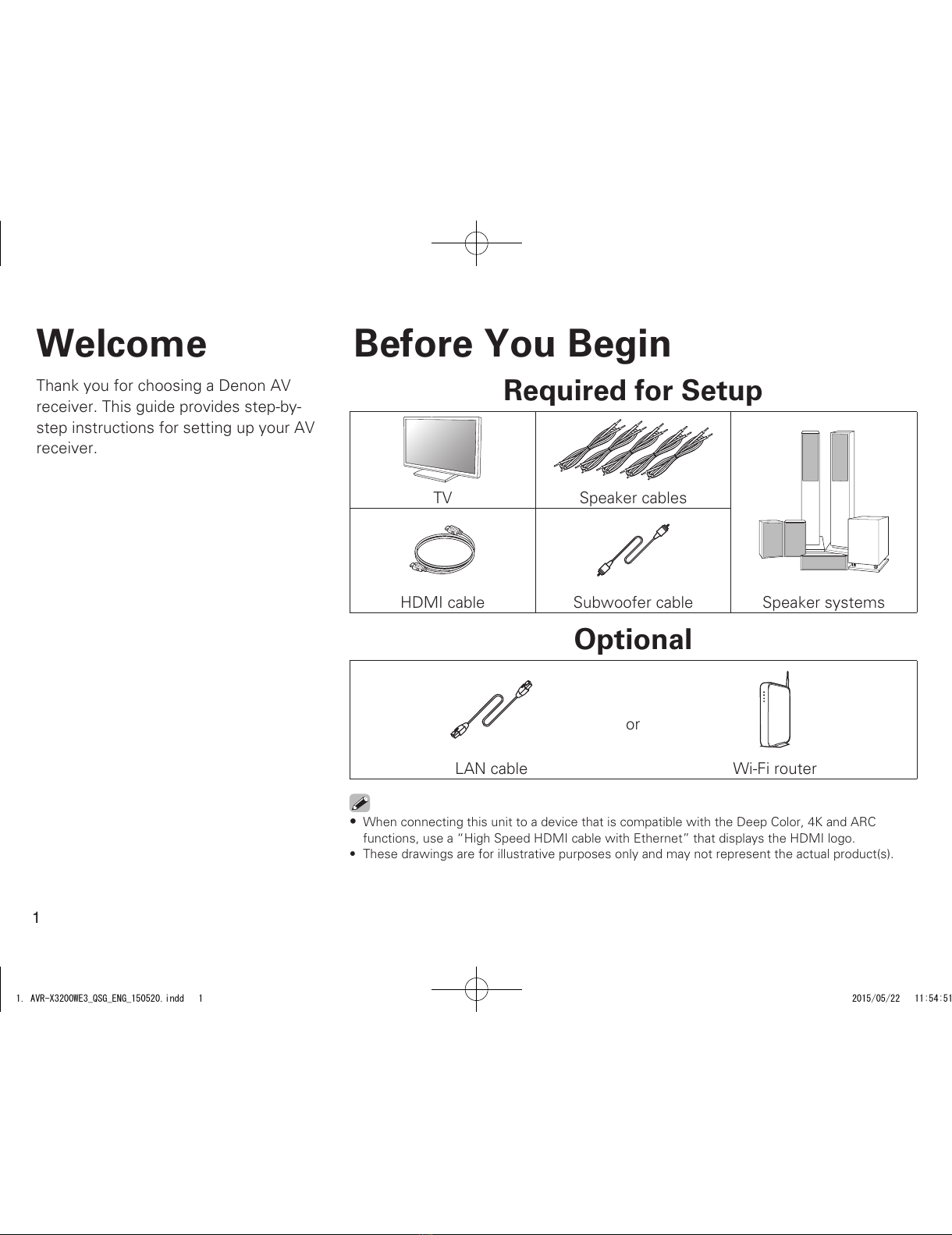

Thank you for choosing a Denon AV

receiver. This guide provides step-by-

step instructions for setting up your AV

receiver.

Welcome Before You Begin

Required for Setup

TV Speaker cables

HDMI cable Subwoofer cable Speaker systems

Optional

LAN cable Wi-Fi router

• When connecting this unit to a device that is compatible with the Deep Color, 4K and ARC

functions, use a “High Speed HDMI cable with Ethernet” that displays the HDMI logo.

• These drawings are for illustrative purposes only and may not represent the actual product(s).

1. AVR-X3200WE3_QSG_ENG_150520.indd 1 2015/05/22 11:54:51

All manuals and user guides at all-guides.com

What’s In the Box

Quick Start Guide

FM indoor antenna

Safety Instructions AM loop antenna

Notes on radio Sound calibration

microphone

Warranty

(for North America

model only)

Sound calibration

microphone stand

Cable labels Remote control unit

Receiver R03/AAA batteries

Power cord

The supplied Sound calibration microphone stand is convenient for use when

performing Speaker Calibration. Using your own tripod or the supplied Sound

calibration microphone stand enables settings to be automatically conﬁgured to

the optimum listening environment, providing exceptionally high performance.

1. AVR-X3200WE3_QSG_ENG_150520.indd 2 2015/05/22 11:54:52

All manuals and user guides at all-guides.com

1Installing batteries in the

remote control unit

R03/AAA batteries

There are three steps to the setup

process.

1Installing batteries in the remote control unit

2Connecting the receiver

3Following the On-Screen Setup Assistant

Setup

1. AVR-X3200WE3_QSG_ENG_150520.indd 3 2015/05/22 11:54:52

All manuals and user guides at all-guides.com

2Connecting the receiver

2.1) Place the receiver near your TV and

connect the power cord.

Receiver

Power cord

(supplied)

Connect to household

power outlet

(AC 120 V, 60 Hz)

1. AVR-X3200WE3_QSG_ENG_150520.indd 4 2015/05/22 11:54:52

All manuals and user guides at all-guides.com

2.2) Connect to the network.

Wired LAN

When connecting cables (wired connection), connect a LAN

cable between your receiver and your network router.

Internet Modem

Router

To WAN side

To LAN port

Wireless LAN

When using a wireless connection (Wi-Fi), rotate the antennas

upward.

Router with

access point To WAN side

Internet Modem

1. AVR-X3200WE3_QSG_ENG_150520.indd 5 2015/05/22 11:54:53

All manuals and user guides at all-guides.com

all-guides.com

2.4) Turn on the TV.

TV remote control unit

2.5) Select the appropriate HDMI input

on your TV.

HDMI TV/

VIDEO

INPUT or

TV remote control unit

2.3) Connect the receiver to your TV

with an HDMI cable.

(ARC)

HDMI IN

HDMI OUT

MONITOR

(ARC)

HDMI cable

Receiver (Rear panel)

ARC (Audio Return Channel) :

If your TV supports ARC, your TV can send audio back to the AV receiver

when you are using your TV’s built-in video sources (TV tuner, Smart TV

streaming services, etc…) ARC requires that you enable HDMI CEC on

your TV. Please refer to your TV’s Owner’s Manual for instructions on how

to setup HDMI CEC. Note that some TV manufacturers use other names

for the HDMI CEC function.

1. AVR-X3200WE3_QSG_ENG_150520.indd 6 2015/05/22 11:54:53

All manuals and user guides at all-guides.com

2.6) Turn on the receiver.

• Press Xto turn on the receiver.

2.7) Verify the connection.

• Verify that you can see this screen on your TV.

AV Reciever Setup Assistant

Please select a language...

Español

Français

English

If this screen is not displayed, please go back and

retry the steps again in the recommended sequence.

1. AVR-X3200WE3_QSG_ENG_150520.indd 7 2015/05/22 11:54:54

All manuals and user guides at all-guides.com

3Following the On-Screen Setup Assistant

The Setup Assistant will walk you through connecting and

conﬁguring your speakers and components to your Denon

receiver. Please use the remote control and follow the

on-screen instructions.

AV Reciever Setup Assistant

Please select a language...

Español

Français

English

1. AVR-X3200WE3_QSG_ENG_150520.indd 8 2015/05/22 11:54:54

All manuals and user guides at all-guides.com

Owner’s Manual

PDF

Overview

Connections

Playback

Settings

Tips

Appendix

PDF Download

INTEGRATED NETWORK AV RECEIVER

WEB Manual

AVR-X3200W

Contents

English

Online Manual

• For more information, visit www.denon.com

• Refer to the Online Manual for other functions

information and operation procedure details.

manuals.denon.com/AVRX3200W/NA/EN/

1. AVR-X3200WE3_QSG_ENG_150520.indd 9 2015/05/22 11:54:54
