Denon AVR-S770H User manual
Quick
Start
Guide
AVR-S770H
INTEGRATED NETWORK AV RECEIVER
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 11. AVR-S770HE2_QSG_ENG_00A_230606.indd 1 2023/06/06 11:42:112023/06/06 11:42:11
1
Thank you for choosing a Denon AVR.
Use the Setup Assistant function to help configure the settings for this unit when you first set it up.
Follow the guidance displayed on the TV screen connected to this unit to configure the settings.
This manual describes the procedure up until starting the Setup Assistant.
Please do not return this unit to the store – call for assistance.
If you need help… :
If you need additional help in solving problems, contact Denon customer service in your area.
www.denon.com
Welcome
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 11. AVR-S770HE2_QSG_ENG_00A_230606.indd 1 2023/06/06 11:42:122023/06/06 11:42:12
2
EN
DE
FR
IT
ES
NL
SV
RU
PL
Before you begin
• When connecting this unit to a device that is compatible with the Deep Color, 4K, ARC and eARC functions, use a “High Speed HDMI cable
with Ethernet” that displays the HDMI logo.
• When connecting this unit to a device that is compatible with 8K and 4K 120Hz video, use a certified “Ultra High Speed HDMI cable”. If you
use a different HDMI cable, the video may not display or other problems may occur.
Required for setup
TV Speaker cables
HDMI® cable Subwoofer cable
Speakers
Optional
LAN cable
Wi-Fi® router
or
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 21. AVR-S770HE2_QSG_ENG_00A_230606.indd 2 2023/06/06 11:42:122023/06/06 11:42:12
3
What’s in the box
Quick Start Guide AVR Sound calibration
microphone
Safety instructions Power cord Sound calibration
microphone stand
Cautions on using
batteries FM indoor antenna Remote control
(RC-1257)
Notes on radio AM loop antenna 2× R03/AAA batteries
Cable labels
• The included sound calibration microphone stand is convenient for performing speaker calibration. Using your own tripod or the supplied
Sound calibration microphone stand enables settings to be automatically configured to the optimum listening environment, providing
exceptionally high performance.
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 31. AVR-S770HE2_QSG_ENG_00A_230606.indd 3 2023/06/06 11:42:122023/06/06 11:42:12
4
EN
DE
FR
IT
ES
NL
SV
RU
PL
Attach the included cable labels
The supplied cable labels include labels for the speaker and HDMI cables.
Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown below.
This makes it easy to identify and properly connect the cables between your components.
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 41. AVR-S770HE2_QSG_ENG_00A_230606.indd 4 2023/06/06 11:42:132023/06/06 11:42:13
5
Rotate the antenna upwards for the best possible
reception.
Setup
Optional
If you are connecting the AVR to a wired network, connect an
Ethernet cable (not included) between the AVR and your router.
Do not connect the Ethernet cable if you are connecting the
AVR to a wireless network.
Router
LAN port
• The antennas are required for both Bluetooth and Wi-Fi
functions.
Rotate the antennas
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 51. AVR-S770HE2_QSG_ENG_00A_230606.indd 5 2023/06/06 11:42:132023/06/06 11:42:13
6
EN
DE
FR
IT
ES
NL
SV
RU
PL
Place the AVR near your TV and connect the power cord.
TV
AVR
Power cord
Connect the power cord
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 61. AVR-S770HE2_QSG_ENG_00A_230606.indd 6 2023/06/06 11:42:132023/06/06 11:42:13
7

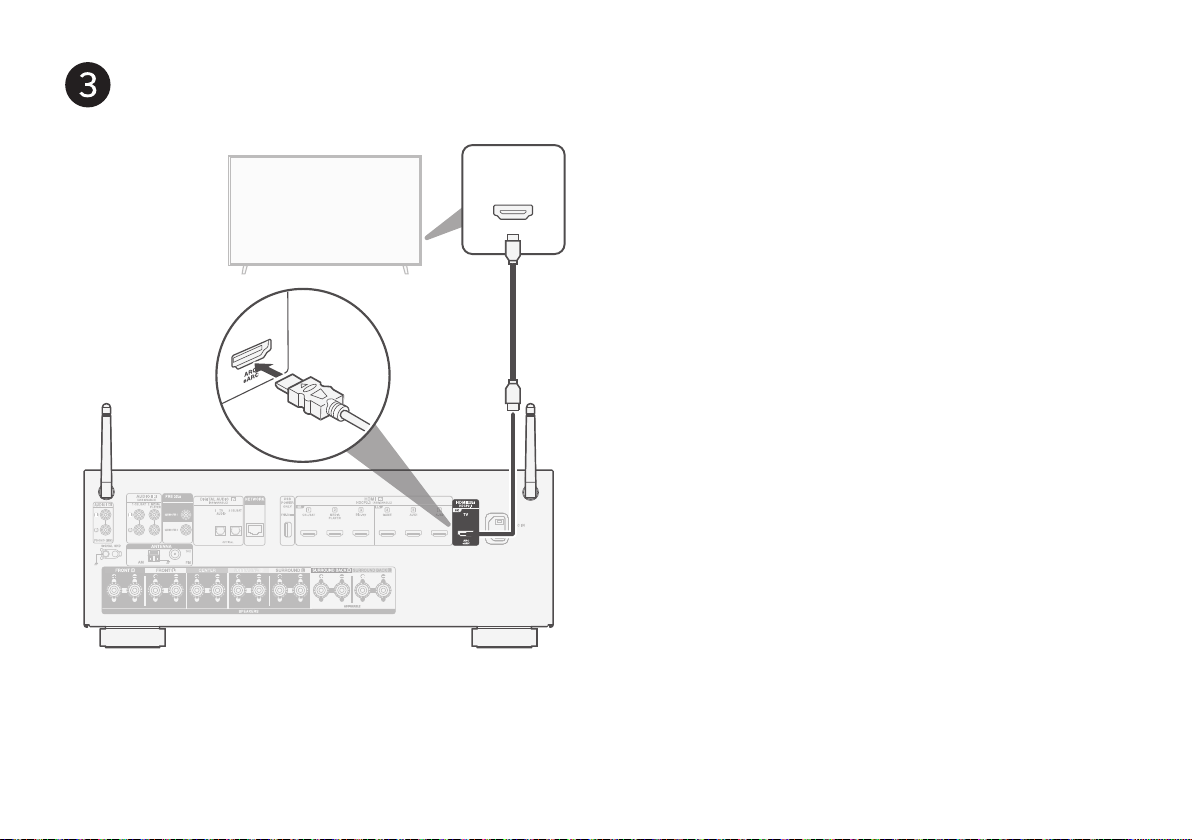

HDMI IN
(ARC/eARC)
HDMI OUT
TV
(ARC/eARC)
HDMI cable
AVR (Rear panel)
Connect the AVR to your TV
Using a high quality HDMI cable*, connect one end to the HDMI
port labeled “eARC” or “ARC” on your TV. Connect the other
end to the HDMI OUT TV port on your AVR.
What is ARC and eARC?
Audio Return Channel or “ARC” sends audio back to the AVR
using the same HDMI cable that sends video from your AVR
to your TV. This allows your AVR to process the sound from
your TV’s built-in tuner and apps. TVs with an Enhanced Audio
Return Channel or “eARC” port provide additional support for
high bitrate multichannel audio (Dolby Atmos, Dolby TrueHD,
DTS-HD and DTS:X). Please refer to your TV owner’s manual for
details about eARC support for your particular model.
* For 4K TVs, we recommend using an HDMI cable labeled
“High Speed” and “with Ethernet” .
* For 8K TVs, we recommend using an HDMI cable labeled
“Ultra High Speed”.
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 71. AVR-S770HE2_QSG_ENG_00A_230606.indd 7 2023/06/06 11:42:132023/06/06 11:42:13
8
EN
DE
FR
IT
ES
NL
SV
RU
PL

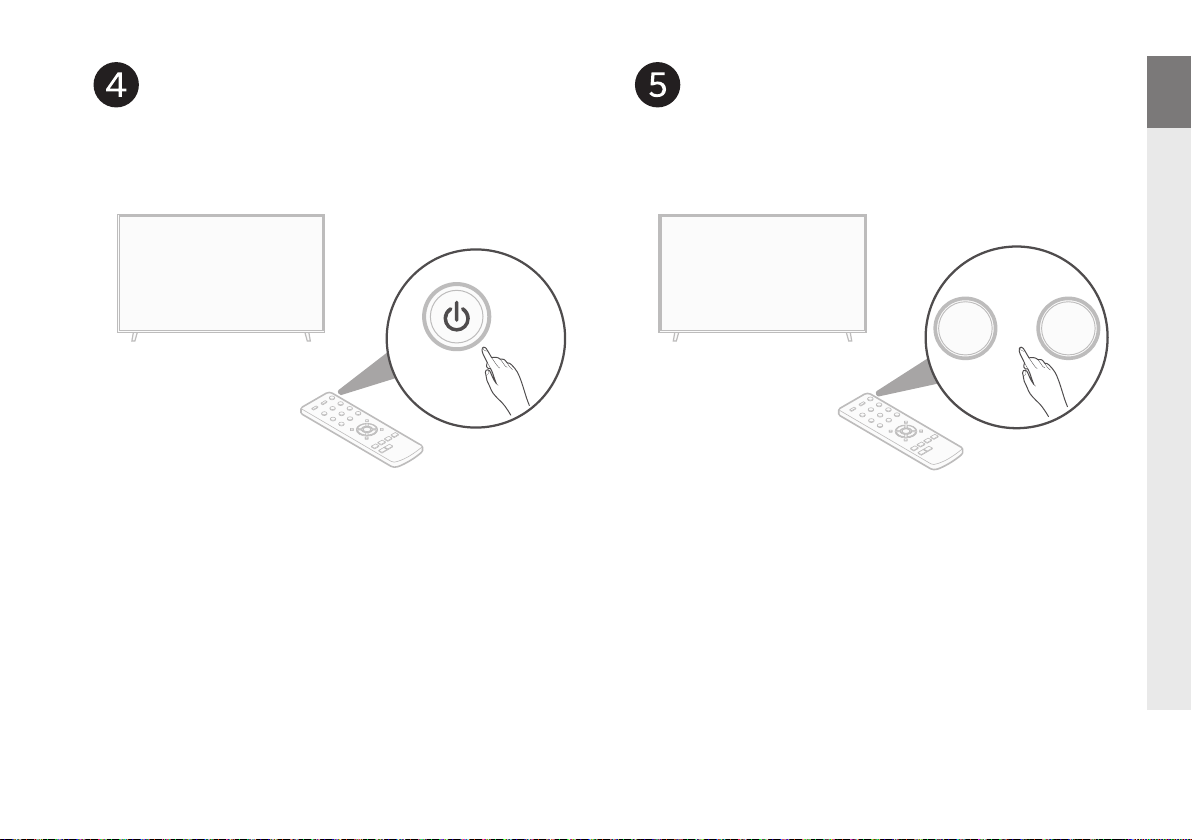

TV remote control
Turn on the TV Select the appropriate HDMI
input on your TV
HDMI
or
INPUT
TV/
VIDEO
TV remote control
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 81. AVR-S770HE2_QSG_ENG_00A_230606.indd 8 2023/06/06 11:42:132023/06/06 11:42:13
9

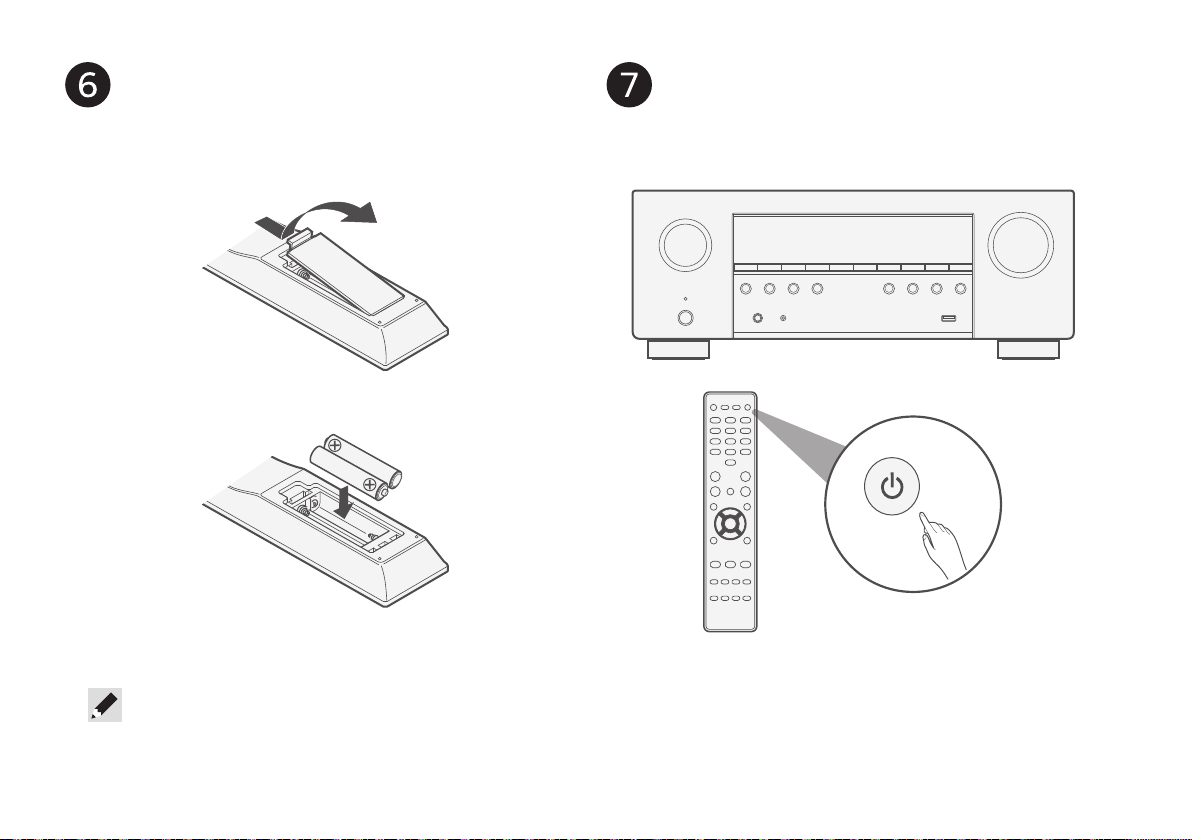

Install batteries in the AVR
remote control
• Batteries can be taken out in reversed order.
Press Xon the remote control.
Turn on the AVR
1. AVR-S770HE2_QSG_ENG_00A_230606.indd 91. AVR-S770HE2_QSG_ENG_00A_230606.indd 9 2023/06/06 11:42:132023/06/06 11:42:13
