Denon DN-HP500 User manual

X0463 V.01 DE/CDM 0909

SERVICE MANUAL

HEADPHONE

MODEL JP E3 E2 EK E2A E2C E1K EUT

DN-HP500

33333333

Ver. 1

●The parts of this product are not serviceable.

Please replace the product itself.

However, spare parts are available for some parts.

For details, see "PARTS LIST OF EXPLODED VIEW".

●本製品は修理対象外の製品です。

サービス対応は「製品交換」のみとなります。

ただし、一部の部品はスペアパーツを設定します。

詳細は分解図部品表を参照してください。

2

DN-HP500

EXPLODED VIEW

PARTS LIST OF EXPLODED VIEW

＊本表に"nsp" と記載されている部品は供給できません。

＊Parts for which "nsp" is indicated on this table cannot be supplied.

＊本表に記載されている部品は、補修用部品のため製品に使用している部品とは一部、形状、寸法などが異なる場合があります。

＊The parts listed below are for maintenance only, might differ from the parts used in the unit in appearances or dimensions.

Ref.No. Part No. Part Name Remarks Q'ty New

1 nsp DN-HP500EM ASSY - - 1 *

2 916429000010P EAR PAD/DN-HP500 2pcs./sets 1394-07060 1 *

3 916619000020P HP CORD/DN-HP500 - 1394-07050 1 *

4 nsp PLUG ADAPTER - - 1

1

2

3

4

3

DN-HP500

イヤーパッドの交換方法

＊組み立てるときは、逆の順序でおこなってください。

(1) イヤーパッドの側部を持ち、矢印の方向にはずす。

REPLACING EAR PAD

＊Follow the procedure below in reverse order when reas-

sembling.

(1) Hold the side of the ear pad and remove in the direc-

tion of the arrow.

4

DN-HP500

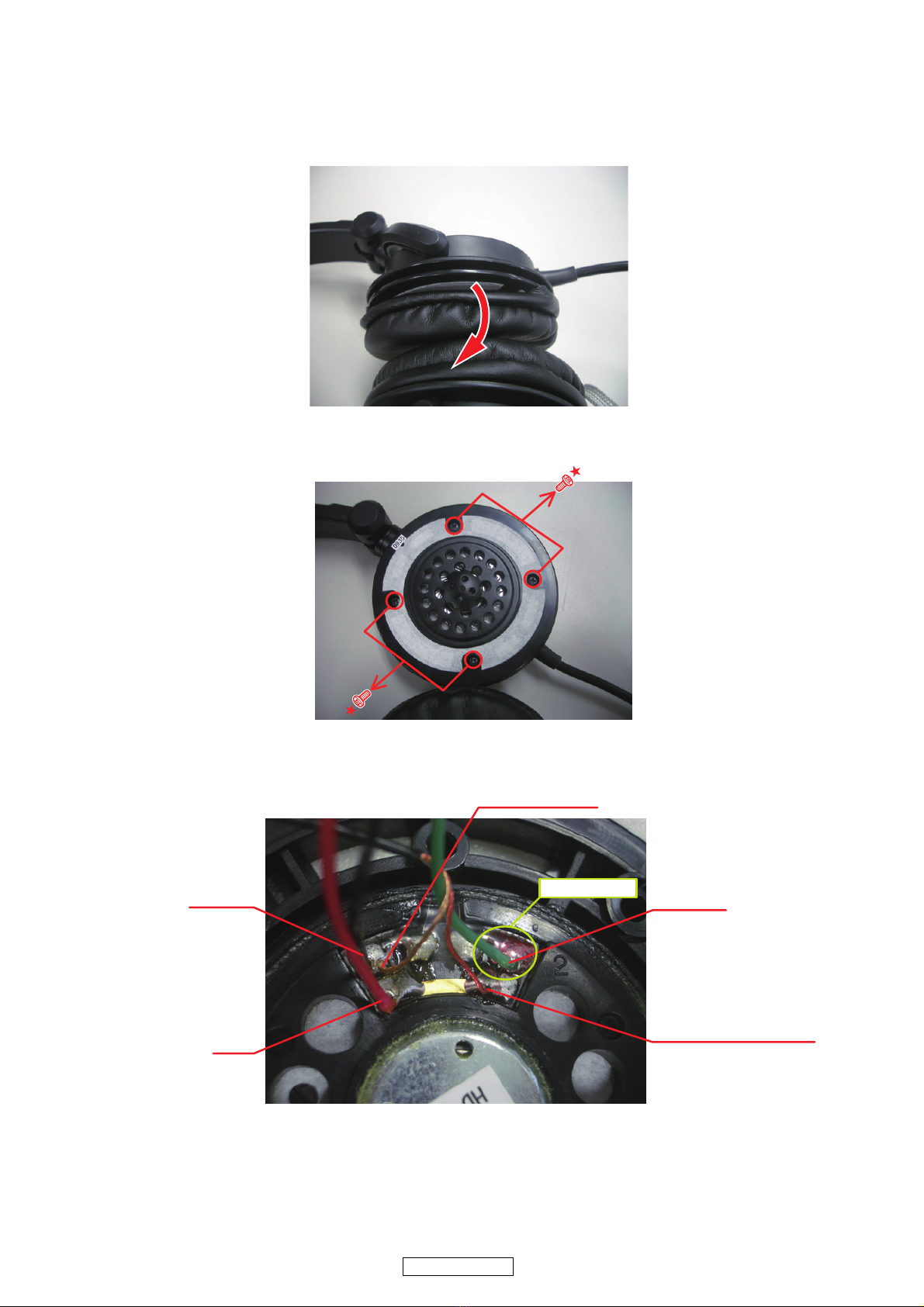

CORDASSYの交換方法

＊組み立てるときは、逆の順序でおこなってください。

(1) イヤーパッドをはずす。

(2) ねじ4 ケ所を外す。

(3) ワイヤーを取り外す。

REPLACING THE CORD ASSY

＊Follow the procedure below in reverse order when reas-

sembling.

(1) Removing the ear pad.

(2) Remove the screws.

(3) Disconnect the wires.

GREEN

BLACK

Extending line

Extending line (RED)

RED

Anode side

5

DN-HP500

(4) CORDASSY を外す。

(4) Remove the the CORD ASSY..

KNOT : Untie

CORD ASSY : Disconnect

About 60mm
