Denon PMA-600NE User manual

PMA-600NE

INTEGRATED AMPLIFIER

Owner’s Manual

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Accessories 4

Inserting the batteries 5

Operating range of the remote control unit 5

Features 6

High quality sound 6

High performance 6

Part names and functions 7

Front panel 7

Rear panel 10

Remote control unit 12

Connections

Connecting speakers 17

Subwoofer connection 18

Speaker connection 18

Connecting a playback device 19

Connecting a recording device 20

Connecting to a device with digital audio output connectors 21

Connecting the power cord 22

Playback

Turning the power on 24

Switching the power to standby 24

Selecting the input source 25

Adjusting the volume 25

Turning off the sound temporarily (Muting) 25

Adjusting the tone 25

Playing CDs 26

Listening to music on a Bluetooth device 28

Connecting and playing back from a digital device (Coaxial/

Optical) 30

Recording 31

Settings

Setting the Auto Standby mode 32

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Tips

Tips 34

Troubleshooting 35

Power does not turn on / Power is turned off 36

Operations cannot be performed through the remote control unit 37

No sound comes out 38

Desired sound does not come out 39

Sound is interrupted or noise occurs 40

Bluetooth cannot be played back 41

Audio from digital devices cannot be played back (Coaxial/

Optical) 42

Appendix

D/A converter 43

Playing back a Bluetooth device 43

Explanation of terms 44

Trademark information 45

Specifications 46

Index 51

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product.

After reading this manual, be sure to keep it for future reference.

Accessories

Check that the following parts are supplied with the product.

Quick Start Guide CD-ROM

(Owner’s Manual)

Safety Instructions Cautions on Using Batteries

R03/AAA batteries

Remote control unit

(RC-1234)

Notes on radio

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Inserting the batteries

1Remove the rear lid in the direction of the arrow and

remove it.

2Insert two batteries correctly into the battery

compartment as indicated.

Batteries

3Put the rear cover back on.

NOTE

0To prevent damage or leakage of battery fluid:

0Do not use a new battery together with an old one.

0Do not use two different types of batteries.

0Remove the batteries from the remote control unit if it will not be in use for long

periods.

0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery

compartment and insert new batteries.

Operating range of the remote control

unit

Point the remote control unit at the remote sensor when operating it.

30°

Approx. 7 m

30°

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Features

High quality sound

0Equipped with an advanced high current single push-pull circuit

that achieves a perfect balance of delicacy with power

This unit is equipped with a HC transistor that allows a peak current that

is two to three times that of an ordinary audio power transistor, enabling

clear and stable musical expression from minute sound to high

volumes.

High performance

0DIGITAL AUDIO IN connectors (COAXIAL/OPTICAL)

You can play back PCM signals up to 192 kHz/24 bits by inputting digital

audio signals from an external device into this unit.

0Phono input connectors for turntables

This unit is equipped with a phono amplifier so that you can directly

connect a turntable and play records. (Only the MM cartridge can be

used.)

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Part names and functions

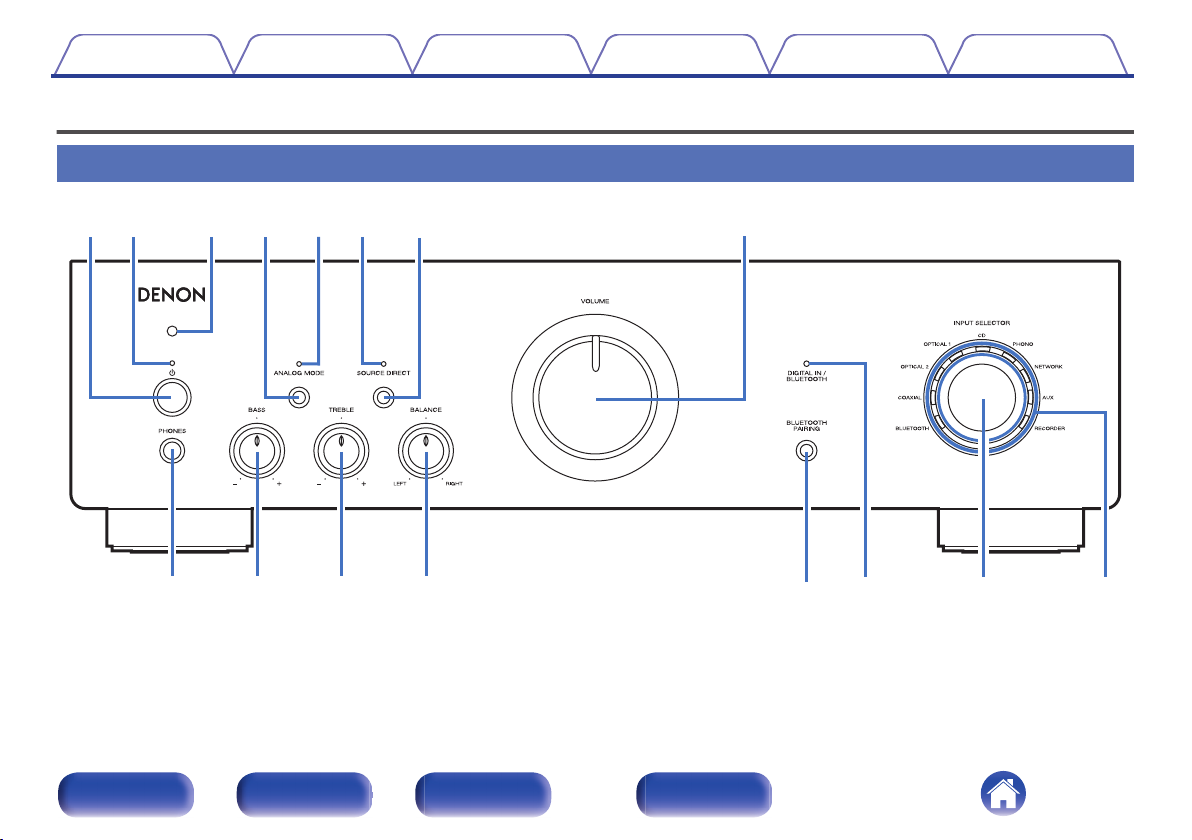

Front panel

rueqw y

o Q

For details, see the next page.

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

ruey

APower operation button (X)

This turns the power on/off. (v p. 24)

BPower indicator

This is displayed as follows according to the power status:

0Lit in green: Power on

0Lit in red: Bluetooth standby (v p. 27)

0Off: Normal standby

CRemote control sensor

This receives signals from the remote control unit. (v p. 5)

DANALOG MODE button

This turns the analog mode on/off.

(v p. 27)

EANALOG MODE indicator

This is displayed as follows, according to the analog mode status.

0Lit in green: Analog mode on

0Off: Analog mode off

FSOURCE DIRECT indicator

This is displayed as follows according to the source direct status.

0Lit in green: Source direct mode on

0Off: Source direct mode off

GSOURCE DIRECT button

This turns source direct mode on/off. (v p. 26)

HVOLUME knob

This adjusts the volume level. (v p. 25)

IHeadphones jack (PHONES)

Used to connect headphones.

When the headphones are plugged into this jack, audio will no longer

be output from the connected speakers or from the PRE OUT

connectors.

NOTE

0To prevent hearing loss, do not raise the volume level excessively when using

headphones.

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

JBASS control knob

This setting adjusts the volume level for the bass. (v p. 25)

KTREBLE control knob

This setting adjusts the volume level for the treble. (v p. 25)

LBALANCE control knob

This adjusts the balance of the volume output from the left and right

speakers. (v p. 25)

MBLUETOOTH/PAIRING button

This switches the input source to “BLUETOOTH”. It is also pressed

during the pairing operation. (v p. 28)

NDIGITAL IN/BLUETOOTH indicator

0This is displayed as follows, according to the status of the digital

audio signals that are input to the digital audio input terminals on this

unit.

0Lit in green: Playback is supported on this unit

0Blinking in green: Playback is not supported on this unit

0Off: Sampling frequency cannot be detected

0For details on the audio signal specifications that are compatible with this

unit, see “D/A converter” (v p. 43).

0This is displayed as follows according to the Bluetooth connection

status:

0Blinking in blue (intervals of about 1 second): Pairing mode

0Blinking in blue (intervals of about 2 seconds): Searching mode

(searching for a paired Bluetooth device and attempting to

connect via Bluetooth)

0Lit in blue: Connecting mode (a Bluetooth connection has been

made with a Bluetooth device)

0Off: Waiting mode (a Bluetooth connection has not been made

with any Bluetooth device)

OINPUT SELECTOR knob

This selects the input source. (v p. 25)

PInput indicators (v p. 25)

00, a and b can be adjusted when 6 is off (SOURCE DIRECT mode is off).

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index

Rear panel

y i

er tqw

For details, see the next page.

Contents Connections Playback Settings Tips Appendix

Front panel Rear panel

Remote control

unit

Index
