PMA-50

INTEGRATED AMPLIFIER

Quick Start Guide

Read Me First....

Guide de démarrage rapide / Guía de inicio rápido

Please do not return this unit to the store – call for assistance.

If you need help… :

If you need additional help in solving problems, contact Denon customer service in your area.

1-855-MY.Denon

1-855-693-3666

Call for Assistance: Monday – Friday 10:00AM to 10:00PM E.S.T, Saturday 12:00PM to 8:00PM E.S.T

For frequently asked questions please visit www.usa.denon.com/FAQ

For US and Canada only

1

Thank you for choosing a Denon ampliﬁer. This guide provides

step-by-step instructions for setting up your ampliﬁer.

Welcome Before You Begin

What’s In the Box

Quick Start Guide

Integrated

Ampliﬁer

Owner’s Manual Power cord

Safety Instructions Remote control

unit

Notes on radio Caps (silver)

Warranty

(for North America

model only)

USB cable

2

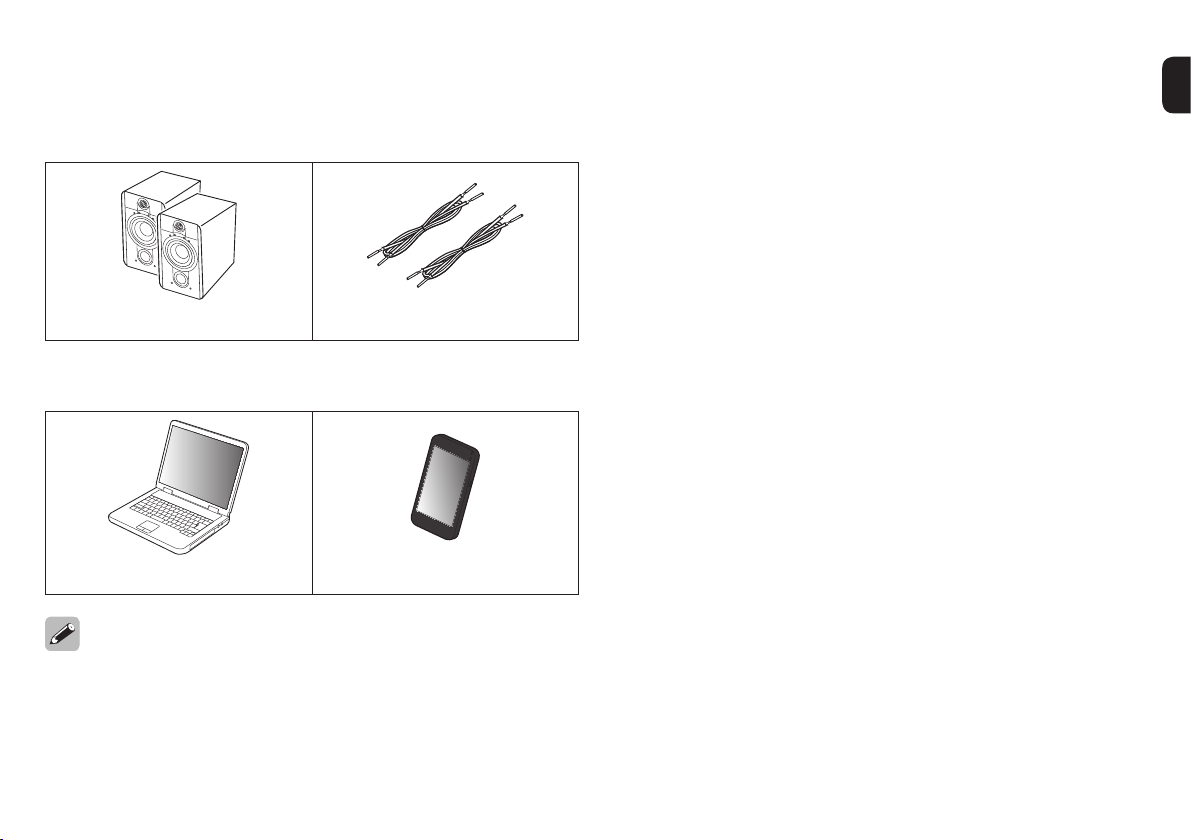

Required for Basic connections

Speaker systems Speaker cables

Optional

Computer Bluetooth device

These drawings are for illustrative purposes only and may

not represent the actual product(s).

3

There are seven steps to the setup process.

1Before using the remote control unit

2Placing this unit

3Installing the driver software onto your PC (Windows OS only)

4Connecting the speakers to the ampliﬁer

5Plug the power cord into a power outlet

6Enjoying music using PC or Mac

7Enjoying music using Bluetooth

Setup

4

1Before using the remote

control unit

nHorizontal placement

The feet are initially attached to the unit for horizontal

installation.

2Placing this unit

5

nVertical placement

Remove the feet.

• Rotate each of the 4 feet

counter-clockwise to remove.

Insert the supplied caps

(silver) into the holes

from which the feet were

removed.

1

2

Remove the cap (black).

NOTE

Be careful not to damage your nails when removing

the caps. If necessary, use a thin-tipped tool to

remove the caps. However, be careful not to damage

the unit when using tools.

Rotate the removed feet

clockwise to attach them.

3

4

6

3Installing the driver software onto your PC

(Windows OS only)

Download the dedicated driver from the

“Download” section of the PMA-50 page of

the Denon website

(http://www.denon.com/pages/home.aspx)

onto your PC.

Unzip the downloaded le.

Select the 32 bit or 64 bit exe le that matches

your Windows operating system, and double-

click the le.

1

2

3

Install the driver.

qSelect the language to use for the installation.

wClick “OK”.

q

w

eThe wizard menu is displayed. Click “Next”.

e

4

7

rRead the Software Licensing Agreement,

and click “I accept the terms in the license

agreement”.

tClick “Next”.

SOFTWARE LICENSING AGREEMENT

r t

yClick “Install” on the installation start dialog.

• The installation starts. Do not perform any

operation on the PC until the installation is

completed.

y

8

uIn the Windows security dialog, select “Always

trust software from DandM Holdings Inc.”.

iClick “Install”.

u i

oWhen the installation is completed, click

“Finish”.

o

9

AUDIOPRE OUT IN

R L

OPTICAL

2

OPTICAL

1

USB-DAC COAXIAL

AUDIODIGITAL IN

AC

IN

SUBWOOFER

SPEAKERS IMPEDANCE : 4～16Ω

w q w q

(R) (L)

Connecting the speaker cables

qPeel o about 3/8 inch (10 mm)

of sheathing from the tip of the

speaker cable, then either twist

the core wire tightly or apply

solder to it.

wTurn the speaker terminal

counterclockwise to loosen it.

eInsert the speaker cable’s core

wire to all the way into the

speaker terminal.

rTurn the speaker terminal

clockwise to tighten it.

4Connecting the speakers to the ampliﬁer
