DeLonghi TRD40615E-6A User manual

TRD40615E-6A

ELECTRIC OIL FILLED RADIATOR

Instructions for use. Keep these instructions

Visit www.delonghi.com for a list of service centers near you.

ELECTRIC CHARACTERISTICS

120 V~ 60 Hz1500 W

RADIADOR ELÉCTRICO DE BAÑO DE ACEITE

Repase y guarde estas instrucciones.

Lea cuidadosamente este instructivo antes de usar su aparato.

Visite www.delonghi.com para ver la lista de centros de servicios cercanos a

usted.

CARACTERISTICAS ELECTRICAS:

120 V~ 60 Hz1500 W

EN ES

page 4 pág. 9

IMPORTANT

SAFEGUARDS

When using any electrical appliance, some basic safety

precautions should always be observed to reduce the risk

of re, electric shock, and/or injury to persons. Read all in-

structions carefully before using the appliance. Specically:

Danger!

Failure to observe the warning may result in life threatening

injury by electric shock.

- Do not operate any appliance with a dama-

ged cord or plug or after the appliance mal-

functions, has been dropped or damaged in

any manner.

If appliance has leaked any oil, discontinue

using the appliance and contact the service

centre as indicated in the instruction leaet.

Return appliance to authorized service faci-

lity for examination, electrical or mechanical

adjustment, or repair.

- This appliance is not intended for use in

bathrooms, laundry areas, or similar indo-

or locations. Never position the appliance

where it may fall into a bathtub or come in

contact with water.

- Use this appliance only as described in this

manual. Any other use not indicated by the

manufacturer may cause re, electric shock,

or injury to persons.

- CAUTION: To prevent electric shock, make

sure the wide prong of the plug is inserted

in the wide slot of the outlet.

Important!

Failure to observe the warning could result in injury or

damage to the appliance.

- The appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience and knowledge, unless

they have been given supervision or instruc-

tion concerning use of the appliance by a

person responsible for their safety.

Children should be supervised to ensure that

they do not play with the appliance.

- Extreme caution is necessary when any ap-

pliance is used by or near children or invalids

and whenever the appliance is left operating

and unattended.

- Do not wrap the cord around the appliance

immediately after use.

- To prevent current overload and blown fu-

ses, make sure that no other appliance is

plugged into the same outlet or into another

outlet wired into the same circuit.

- If the power cord is damaged, to reduce the

risk of malfunction it must be replaced by

the manufacturer, its service agent, or a li-

censed and qualied professional.

- Do not use this appliance with an extension

cord or outlet strip. Connect the appliance

directly to a suitable outlet.

Danger of burns!!

Failure to observe the warning could result in burns or

scalds.

- This appliance gets very hot when in use.

To prevent burns, do not touch hot surfaces

with bare skin. Use the handle when moving

the appliance. Keep all ammable materials,

such as furniture, pillows, bedding, paper,

clothing, and curtains at least 3 feet (90 cm)

from the front and top of the appliance, also

avoid contact with the sides and back.

- Do not run the power cord under carpeting.

Do not cover cord with throw rugs, runners,

or the like. Keep the cord away from any pas-

sageways where it could be tripped over.

- Do not insert or allow foreign objects to get

into the air intake or air outlet grille, as this

may cause electric shock or re, or damage

the appliance.

- To prevent a possible re, do not block air in-

take or air outlet grille in any way. Do not use

the appliance on soft surfaces, such as beds,

where the openings may become blocked.

- Do not cover the appliance while it is fun-

ctioning in order to avoid overheating and

the risk of re.

- The internal parts of the appliance can beco-

me very hot or produce sparks during opera-

tion. Do not use the appliance in areas where

gasoline, paints, or other ammable liquids

are used or stored.

- It is normal for appliance’s plug and cord to

feel warm to the touch. However, an exces-

sively hot or deformed plug or cord is not

normal and may be the result of a defective

electrical outlet. Defective outlets must be

replaced before using the appliance. Plug-

ging the appliance into a worn outlet may

result in overheating of the power cord or

may cause the risk of re.

- Do not place the appliance near a bed becau-

se objects such as pillows or blankets can fall

o the bed and be ignited by the appliance.

Please note:

This symbol indicates recommendations and important

information for the user.

- If your appliance is equipped with a

polyethylene tape used as a carry handle,

remove it before connecting appliance to

the outlet.

- Always disconnect the plug from the power

outlet when the appliance is not in use.

- Do not use the appliance outdoors.

To completely turn o the appliance, push

the

On-o

button, and then unplug the ap-

pliance.

- Connect to properly polarized outlets only.

- Make sure that the plug is fully inserted into

the outlet.Wall outlets may deteriorate with

time, so check the plug periodically for signs

of overheating or deformation. If the outlet

has deteriorated, stop using it and have it

repaired.

- Check that neither the appliance nor the po-

wer cord have been damaged during ship-

ping.

- Make sure that no styrofoam or other pa-

cking materials remain in the appliance.

- Make sure that no pieces of polystyrene or

other packaging material have been left

between one element of the appliance and

another. It may be necessary to pass over the

appliance with a vacuum cleaner.

- The rst time the appliance is used, run it at

the maximum power for at least two hours.

During this time, ventilate the room thorou-

ghly to eliminate the “new” smell released

by the appliance. It is completely normal for

the appliance to emit “creaking” sounds the

rst time it is run.

- Extreme caution is necessary whenever the

appliance is left operating unattended.

- Do not open the appliance. No user-service-

able parts inside.

SAVE THESE

INSTRUCTIONS

THIS PRODUCT IS FOR HOUSEHOLD USE

ONLY

DESCRIPTION

A Display

B On-o button

C Power setting button

D - Adjustment button

E + Adjustment button

F Timer button

G Brightness button

H Eco button

I Cord holder

L Wheel

USE

Fitting the wheels

Turn the appliance upside down on a rug or soft surface to

prevent damaging the paint nish. Fully unfold the wheels

by turning them outwards (Fig. 1). Turn the appliance back

to its upright position.

Fig. 1

Important! Always operate the appliance in upright

position only (wheels on the bottom, controls on top). Any

other position could create hazardous situation.

Location

Place appliance on the oor beneath the coldest window

in the room, or any other location. Your appliance will re-

duce the eect of cold drafts. The appliance should not be

placed immediately below a power outlet. Do not use this

appliance in rooms with a oor area of less than 43 square

feet (4 sq. m.).

Power connection

The appliance must be connected to a properly polarized

household outlet in perfect working condition.

The appliance will be set in the o condition.

The display will show the symbol. Keep loose clothing

or bedding, furniture and ammable material away from the

power outlet where the appliance is plugged in.

After an interruption of the power supply (power failure or

appliance unplugged) the unit goes always to o.

When the unit is switched on by pressing the on-o button,

the operating conditions will be same ones previously set.

Heating function

To turn the appliance on, insert the plug into an electrical

outlet then press the (B) button.

Press button (C) to set the required power level:

MIN ( ); MED ( ); MAX ( ) (see g. 2).

To select the desired temperature, press button + or - (E

or D). By pushing the + or - button once, the temperature

(shown on the display) will increase or decrease by 1°F or 1°C.

Holding the + or - button depressed the value will increase

o decrease rapidly.

The appliance allows to set a temperature of 41°F (5°C) and a

range from 50°F to 82°F (10°C to 28°C).

Anti-freeze function

Setting the temperature to 41°F (5°C), the appliance will

activate the Antifreeze function.The display will show the

symbol, in this way the appliance will turn on automatically,

at the max power, only if the room temperature falls below

41°F (5°C), to prevent freezing conditions. If you wish to go

back to the Heating function, press the "+" button once.

Note: in this function the power level settings are not able to

be adjusted, unit will run at MAX.

Eco function

When this function is active the appliance automatically sets

the most appropriate power level to guarantee optimum

comfort while reducing energy consumption. To activate this

function press the "ECO" (H) button. The display will show

symbol.

If the selected temperature is much higher then the actual

room temperature, the appliance will start automatically and

rapidly to heat the room.

The appliance will automatically select the most convenient

power level (MAX-MED-MIN-OFF).

If MAX power level has been selected using the

button, the appliance will cycle between: MAX-MED-MIN-

OFF. If MED power level has been selected, the appliance will

cycle between: MED-MIN-OFF.

If MIN power level has been selected, the appliance will cycle

between: MIN-OFF.

Working indicator

The symbol indicates the heating status by means of its

colors.

RED: the unit is heating at the maximum power.

YELLOW: the unit is heating at the medium power.

GREEN: the unit is heating at the minimum power.

absent: the unit is not heating.

Brightness of the display

The appliance allows two dierent brightness settings for the

display. The highest is active when any key button is pressed.

After a few seconds of keyboard inactivity, the brightness will

decrease to the operating brightness level.

This lower level can be adjusted by means of the light button

(G). Press the light button repeatedly till the desired

brightness is reached (three brightness levels available).

Your product is equipped with a polarized alternating

current line plug (a plug having one prong wider than the

others). This plug will t into the power outlet only one

way. This is a safety feature. If you are unable to insert the

plug fully into the outlet, try reversing the plug. If the plug

should still fail to t, contact your electrician to replace

your obsolete outlet. Do not attempt to modify the plug to

bypass this safety feature.

Fig. 2

Key lock

In order to avoid accidental operation, you can lock the

keyboard using the keylock function. To activate this function

press buttons + and - together for at least 3 seconds. The

display shows the symbol and a double acoustic signal

will be emitted. To disactivate the function proceed in the

same way.

Timer function

This function can be activated in two dierent ways.

Delayed start: With the appliance o, press the timer

button (F) . The symbol is displayed ashing together

with the hours left before the appliance comes on (see g.

3). Change the hours using the + and - buttons, then wait

a few seconds for the program to be stored. The display will

return to o and the symbols remains on. When the

programmed time has elapsed, the appliance will come on

with the previous settings.

Delayed stop: with the appliance on, press the timer button

. The symbol is displayed ashing together with the

hours left before the appliance goes o (see g. 3). Change

the hours using the + and - buttons, then wait a few seconds

for the program to be stored. The current settings and

symbol are displayed. At the end of the set time the appliance

switches o automatically. To go back to operating without

the timer, press the timer button twice.

The timer symbol disappears from the display.

Note: the time is settable from 0.5 to 24 hours.

Change of the temperature scale

The display can show the temperature in both °F and °C.

To select the desired temperature scale, when the unit is in o

position, press and hold the "+" and "ECO" keys for at least 10

seconds, then release.

The change of scale will be indicated by two short beeps.

Alarms

The appliance has a diagnostic system that makes it possible

to signal malfunctions.

In case of problems, the display will show an alarm message:

(Probe failure)

With this alarm the appliance does not

operate. Contact the De longhi toll free

number.

(High temperature)

When the product’s internal temperature

is too high, the heating power will

progressively and automatically

be reduced. The display shows

intermittently till the internal temperature

is lowered. To remove the cause of this

alarm check that the unit is not covered or

obstructed.

SAFETY DEVICE

A safety device switches the appliance o in the event of

overheating.To restart the appliance,

contact the De longhi

toll free number.

MAINTENANCE AND SERVICE

Always remove the plug from the power outlet and allow the

appliance to cool. Wipe appliance with a soft damp cloth, do

not use detergents and abrasives.

Should the appliance not be in use over a certain length of

time, wrap the cord around the cord holder and store it in a

dry place. This appliance has been built to give many years of

trouble free service. In case of malfunction or doubt, do not

try to repair the appliance by yourself: this may result in a

re hazard or electric shock.

Contact the De longhi toll free

number.

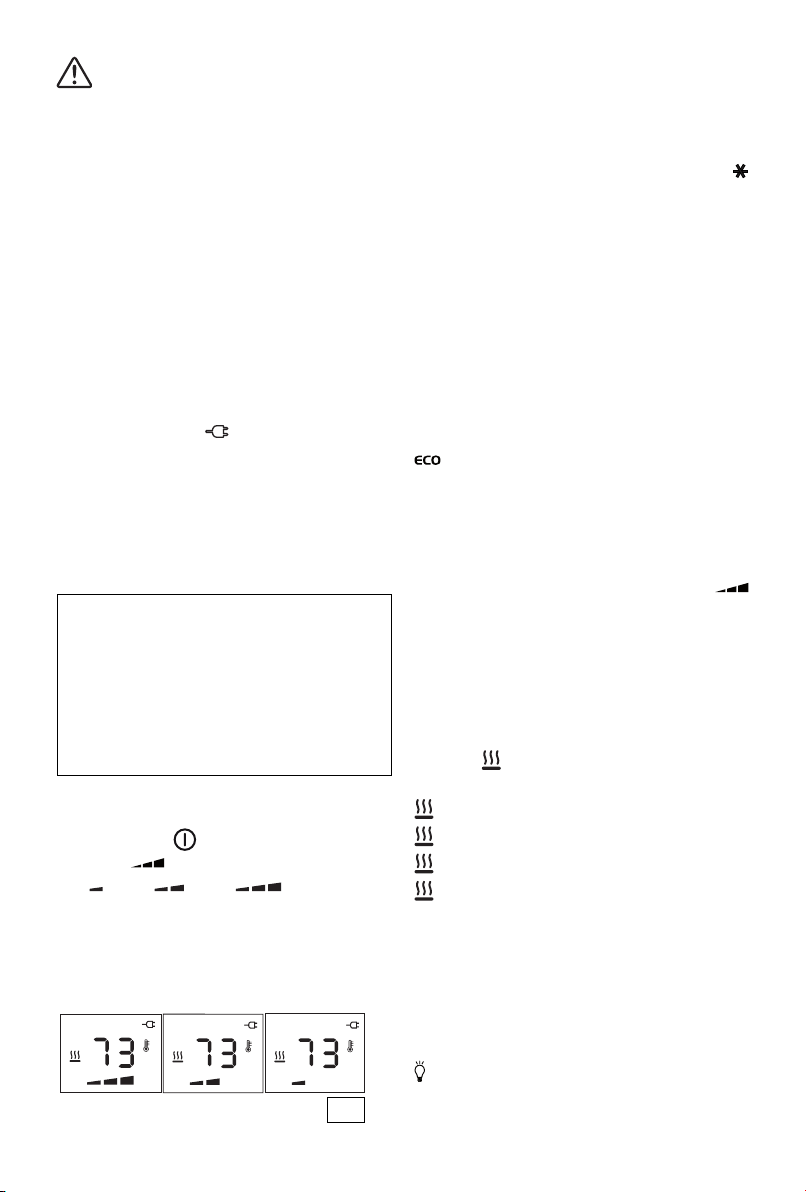

Fig. 3

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION

The appliance doesn't work Be sure it is plugged in and that the

electrical outlet is working.

Check for any obstruction.

The temperature may be set too low.

Plug into the power outlet.

Remove the obstruction and let the

appliance cool down. If the appliance

doesn't work please contact the De longhi

toll free number.

Set the temperature to a higher position.

Probe failure, the display

shows: PF

Contact the De longhi toll free number.

The display shows: Ht (High

temperature)

The unit is covered or obstructed. Check that the unit is not covered or

obstructed. When the product internal

temperature decreases the alarm will

disappear.

INSTRUCCIONES

IMPORTANTES

Al utilizar aparatos eléctricos, es oportuno adoptar siempre

algunas precauciones fundamentales para evitar el riesgo de

incendios, descargas eléctricas y/o lesiones. Lea atentamente

todas las instrucciones antes de utilizar el aparato.

Especícamente:

¡Peligro!

El incumplimiento de la advertencia puede ser causa de

lesiones provocadas por descargas eléctricas.

- No utilice ningún aparato con el cable o el

enchufe dañado o si funciona mal en caso

de que se haya dejado caer o si se ha dañado

de algún modo. Si el aparato pierde aceite,

no lo utilice y póngase en contacto con el

centro de servicio indicado en el folleto de

instrucciones. Lleve el aparato a un centro de

servicio autorizado para su revisión, ajuste de

las piezas eléctricas o mecánicas o reparación.

- EI aparato no está diseñado para su uso

en baños, lavaderos o sitios similares en

interiores.

Nunca coloque el aparato donde pudiese caer

dentro de una bañera o entrar en contacto con

agua.

- Utilice este aparato sólo como se describe

en este manual. Cualquier otro uso no

recomendado por el fabricante puede ser

causa de incendios, descargas eléctricas o

lesiones.

- ADVERTENCIA: A n de evitar descargas

eléctricas, asegúrese de que la espiga ancha

del enchufe se introduzca en la ranura ancha

del tomacorriente.

¡Importante!

El incumplimiento puede ser o es la causa de lesiones o de

desperfectos al aparato.

- El aparato no está diseñado para ser utilizado

por personas (incluyendo niños) con

capacidades físicas, sensoriales o mentales

disminuidas o que carezcan de experiencia

y conocimiento, a menos que lo hagan bajo

la supervisión o instrucción de una persona

responsable de su seguridad. Los niños deben

ser supervisados para asegurarse de que no

jueguen con el aparato.

- Es necesario tener mucho cuidado cuando

cualquier aparato sea utilizado por o se

encuentre cerca de niños o inválidos y siempre

que el aparato esté funcionando sin vigilancia.

- No enrolle el cable alrededor del aparato

inmediatamente después de utilizarlo.

- Para impedir corrientes de sobrecarga y que

se fundan los fusibles, asegúrese de que

ningún otro aparato esté conectado al mismo

tomacorriente o a otro tomacorriente del

mismo circuito.

- Si el cable de alimentación está dañado, para

reducir el riesgo de mal funcionamiento debe

ser reemplazado por el fabricante, su agente

de servicio o un profesional calicado y

autorizado.

- No utilice este aparato con un cable

de extensión o una tira con tomas de

tomacorriente. Conecte el aparato

directamente a un tomacorriente adecuado.

¡Peligro de quemaduras!

La inobservancia de esta advertencia puede ser causa de

quemaduras.

- Este aparato se calienta durante el uso. Para

evitar quemaduras no toque las supercies

calientes con las manos desnudas. Utilice el

asa para mover el aparato. Conserve todo

objeto inamable, tal como mobiliario,

almohadas, cobertores, papel, vestidos y

cortinas, a una distancia de al menos 90 cm

(3 pies) desde la parte frontal y superior del

aparato, evitando además el contacto con los

costados y la parte posterior.

- No pase el cable de alimentación debajo de

las alfombras. No cubra el cable con tapetes,

recubrimientos o similares. Extienda el cable

lejos de los pasillos donde se pueda tropezar

con el mismo.

- No introduzca ni permita introducir cuerpos

extraños en las rejillas de admisión o salida de

aire, dado que ello puede producir descargas

eléctricas, incendios o daños al aparato.

- Para evitar el riesgo de incendios, no bloquee

ninguna rejilla de entrada o salida de aire. No

use el aparato sobre supercies suaves, tales

como camas, donde las aberturas pudieran

obstruirse.

- No cubra nunca el aparato mientras esté

funcionando para evitar sobrecalentamientos

y riesgos de incendios.

- Las piezas internas del aparato pueden

calentarse mucho o producir chispas

durante el funcionamiento. No utilice el

aparato en lugares donde se utilicen o

almacenen gasolina, pinturas u otros líquidos

inamables.

- Es normal que el enchufe y el cable del

aparato se sientan calientes al tacto. Sin

embargo, no es normal que haya enchufes

o cables excesivamente calientes, lo cual

puede ser resultado de un tomacorriente

eléctrico defectuoso. Los tomacorrientes

defectuosos deben reemplazarse antes de

utilizar el aparato. Conectar el aparato a un

tomacorriente dañado puede sobrecalentar el

cable de alimentación o provocar un incendio.

- No coloque el aparato cerca de camas

debido a que objetos tales como almohadas

o cobertores pueden caerse de la cama e

incendiarse por el aparato.

Nota:

Este símbolo destaca consejos e información importantes

para el usuario.

- Si su aparato tiene una cinta de polietileno

que se utiliza como asa para moverlo,

retírela antes de conectar el aparato a un

tomacorriente.

- Desconecte siempre el enchufe del

tomacorriente cuando no utilice el aparato.

- No utilice el aparato al aire libre.

- Para apagar totalmente el aparato, oprima

el botón ON/OFF (ENCENDIDO/APAGADO) y

después desconecte el aparato.

- Conecte el aparato solamente en

tomacorrientes debidamente polarizados.

- Asegúrese de que el enchufe esté

introducido totalmente en el tomacorriente.

Los tomacorrientes de pared pueden

deteriorarse con el tiempo, así que

verique periódicamente que el enchufe

no presente señales de sobrecalentamiento

o deformación. Si el tomacorriente está

deteriorado, deje de usarlo y mándelo reparar.

- Revise que ni el aparato ni el cable de

alimentación se hayan dañado durante el

transporte.

- Asegúrese de que no haya espuma de estireno

u otros materiales de empaque remanentes

dentro del aparato.

- Asegúrese de que no haya piezas de

poliestireno u otro material de empaque

remanente(s) entre los elementosdel aparato.

Puede ser necesario pasar el aparato con una

aspiradora.

- La primera vez que utilice el aparato, hágalo

funcionar a su máxima potencia durante

al menos dos horas. Durante este tiempo,

ventile bien la habitación a n de eliminar el

olor“a nuevo”que desprende el aparato. Es del

todo normal que el aparato emita“crujidos”la

primera vez que se utiliza.

- Es necesario tener mucho cuidado cuando el

aparato está funcionando sin vigilancia.

- No abra el aparato. No intente reparar las

piezas internas.

GUARDE ESTAS

INSTRUCCIONES

ÚNICAMENTE PARA USO DOMÉSTICO

DESCRIPCIÓN

A Pantalla

B Botón de encendido-apagado

C Botón de encendido

D Botón de disminución

E Botón de incremento

F Botón de temporizador

G Botón de brillo

H Botón de eco

Table of contents

Languages:

Other DeLonghi Heater manuals

DeLonghi

DeLonghi HCX3320FTS User manual

DeLonghi

DeLonghi HCX Series User manual

DeLonghi

DeLonghi HFX60 Series User manual

DeLonghi

DeLonghi HVF3032 User manual

DeLonghi

DeLonghi Radia S TRRS Series User manual

DeLonghi

DeLonghi Holmo Fluid User manual

DeLonghi

DeLonghi Dragon4 TRD40615TCA User manual

DeLonghi

DeLonghi HCA324FS User manual

DeLonghi

DeLonghi BAMBINO User manual

DeLonghi

DeLonghi TRR0715 User manual

DeLonghi

DeLonghi Dragon 4 Pro User manual

DeLonghi

DeLonghi HBC3052T User manual

DeLonghi

DeLonghi HCX Series User manual

DeLonghi

DeLonghi DCH7093ERBCA User manual

DeLonghi

DeLonghi TRD0715T Installation instructions manual

DeLonghi

DeLonghi HSX4315E User manual

DeLonghi

DeLonghi HCX9115ECA User manual

DeLonghi

DeLonghi TRRS2715EBK User manual

DeLonghi

DeLonghi HOR KH590715 User manual

DeLonghi

DeLonghi CATALYTIC HEATER User manual

DeLonghi

DeLonghi HMP1500 Installation instructions manual

DeLonghi

DeLonghi Heater Installation instructions manual

DeLonghi

DeLonghi DRAGON 4 User manual

DeLonghi

DeLonghi HOR KH770715CB User manual

Popular Heater manuals by other brands

oventrop

oventrop Regucor Series quick start guide

Blaze King

Blaze King CLARITY CL2118.IPI.1 Operation & installation manual

ELMEKO

ELMEKO ML 150 Installation and operating manual

BN Thermic

BN Thermic 830T instructions

KING

KING K Series Installation, operation & maintenance instructions

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Installation instructions and owner's manual

Well Straler

Well Straler RC-16B user guide

EUROM

EUROM 333299 instruction manual

Heylo

Heylo K 170 operating instructions

Eterna

Eterna TR70W installation instructions

Clarke

Clarke GRH15 Operation & maintenance instructions

IRSAP

IRSAP The Radiator Company Ovali Fitting instructions

Empire Heating Systems

Empire Heating Systems WCC65 Installation and owner's instructions

Wetekom

Wetekom 92 86 43 Original instructions

Desa

Desa SPC170-F owner's manual

Watlow

Watlow Watrod Electric Tubular Heaters Specifications

Haverland

Haverland ECO-DRY GPS Series Instruction & installation manual

Stelpro

Stelpro ASILVC2060 Series user guide
