Dellmeco DM 80/800 User manual

Serial no.

INSTRUCTION MANUAL

Air operated double diaphragm pumps

Ver. 1.20

Models: DM

08/10

DM 10/25

DM 15/55

DM 25/125

DM 40/315

DM 50/565

DM 80/800

3I DELLMECO I AODD DIAPHRAGM PUMPS

Tableofcontents

1.Introduction_________________________________________________________________________________ 4

2. For safe operation____________________________________________________________________________ 4

3. Warnings and cautions________________________________________________________________________ 4

4. Operating caution ____________________________________________________________________________ 4

5. Names of parts and materials__________________________________________________________________ 6

5.1. DM 08/10, DM 10/25 ______________________________________________________________________ 6

5.2. DM 15/55, DM 25/125 _____________________________________________________________________ 8

5.3. DM 40/315, DM 50/565 ___________________________________________________________________ 10

5.4. DM 80/800______________________________________________________________________________ 12

6.Assembly __________________________________________________________________________________ 14

7. Installation_________________________________________________________________________________ 14

7.1.Installing the pump ________________________________________________________________________ 14

7.2. Connecting the ground wire_________________________________________________________________ 16

8.Connection _________________________________________________________________________________ 16

8.1. Connecting fluid piping____________________________________________________________________ 16

8.2. Connecting air piping______________________________________________________________________ 17

9.Operation__________________________________________________________________________________ 18

9.1. Method of operation_______________________________________________________________________ 18

9.2. Flow adjustment__________________________________________________________________________ 18

9.3. Shutdown _______________________________________________________________________________ 19

10.Method of cleaning _________________________________________________________________________ 19

11.Dailycheck_________________________________________________________________________________ 20

12.Possible problems___________________________________________________________________________ 20

13.Returning the product for servicing ___________________________________________________________ 22

14.Main body specification _____________________________________________________________________ 24

14.1. Main specification ________________________________________________________________________ 24

14.2. Appearance and dimensions_________________________________________________________________ 24

14.3. Technical Data___________________________________________________________________________ 25

14.4. Pump code______________________________________________________________________________ 25

14.5. Performance curves _______________________________________________________________________ 26

15.Dellmeco Active Pulsation Dampers for Plastic Pumps____________________________________________ 27

15.1. Main specification________________________________________________________________________ 27

15.2. Appearance and dimensions (pump with pulsation damper) _________________________________________ 30

16. Optional Equipment________________________________________________________________________ 31

16.1. Barrier Chamber System (option code BC1, BC2, BC3)____________________________________________ 31

16.2. Stroke Counting (option code SC1, SC2, SC3, SC5, SC6) __________________________________________ 33

16.3. Diaphragm Monitoring (option code DM1, DM2) ________________________________________________ 35

16.4. Flange Connections (option code F1, F2, F3, F7, F8, F9) ___________________________________________ 36

16.5. Sleeve with Split Connections (option code S) ___________________________________________________ 36

16.6 Back Flushing System (option code BF1, BF2, BF4, BF5) ________________________________________ 36

16.7 High Pressure System (option code HP)_______________________________________________________ 38

17.Limited warranty___________________________________________________________________________ 40

4 I DELLMECO I AODD DIAPHRAGM PUMPS

1. Introduction

This pump is a positive-displacement pump that transfers fluids by means of diaphragms movement operated by

compressed air. The casing in contact with the fluid is made of PE (polyethylene), PE conductive, PTFE

(polytetrafluoroethylene), PTFE conductive.

2. For safe operation

This document contains information indispensable for maintaining safe and efficient operation of this product.

Read this document carefully before using the pump particularly the "warnings and cautions". Get familiar with all

operating procedures. This document must be kept handy for future reference.

3. Warnings and cautions

The meanings of warning and caution symbols are given below. Be sure to remember their meanings.

WARNING

ignoring the warning and operating the product in an improper manner can result

in danger of serious bodily injury or death.

CAUTION

:ignoring the warning and operating the product in an improper manner can result

in danger of personal injury or property damage.

ØThis symbol means a DON’T, and will be followed by an explanation on what you must not do.

!This symbol means a DO, and will be followed by an explanation on what you must do in a specified situation.

4. Operating caution

Before using this product

WARNING

!Todrive thepumpyou mustuseone ofthe followingcompressedgases(calledin thisdocument "compressedair"):

-Compressed air supplied from air compressor

- Nitrogen(N

)gas

Useofcompressed airother thantheabove maycauseairpollution,damagetothepump,orevenanexplosion.

!Themaximumpermissiblepressureforthecompressedair,andthefluidpumpedbyone ofthispumps, 8bars.Should

the aboveapplicablemaximumpermissiblepressurebeexceeded,thefollowingresultsmayfollow:

damage to the casing, or even a severe, possibly fatal accident.

In some pomp executions, specified by manufacturer, the max. pressure can reach 14 bars.

!In case a diaphragm gets damaged,fluid willgush out together with air through the exhaust port. Provide

protective measures in consideration of possible leakage of fluid.

Whenusingthe hoseandpitetc,makesuretousea modelwith appropriatecorrosion resistance for thefluid to be

pumped.

5I DELLMECO I AODD DIAPHRAGM PUMPS

WARNING

CAUTION

When installing this product, be sure to connect a ground wire from the specified position of this product.

Otherwise friction between parts and abrasion caused by the flow of some fluids inside the casing may

generate static electricity. Depending on the type of fluid being pumped and the installation environment

(such as gases in the air and type of surrounding fixtures), static electricity could cause fire or electric shock.

!Some fluid may remain inside the pump and inside the connected piping after shutting down the pump, or if

the pump is left unused for a prolonged period.

Therefore, be sure to purge the system of fluid and clean the pump before prolonged disuse.

The fluid remaining in the connected piping as well as the pump itself may expand because of freezing or

heat which may cause damage to the pump or/and piping and lead to leakage of the fluid.

Use only genuine Dellmeco parts when replacing component parts of this product.

!Torque of all tightening parts must be checked before running the pump. Designated torques are mentioned

in maintenance manual.

!In case of pumping a hazardous fluid (hot, flammable, strong acid, etc.) with this pump, protective measures

(install a pit, a protection box, sensors, etc.) must be provided in consideration of possible leakage of fluid.

Warning signs must be displayed at necessary places. Leakage of fluid may cause fire or accident.

!Before using this pump, get fully familiar with the precautions regarding the fluid to be pumped, and verify

the corrosion resistance of the parts that will come into contact with the fluid. NEVER use the pump with any

fluid against which it does not have sufficient corrosion resistance or with a fluid that poses a risk of

explosion. If you are unable to verify the corrosion resistance, contact your dealer. Using this product with

any fluid against which the parts in contact with the fluid do not have sufficient corrosion resistance may

result in damaging the product or leakage of fluid.

!The running pump may generate loud operating noise. Its level will vary depending upon the conditions of

use (fluid pumped, supply air pressure and discharge pressure)

!To drive this product, supply air with minimum moisture content and without any oil must be used.

!If a diaphragm of this pump is damaged, supply air may mix with the fluid or the fluid may flow into the

central housing. DO NOT OPERATE THE PUMP if air supply is inadequate or contaminated.

While operating this product, do NOT put your hand on the inlet port.

6 I DELLMECO I AODD DIAPHRAGM PUMPS

Names of parts and materials

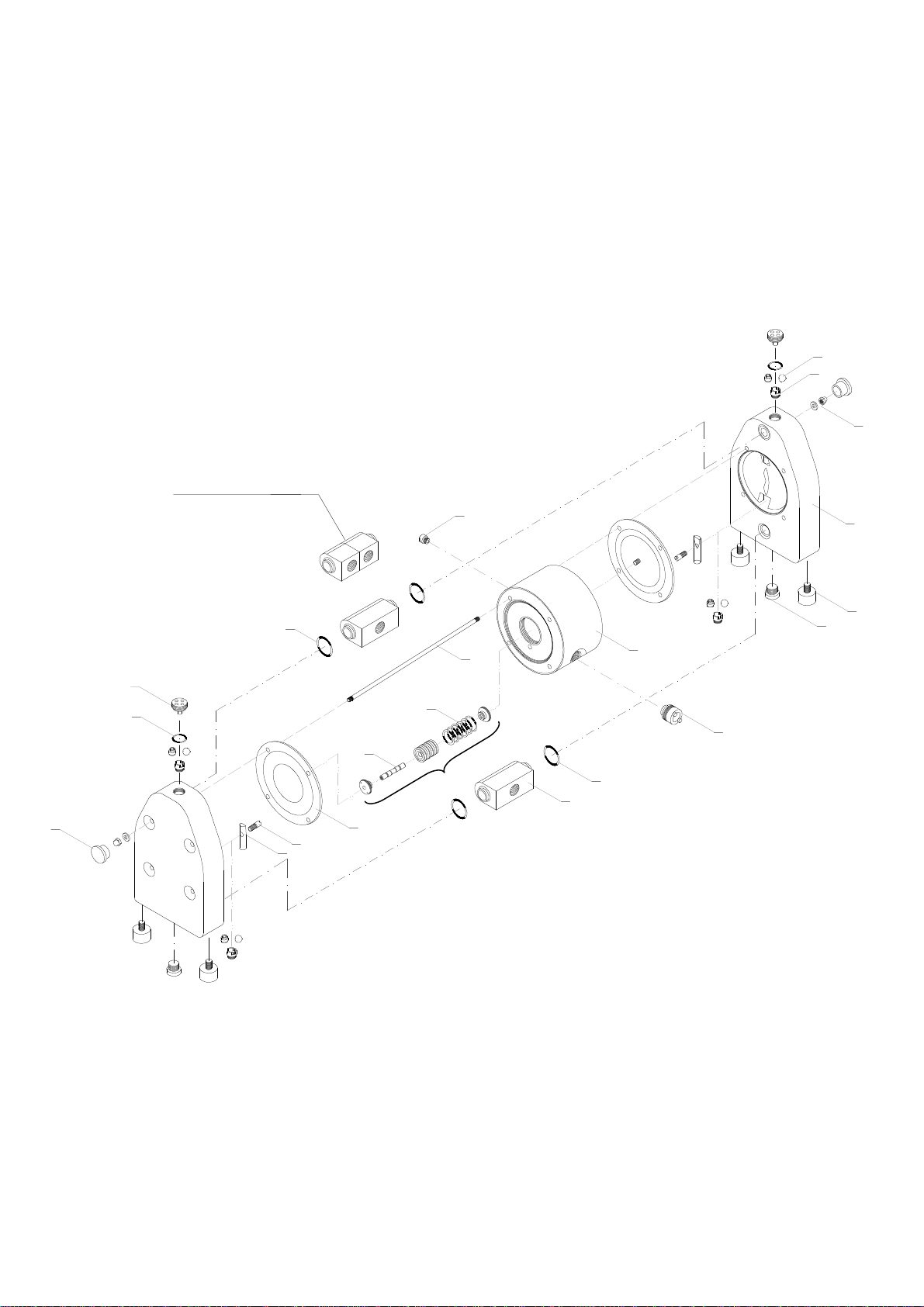

5.1. DM 08/10, DM 10/25

Sleeve with Split connections

(option code S) – DM 10/25 only

7I DELLMECO I AODD DIAPHRAGM PUMPS

Spare parts list for DM 08/10 and DM 10/25 pumps

DM 08/10 DM 10/25

1. 2 Pump housing PE 2 08 01 20 2 10 01 20

PEconductive 2 08 01 21 2 10 01 21

PTFE 2 08 01 23 2 10 01 23

PTFE conductive 2 08 01 24 2 10 01 24

2. 1 Center housing PE 1 08 10 20 1 10 10 20

PE conductive 1 08 10 21 1 10 10 21

3. 2 Suction/Discharge ports PE 2 08 30 20 2 10 30 20

PE conductive 2 08 30 21 2 10 30 21

PTFE 2 08 30 23 2 10 30 23

PTFE conductive 2 08 30 24 2 10 30 24

AISI 316L 2 08 35 53 2 10 35 53

Suction/Discharge ports-twin PE

2 10 31 20

1 Suction port-drum PE 2 08 33 20 2 10 33 20

4. 2 Diaphragm TFM /PTFE 1 08 50 05 1 10 50 05

EPDM - 1 10 50 08

NBR - 1 10 50 10

EPDM/TFM/PFA - 1 10 50 00

5. 4 Cylinder valves PE 2 08 56 20 2 10 56 20

PTFE 2 08 56 23 2 10 56 23

4 Valve balls PTFE 1 08 60 23 1 10 60 23

EPDM

1 10 60 08

NBR

1 10 60 10

AISI 316 1 08 60 52 1 10 60 52

Ceramic

1 10 60 90

Polyurethane

1 10 60 07

7. 4 Sealing inlet/outlet FEP/FPM 2 08 70 04 2 10 70 04

9. 4 Housing bolt AISI 304 2 08 042 50 2 10 042 50

11. 4 Shock absorber NR/St37 1 08 69 06 1 08 69 06

12. 8 Nut with washer AISI 304 2 08 045 50 2 10 045 50

13. 1 Air valve PET/NBR 1 08 020 31 1 08 020 31

PET/FPM 1 08 020 32 1 08 020 32

14. 1 Shaft AISI 304 1 08 24 50 1 08 24 50

15. 6 O-ring NBR 1 08 080 10 1 08 080 10

FPM 1 08 080 09 1 08 080 09

17. 1 Muffler PE porous 1 08 99 35 1 08 99 35

BZ 1 08 99 86 1 08 99 86

18. 1 Air adapter PP 1 08 46 28 1 08 46 28

19. 1 Handle AISI 304 3 08 98 50 3 10 98 50

20. 1 Tube PP 1 08 96 28 1 10 96 28

22. 4 Valve seat PE 2 08 54 20 2 10 54 20

PTFE 2 08 54 23 2 10 54 23

PE conductive 2 08 54 21 2 10 54 21

PTFE conductive 2 08 54 24 2 10 54 24

24. 2 Plug lower PE 2 08 59 20 2 10 59 20

PTFE 2 08 59 23 2 10 59 23

PE conductive 2 08 59 21 2 10 59 21

PTFE conductive 2 08 59 24 2 10 59 24

25. 2 Plug upper PE 2 08 055 20 2 10 055 20

PTFE 2 08 055 23 2 10 055 23

PE conductive 2 08 055 21 2 10 055 21

PTFE conductive 2 08 055 24 2 10 055 24

26. 2 Valve stopper PE 2 08 39 20 2 10 39 20

PTFE 2 08 39 23 2 10 39 23

PE conductive 2 08 39 21 2 10 39 21

PTFE conductive 2 08 39 24 2 10 39 24

27. 2 Bolt PE 2 08 38 20 2 10 38 20

PTFE 2 08 38 23 2 10 38 23

PE conductive 2 08 38 21 2 10 38 21

PTFE conductive 2 08 38 24 2 10 38 24

28. 2 Plug upper sealing FEP/FPM 2 08 78 04 2 10 78 04

EPDM

2 10 78 08

35. 1 Center housing complete PE 1 08 11 20 1 10 11 20

PE conductive 1 08 11 21 1 10 11 21

70. 8 Pump housing plug set PE 2 08 058 20 2 10 058 20

8 I DELLMECO I AODD DIAPHRAGM PUMPS

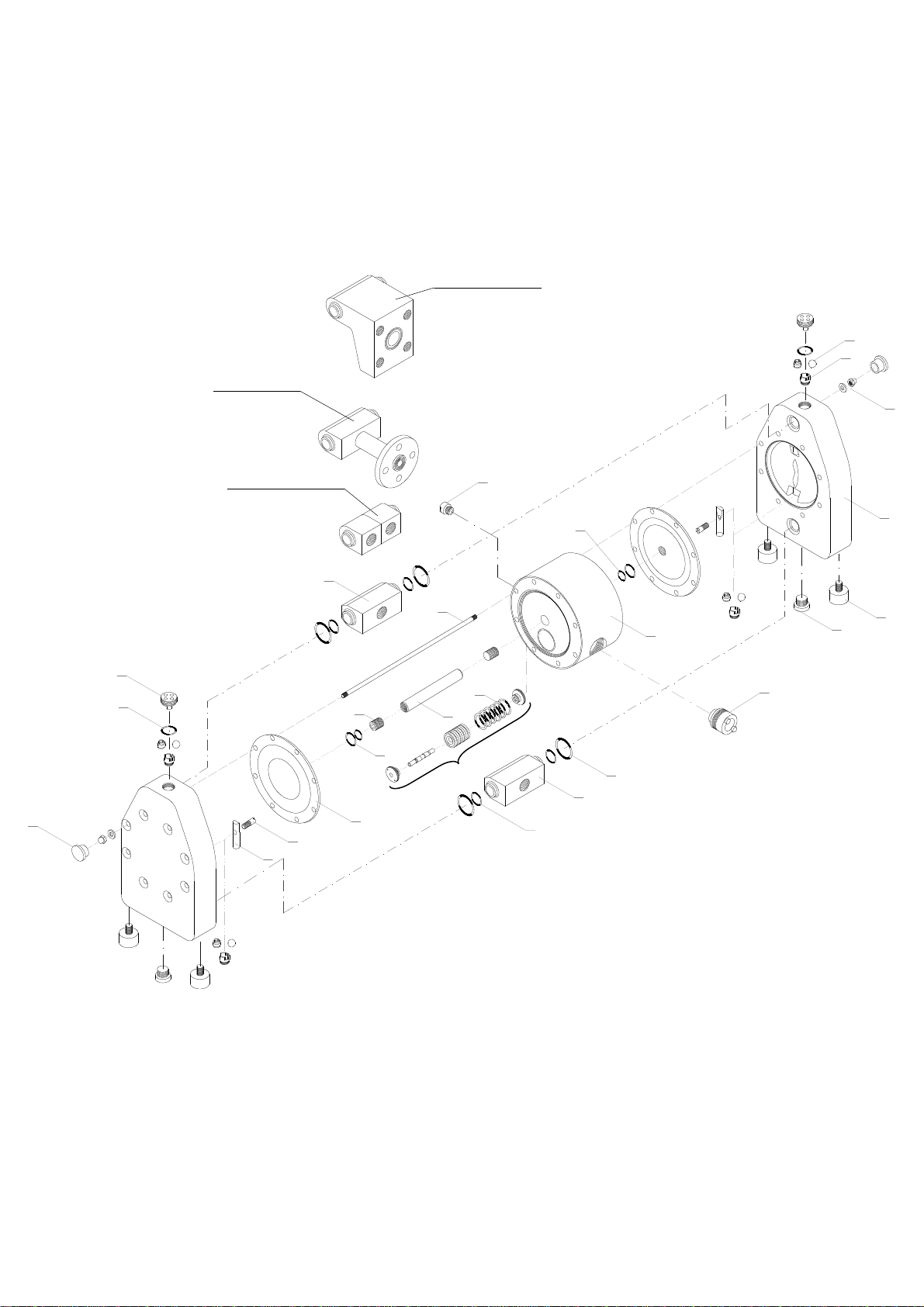

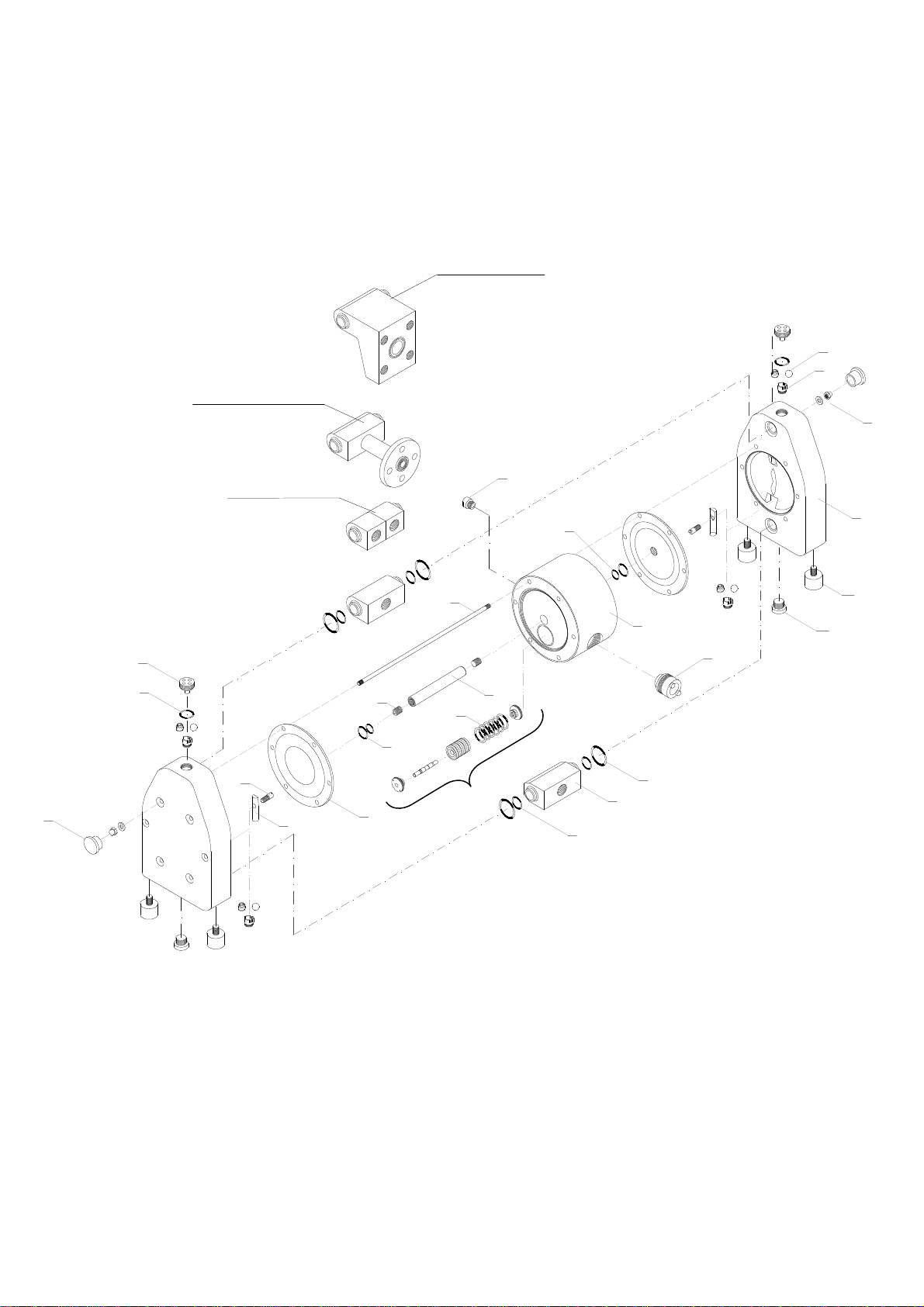

5.2. DM 15/55, DM 25/125

Sleeve with Split connections

(option code S)

Flange Connections

(option code F7, F8, F9)

Flange Connections

PN10

(option code F1, F2, F3)

9 11

70 13

9I DELLMECO I AODD DIAPHRAGM PUMPS

Spare parts list for DM 15/55 and DM 25/125 pumps

DM 15/55 DM 25/125

1. 2 Pump housing PE 2 15 01 20 2 25 01 20

PE conductive 2 15 01 21 2 25 01 21

PTFE 2 15 01 23 2 25001 23

PTFE conductive 2 15 01 24 2 25 01 24

2. 1 Center housing PE 1 15 10 20 1 25 10 20

PE conductive 1 15 10 21 1 25 10 21

3. 2 Suction/Discharge ports PE 2 15 30 20 2 25 30 20

PE conductive 2 15 30 21 2 25 30 21

PTFE 2 15 30 23 2 25 30 23

PTFE conductive 2 15 30 24 2 25 30 24

AISI 316L 2 15 35 53 2 25 35 53

2 Suction/Discharge ports-twin PE 2 15 31 20 2 25 31 20

1 Suction port-drum PE 2 15 33 20 2 25 33 20

Suction port-drum PTFE 2 15 33 23 2 25 33 23

4. 2 Diaphragm TFM/PTFE 1 15 50 05 1 25 50 05

EPDM 1 15 50 08 1 25 50 08

NBR 1 15 50 10 1 25 50 10

EPDM/TFM/PFA 1 15 50 00 -

5. 4 Cylinder valves PE 2 15 56 20 2 25 56 20

PTFE 2 15 56 23 2 25 56 23

4 Valve balls PTFE 1 15 60 23 1 25 60 23

EPDM 1 15 60 08 1 25 60 08

NBR 1 15 60 10 1 25 60 10

AISI 316 1 15 60 52 1 25 60 52

Polyurethane 1 15 60 07 1 25 60 07

Ceramic 1 15 60 90 1 25 60 90

7. 4 Sealing inlet/outlet FEP/FPM 2 15 70 04 -

EPDM 2 15 70 08 2 25 70 08

PTFE/FPM - 2 25 73 14

PTFE/EPDM - 2 25 73 15

PTFE-c./FPM - 2 25 73 16

PTFE-c./EPDM - 2 25 73 17

9. 6 Housing bolt AISI 304 2 15 042 50 2 25 042 50

11. 4 Shock absorber NR/St37 1 15 69 06 1 25 69 06

12. 12 Nut with washer AISI 304 2 15 045 50 2 25 045 50

13. 1 Air valve PET/NBR 1 15 020 31 1 15 020 31

PET/FPM 1 15 020 32 1 15 020 32

14. 1 Shaft AISI 304 1 15 40 50 1 25 40 50

15. 6 O-ring NBR 1 15 080 10 1 15 080 10

FPM 1 15 080 09 1 15 080 09

16. 2 Center housing seal PE 1 15 85 22 1 25 85 22

17. 1 Muffler PE porous 1 15 99 35 1 15 99 35

BZ 1 08 99 86 1 08 99 86

18. 1 Air adapter PP 1 15 46 28 1 15 46 28

19. 1 Handle AISI 304 3 15 98 50 3 25 98 50

20. 1 Tube PP 1 15 96 28 1 25 96 28

PTFE 1 15 96 23 1 25 96 23

22. 4 Valve seat PE 2 15 54 20 2 25 54 20

PTFE 2 15 54 23 2 25 54 23

PE conductive 2 15 54 21 2 25 54 21

PTFE conductive 2 15 54 24 2 25 54 24

24. 2 Plug lower PE 2 15 59 20 2 25 59 20

PTFE 2 15 59 23 2 25 59 23

PE conductive 2 15 59 21 2 25 59 21

PTFE conductive 2 15 59 24 2 25 59 24

25. 2 Plug upper PE 2 15 055 20 2 25 055 20

PTFE 2 15 055 23 2 25 055 23

PE conductive 2 15 055 21 2 25 055 21

PTFE conductive 2 15 055 24 2 25 055 24

26. 2 Valve stopper PE 2 15 39 20 2 25 39 20

PTFE 2 15 39 23 2 25 39 23

PE conductive 2 15 39 21 2 25 39 21

PTFE conductive 2 15 39 24 2 25 39 24

27. 2 Bolt PE 2 15 38 20 2 25 38 20

PTFE 2 15 38 23 2 25 38 23

PE conductive 2 15 38 21 2 25 38 21

PTFE conductive 2 15 38 24 2 25 38 24

28. 2 Plug upper sealing FEP/FPM 2 15 78 04 2 25 78 04

EPDM 2 15 78 08 2 25 78 08

30. 2/4* O-ring for center housing seal NBR 1 15 85 10 1 25 85 10*

35. 1 Center housing complete PE 1 15 11 20 1 25 11 20

PE conductive 1 15 11 21 1 25 11 21

70. 12 Pump housing plug set PE 2 15 058 20 2 25 058 20

82. 2 Shaft allen pin screw AISI 304 1 15 540 50 1 25 540 50

10 I DELLMECO I AODD DIAPHRAGM PUMPS

Sleeve with Split connections

(option code S)

Flange Connections

(option code F7, F8, F9)

Flan

ge Connections

PN10

(option code F1, F2, F3)

9 11

26 27

5.3. DM 40/315, DM 50/565

11I DELLMECO I AODD DIAPHRAGM PUMPS

Spare parts list for DM 40/315 and DM 50/565 pumps

DM 40/315 DM 50/565

1. 2 Pump housing PE 2 40 01 20 2 50 01 20

PE conductive 2 40 01 21 2 50 01 21

PTFE 2 40 01 23 2 50 01 23

PTFE conductive 2 40 01 24 2 50 01 24

2. 1 Center housing PE 1 40 10 20 1 50 10 20

PE conductive 1 40 10 21 1 50 10 21

3. 2 Suction/Discharge ports PE 2 40 30 20 2 50 30 20

PE conductive 2 40 30 21 2 50 30 21

PTFE 2 40 30 23 2 50 30 23

PTFE conductive 2 40 30 24 2 50 30 24

AISI 316L 2 40 35 53 2 50 35 53

Suction/discharge ports-twin PE 2 40 31 20 2 50 31 20

4. 2 Diaphragm TFM/PTFE 1 40 50 05 1 50 50 05

EPDM 1 40 50 08 1 50 50 08

NBR 1 40 50 10 1 50 50 10

5. 4 Cylinder valves PE 2 40 56 20 2 50 56 20

PTFE 2 40 56 23 2 50 56 23

4 Valve balls PTFE 1 40 60 23 1 50 60 23

EPDM 1 40 60 08 1 50 60 08

NBR 1 40 60 10 1 50 60 10

AISI 316 1 40 60 52 1 50 60 52

Polyurethane 1 40 60 07 1 50 60 07

7. 4 Sealing inlet/outlet - SET PTFE/FPM 2 40 73 14 2 50 73 14

PTFE/EPDM 2 40 73 15 2 50 73 15

PTFE-c./FPM 2 40 73 16 2 50 73 16

PTFE-c./EPDM 2 40 73 17 2 50 73 17

9. 8 Housing bolt AISI 304 2 40 042 50 2 50 042 50

11. 4 Shock absorber NR/St37 1 40 69 06 1 40 69 06

12. 16

Nut with washer AISI 304 2 40 045 50 2 50 045 50

13. 1 Air valve PET/NBR 1 40 020 31 1 40 020 31

PET/FPM 1 40 020 32 1 40 020 32

14. 1 Shaft AISI 304 1 40 40 50 1 50 40 50

15. 6 O-ring NBR 1 40 87 10 1 40 87 10

FPM 1 40 87 09 1 40 87 09

16. 2 Center housing seal PE 1 40 85 22 1 50 85 22

17. 1 Muffler PE porous 1 40 99 35 1 50 99 35

BZ 1 40 99 86 1 40 99 86

18. 1 Air adapter PP 1 40 46 28 1 40 46 28

22. 4 Valve seat PE 2 40 54 20 2 50 54 20

PTFE 2 40 54 23 2 50 54 23

PE conductive 2 40 54 21 2 50 54 21

PTFE conductive 2 40 54 24 2 50 54 24

24. 2 Plug lower PE 2 40 59 20 2 50 59 20

PTFE 2 40 59 23 2 50 59 23

PE conductive 2 40 59 21 2 50 59 21

PTFE conductive 2 40 59 24 2 50 59 24

25. 2 Plug upper PE 2 40 055 20 2 50 055 20

PTFE 2 40 055 23 2 50 055 23

PE conductive 2 40 055 21 2 50 055 21

PTFE conductive 2 40 055 24 2 50 055 24

26. 2 Valve stopper PE 2 40 39 20 2 50 39 20

PTFE 2 40 39 23 2 50 39 23

PE conductive 2 40 39 21 2 50 39 21

PTFE conductive 2 40 39 24 2 50 39 24

27. 2 Bolt PE 2 40 38 20 2 50 38 20

PTFE 2 40 38 23 2 50 38 23

PE conductive 2 40 38 21 2 50 38 21

PTFE conductive 2 40 38 24 2 50 38 24

28. 2 Plug upper sealing FEP/FPM 2 40 78 04 2 50 78 04

EPDM 2 40 78 08 2 50 78 08

30. 2 O-ring for center housing seal NBR 1 40 85 10 1 50 85 10

35. 1 Center housing complete PE 1 40 11 20 1 50 11 20

PE conductive 1 40 11 21 1 50 11 21

70. 16

Pump housing plug PE 2 40 058 20 2 50 058 20

82. 2 Shaft allen pin screw AISI 304 1 40 540 50 1 50 540 50

This manual suits for next models

Table of contents

Other Dellmeco Water Pump manuals

Dellmeco

Dellmeco DM 15/25 User manual

Dellmeco

Dellmeco DME Series User manual

Dellmeco

Dellmeco DM 15/30 User manual

Dellmeco

Dellmeco DM 08/10 User manual

Popular Water Pump manuals by other brands

Neptun

Neptun NPHW 5500 operating instructions

Sensidyne

Sensidyne Gilian BDX-II Operation & service manual

Draper

Draper 47808 instructions

Trolla

Trolla 12820 manual

Sunfab

Sunfab SVH Series installation guide

WilTec

WilTec 50740 Operation manual

Fieldmann

Fieldmann FVC 5015 EK user manual

Everbilt

Everbilt EFSUB5-122HD Use and care guide

Graco

Graco Husky 3300e manual

esotec

esotec 101018 operating manual

moyno

moyno 2000 CC Service manual

Becker

Becker BASIC VASF 2.80/1-0.AC230 operating instructions

Sykes AmeriPumps

Sykes AmeriPumps GP100M Operation and maintenance instructions

DUROMAX

DUROMAX XP WX Series user manual

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 operating instructions

Franklin Electric

Franklin Electric IPS Installation & operation manual

Xylem

Xylem e-1532 Series instruction manual

Milton Roy

Milton Roy PRIMEROYAL instruction manual
