Dell SE2717H Installation instructions

SE2717H_ SE2717HR_ SE2717HX 1

1. Disassembly Procedures:

Step Figure Remark

S1.The FRONT

VIEW

Turn off power,

Unplug external cables

from product

S2.Remove the

STAND-BASE

ASS’Y

To remove the stand:

1. Press and hold the

stand release button.

2. Lift the stand up and

away from the monitor.

Note:

To prevent scratches on

the LCD screen while

removing the stand,

ensure that the monitor is

placed on a soft, clean

surface.

SE2717H_ SE2717HR_ SE2717HX 2

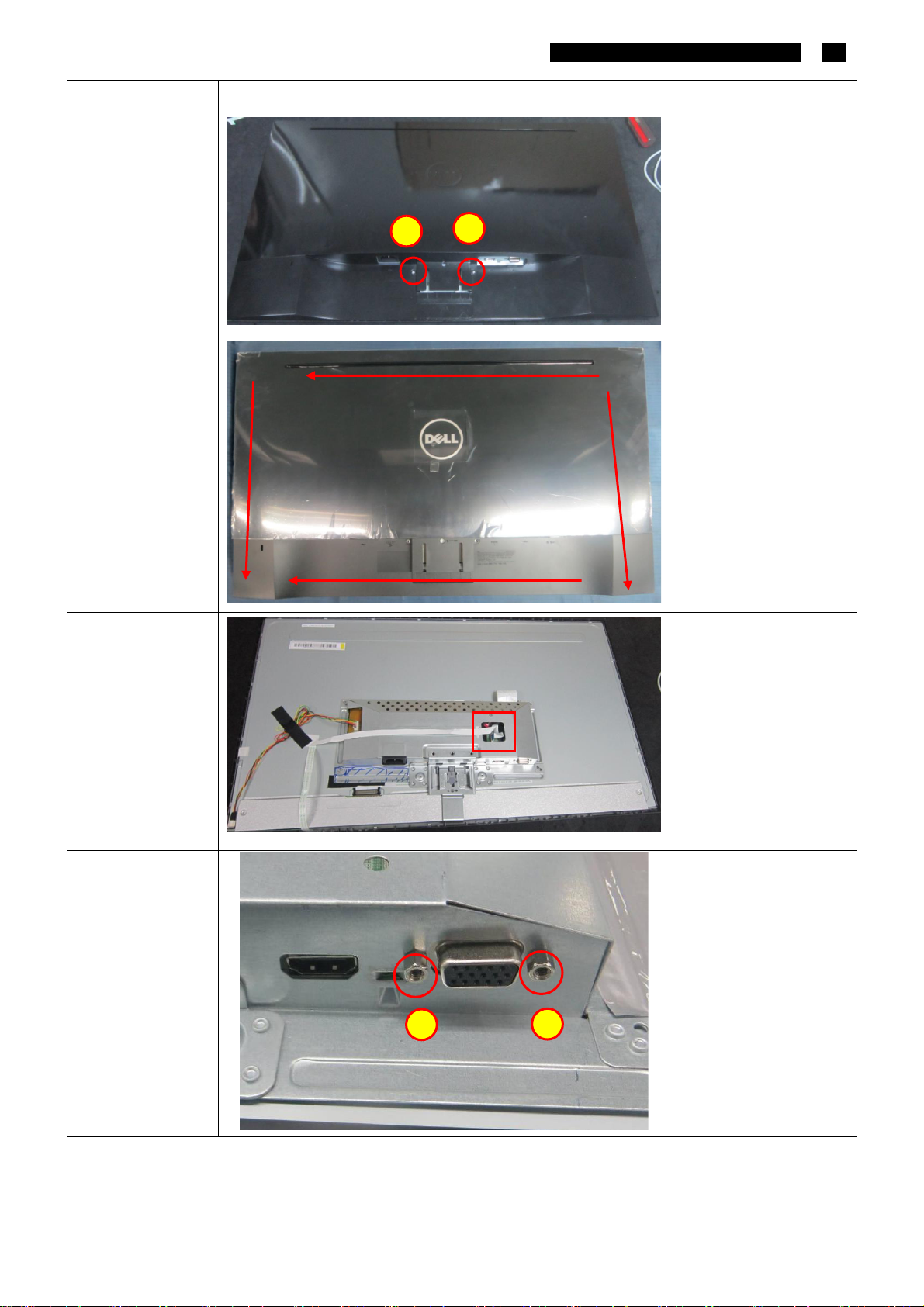

S3.Remove the

REAR COVER

Use a Philips-head

screwdriver to remove 2

screws for unlocking

mechanisms.

(No.1~2 screw

size=P3x6;

Torque=4±1kgf.cm)

Use Penknife to

separate the bezel and

rear cove follow the

arrows in sequence, then

you can take out rear

cover.

S4.Disconnect the

FFC cable

Disconnect the FFC

cable

S5.Remove the

HEX screws

Use a hex screwdriver to

remove 2 screws for

unlocking mainboard.

(No.1~2 is Hex-screw,

Torque= 4.5±0.5kgf.cm)

SE2717H_ SE2717HR_ SE2717HX 3

S6.Remove the

cables

Remove the cables

S7.Remove the

FFC cable

Remove the FFC cable

S8.Remove the

Mylar

Remove the mylar.

SE2717H_ SE2717HR_ SE2717HX 4

S9.Remove the

Main &Power

Board

Remove the FFC cable

Use a Philips-head

screwdriver to remove 6

screws for unlocking

main board and power

board

(No.1~5 screw

size=D3x6;

Torque=6±1kgf.cm

No.6 screw size=M4x6;

Torque= 6±1kgf.cm)

S10.Remove the

Key Board

Use a Philips-head

screwdriver to remove

3screws for unlocking

Key board.

(No.1~3 screw

size= M2x2.5

Torque=0.9±0.4kgf.cm)

S11.The Panel

The Panel

1 2

1 2 3

SE2717H_ SE2717HR_ SE2717HX 5

S12.Remove the

screw

Use a Philips-head

screwdriver to remove

1screws for unlocking

main frame

(No.1 screw size= Q3x6

Torque=4±1kgf.cm)

S13.The Main

Frame

The Main Frame

S14.The Bezel

The Bezel

SE2717H_ SE2717HR_ SE2717HX 6

S15.Remove

capacitors

Remove electrolyte

capacitors (red mark)

from printed circuit

boards

Take out bulk cap. pin

solder with soldering iron

and absorber

Lift the bulk cap. up and

away from the PCB

SE2717H_ SE2717HR_ SE2717HX 7

2. Product material information

The following substances, preparations, or components should be disposed of or recovered

separately from other WEEE in compliance with Article 4 of EU Council Directive 75/442/EEC.

Capacitors / condensers (containing

PCB/PCT)

No used

Mercury containing components No used

Batteries No used

Printed circuit boards (with a surface

greater than 10 square cm)

Product has printed circuit boards (with a

surface greater than 10 square cm)

Component contain toner, ink and liquids No used

Plastic containing BFR No used

Component and waste contain asbestos No used

CRT No used

Component contain CFC, HCFC, HFC

and HC

No used

Gas discharge lamps No used

LCD display > 100 cm2 Product has an LCD greater than 100 cm2

External electric cable Product has external cables

Component contain refractory ceramic

fibers

No used

Component contain radio-active

substances

No used

Electrolyte capacitors (height

> 25mm, diameter > 25mm)

Product has electrolyte capacitors

(height > 25mm, diameter > 25mm)

3. Tools Required

Listthetypeandsizeofthetoolsthatwouldtypicallycanbeusedtodisassembletheproducttoapoint

wherecomponentsandmaterialsrequiringselectivetreatmentcanberemoved.

ToolDescription:

‐PhillipheadScrewdriver

‐HexScrewdriver

‐Penknife

‐Solderingironandabsorber
