About Your Monitor

Dell™P2210H/P2310HFlatPanelMonitorUser'sGuide

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.



Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

Universal Serial Bus (USB) Interface

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not

be available in certain countries.

lMonitor

lStand

lPower Cable

lVGA Cable (attached to the monitor)

lDVI Cable

Great user manuals database on UserManuals.info



Product Features

The P2210H/P2310H flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■P2210H: 21.5-inch (548.86 mm) viewable area display (Measured diagonally).

■P2310H: 23-inch (584.2 mm) viewable area display (Measured diagonally).

■1920 x1080 resolution, plus full-screen support for lower resolutions.

■Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■Tilt, swivel, vertical extension and rotate adjustment capability.

■Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.

■Plug and play capability if supported by your system.

■Retractable label card allows convenient access to monitor serial number for technical support and easily hidden away providing label-free clean look.

■On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.

■Energy Saver feature for Energy Star compliance.

■Security lock slot.

■Asset Management Capability.

■Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.

■EPEAT Gold Rating

■Halogen Reduced

Identifying Parts and Controls

Front View

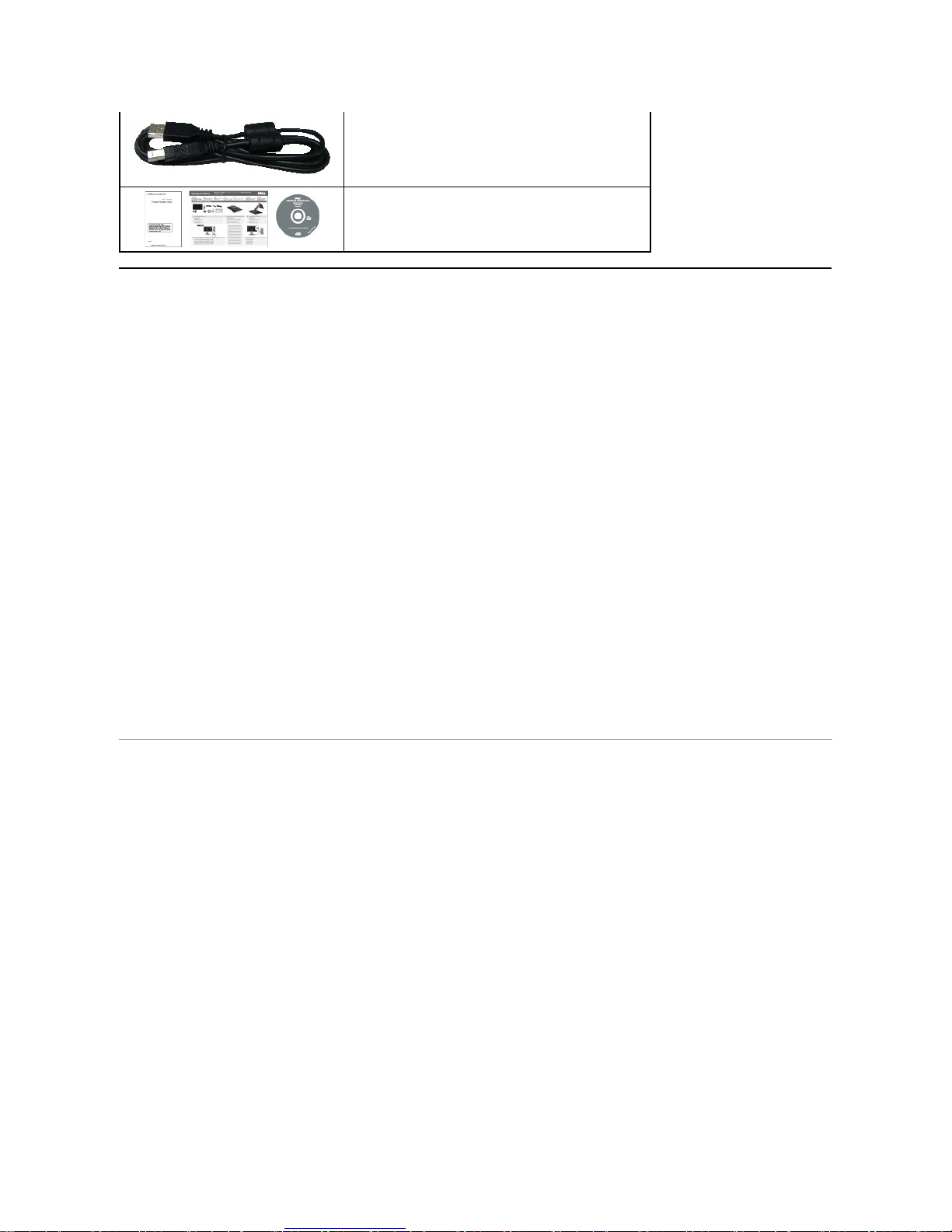

lUSB up stream cable (enables the USB ports on the monitor)

lDrivers and Documentation media

lQuick Setup Guide

lSafety Information

Great user manuals database on UserManuals.info

Back View





Label Card View



Front View

Front panel controls

Label

Description

Function buttons (For more information, see Operating the

Monitor)

Power (with power light indicator)

Back view

Back view with monitor stand

Label

Description

Use

VESA mounting holes (100 mm x 100 mm -

behind attached base plate)

Wall mount monitor using VESA compatible wall mount kit (100 mm x 100 mm)

Stand removal button

Release stand from monitor

Security lock slot

Secures monitor with security cable lock

Dell Soundbar mounting brackets

Attaches the optional Dell Soundbar

Information mark

Help locating regulatory and barcode labels

Cable management slot

Organizes cables by placing them through the slot

NOTE: Monitor is shipped with label card fully inserted in USB compartment. Pull out the label card to

access the barcode serial number label and regulatory rating label.

Great user manuals database on UserManuals.info





Side View



Back View with label card pulled out

Front View with label card pulled out

Label

Description

Use

Regulatory label

Lists the regulatory approvals

Barcode serial number label

Use to contact Dell for technical support

Great user manuals database on UserManuals.info



Bottom View





Left view

Right view

Label

Description

Use

USB downstream ports (2)

Connect your USB devices

Label Card Slot

For details, see Label Card View



Bottom view

Bottom view with monitor stand

Label

Description

Use

AC power cord connector

Connect the power cable

DC power connector for Dell Soundbar

Connect the power cord for the soundbar (optional)

DisplayPort connector

Connect your computer DP cable

DVI connector

Connect your computer DVI cable

VGA connector

Connect your computer VGA cable

USB upstream port

Connect the USB cable, that shipped with your monitor, to the monitor and

the computer. Once this cable is connected you can use the USB connectors

on the side and bottom of the monitor.

USB downstream ports (2)

Connect your USB devices. You can only use this connector after you have

connected the USB cable to the computer and USB upstream connector on

the monitor.

Great user manuals database on UserManuals.info





Monitor Specifications

Flat Panel Specifications

*[P2210H/P2310H] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.

Model number

Dell P2210H Flat Panel

Monitor

Dell P2310H Flat Panel

Monitor

Screen type

Active matrix -TFT LCD

Panel type

Screen

dimensions

21.5 inches (21.5-inch viewable

image size)

23 inches (23-inch viewable

image size)

Preset display

area

476.64(H)X268.11(V)

509.18(H)X286.41(V)

Horizontal

476.64 mm (18.8 inch)

509.18 mm (20 inches)

Vertical

268.11 mm (10.6 inch)

286.41 mm (11.27 inches)

Pixel pitch

0.248 mm

0.265 mm

Viewing angle

160°(vertical)typical

170°(horizontal)typical

160°(vertical)typical

170°(horizontal)typical

Luminance

output

250 CD/m²(typical)

Contrast ratio

1000 to 1 (typical),

10000 to 1 (typical Dynamic

Contrast On)

1000 to 1 (typical),

10000 to 1 (typical Dynamic

Contrast On)

Faceplate

coating

Antiglare with hard-coating 3H

Backlight

2-CCFL edgelight system

Response Time

5ms panel typical

Color depth

16.7 million colors

Color Gamut

83%*
