Dell®E Series Monitor VESA

Mounting Bracket Installation

Instructions

The VESA mounting bracket enables a Wyse cloud client to be mounted to the Dell E

Series Monitor. The bracket attaches to the monitor (a #1 Phillips-head screwdriver is

required), the cloud client is inserted in a vertical position, and then cables are

attached.

Note: If using a 22- or 23-inch Dell E Series Monitor, the monitor base extension must

be used.

Note: If using an E2414 Monitor, the P series mounting bracket must be used.

Wyse Cloud Clients Using this Bracket

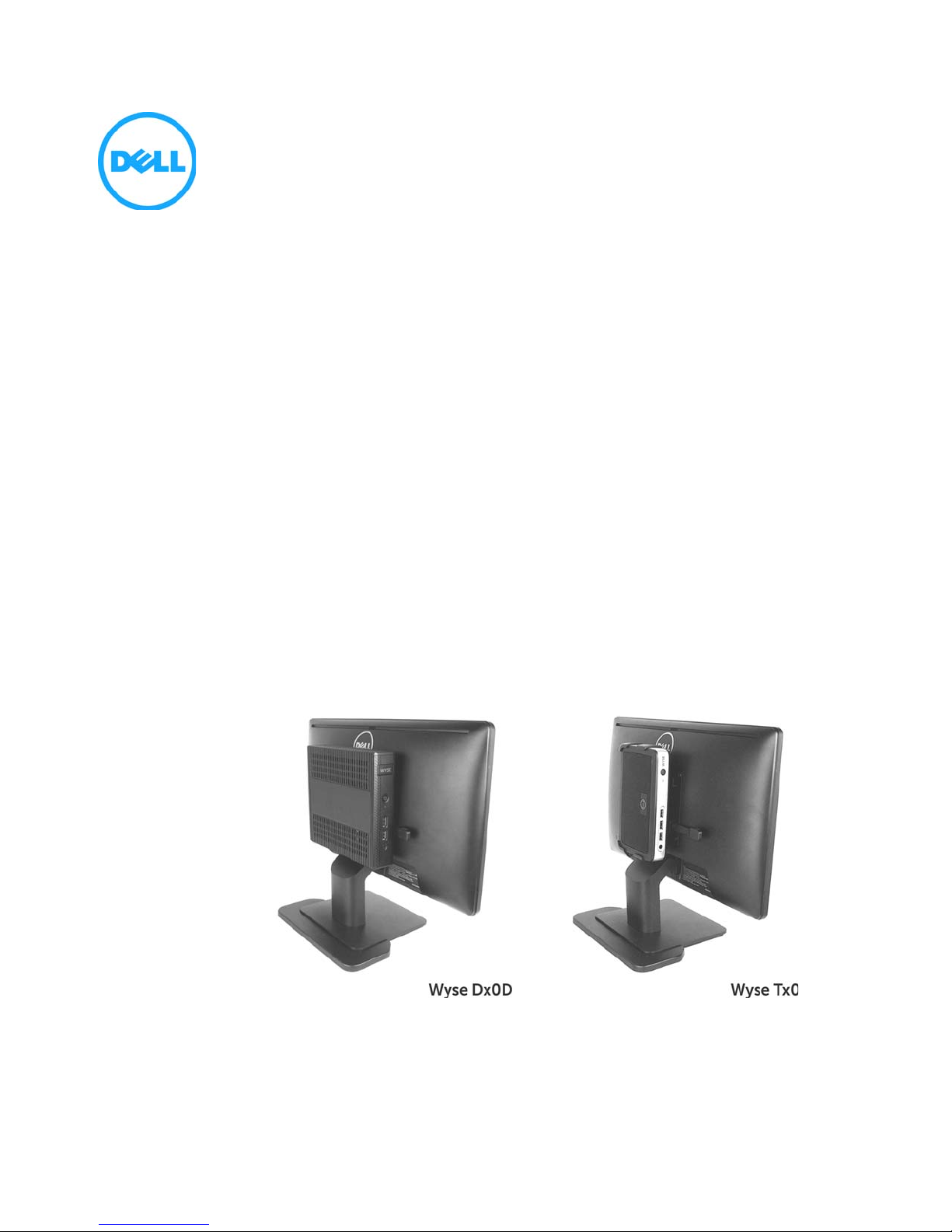

Wyse models D class, P25, and T class may use the Dell E Series Monitor VESA

Mounting Bracket. (Shown below are D and T class on monitors having the attached

base extension.)

Note: Mount the cloud client only as shown; improper orientation (where the back

panel or front panel is facing down) could restrict the airflow of heat from the device

and damage it.

Note: Do not enclose the cloud client in a confined environment without proper

ventilation.

2

Mounting the Base Extension to the 22- and 23-inch

E Series Monitor

You can skip this step if you are using an E Series Monitor of a different size.

1. Place the E Series Monitor face down on a padded table, with the foot of the stand

hanging over the table’s edge.

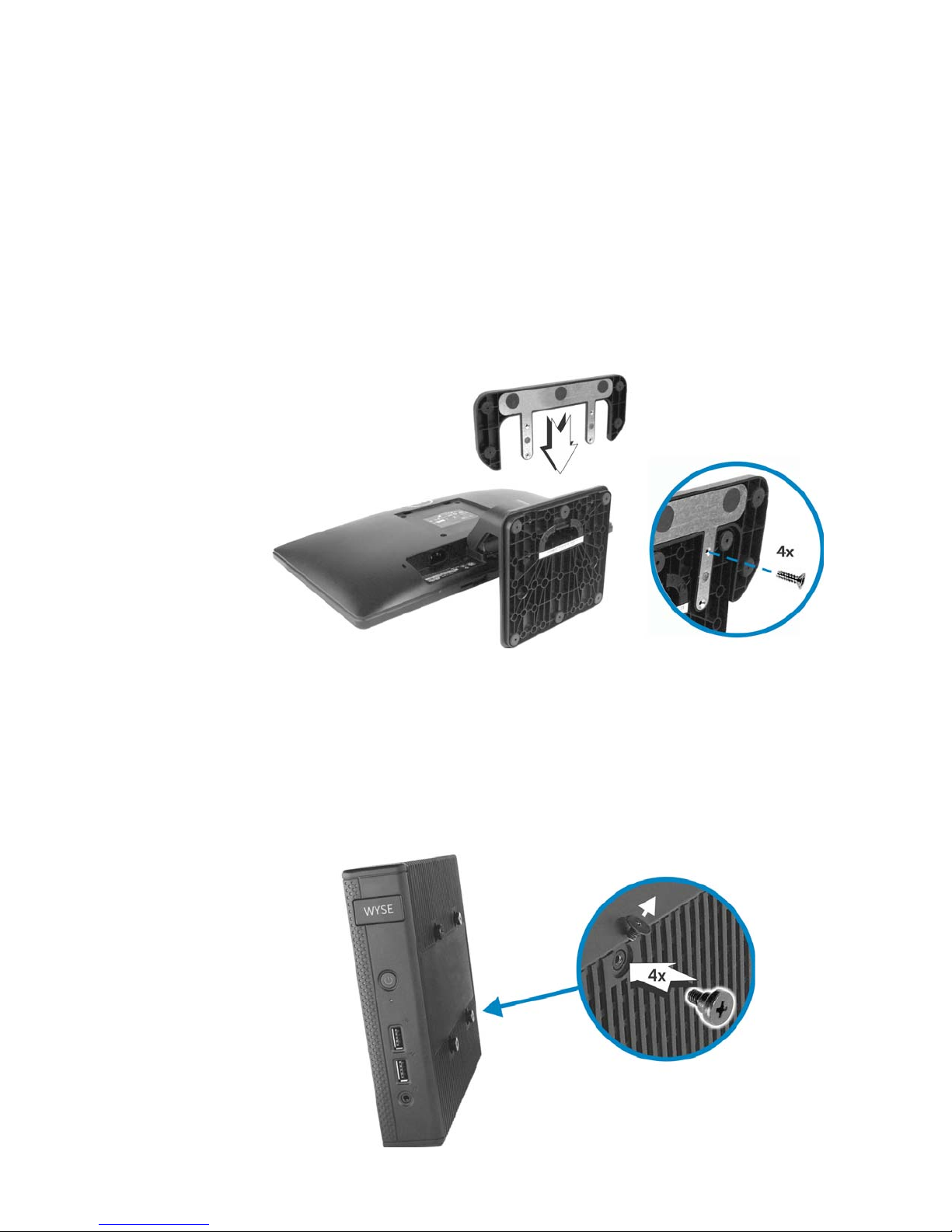

2. Slide the Base Extension onto the monitor stand as shown and firmly attach the

provided screws.

Important: The bottom of the stand has either a plastic base (as shown) or a metal

base. If your stand has the metal base, use the longer screws from the Base

Extension kit. If your stand has the plastic base, use the shorter screws.

Mounting the D Class to the E Series Monitor

Use the following instructions to mount the D class cloud client to the Dell E Series

Monitor VESA Mounting Bracket.

1. Remove the cloud client from its horizontal or vertical stand. Using a Phillips-head

screwdriver, remove the four (4) filler screws from the side of the cloud client and

replace them with the provided four (4) shoulder screws. Discard the filler screws.

3

2. Remove the four (4) VESA screws from the back of the monitor and set them aside.

Position the monitor bracket on the back of the monitor and attach it using the

same VESA screws (do not over-tighten).

Tip: For ease of attaching the screws, you may want to place the E Series Monitor

face down on a padded table, with the foot of the stand hanging over the table’s

edge.

3. Place the monitor in the upright standing position. Then, slightly tip the cloud client

to align and insert the four protruding shoulder screws into the four cutout areas of

the bracket. The security latch will move automatically when the shoulder screws

are inserted.

Tip: If you need to remove the cloud client, gently pull the security latch slightly to

the right to release the shoulder screws and to lift the cloud client from the bracket

cutouts.

4. Make all desired connections, and then connect the power adapter’s AC power

cable to an electrical outlet.

4

Mounting the Wyse P25 and T Class to the E Series Monitor

Use the following instructions to mount the P25 or T class cloud client to the Dell E

Series Monitor VESA Mounting Bracket.

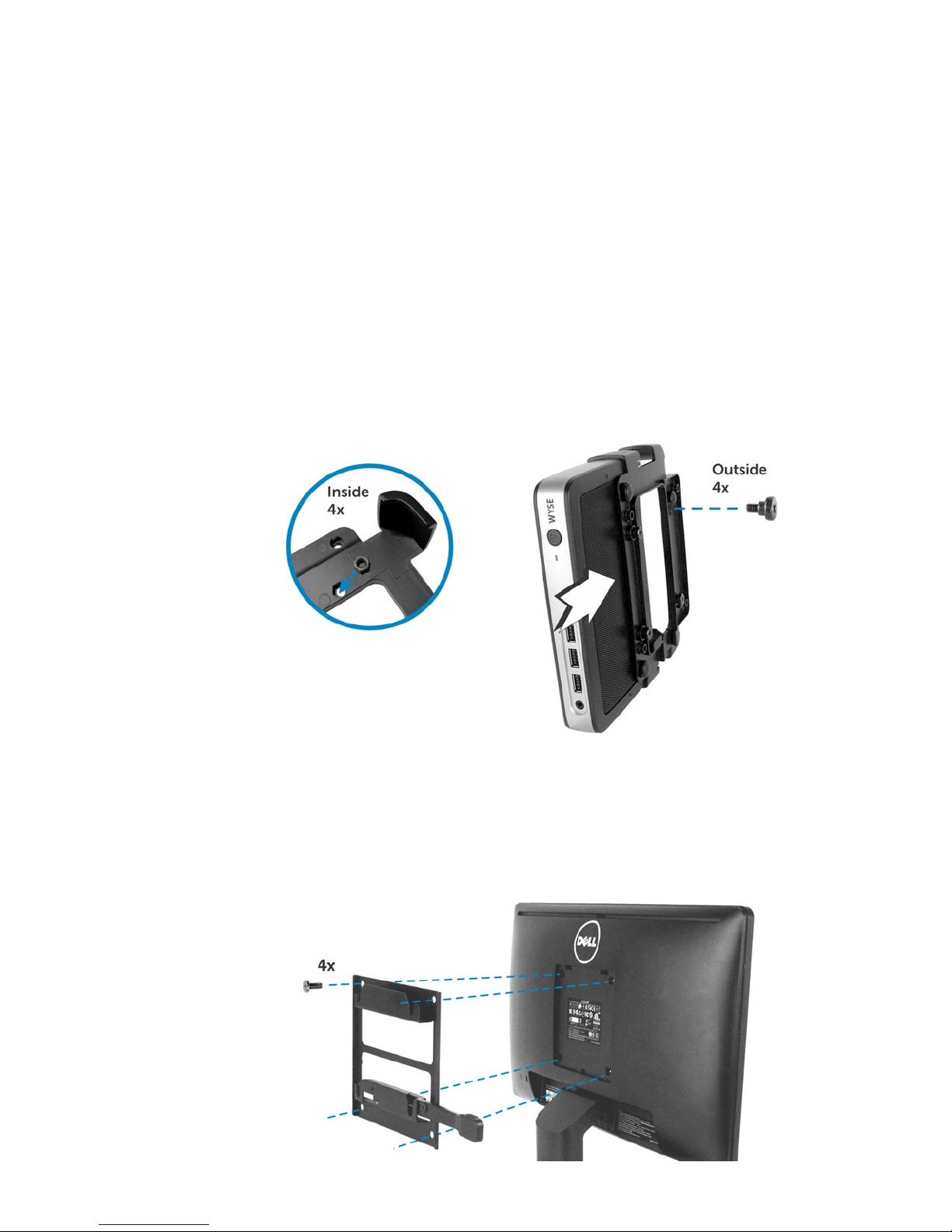

1. Preparing the cloud client:

a. Remove the cloud client from its horizontal stand/VESA bracket. On the ‘inside’

of the stand/bracket, slip one of the four (4) provided nuts into a screw hole.

Tip: Use your finger to slide the nut across the stand/bracket surface so that it

easily slips into the recessed cutout.

b. Using a Phillips-head screwdriver, attach one of the four (4) shoulder screws

through the ‘outside’ screw hole and into the nut (do not over-tighten). Repeat

for remaining three nuts and shoulder screws.

c. Finally, insert the cloud client into the stand/bracket as shown, with the power

button at the top, and the extended plastic ledge on the opposite side.

2. Remove the four (4) VESA screws from the back of the monitor and set them aside.

Position the monitor bracket on the back of the monitor and attach it using the

same VESA screws (do not over-tighten).

Tip: For ease of attaching the screws, you may want to place the E Series Monitor

face down on a padded table, with the foot of the stand hanging over the table’s

edge.

883964-01 Rev. A

March 2014

©2014 Dell Inc. All Rights Reserved.

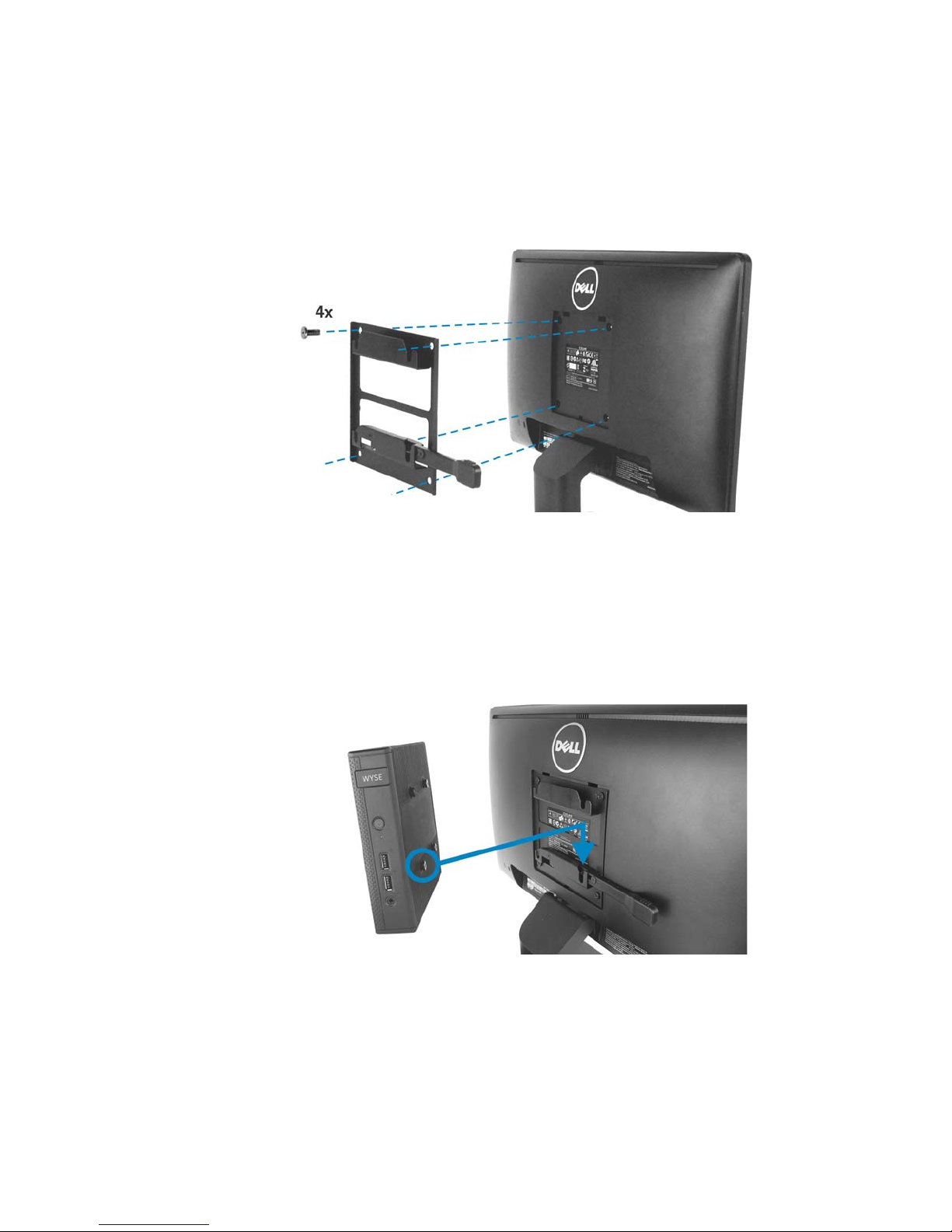

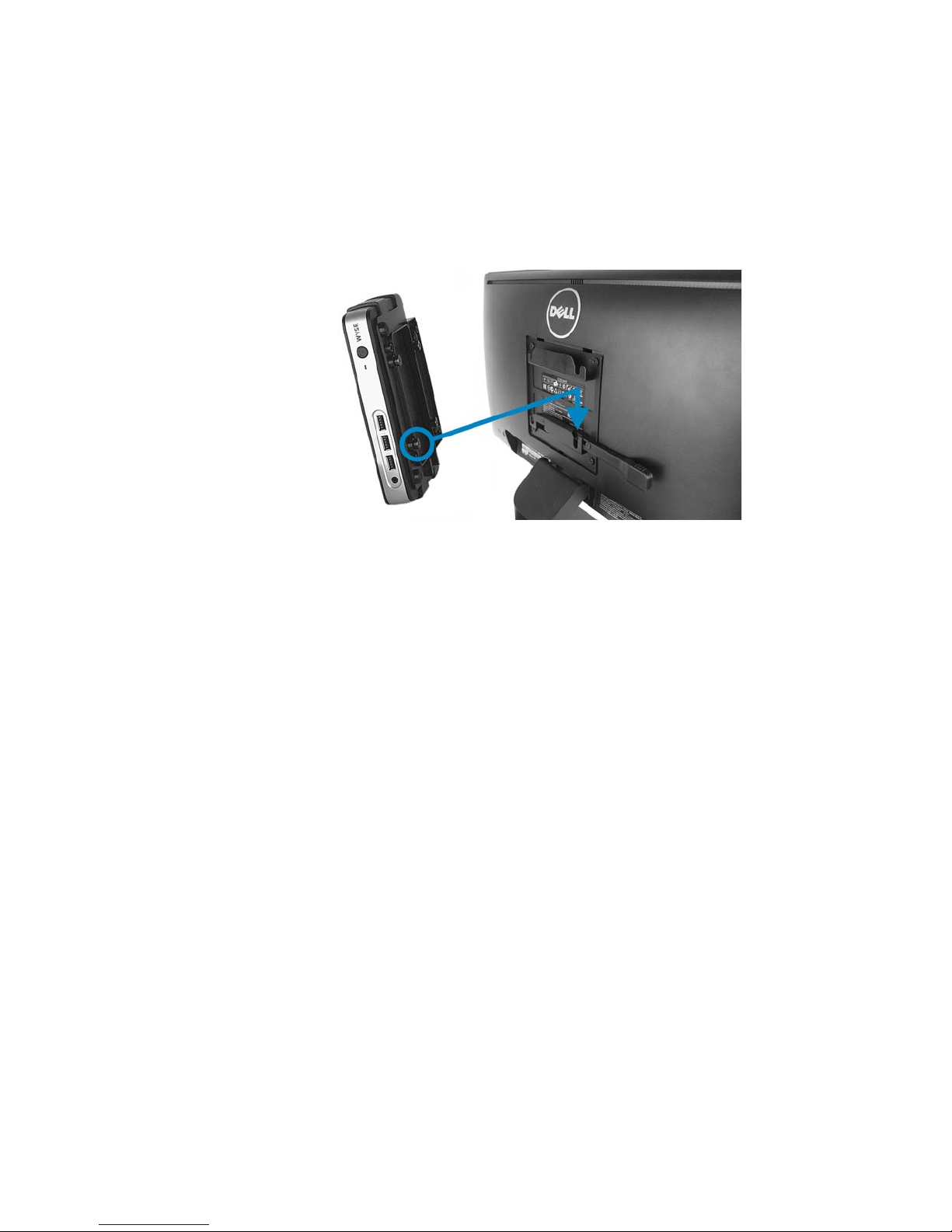

3. Place the monitor in the upright standing position. Then, slightly tip the cloud client

to align and insert the protruding shoulder screws into the four cutout areas of the

bracket. The security latch will move automatically when the shoulder screws are

inserted.

Tip: If you need to remove the cloud client, gently pull the security latch slightly to

the right to release the shoulder screws and to lift the cloud client from the bracket

cutouts.

4. Make all desired connections, and then connect the power adapter’s AC power

cable to an electrical outlet.
