About Your Display | 5

About Your Display

Package Contents

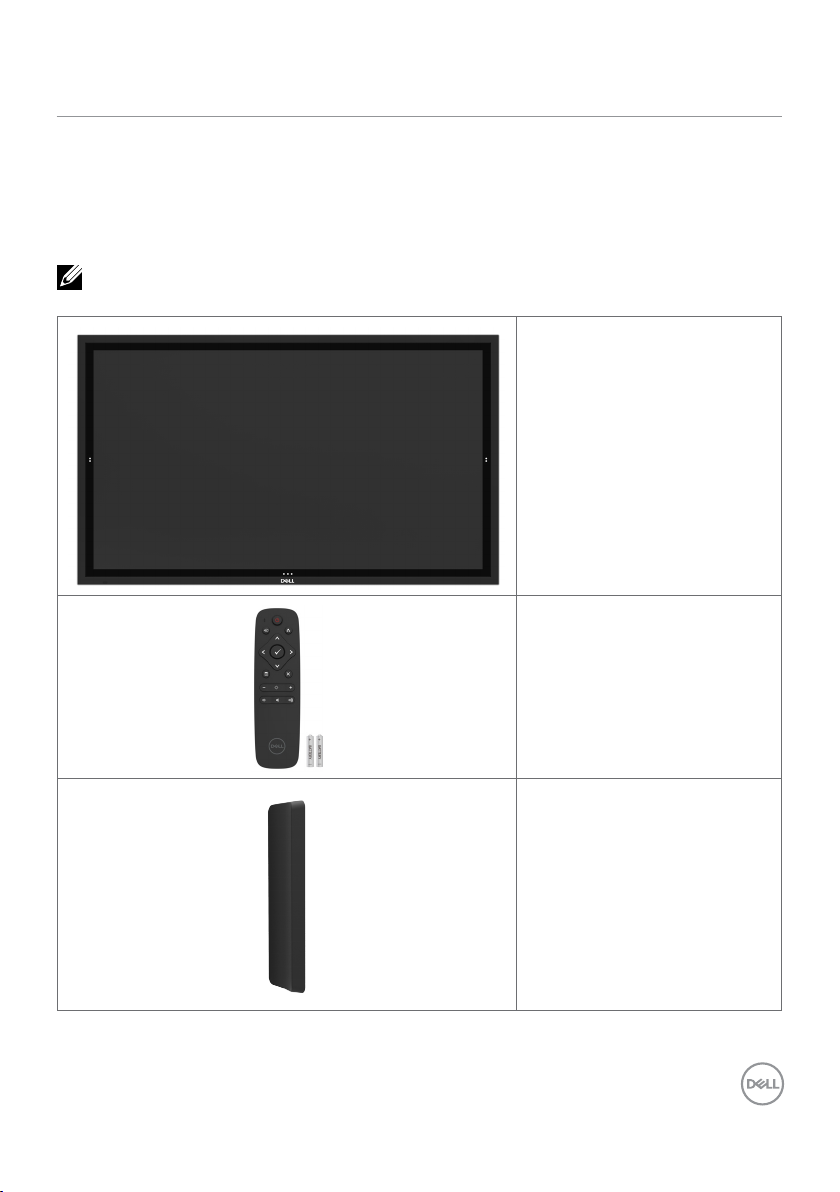

Your display ships with the components shown below. Make sure that you have received all the

components and contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your display. Somefeatures

or media may not be available in certain countries.

Display

Remote Control & Batteries

(AAA x 2)

Remote control holder

6 | About Your Display

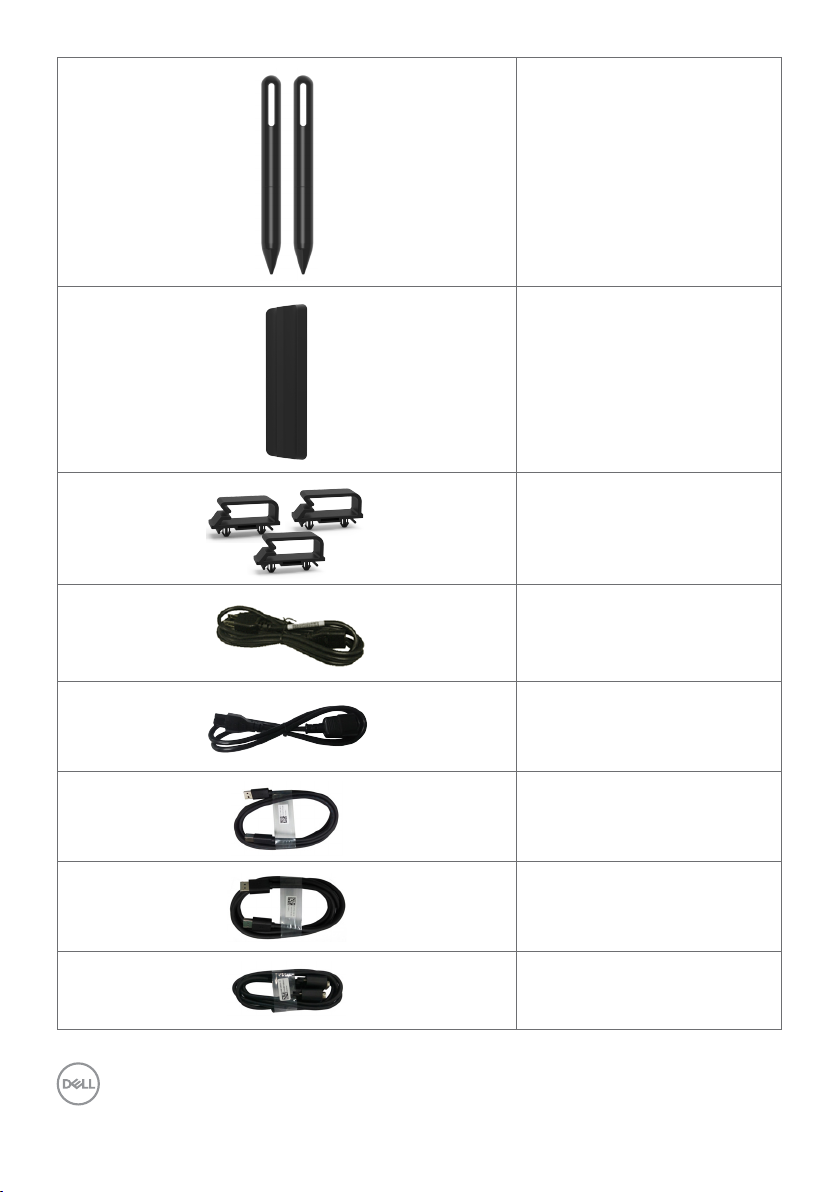

Stylus x 2

Stylus holder

Wire Saddle x 3

Power cable (varies by country)

Power cable for connecting

Optiplex system to display

(see Optiplex (Optional))

USB 3.0 upstream cable (enables

the USB ports on the display)

DP cable (DP to DP)

VGA cable

About Your Display | 7

HDMI cable

• Safety, Environmental and

Regulatory Information

• DisplayNote License Key

• Quick Setup Guide

8 | About Your Display

Product Features

The Dell C5518QT display has an active matrix, thin film transistor (TFT), liquid crystal display

(LCD), and LED backlight. The display features include:

• 138.78 cm (54.64-inch) active area display (Measured diagonally) 3840 x 2160 (16:9 aspect

ratio) resolution, plus full-screen support for lower resolutions.

• Video Electronics Standards Association (VESA™) 300 x 300 mm mounting holes.

• Plug and play capability if supported by your system.

• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

• Security lock slot.

• Supports Asset Management Capability.

• Arsenic-Free glass and Mercury-Free for Panel only.

• ≤ 0.3 W in Standby Mode.

• Easily setup with Dell Optiplex Mirco PC (Mirco Form Factor).

• Up to 20 points and 4 pens InGlass (TM) Touch technology.

• Optimize eye comfort with a flicker-free screen.

• The possible long-term effects of blue light emission from the display may cause damage

to the eyes, including eye fatigue or digital eye strain. ComfortView feature is designed to

reduce the amount of blue light emitted from the display to optimize eye comfort.

About Your Display | 9

Identifying Parts and Controls

Front view

Label Description

1Screen drop down touch key

2IR Lens

3OSD Launcher touch key (For more information, see Operating the Display)

4Power on/off button (with LED indicator)

Solid white light indicates the monitor is turned on and functioning normally. Blinking

white light indicates the monitor is in Standby Mode.

10 | About Your Display

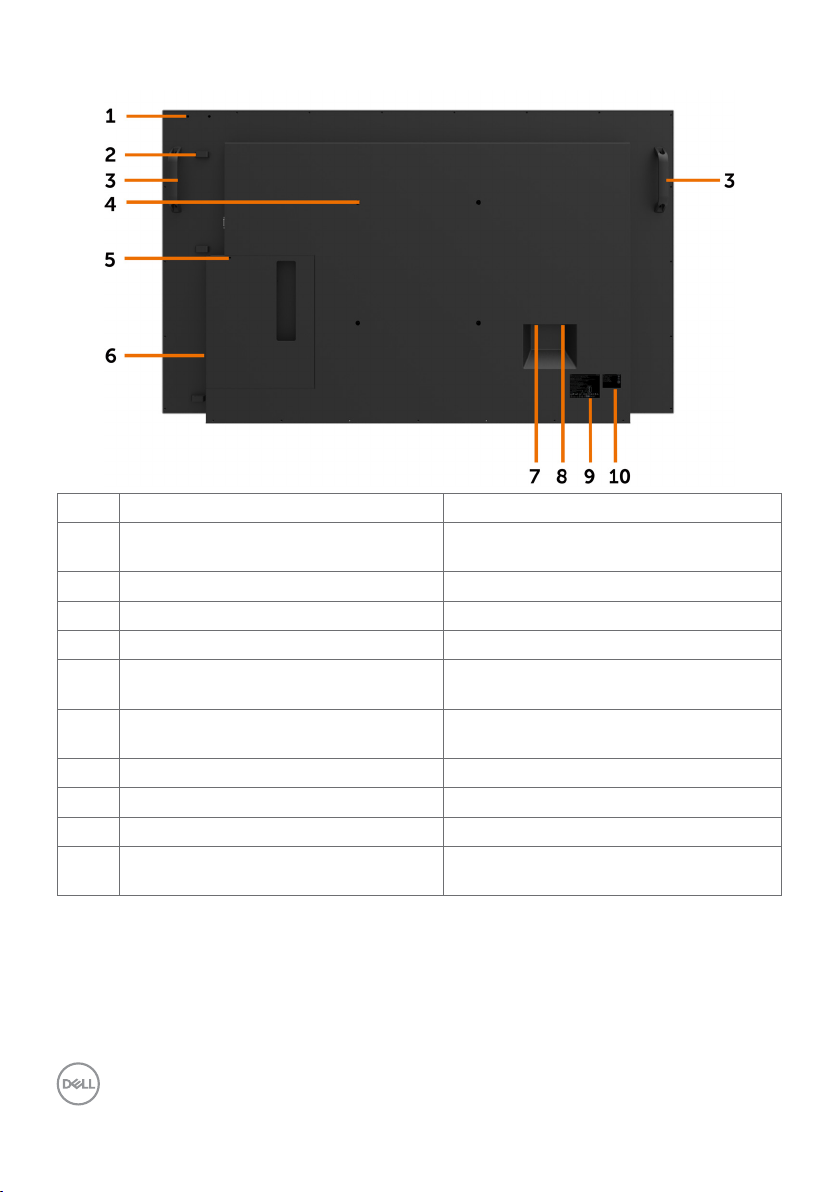

Back View

Label Description Use

1Mounting provision for WR517 (optional

item)

For Dell Wireless Receiver :

WR517(optional)

2Wire Saddle Use to handle display during installation

3Handle x 2 Use to move the display.

4VESA mounting holes (300 x 300 mm) To mount the display.

5Security lock slot Secures Optiplex with security cable lock

(sold separately).

6Optiplex holder Use to hold a Micro Form Factor Optiplex

PC.

7AC to optiplex (optional) AC power to optiplex power adapter.

8AC power connector To connect the display power cable.

9Regulatory label List of approved regulatory labels.

10 Barcode, serial number, and service tag

label

Refer to this label if you need to contact

Dell for technical support.
