Dell Precision M4800 Owner's manual

Dell Precision M4800/M6800

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

M4800 — Front, Back and Base View

Figure 1. Front View

1. display latch 2. microphone

Regulatory Model: P30F, P20E

Regulatory Type: P20E001, P30F001

2013 - 04

3. camera (optional)

4. camera LED

5. microphone

6. display latch

7. display

8. speakers (2)

9. power button

10. DisplayPort connector

11. USB 3.0 connector

12. USB 3.0 connector with powershare

13. hard drive

14. fingerprint reader (optional)

15. wireless switch

16. keyboard

17. contactless card reader (optional)

18. touchpad

19. display latch release button

20. touchpad buttons (3)

21. track stick buttons (3)

22. track stick

23. caps lock LED

24. device status lights (hard drive,

battery, wireless, Bluetooth, number

lock status lights)

25. volume control buttons (mute,

volume decrease, volume increase

buttons)

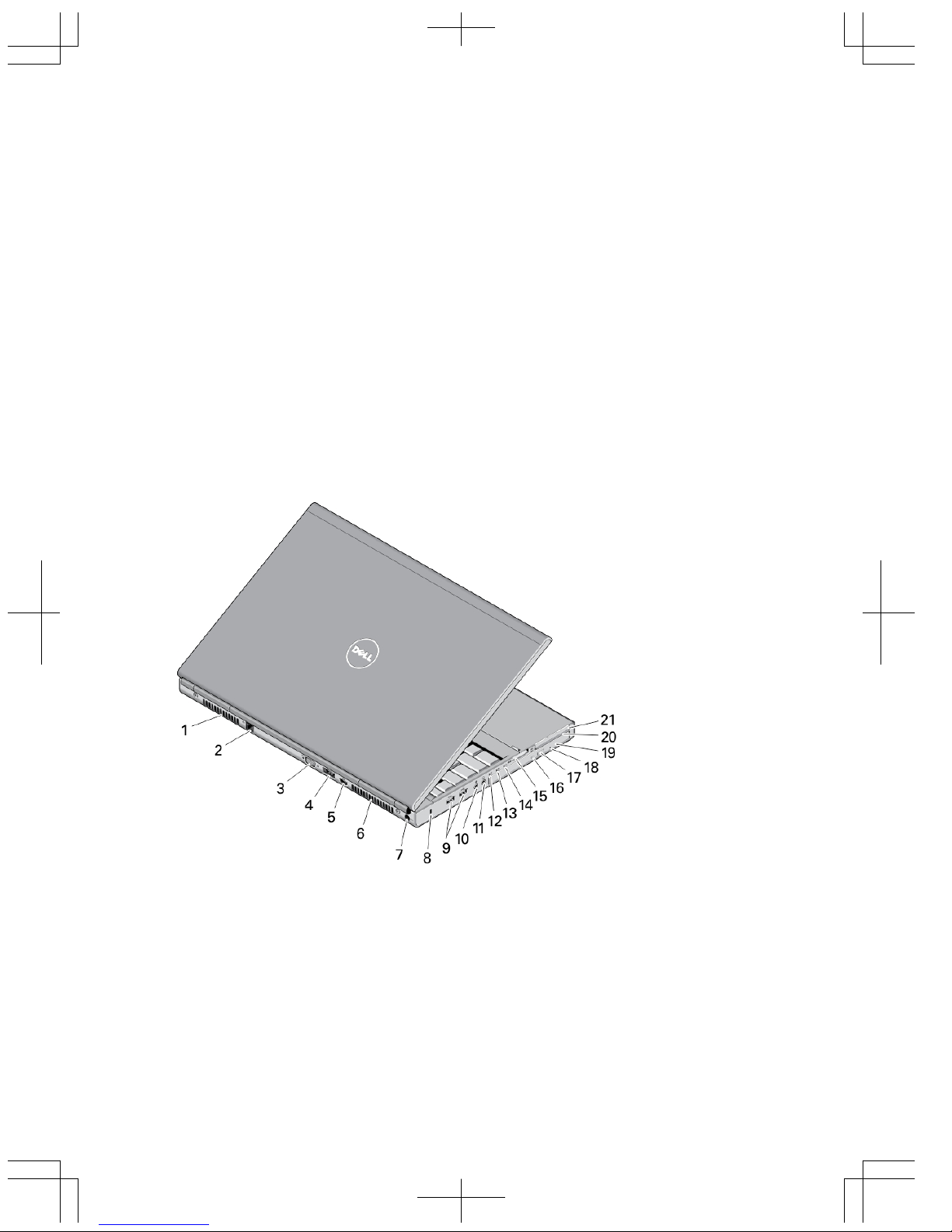

Figure 2. Back View

1. cooling vent

2. network connector

3. VGA connector

4. eSATA/USB 2.0 connector

5. HDMI connector

6. cooling vent

7. power connector

8. security cable slot

9. USB 3.0 connectors (2)

10. microphone connector

11. headphone connector

12. hard-drive status light

13. battery status light

14. power light

15. memory reader slot

16. optical drive status light

17. optical drive eject button

18. optical drive eject hole

19. optical drive

20. smart card reader slot (optional)

21. ExpressCard slot

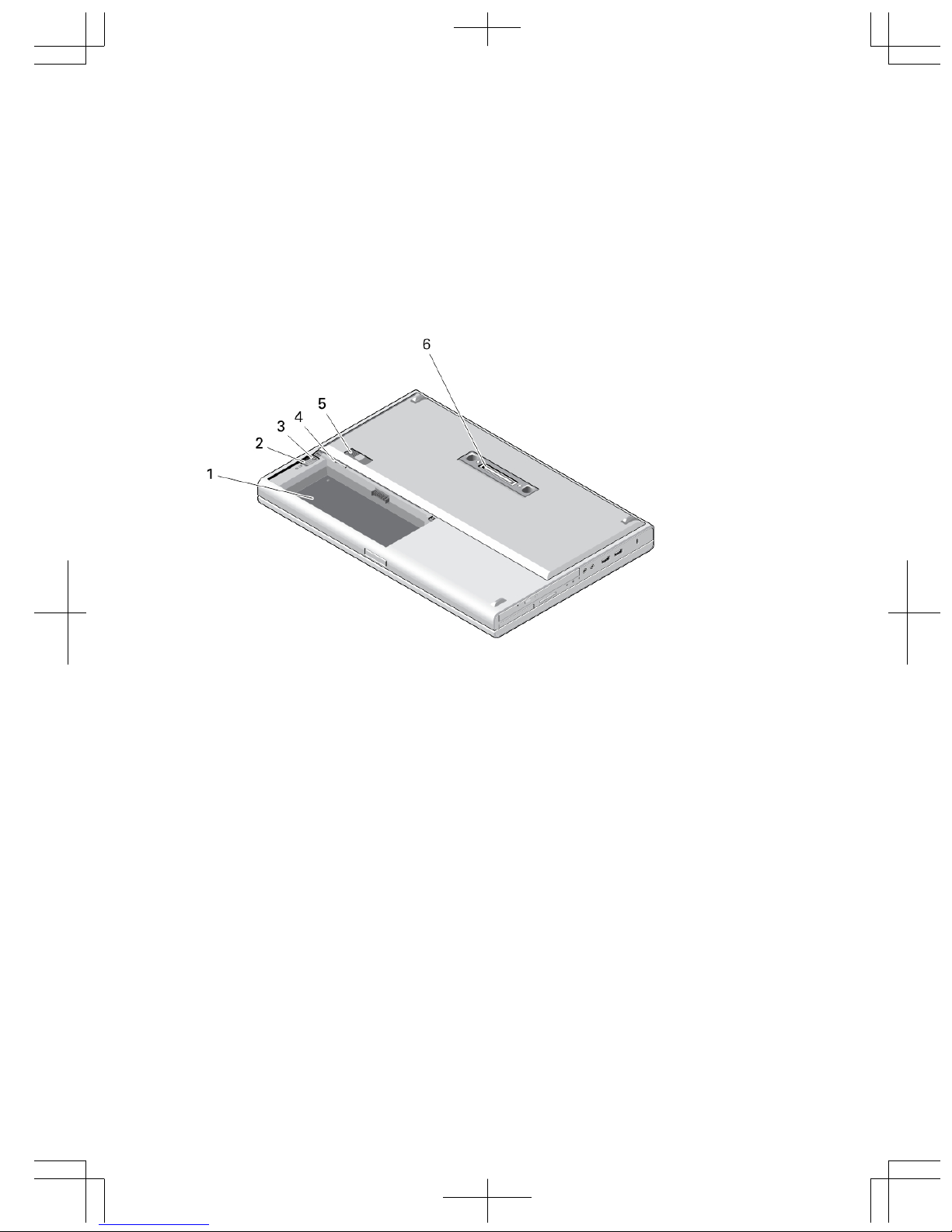

Figure 3. Base View

1. battery bay

2. HDD eject latch

3. HDD security screw

4. SIM slot

5. battery release latch

6. dock I/O port

M6800 — Front, Back and Base View

Figure 4. Front View

1. display latch

2. microphone

3. camera (optional)

4. camera LED

5. microphone

6. display latch

7. display

8. speakers (2)

9. power button

10. DisplayPort connector

11. USB 3.0 connector

12. USB 3.0 connector with powershare

13. hard drive

14. fingerprint reader (optional)

15. wireless switch

16. keyboard

17. contactless card reader (optional)

18. touchpad

19. display latch release button

20. touchpad buttons (3)

21. track stick buttons (3)

22. track stick

23. caps lock LED

24. device status lights (hard drive,

battery, wireless, Bluetooth, number

lock status lights)

25. volume control buttons (mute,

volume decrease, volume increase

buttons)

Figure 5. Back View

1. cooling vent

2. VGA connector

3. network connector

4. HDMI connector

5. eSATA/USB 2.0 connector

6. cooling vent

7. power connector

8. security cable slot

9. USB 3.0 connectors (2)

10. microphone connector

11. headphone connector

12. hard-drive status light

13. battery status light

14. power light

15. memory reader slot

16. optical drive status light

17. optical drive eject button

18. optical drive eject hole

19. optical drive

20. smart card reader slot (optional)

21. ExpressCard slot

Figure 6. Base View

1. battery bay

2. HDD eject latch

3. HDD security screw

4. SIM slot

5. battery release latch

6. dock I/O port

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety

information that shipped with your computer. For additional best practices

information, see www.dell.com/regulatory_compliance

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet may

cause fire or equipment damage.

CAUTION: When you disconnect the AC adapter cable from the computer, grasp

the connector, not the cable itself, and pull firmly but gently to avoid damaging the

cable. When you wrap the AC adapter cable, ensure that you follow the angle of the

connector on the AC adapter to avoid damaging the cable.

NOTE: Some devices may not be included if you did not order them.

1. Connect the AC adapter to the AC adapter connector on the computer and to the

electrical outlet.

Figure 7. AC Adapter

2. Connect the network cable (optional).

Figure 8. Network Connector

3. Connect USB devices, such as a mouse or keyboard (optional).

Figure 9. USB Connector

4. Open the computer display and press the power button to turn on the computer.

Figure 10. Power Button

NOTE: It is recommended that you turn on and shut down your computer at least

once before you install any cards or connect the computer to a docking device or

other external device, such as a printer.

Specifications

NOTE: Offerings may vary by region. The following specifications are only those

required by law to ship with your computer. For more information regarding the

configuration of your computer, click Start → Help and Support and select the

option to view information about your computer.

NOTE: A 64-bit operating system is required to support systems with 2 GB or greater

graphics and system memory. Significant system memory may be used to support

graphics, depending on system memory size, operating system, and other factors. A

64-bit discrete graphics driver may be downloaded from dell.com/support.

Power

AC Adapter M4800: 180 W

M6800: 240 W

Output 19.5 V

Input voltage 100 VAC - 240 VAC

Coin-cell battery 3 V / 210 mA

Physical M4800 M6800

Height (Touch)

• Front: 36.1 mm (1.42

inches)

• Rear: 40.2 mm (1.58

inches)

Height (Non-Touch)

• Front: 32.9 mm

(1.29 inches)

• Rear: 36.7mm

(1.44 inches)

• Front: 33.1 mm (1.30

inches)

• Rear: 37.2 mm (1.46

inches)

Width 376 mm (14.80 inches) 416.7 mm (16.40 inches)

Depth 256 mm (10.07 inches) 270.6 mm (10.65 inches)

Weight (Minimum) 2.89 kg (6.38 lb) 3.58 kg (7.89 lb)

Environmental

Operating Temperature 0 °C to 35 °C (32 °F to 95 °F)

Information para NOM (únicamente para México)

The following information is provided on the device described in this document in

compliance with the requirements of the official Mexican standards (NOM).

Voltaje de alimentación 100 VAC – 240 VAC

Frecuencia 50 Hz – 60 Hz

Consumo eléctrico M4800: 2.34 A / 2.5 A

M6800: 3.5 A

Voltaje de salida 19.50 V de CC

Intensidad de salida 9.23 A / 12.3 A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the

regulatory compliance website at www.dell.com/regulatory_compliance for more

information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at www.dell.com/support/manuals

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,

ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™are

trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®are

registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a

registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,

ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro Devices, Inc. Microsoft®,

Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are

either trademarks or registered trademarks of Microsoft Corporation in the United States and/or

other countries. Blu-ray Disc™is a trademark owned by the Blu-ray Disc Association (BDA) and

licensed for use on discs and players. The Bluetooth®word mark is a registered trademark and

owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is

a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.
