Access Panel

Dell™Latitude™E5410DiscreteServiceManual

Removing the Access Panel

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery.

3. Loosen the screw that secures the access panel to the computer.

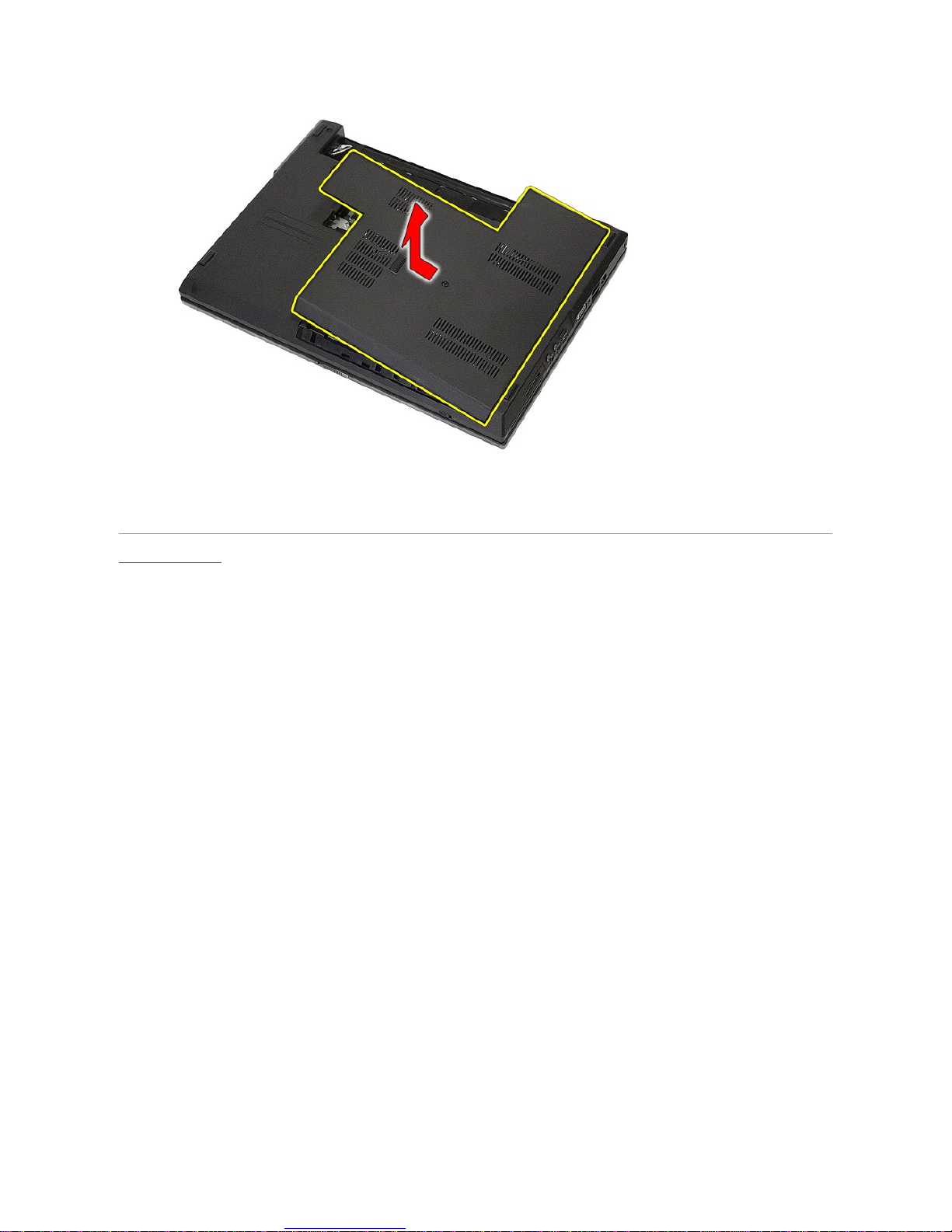

4. Lift up the access panel at an angle and remove it from the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

Replacing the Access Panel

To replace the access panel, perform the above steps in reverse order.

Back to Contents Page

Great user manuals database on UserManuals.info

Back to Contents Page

Display Assembly

Dell™Latitude™E5410DiscreteServiceManual

Removing the Display Assembly

1. Follow the procedures in Before Working Inside Your Computer.

2. Remove the battery from the computer.

3. Remove the access panel from the computer.

4. Remove the WLAN card from the computer.

5. Remove the LED cover from the computer.

6. Remove the keyboard from the computer.

7. Disconnect the wireless antennas and remove them from their routing paths.

8. Remove the screws securing the bottom of the display assembly to the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

9. Disconnect the display data cable from the system board.

10. Disconnect the camera cable from the system board.

Great user manuals database on UserManuals.info

11. Release the antenna cables from the WWAN card (if installed).

12. Release the cables from the routing path.

Great user manuals database on UserManuals.info

13. Remove the screws that secure the display assembly to the computer chassis.

14. Lift up the display assembly from the computer and remove.

Great user manuals database on UserManuals.info

Replacing the Display Assembly

To replace the display assembly, perform the above steps in reverse order.

Back to Contents Page

Great user manuals database on UserManuals.info

Back to Contents Page

Battery

Dell™Latitude™E5410DiscreteServiceManual

Removing the Battery

1. Follow the procedures in Before Working Inside Your Computer.

2. Slide the battery release latch into the unlocked position.

3. Remove the battery from the computer.

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

Great user manuals database on UserManuals.info

Replacing the Battery

To replace the battery, perform the above steps in reverse order.

Back to Contents Page
